Foiler Takes High Speed to New Heights

Boat History Report Banner Ad

Key Features

  • Height for stowage purposes: 7’6” (2.3 m)
  • Beam with foils deployed: 24’ (7.2 m)
  • Twin 320-hp BMW Diesel engines
  • 2 electric generators
  • 2 electric torpedoes to drive propellers
  • Maximum boat speed: 40 kts
  • Takeoff speed: 18 kts, with a crew of eight
  • Range: 130 miles at 30 kts
  • Full electric mode for 10 minutes below 10 kts

    • Specifications

    Length Overall 31’ / 9.45 m
    Beam 10’ 10''
    3.3 m (w/ foils raised)
    Dry Weight N/A
    Draft 2’
    0.6 m
    Deadrise/Transom N/A
    Max Headroom open
    Bridge Clearance N/A
    Weight Capacity 2,000 lbs.
    907 kg
    Person Capacity 8
    Fuel Capacity 79 gal.
    299 L
    Water Capacity N/A

    Engine Options

    Std. Power 2 x 320-hp BMW diesel engines
    Opt. Power Not Available

    Captain's Report

    Promotional video produced by Enata

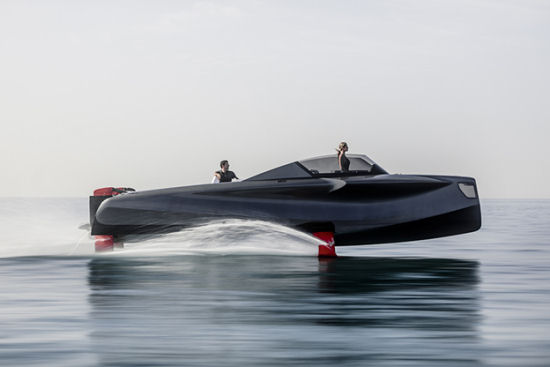

    Foiler Takes High Speed to New Heights running

    The 40-knot Foiler made her debut at the Dubai International Boat Show.

    The Foiler is delivering excitement along with its smooth ride. Riding upon retractable carbon-fiber hydrofoils, the Foiler’s hull is raised 5’ (1.52 m) above the water, with the added benefit of up to 20% increased fuel efficiency. Traveling at speeds up to 40 knots, the Foiler is powered by a pair of 320-hp BMW engines as well as two electric generators and can carry up to eight persons.

    The Foiler has a progressive takeoff and landing at around 18 knots, according to the builder Enata, who credits the combination of her hull design with hydrofoiling technology. Enata says the boat can handle seas around 6’ (1.83 m).

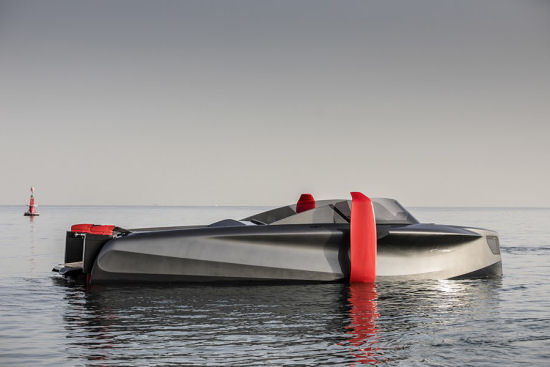

    Foiler Takes High Speed to New Heights rest

    At rest, the foils are retracted.

    Because of the reduced wetted-surface drag, the boat offers speed in combination with fuel efficiency. At a cruise speed of 30 knots, the builder says the boat has a range of 130 miles on its 79-gallon (299 L) fuel tank.

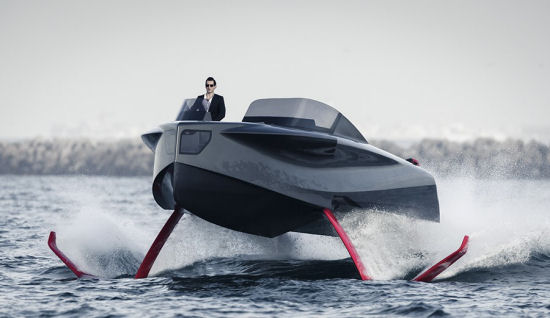

    Foiler Takes High Speed to New Heights top speeds

    The Foiler hits foiling speed around 18 knots, and cruises at 30 knots.

    The hybrid system can use the battery system in conjunction with the electric torpedos to propel the boat at up to 10 knots on silent electric power for up to 10 minutes.

    The electric torpedos that drive the Foiler as well as her hydrofoils retract out of the water, simplifying storage aboard superyachts or support vessels. Foiler says the vessel is very quiet at speed, because the hull has minimal contact with the water, and that the boat produces a reduced wake.

    While the Foiler is designed to appeal to the superyacht market as a toy and tender, the idea of foiling powerboats will become more mainstream in the future thanks to the combination of efficiency and speed.

    Specifications

      LOA: 31’ (9.45 m)

      Beam with foils raised: 10’10” (3.3 m)

      Beam with foils deployed: 24’ (7.2 m)

      Draft in non-foiling mode: 2’ (0.6 m)

      Height for stowage purposes: 7’6” (2.3 m)

      Fuel: 79 gal. (299 L)

    Propulsion system

    • • 2x 320-hp BMW Diesel engines
    • • 2 Electric generators
    • • 2 Electric torpedoes to drive propellers

      Maximum boat speed: 40 kts

      Takeoff speed: 18 kts, with a crew of 8

      Range: 130 miles at 30 kts

      Full electric mode for 10 minutes below 10 kts
