Brief Summary
The Galeon 510 Skydeck is fitted with a retracting glass sunroof over the lower helm station plus an aft top deck with sun lounges and second helm. This allows her to combine the advantages of a flybridge and the sporty lines of a hardtop express cruiser in a comfortable two-stateroom yacht. Large hullside windows and skylights bring lots of light below decks as well as making for great views from below while underway. Her joiner work is excellent.
Key Features
U-shaped foredeck sofa
Stern hot and cold freshwater shower
Electric canvas cover
Galley 240V two-burner induction cooktop
Port and starboard single seats adjacent to
helm seat with convertible backrests
U-shaped sofa with wood dining table
Queen-size bed centerlined with polyurethane high-resilience foam mattress, bed cover, and storage below
Specifications
Length Overall |
53’ 2'' 16.20 m |
Beam |
14’ 8'' 4.46 m |
Dry Weight |
50,155 lbs. 22,750 kg |
Tested Weight |
N/A
|
Draft |
4' 7'' 1.39 m |
- Draft Up |
N/A |
- Draft Down |
N/A |
- Air Draft |
N/A |
Deadrise/Transom |
N/A |
Max Headroom |
open |
Bridge Clearance |
N/A |
Weight Capacity |
9,414 lbs. 4,270 kg |
Person Capacity |
12 |
Fuel Capacity |
476 gal. 1,802 L |
Water Capacity |
172 gal. 900 L |
Length on Trailer |
N/A |
Height on Trailer |
N/A |
Trailer Weight |
N/A |
Total Weight (Trailer, Boat, & Engine) |
N/A |
Prices, features, designs, and equipment are subject to change. Please see your local dealer or visit the builder's website for the latest information available on this boat model.
Engine Options
Std. Power |
2 x 670-hp Volvo Penta D11-670
|
Tested Power |
Currently no test numbers
|
Opt. Power |
Not Available
|
Captain's Report
Snapshot of Galeon 510 Skydeck

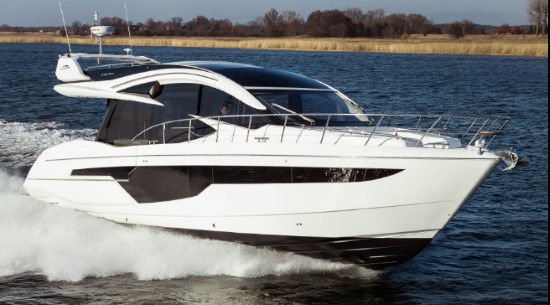

The 510 Skydeck combines the advantages of a flybridge and the sporty lines of a hardtop express cruiser in one attractive yacht. The 510 is fitted with a retracting glass sunroof over the lower helm station plus an aft top deck with sun lounges and second helm station. Three cockpit layouts are available and all allow for the optional beach mode that extend the cockpit beam by 5’ (1.52 m). Stepping inside, immediately to port is the galley and the salon lounges and helm are on the same level. Down below, the master cabin is located amidships and it offers a double berth, large wardrobe and private head. In-deck skylights will dazzle guests with spectacular night views in the bow VIP cabin and the aft guest cabin can be a study, wardrobe or belowdecks leisure area.
The 510 Skydeck is available with twin diesel inboards up to 1450 combined horsepower.

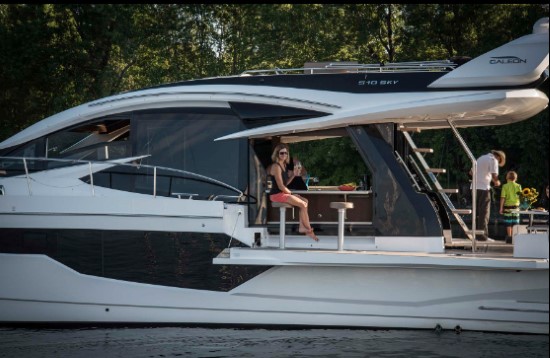

The most interesting option available on the 510 Skydeck is the optional beach mode with side decks that fold out to widen the beam by 5’ (1.52 m).

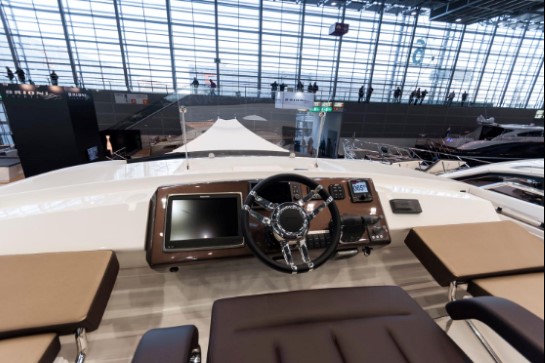

Looking at the 510 Skydeck, it would be easy to miss the flybridge, but it’s there with a helm station and sun lounges on each side.

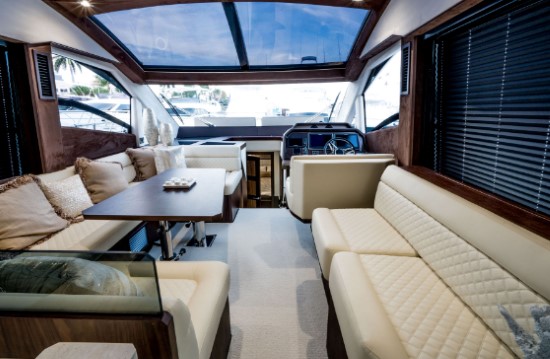

Putting the salon and helm on the same level and adding a large glass sunroof overhead give the 510 Skydeck’s interior a large feel.

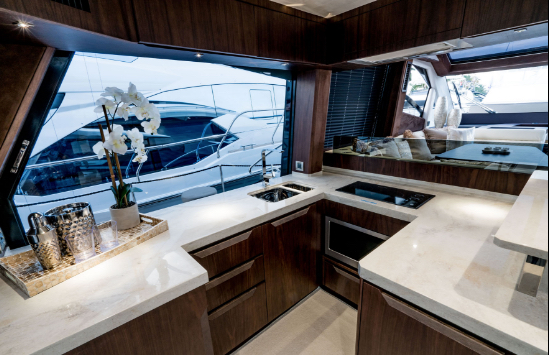

The galley is just inside the sliding doors to port, which makes it easy to serve lunch to folks in the aft cockpit or in the salon.

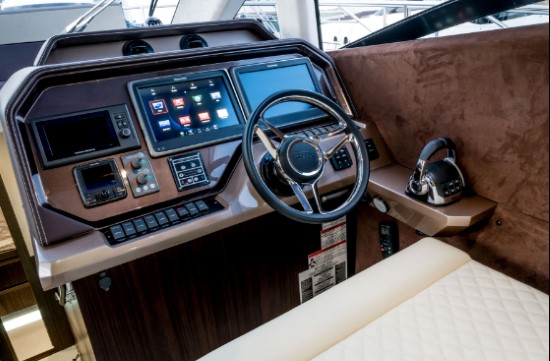

The primary helm station has space for two electronics screens and a companion can join the captain on the doublewide seat.

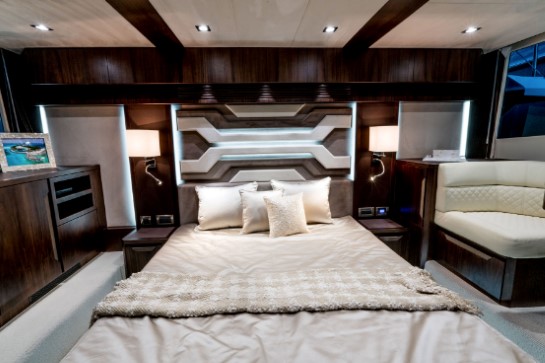

The master stateroom has a double-sized berth plus large windows that provide water-level views.

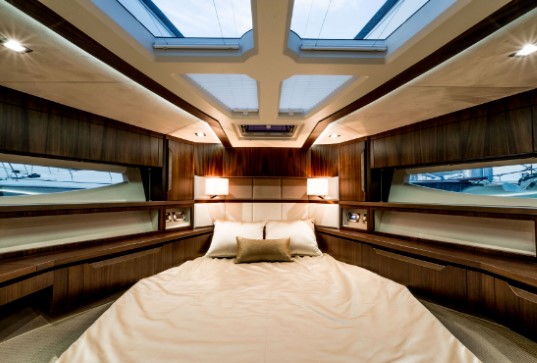

In the bow, the overhead skylights and long side windows let in plenty of natural light and provide impressive views.

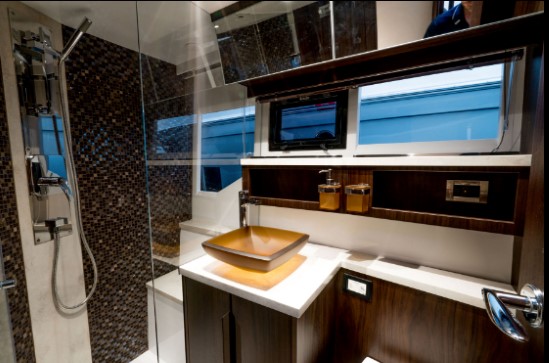

The head has a modern feel with the free-floating sink and tile mosaic pattern finish in the shower.
Standard and Optional Features
Marine Electronics
Autopilot |
Optional |
Fishfinder |
Optional |
GPS/Chart |
Optional |
Radar |
Optional |
VHF Radio |
Optional |
Systems
Air Cond./Heat |
Standard |
Battery Charger/Converter |
Standard |
CD Stereo |
Standard |
Head: Fixed |
Standard |
Shore Power |
Standard |
Trim Tabs |
Standard |
TV/DVD |
Optional |
Water Heater |
Standard |
Galley
Refrigerator |
Standard |
Stove |
Standard |
Exterior Features
Outlet: 12-Volt Acc |
Standard |
Swim Platform |
Standard |
Tower: Watersports |
Standard |
Transom Shower |
Standard |
Boats More Than 30 Feet
Bow Thruster |
Optional |
Freezer |
Standard |
Generator |
Standard |
Glendinning Cablemaster |
Optional |
Washer/Dryer |
Optional |
