Brief Summary

Hargrave Custom Yachts’ new 76-footer does a masterful job of getting four staterooms – all with en suite heads – plus crew’s quarters aft, into 76’. Look around and you will discover that there are not many motoryachts with so many accommodations. This boat was designed for a couple who enjoy cruising with a large family, but she would be equally comfortable for friends and grandchildren. While the boat shown here is the first 76 Hargrave has built, you can customize a new Hargrave anyway you want. Best of all, the price is hard to beat – $4,499,220, fully equipped and ready to cruise.

Key Features


Length Overall 76'
23.16 m
Beam 20'
6.1 m
Dry Weight N/A
Tested Weight N/A
Draft N/A
- Draft Up N/A
- Draft Down N/A
- Air Draft N/A
Deadrise/Transom N/A
Max Headroom N/A
Bridge Clearance N/A
Weight Capacity N/A
Person Capacity N/A
Fuel Capacity 2,000 gal.
7,570 L
Water Capacity 350 gal.
1,324 L
Length on Trailer N/A
Height on Trailer N/A
Trailer Weight N/A
Total Weight
(Trailer, Boat, & Engine)

Prices, features, designs, and equipment are subject to change. Please see your local dealer or visit the builder's website for the latest information available on this boat model.

Engine Options

Std. Power Man D2842 LE433 (V12) 1550-hp
Tested Power Man D2842 LE433 (V12) 1550-hp
Opt. Power Not Available

Test Results - Change Measurement Unit

RPM MPH Knots GPH MPG NMPG Stat. Mile NM dBa
675 6.8 5.9 6.0 1.1 1.0 2025 1761
800 8.7 7.5 8.0 1.1 0.9 1946 1692
1000 10.6 9.2 13.0 0.8 0.7 1468 1276
1200 12.4 10.8 24.0 0.5 0.5 930 809
1400 14.2 12.3 38.0 0.4 0.3 670 583
1600 15.2 13.2 55.0 0.3 0.2 497 433
1800 17.4 15.1 76.0 0.2 0.2 411 357
2000 20.4 17.7 100.0 0.2 0.2 367 319
2200 23.3 20.2 134.0 0.2 0.2 312 272
2352 25.5 22.2 169.0 0.2 0.1 272 236
675 1761 3259 10.90 22.71 0.48
800 1692 3132 14.00 30.28 0.46
1000 1276 2363 17.10 49.21 0.35
1200 809 1497 20.00 90.85 0.22
1400 583 1078 22.90 143.85 0.16
1600 433 800 24.50 208.20 0.12
1800 357 661 28.00 287.69 0.10
2000 319 591 32.80 378.54 0.09
2200 272 502 37.50 507.24 0.07
2352 236 438 41.00 639.73 0.06

All fuel consumption numbers are the total for all engines in the boat. Speeds are measured with Stalker ProSports radar gun or GPS. Fuel consumption (gallons per hour) measured with Floscan digital fuel-flow meter or by on-board factory-installed diagnostic instruments. Range is based on 90% of published fuel capacity. Sound levels determined using Radio Shack digital decibel meter on A scale. 68 dBA is the level of normal conversation. Time to plane is measured from start of acceleration to formation of rooster tail behind boat.

Performance Chart

Performance Chart

Acceleration Times & Test Conditions

Time To Plane N/A
0 to 30 N/A
Ratio N/A
Props Hung Shen 42'' 39 '' pitch, 5-blade
Load N/A
Climate N/A

Captain's Report

Hargrave 76

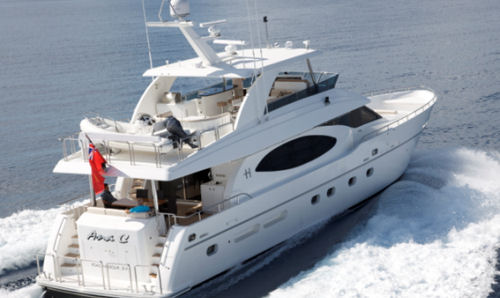

The Hargrave Custom Yachts 76 boat was designed for entertaining eight people while underway and cruising in comfort.

One of the good things about Hargrave is that when you tell them how you are going to use your motoryacht, they know immediately what you will need in terms of equipment. Take a look at the list of equipment that was actually installed on Ana C, the boat in the pictures, and you will see how extensive the Hargrave Custom Yachts equipment list really is.

Hargrave 76
The full-beam master provides luxurious accommodations without being over the top. Yes, the bed has a 12” mattress.

Equipment Describes the Owner

Included in that $4.5 million price are 10 pages of items (see below). A careful review of the equipment that the owner has specified, or has taken Hargrave’s recommendation about, tells us a lot about how this boat is going to be used by this particular owner. Let’s take a look at a few things—

*Bow and stern thrusters

-- The owner has a captain but often he likes to take the boat out by himself and the thrusters make docking ever so easy when there is a strong breeze or current in the marina.

Hargrave 76
The aft deck has plenty of seating.

*3 Freeman hatches

– This is a Hargrave standard. The rugged, dog down Freeman hatches can take tons of water without leaking into the lazarette or chain locker. The owner will be using his boat most of the time in the Caribbean where things can get pretty sloppy.

*9 square feet Naiad stabilizers

– Typically, 7 square feet fins would be specified for this size boat, but the owner and Hargrave agreed that it would be better to give up a knot of top speed and have a more comfortable ride.

Hargrave 76
Imagine all of this flying bridge space buttoned up with isinglass. 48,000 BTUs of AC will keep things cool even in the sunny caribee.

*Enough BTUs in AC

to turn the entire boat into a meat locker – The owner has installed isinglass under his large hardtop on the flying bridge and plans to keep it, and the rest of the boat, cool. In the Caribbean, the hot sun and warm water conspire to make cooling difficult, so Hargrave has loaded the boat up with AC BTUs –149,000 to be exact.

*Headhunter Waste Treatment System

– Headhunter is the Mercedes of WC and waste treatment systems and that is why it is standard equipment on all Hargraves.

*Hot Water Re-circulating Pump

– Standard on Hargrave yachts because every owner wants to pamper his guests and to make sure they don’t have to wait for hot water.

*Honeycomb Core for Cabinets,

shelves and non-structural joinerwork -- Weight means lower speeds and more fuel consumed. Hargrave has taken 5 tons of weight out of hull #1 of their 76 series by using light ply and honeycomb in the joinery, plus using MAN engines instead of Cats.

Hargrave 76

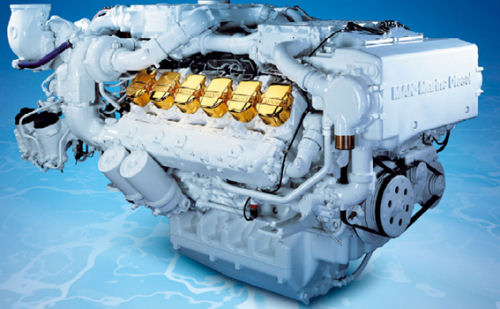

At 4,763 lbs. (2165 kg.) this 1550-hp MAN V-12 is 1,000 lbs. lighter than a Cat C-32. The 2,000 lbs. savings helped enable the 76 to go 20 knots cruise and 24 WOT, according to Hargrave.

*MAN 12-V, 1550-hp Diesel Engines

– Hargrave Custom Yachts usually only installs Caterpillar engines, so this is an important departure. The owner wanted twin MANs and he got them. The MANs saved 2,000 lbs. total over the Cat C-32s which Hargrave normally installs.

Hargrave 76
A teak hardwood floor and modern furniture in the saloon of the Ana C give her a contemporary feel. At Hargrave you can have it anyway you want.

*Teak Deck in the Main Saloon

– Teak in the main saloon of a motoryacht of this size is unusual and this tells us – along with clean, simple décor – that the owner wanted a modern-looking boat rather than a more traditional motoryacht treatment.

*Hard Top and Radar Mast

– A hard top not only provides important shade, it also provides a large platform to mount electronics gear as well as isinglass. With isinglass the owner can create another large all-weather living area for very little extra expense. And he’ll keep it cool with 48,000 BTUs of AC.

*Stidd “Admiral” Seat

– This owner knows his brands and wants to go first class.

*Enough Electronics to Run a Battleship

– The owners will have duplicate readouts at both helm stations and redundancy in radar, VHF, gps, and chartplotters. The owner has owned nine boats and knows what he needs.

Hargrave 76

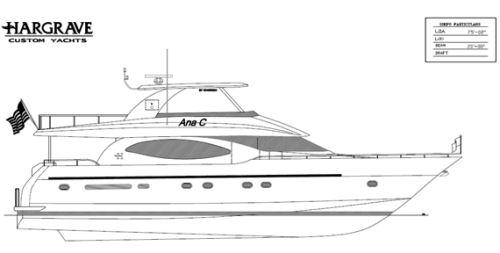

Hull #1 of Hargrave’s 76 Series. Note the raised bulwark in the bow.
Hargrave 76

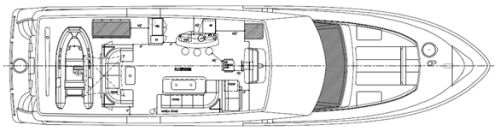

With a 20’ beam this new Hargrave 76 can easily handle a 14’ Nautica tender with 50-hp Yamaha outboard. Note ample entertaining area.
Hargrave 76

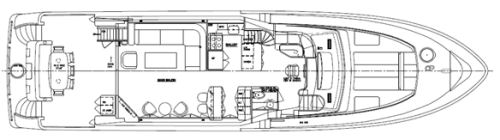

The main deck has a saloon bar, galley, settee, helm and even a day head.
Hargrave 76

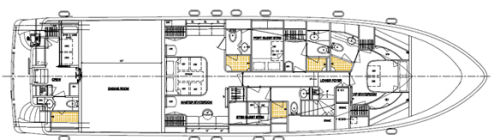

Four staterooms, all with en suite heads is unusual on 76-footers. This boat also has a crew cabin aft with full head.

Below is the actual equipment specification list for hull #1 of Hargrave Custom Yacht’s new 76 Series. Take a good look at this list and you will discover that little if anything was left off. Her price of $4,499,220 is all inclusive. Click here for 10-page equipment list on the Hargrave 76 Ana C ...

Test Result Highlights

  • Top speed for the Hargrave 76 Ana C (2013-) is 25.5 mph (41 kph), burning 169.0 gallons per hour (gph) or 639.67 liters per hour (lph).
  • Best cruise for the Hargrave 76 Ana C (2013-) is 17.4 mph (28 kph), and the boat gets 0.23 miles per gallon (mpg) or 0.1 kilometers per liter (kpl), giving the boat a cruising range of 411 miles (661.44 kilometers).
  • Tested power is Man D2842 LE433 (V12) 1550-hp.

Standard and Optional Features

Marine Electronics

Autopilot Standard
GPS/Chart Standard
VHF Radio Standard


Air Cond./Heat Standard
Battery Charger/Converter Standard
CD Stereo Standard
Dripless Shaft Seals Standard
Head: Fixed Standard
Trim Tabs Standard
TV/DVD Standard
Washdown: Fresh Water Standard
Water Heater Standard
Windlass Standard


Microwave Standard
Refrigerator Standard
Stove Standard

Exterior Features

Hardtop Standard
Swim Ladder Standard
Swim Platform Standard
Transom Shower Standard
Wet bar Standard

Boats More Than 30 Feet

Bow Thruster Standard
Davit Standard
Freezer Standard
Generator Standard
Glendinning Cablemaster Standard
Oil Change System Standard
Trash Compactor Standard
Washer/Dryer Standard
