Brief Summary

Building off the huge success of last year’s mega popular 22 MXZ, this all-new 24 MXZ proves that bigger really is better. With seating for 18, there are no worries about having to leave anyone sitting on the sidelines while the action is on the water. She’s loaded with features that bring performance up to the professional level while still being able to handle the family type activities. In short, she’s the whole package, just made a little bit bigger.

Key Features

  • Surf Gate
  • MaliView dash with Malibu Touch Command
  • Power wedge wake foil
  • Wakeview flip up seating
  • Rear prep bench
  • 1,450-lbs (658 kg) of hard-tank ballast
  • Specifications

    Length Overall 24' 5''
    7.44 m
    Beam 8' 6''
    2.59 m
    Dry Weight 4,800 lbs.
    2,177 kgs
    Tested Weight N/A
    Draft 27''
    .69 m
    - Draft Up N/A
    - Draft Down N/A
    - Air Draft N/A
    Deadrise/Transom N/A
    Max Headroom open
    Bridge Clearance N/A
    Weight Capacity N/A
    Person Capacity N/A
    Fuel Capacity 78 gal.
    295 L
    Water Capacity N/A
    Length on Trailer N/A
    Height on Trailer N/A
    Trailer Weight N/A
    Total Weight
    (Trailer, Boat, & Engine)

    Prices, features, designs, and equipment are subject to change. Please see your local dealer or visit the builder's website for the latest information available on this boat model.

    Engine Options

    Std. Power Monsoon 410-hp 409/L96 6.0L CAT
    Tested Power Currently no test numbers
    Opt. Power Monsoon 450-hp 427/LS3 6.2L CAT
    Monsoon 555-hp 572/LSA 6.2L non CAT
    Monsoon 410-hp 409/L96 6.0L CAT with chrome package

    Captain's Report

    Mission Statement

    The Malibu Wakesetter 24 MXZ was created to serve as the new flagship of the builder's popular pickle-forked MXZ line. She’s built off the foundation of the 22, which was released last year at Surf Expo, and is designed to create wakes with features that appeal to professional level surfers and boarders.

    Malibu Wakesetter 24 MXZ

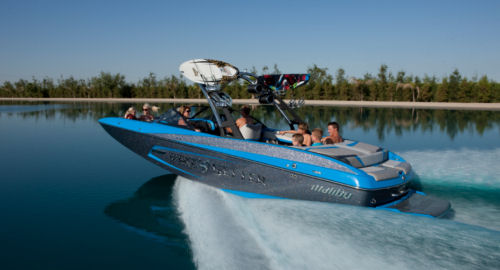

    She doesn’t have to be going for max wakes all the time. In cruise mode, the 24 MXZ cuts cleanly through the water with her performance hull.
    Malibu Wakesetter 24 MXZ

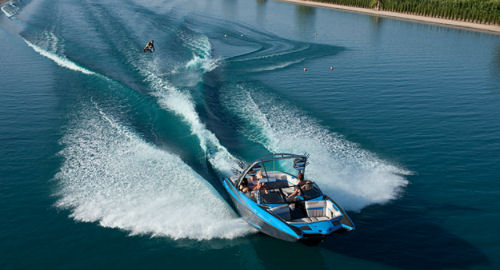

    Her keel mounted fins help ensure that the 24 MXZ will track straight and true even when the end of the towline is pulling from side to side.

    Notable Features

    The Malibu Wakesetter 24 MXZ is designed for serious wakeboarders and surfers with a lot of friends. Some of what make her a standout are:•

    Surf Gate.

    This is a hull attachment that is completely controlled by the touch screen. It allows adjustment of two, large tabs at the stern of the boat not -- in a traditional horizontal plane but in a vertical plane. Activating the port "gate" causes the starboard wave to clean up for Wake Surfing; the reverse is true for activation of the starboard gate. The 24 MXZ was designed to attack every on-the-water activity imaginable, and thanks to the optional Surf Gate, the time to switch between them is significantly reduced. This allows more time to focus on the watersports, rather than the setup.

    Malibu Wakesetter 24 MXZ

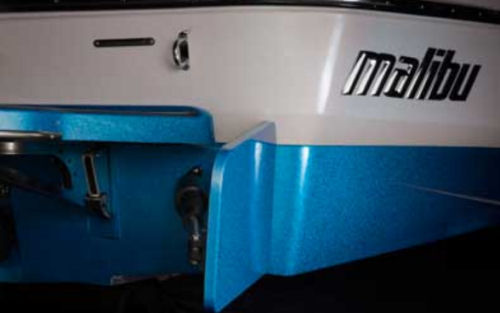

    The vertical "gates" of the "Surf Gate" system eliminates the need to shift internal ballast when switching from a port to starboard wake.

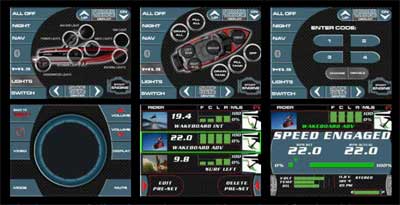

    MaliView Dash with Malibu Touch Command.

    Easy to operate touch screen controls allow the operator to take command of everything from cruise, presets, media, lights, ballast… basically everything from stem to stern. Bluetooth technology even allows you to control audio and write presets from your smart phone.

    Malibu Wakesetter 24 MXZ

    Power Wedge Wake Foil.

    To create a larger wake simply put more of the boat in the water. The power wedge does this with the push of a button and then save that favorite spot on a preset. Activate the auto wedge setting and realize fuel savings and faster time to plane. Quicker times to plane and lower bow rise means less RPM needed to pull rider on the water.

    Malibu Wakesetter 24 MXZ

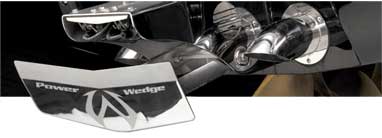

    The "Power Wedge" is Malibu's patented wave maker.

    Wakeview flip up seating.

    This allows more people to be facing aft towards the end of the towline and lessens the need for playing musical chairs to find the best seat in the house when a crowd is onboard and wants to watch the show astern.•

    Rear prep bench.

    This, combined with the water level swim platform creates the perfect staging area for putting boards on.

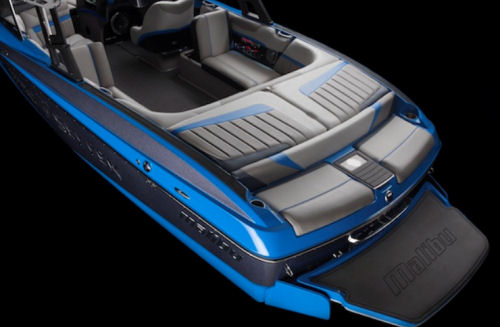

    Malibu Wakesetter 24 MXZ
    The swim platform on the Wakesetter 24 MXZ is long and low to make putting the boards on easy and comfortable. Not the port "gate".

    1,450-lbs (658 kg) of hard-tank ballast.

    Increase the size of the wake by increasing the ballast in the boat to get her lower in the water. The ballast (up to 173 gallons) is all controlled by the MaliView dash with all settings saved as presets.

    Malibu Wakesetter 24 MXZ

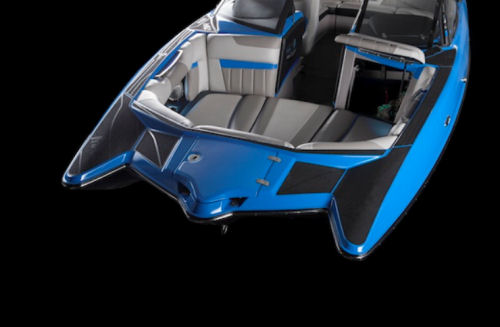

    With Malibu's pickle-fork bow, the wide beam is carried further forward allowing for more room in the bow area.
    Malibu Wakesetter 24 MXZ

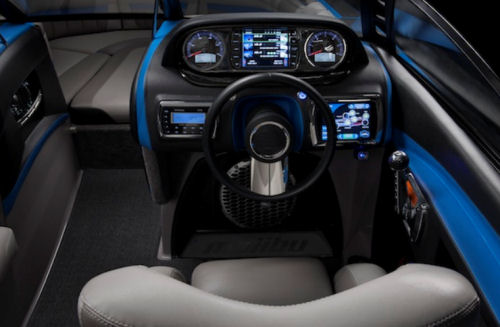

    The performance dash of the 24 MXZ is reminiscent of a high-end sports car.
    Malibu Wakesetter 24 MXZ

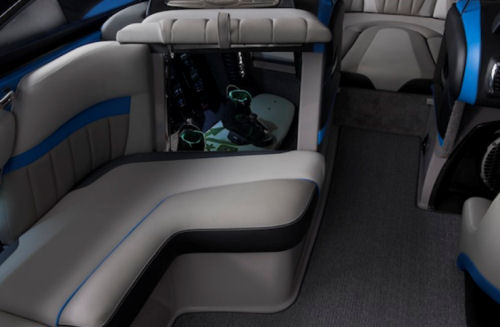

    No worries about filling up the racks on the tower as there's plenty of storage to go around on the 24 MXZ.


    Clearly Malibu has positioned itself as a company that continually challenges itself and strives to upgrade its products. While it would have been easy enough to sit on the accolades received from the immensely popular 22 MXZ, that's just not the Malibu way. The new, optional "Surf Gate" wake system is a clever innovative device that seems to create a high, clean wake for both wakeboarding and wakesurfing. Finally, because the Malibu 24 MXZ is an inboard boat she is safe for boarders riding close to the transom.

    Standard and Optional Features

    Marine Electronics

    GPS/Chart Optional


    CD Stereo Optional
    Dripless Shaft Seals Standard
    Shore Power Optional
    Washdown: Raw Water Optional

    Exterior Features

    Carpet: Cockpit Optional Snap-in
    Swim Ladder Optional
    Swim Platform Standard
    Tower: Watersports Standard
    Transom Shower Optional


    Bimini Top Optional


    Full Warranty Information on this brand coming soon!
