Waiting for the Moon: How to Use a Tidal Grid

sailboat on tidal grid, sailboat repairs

A tidal grid is a structure be built near a dock so a boat with a deep keel can have work done without needing to be hauled.

With a quiet but definite thump, the keel touches bottom. My husband peers at me over the spiderweb of ropes keeping the boat upright and gives a cautious thumbs-up. It is our first time careening on a tidal grid, and we are safely aground.

In the days before Travelifts, mariners used tidal grids for maintenance. They are simple: heavy planks are set in the beach next to a reinforced dock. They remain underwater at high tide and exposed at low tide. Boats can be tied to the pilings and when the tide goes out, the keel rests on the planks, leaving the boat aground but upright. Modern marine regulations do not permit pressure-washing or scraping of hulls painted with ablative paints, but there are many minor jobs that can be performed.

My husband and I needed to do some below-waterline work on our CT41 ketch, Gitano II. We heard we could use a tidal grid for a fraction of the price of a haul-out. Although the thought of balancing our 15-ton boat on its four-inch wide keel made us nervous, we gave it a try. It turned out to be straightforward. Instead of using a crane to lift our boat out of the ocean, we rested on the tidal grid and waited for the moon to move the water out of the way.

sailboat on tidal grid, sailboat repairs

Make sure you know the keel depth and boat weight among other statistics.


Before booking a spot, decide if a tidal grid this will work for your boat. Our sailboat has a full keel, which is ideal. Sailboats with fin keels and skeg-hung rudders can be careened with sturdy adjustable supports under the stern, one on each side, and extra lines to hold up the bow. Powerboats, especially those with full keels, skegs, or tunnels, can also be careened on a grid.

Next, call the facility you plan to use. Find out the maximum boat size it can handle, the plank spacing, and whether they have any special regulations. The yard we used had two grids, a large and a small that can handle boats up to 50’ (15.24 m) and 35’ (10.67 m), respectively. For us, plank spacing was not an issue, but it is advisable to make sure the keel will span at least two planks.

Check the tide tables. You need a tidal range that allows you to get on and off the grid with water to spare. The Ladysmith grids are bare at a five-foot tide, and our boat draws six feet, so we needed at least an 11’ (3.35 m) tide. We chose a tide just over 11’ (3.35 m) and we barely managed to get on and off the grid. Next time, we will plan for more leeway because weather and wind can affect local tidal heights and an inch can make all the difference.

sailboat on tidal grid, sailboat repairs

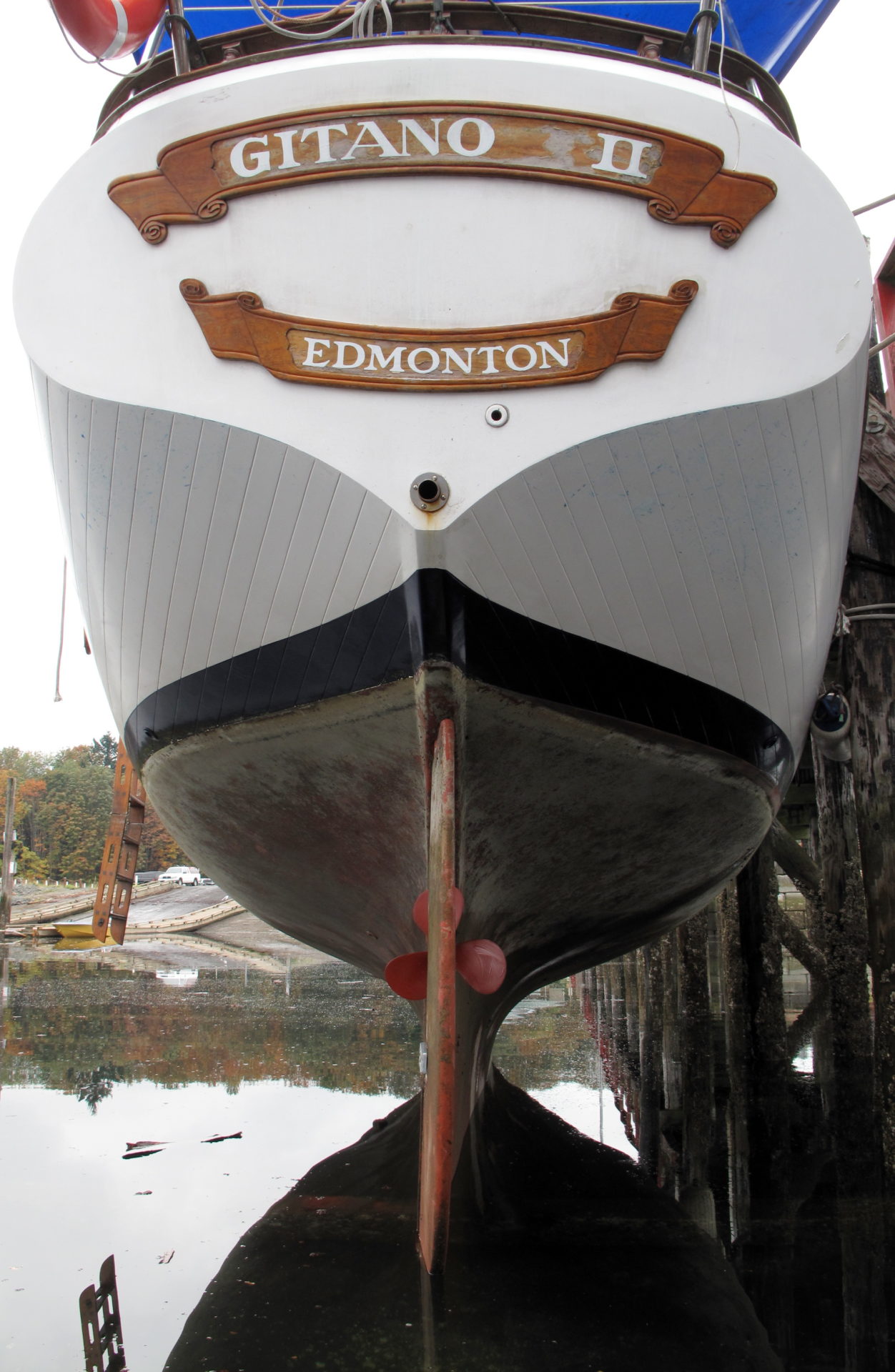

Gitano II resting on the planks, ready for some maintenance

Keep Track

Consider how many tidal cycles you will need for your work, and plan to get on the grid during a high tide and off at an even higher tide. This way, you can be sure that you will be able to leave.

Finally, consider the time of day of your working low tide. We completed our work at 4:00 p.m. because we needed to get the job done and be back at work on Monday. You may want to choose differently, but that may mean planning weeks or months in advance, depending on how great a tidal range you need.


Because the work window will be short and you can’t negotiate with the tide for more time, you need to have everything ready. We didn’t know what diameter Kevlar stuffing we needed for our prop shaft, so I bought all the sizes the marine store stocked and kept the receipt. We didn’t want water gushing through the shaft log in the wee hours of the morning.

It’s also a good idea to visit the grid ahead of time and watch the tides. We sailed up to our grid a day early and noted how high the tide came up the pilings and where the planks lay in relation to the dock. This showed us where we would need to position the boat when the planks were covered by 6’ (1.83 m) of water.

sailboat being hauled, sailboat in slings

A tidal grid is a less-expensive alternative to having to haul a boat for work.

Running Aground on Purpose

To prepare your boat, clear the decks, balance your gear and ready your lines and fenders. Fenders need to be put out horizontally so they can roll up and down between your boat and the dock. To make sure your boat doesn’t tip over, you need to make it heel slightly (two or three degrees) toward the dock. Just wedge an extra fender between the widest point on your gunwales and the dock, then pull it out right after your keel has settled onto the grid. Or you can weigh the side of your boat nearest the dock and shift your boom over as you settle.

With the rising tide, we untied and motored over to the grid. When we pulled up to the dock, we thought the tide might not be high enough to let us on. I actually had to stand in the bow with our son to lift our keel a smidge. It worked, and we squeaked on. If you float easily onto the grid, be prepared for the swell to cause a fair amount of thumping when the keel starts to settle.

Once on the grid, tie up to make sure you stay upright. Lead spring lines and several breast lines from many strong points like cleats, fairleads, masts, and winches. As the boat settles onto the planks, tend the lines every 10 to 15 minutes to make sure the weight of the boat rests on its keel, not the lines. Pay particular attention to the bow lines and keep them taut to prevent the nose from dropping too much. As nervous newbies, we put out about a dozen lines, but it was clearly overkill.

trawler on tidal grid, repairing a trawler

Owners of trawlers with deep keels can use a tidal grid, too.

And that was that. All that was left was to chat with all the curious onlookers as we waited for the moon to do her work, so we could do ours.


The boat felt odd aground. The bow tipped downward a bit, (making our berth uncomfortable until we swapped the pillows to the uphill end), the decks didn’t move at all, the seawater-flushed head didn’t work and the stove tilted in a direction the gimbals couldn’t correct. All fairly minor points.

One other thing was different — when the tide went out, the dinghy disappeared from beside our boat. We didn’t think about it until the tide had already dropped a few feet, but luckily our ship’s ladder is long, and it was easy to retrieve it. If you plan to row around your keel, you might want to tie your dinghy up on a nearby dock, or take it over to the beach. If it’s not up on davits, remember that you need to tend to your tender.

After all the planning and waiting, it was time to work. Many important jobs can be done on a grid including conduct a survey, repack the stuffing box, tune prop pitch, replace anodes, inspect the hull and do rudder, thru-hull and speed-log maintenance.

small sailboat on tidal grid, repairing small sailboat

Especially for smaller boats, a tidal grid makes good sense for getting multiple jobs done.

Our work went smoothly. My husband started working on the stuffing box as soon as the tide laid it bare, long before low tide. Removing the packing material wasn’t easy, even though my machinist dad had made us a special tool. In the end he got it out, and the repair was a success. We also changed the zincs, serviced the thru-hulls and inspected our hull. Taking the dinghy around the boat’s keel was my favorite part of the experience — the perspective from down there was great.

Afloat Again

Leaving the grid is either the easy part or the thing that went terribly wrong. Be prepared for the tide. Tend your lines again and rescue your dinghy. When you feel your keel lift (it will likely thump against the grid some more) be ready to untie, and push off. There’s nothing more to it than that — setting free your boat. We had chosen the highest tide for leaving and floated off easily.

We motored away while preparing to put up sails for the trip home. Our first time careening had gone off without a hitch and we felt self-sufficient and handy, like we had baked our own bread or caught our own dinner. And it was relaxing, perhaps because the moon did so much of the work for us.
