Galeon 470 SKY (2020-)

w/ 2 x 600-hp Volvo Penta D8



Brief Summary

One of the newest boats in the Galeon fleet, the 470 SKY has a sky deck and upper helm station that can be covered by a retractable canvas. A large cockpit transitions cleanly into the salon, creating an open area for entertaining. The fold-out side gunwales add versatility and opening salon windows enhance the al fresco experience. There’s seating on the bow and belowdecks accommodations include a full-beam master.

Key Features

  • Spacious skydeck with retractable canvas
  • Fold-out aft gunwales
  • Bow seating with a table
  • Cockpit and salon tables can be lowered
  • Full-beam master belowdecks
  • Galley on the salon level

Test Results

RPM MPH Knots GPH MPG NMPG STAT. MILE NM dBa
600 5.1 4.4 1.2 4.3 3.7 1515 1317.1 59
1000 7.8 6.7 4.2 1.9 1.6 666 578.8 61
1250 9.3 8.1 7.9 1.2 1 422 367.2 64
1500 10.3 9 14 0.7 0.6 262 228 65
1750 11.4 9.9 22 0.5 0.4 184 159.9 68
2000 16.5 14.3 29 0.6 0.5 202 175.8 72
2200 21.3 18.5 34 0.6 0.5 223 193.7 74
2400 25.3 22 38 0.7 0.6 237 205.9 76
2600 28.6 24.8 44.5 0.6 0.6 229 198.8 76
2800 31.4 27.3 51.5 0.6 0.5 217 188.7 78
3000 33.6 29.2 59.5 0.6 0.5 201 174.7 80
3100 34.4 29.9 64 0.5 0.5 192 166.6 81

Specifications

Length Overall 47' 5''
14.35 m
Beam 14' 4''
4.37 m
Dry Weight 36,376 lbs.
16,500 kg
Tested Weight 39,271 lbs.
17,813 kg
Draft 4' 3''
1.30 m
Bridge Clearance 15' 10''
4.83 m
Fuel Capacity 396 gal.
1,499 L
Water Capacity 172 gal.
651 L
Total Weight 39,271 lbs.
17,813 kg

Acceleration Times & Conditions

Time to Plane 9.5 sec.
0 to 30 17.8 sec. (0to20)
Load 4 persons, 1/2 fuel, 3/4 water, 50 lbs. of gear
Climate 78 deg., 75 humid; wind: 5-10 mph; seas: <1

Engine Options

Tested Engine 2 x 600-hp Volvo Penta D8
Std. Power 2 x 550-hp Volvo Penta D8 600 diesel engines

Captain's Report

By Capt. Martin Frobisher

running

The Galeon 470 SKY measures 47’5” (14.35 m) long overall with a beam of 14’4” (4.37 m). She’s powered by Volvo Penta inboards with V-drive transmissions.

Mission Statement

The Galeon 470 SKY is designed for local cruising and entertaining. She’s built in Poland and sold primarily through the MarineMax chain of dealerships. As the name suggests, her skydeck is a highlight with a helm station, and plenty of seating. On the main deck, the cockpit transitions smoothly into the salon and sections of the aft gunwales fold out to create more entertainment/ lounging areas. Belowdecks, she has a full-beam master, plus a spacious VIP cabin in the bow.

Features Inspection

sky deck

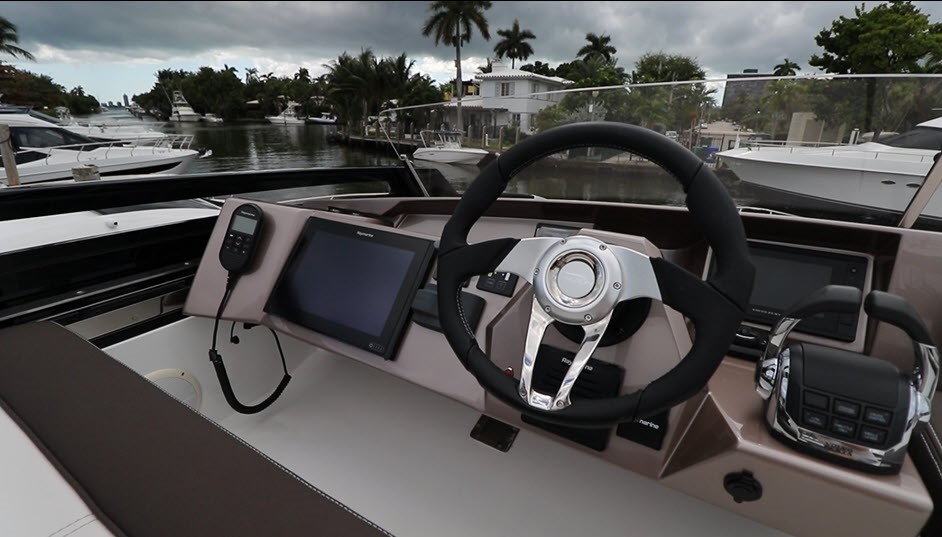

The 470 SKY's helm.

The Skydeck. Since the boat is called the “Skydeck,” we’re going to start with this. The skydeck is accessed from stairs in the aft port corner. The boat has a horseshoe-shaped lounge to starboard with a doublewide seat at the helm to port. All the way to port is the VHF radio. Just alongside is a multifunction display with the bow thruster joystick and the Fushion stereo remote between the screen and the steering wheel. The digital controls are to starboard. Forward are the engine screen and the autopilot.

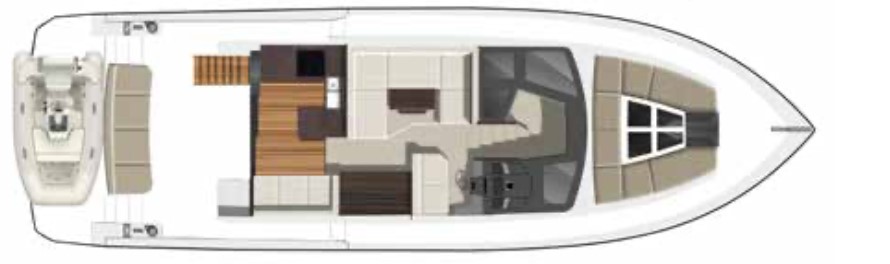

bow seating

Between the sky deck and bow seating, the 470 SKY has plenty of space for sunbathers to stretch out.

lounge seating

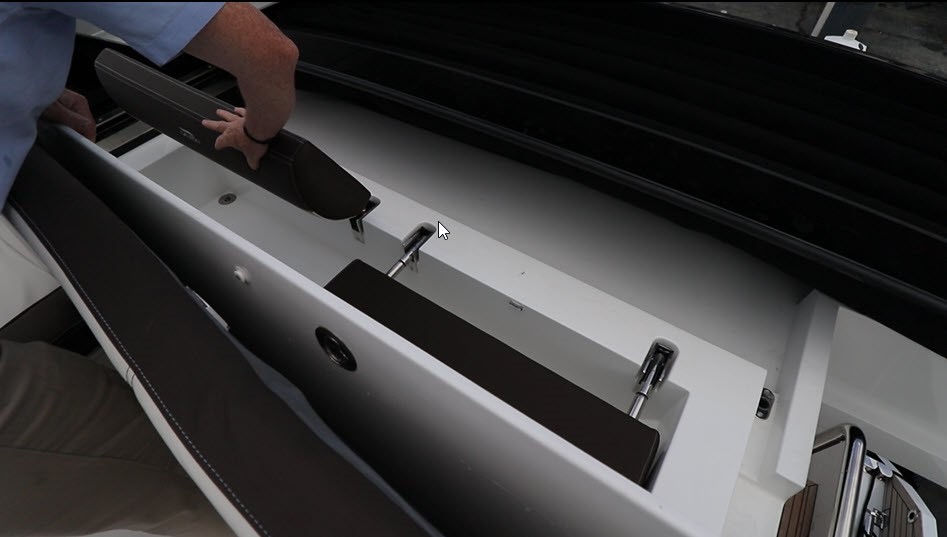

You can fold away the lounge seating and helm seats on the fly bridge to turn the couches into more of a lounge or convert the fly bridge into a coupe.

fly bridge

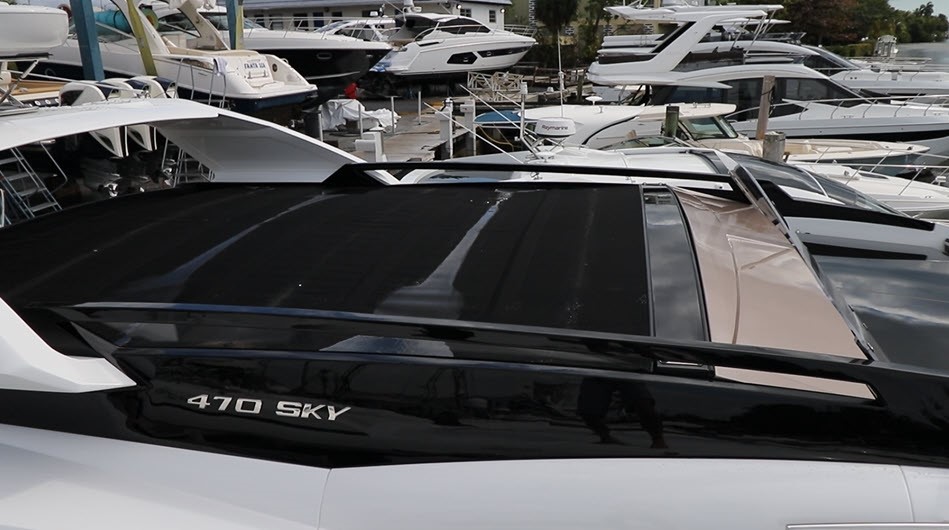

The fly bridge also has a retractable cover to convert the 470 into a coupe.

stairs

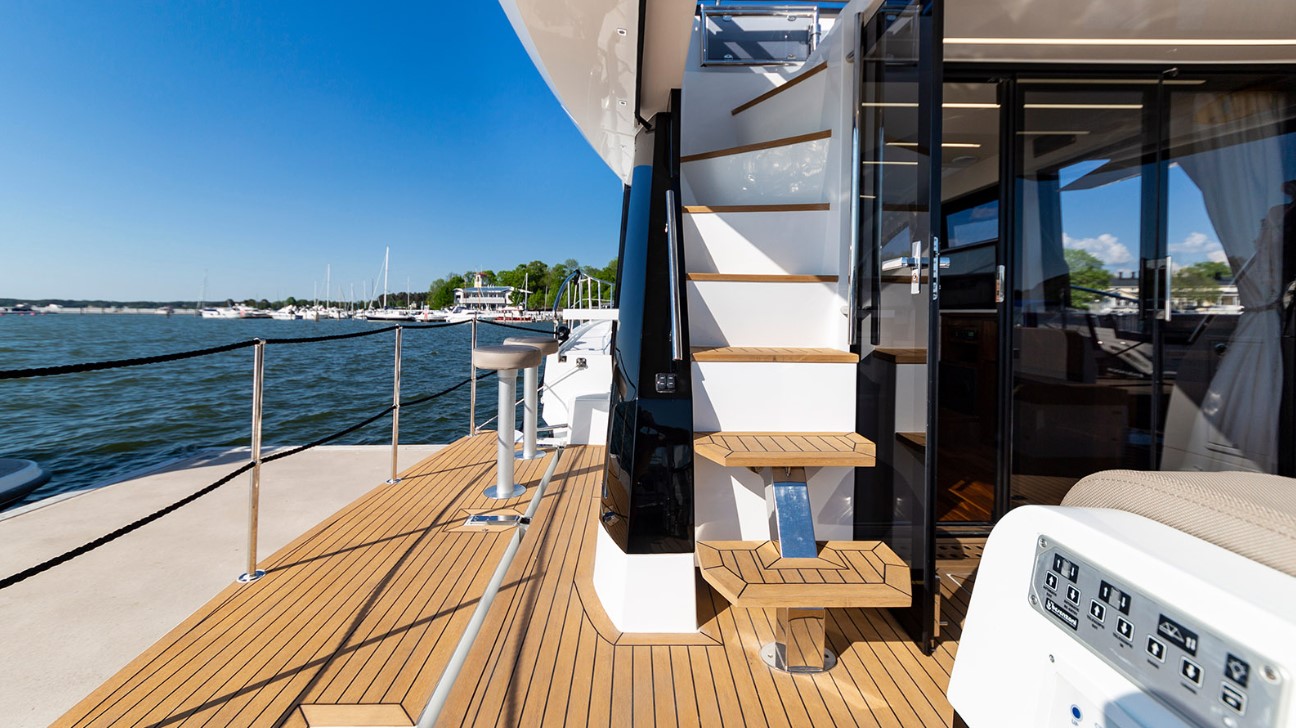

Stairs on the port side of the cockpit lead up to the skydeck and notice the rails on each side for security.

lounge

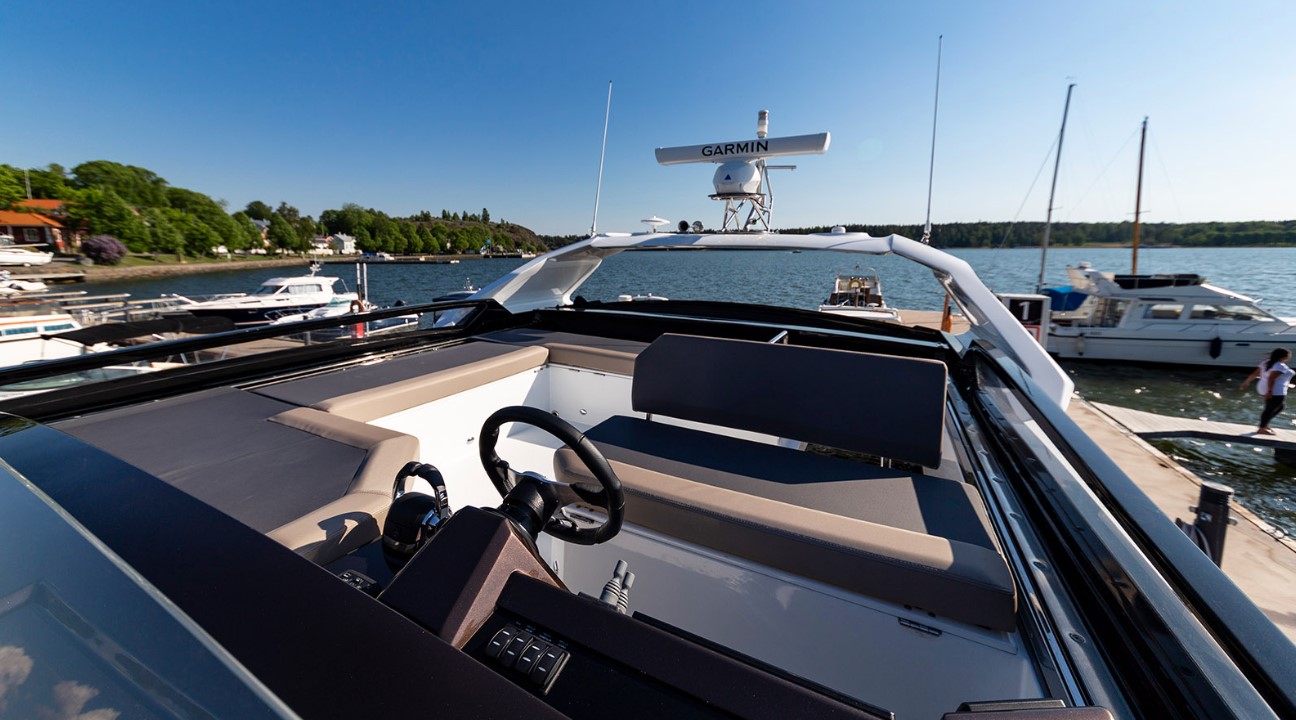

Here we see the 470 SKY with the wraparound lounge to starboard.

helm

The fly bridge helm had a comfortable seat and the controls were easily reached.

upper helm

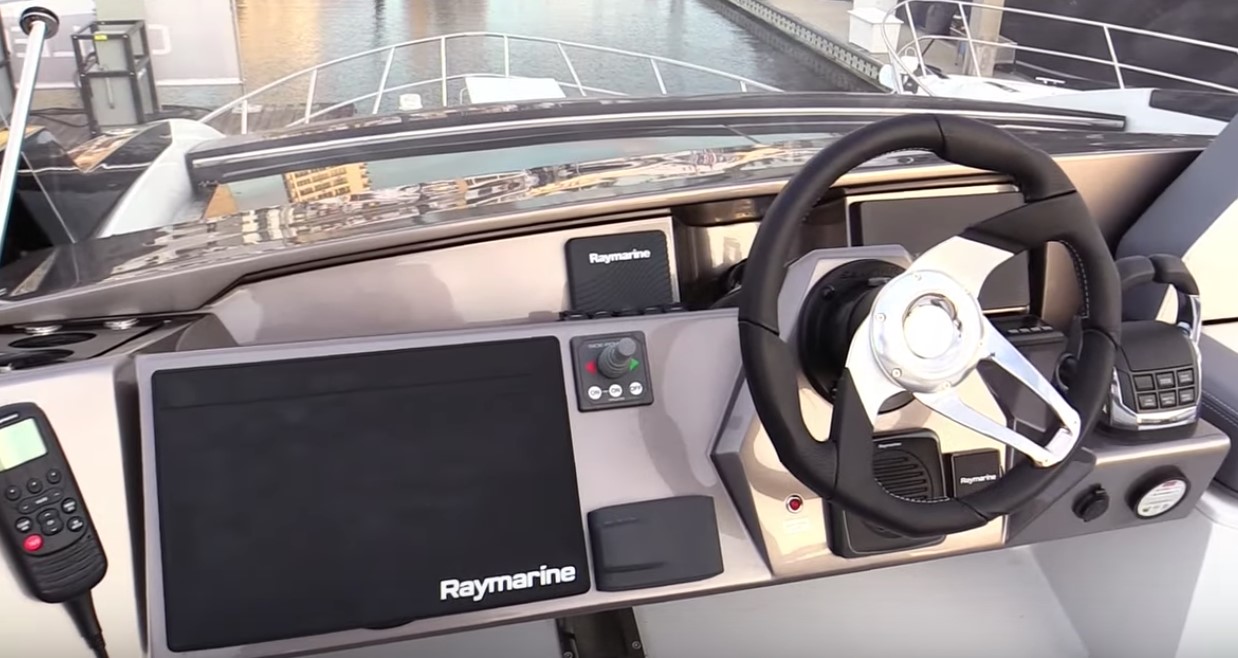

Because space is at a premium on the upper helm, the multifunction display is to the left of the steering wheel instead of forward.

 The Bow. From the sky deck, we could look forward and see the foredeck including the bow lounges. Removable backrests can be positioned all around the cushions and there’s a table that plugs into a deck socket. Outboard, full height rails wrap the foredeck. In the forepeak, the boat comes standard with a windlass and galvanized anchor and rode.

legroom

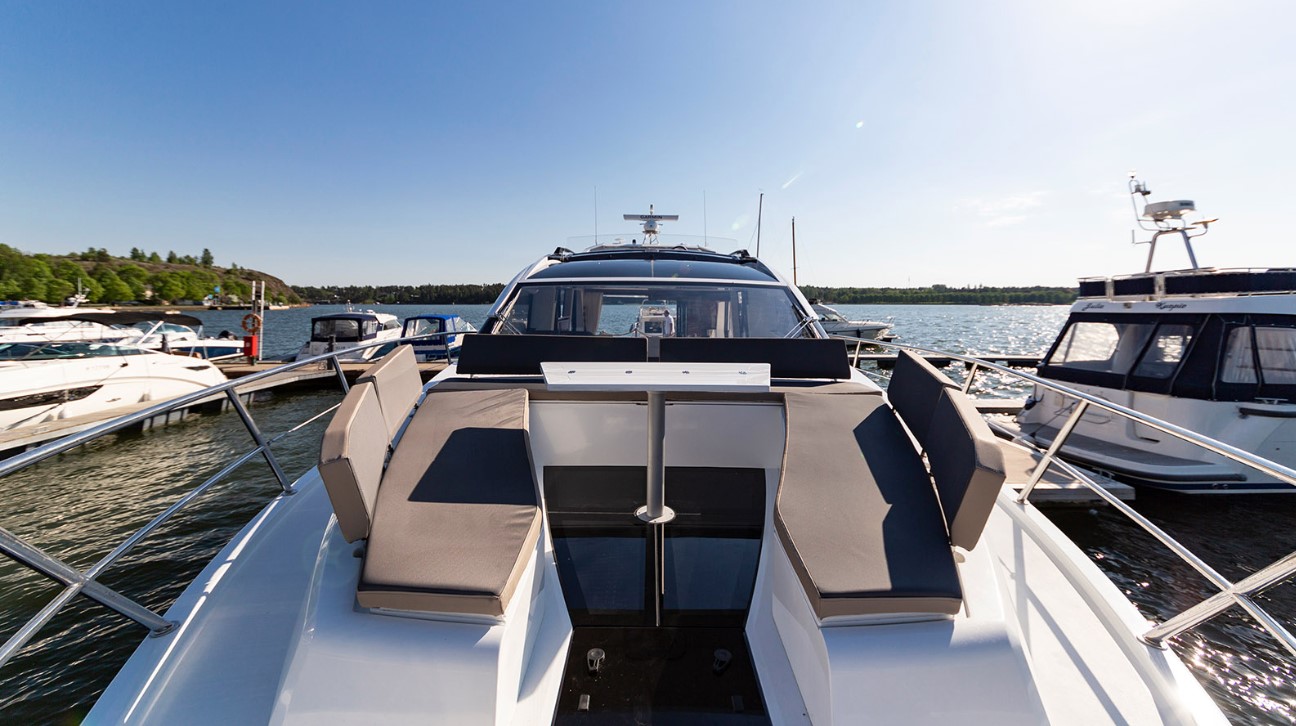

The legroom between the bow lounges is wide and deep enough for adults to sit facing each other without knocking knees.

The Cockpit. As we work our way aft from the bow, the side passageways are wide enough that an adult can travel on them without turning sideways. At amidships, it’s two steps down to the cockpit level. Steps on the port side lead aft to the swim platform. An optional hydraulic lift for the platform is available.  On the platform you can access the electric grill, a fold out seating area, and storage compartment. The aft passageway closes with a gate framed in stainless steel. In the cockpit, there’s a lounge that wraps around a table that’s built on stainless-steel posts that can be adjusted for height. A hatch in the deck provides access to the engine room. For respite from the sun, the super structure extends aft over the cockpit. In the optional Beach-Mode package, the port and starboard gunwales folds out to widen the cockpit and it has two barstools and fold out bar area on the port side for two people to enjoy al fresco dining.

teak

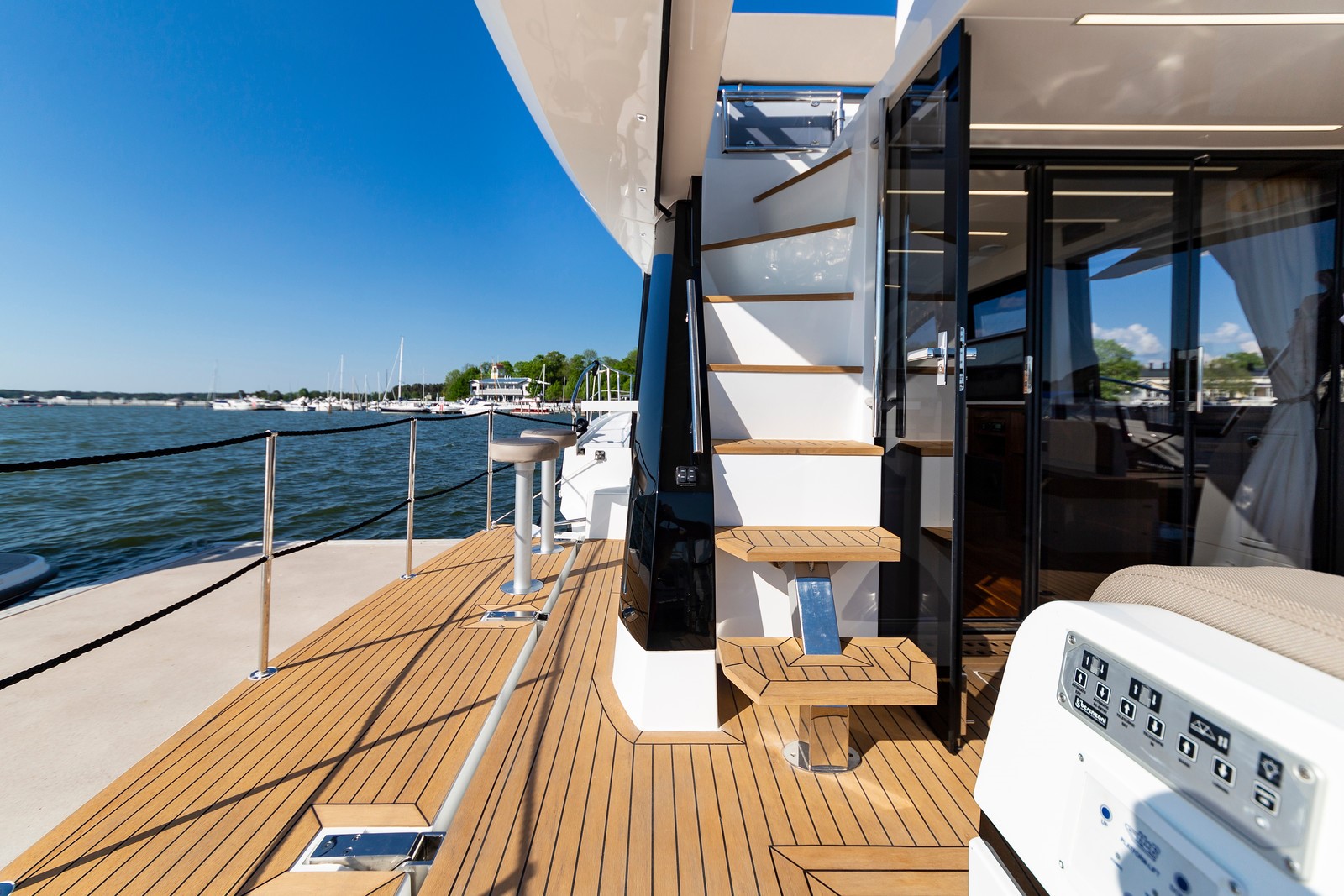

All the walking surfaces on the 470 SKY are covered in teak.

stainless steel
details

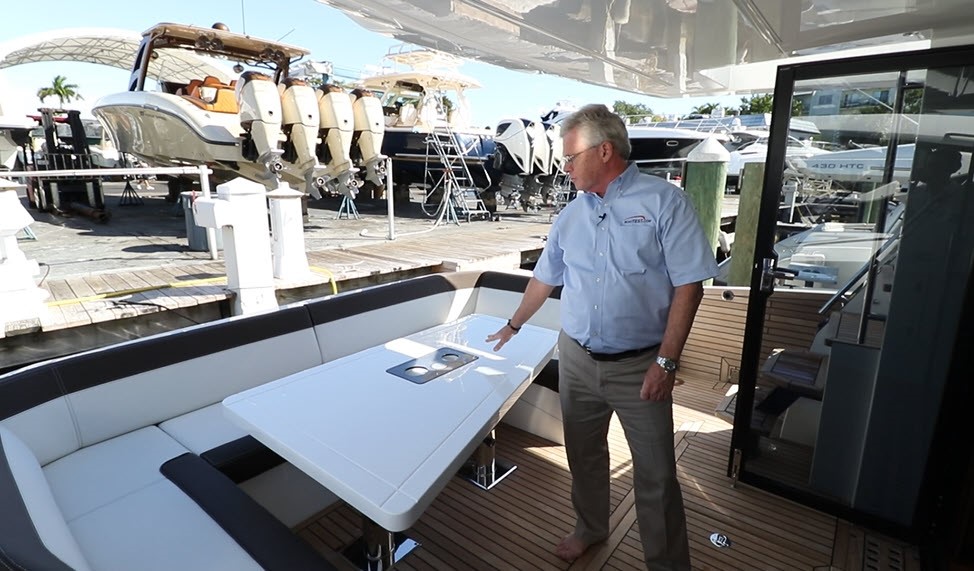

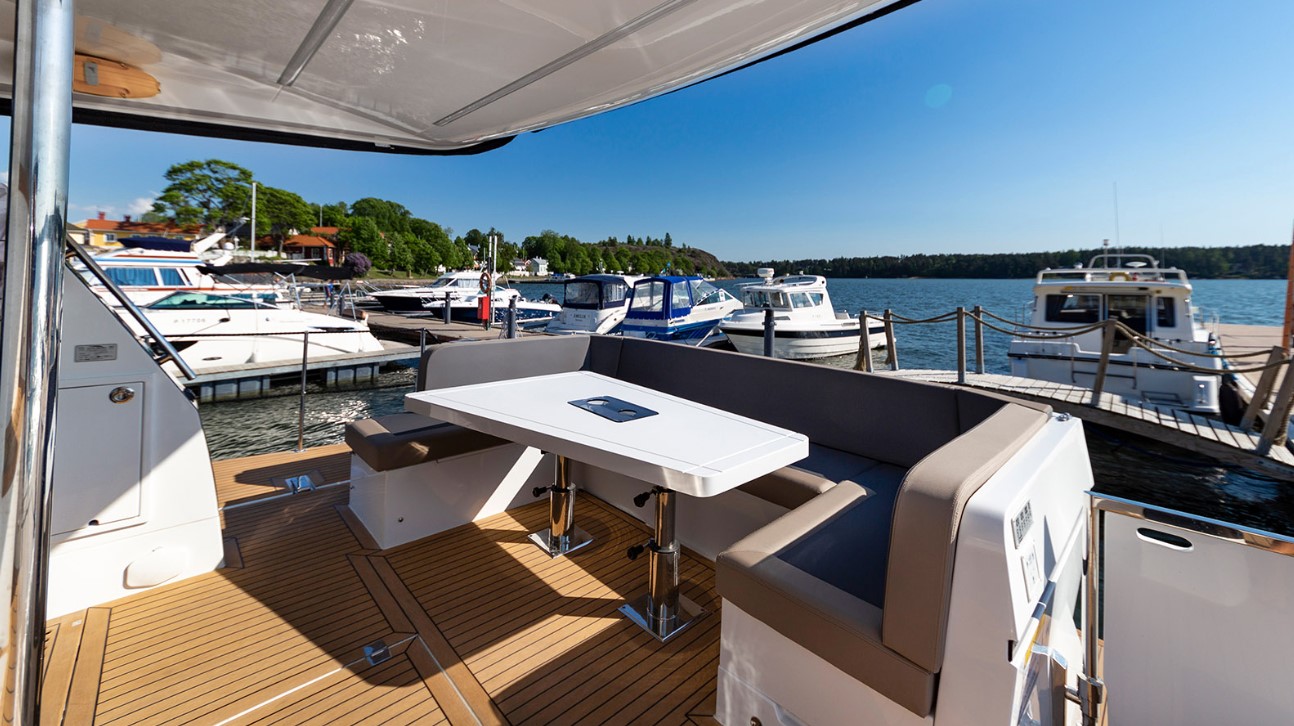

Paying attention to the details, Galeon uses heavy-duty stainless-steel stanchions to support the cockpit table.

beach mode
beach mode

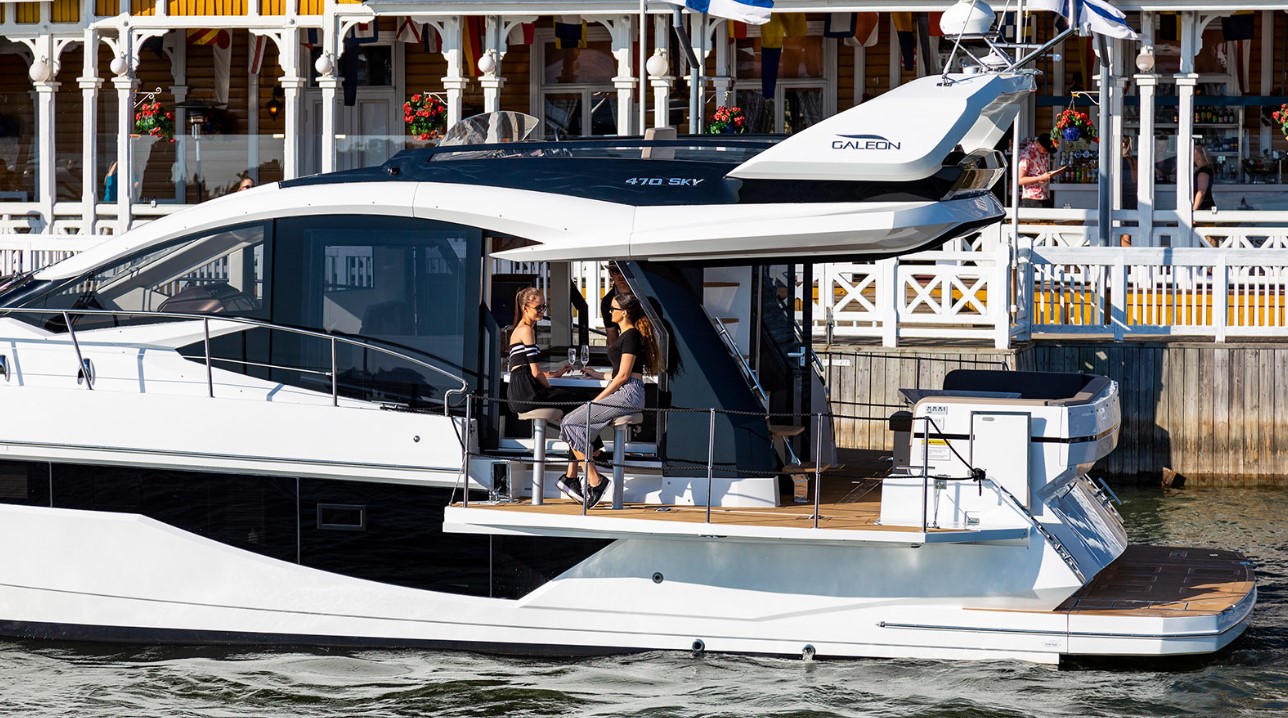

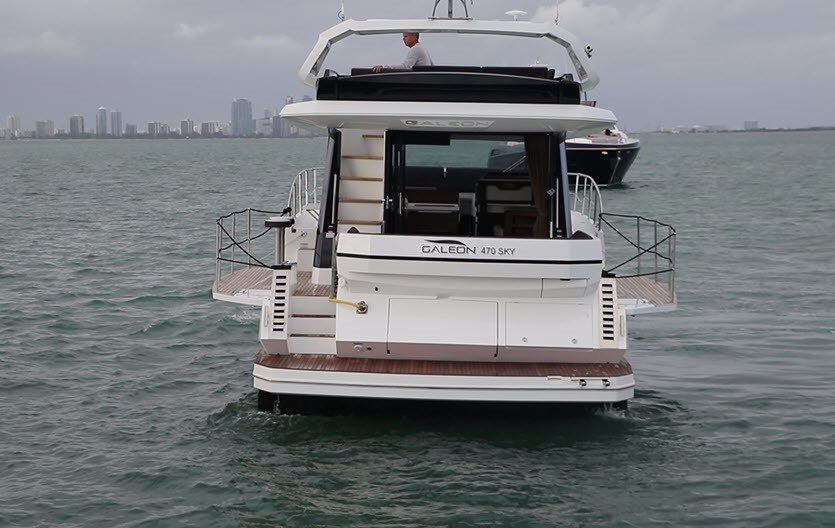

We can see the optional Beach Mode package with a fold-out gunwales being one of the most popular options on the 470 SKY.

The Salon. Doublewide glass doors framed in stainless steel, open full-width to create open flow between the 470 SKY’s cockpit and salon. The salon windows also open to help enhance the openness. To starboard, there is a cabinet with large serving platform and ample storage underneath. The galley to port has a sink, two-burner stove and a microwave down low. There’s ample countertop space for food preparation and to save space, the refrigerator and freezer are under the counter. Forward to port is a larger horseshoe-shaped lounge that should seat at least six around an adjustable-height table. To starboard, there’s a doublewide seat at the lower helm, which has the engine screen to port and the multifunction display in the center ahead of the steering wheel. The bow thruster joystick is to port of the wheel and below the accessory switches are in a flat panel. Working aft on the starboard side, the autopilot is in the vertical panel next to the MFD ahead the ignition controls. Just aft are the digital Volvo Penta shift/throttle levers.

window

Notice the large opening window outboard of the galley to port.

salon

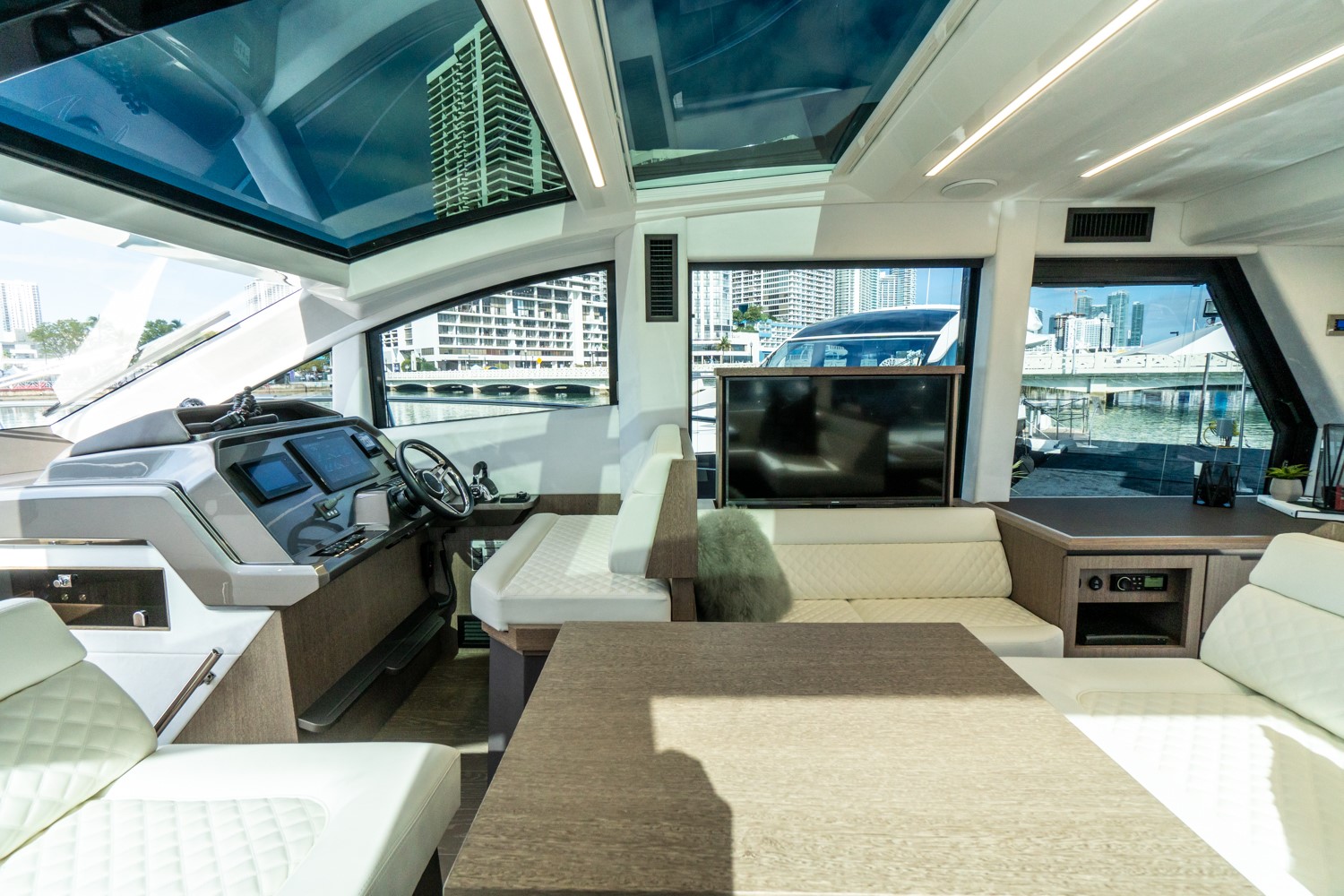

The salon has an opening skylight overhead that lets in plenty of fresh air and natural light.

storage drawers

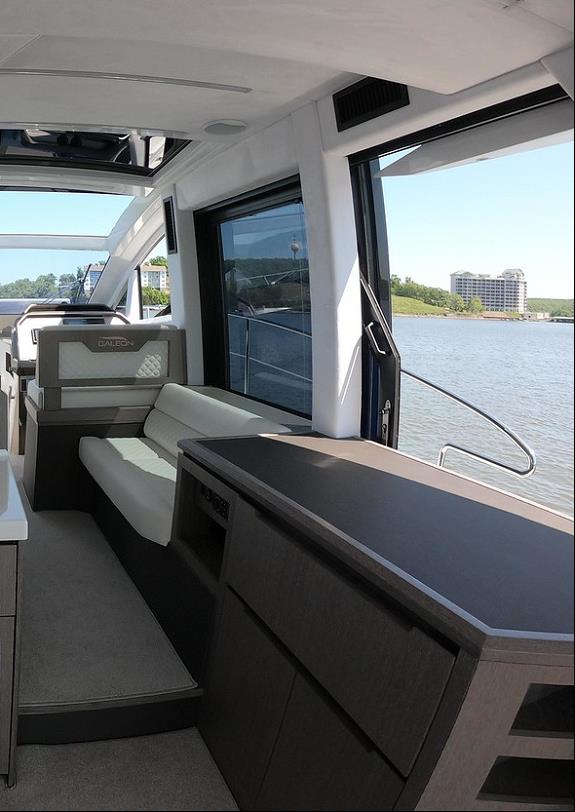

To starboard in the salon, there are storage drawers beneath the counter and a small lounge forward.

television

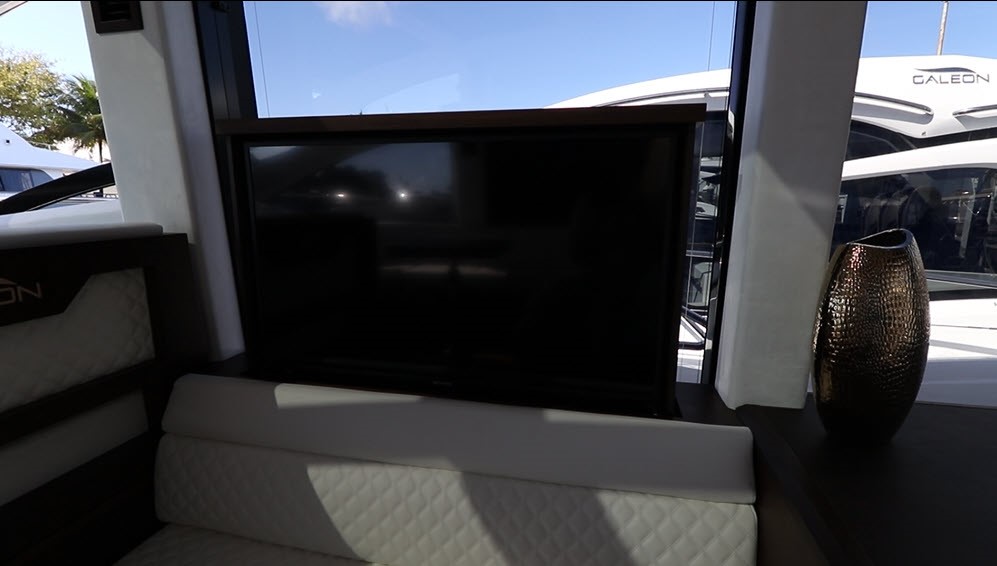

There is also a pop up 42” (107 cm) TV behind the love seat.

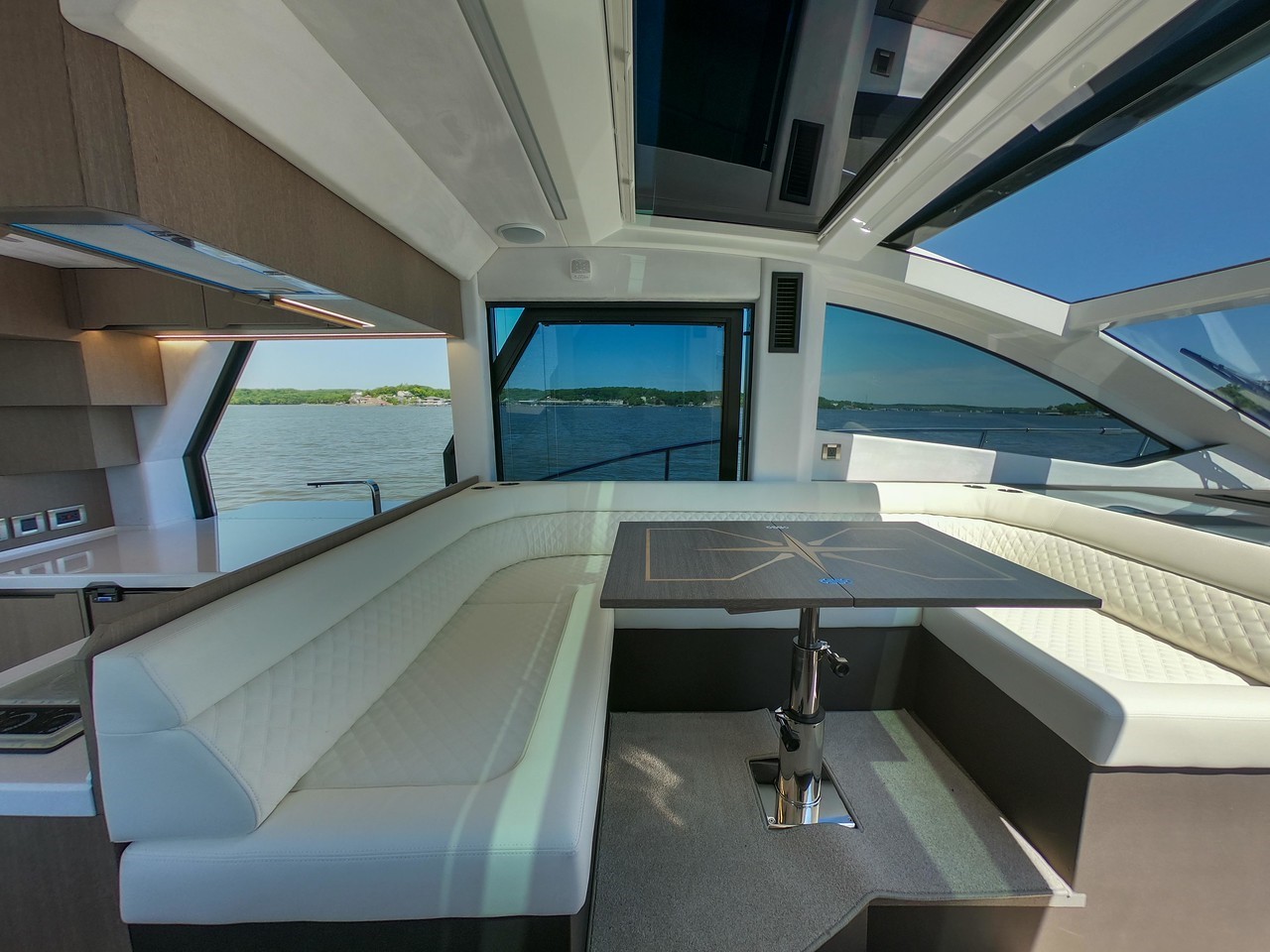

dinette

Galeon creates an open feel at the dinette with extra-large glass panels that span the width of the superstructure.

table

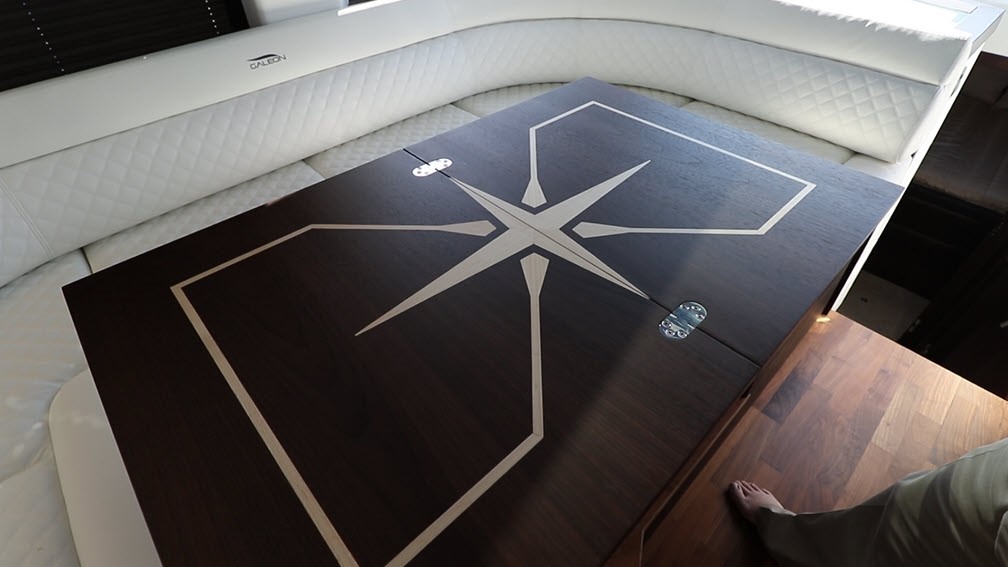

The table folds out showing its beautiful inlay work. It can also lower to convert to a bed.

lower helm

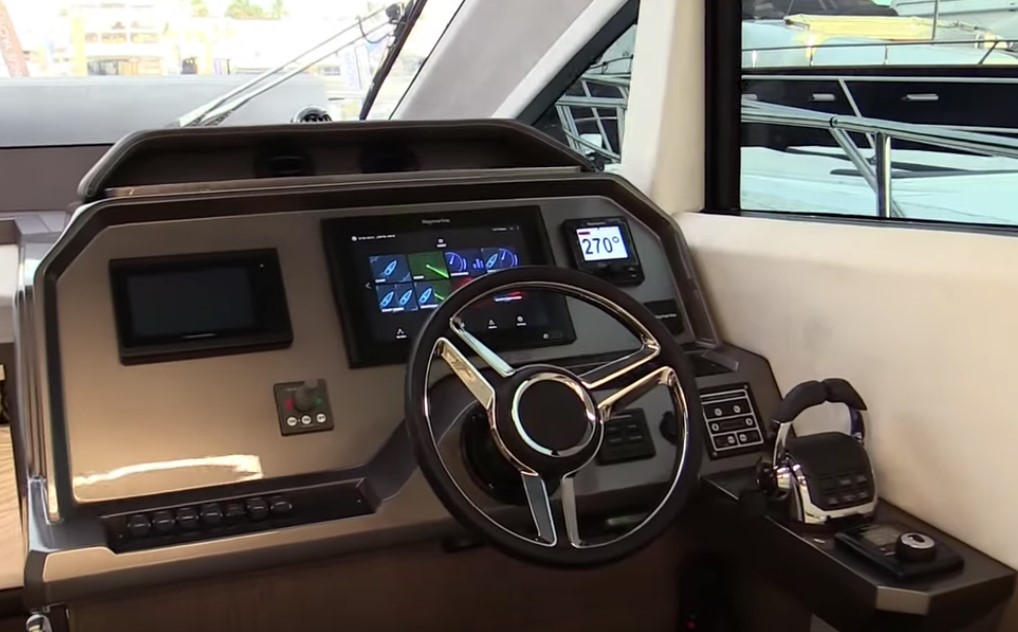

The lower helm has a compact, efficient feel and the eyebrow on top should provide good shade for the displays.

 Accommodations

The Master. Stairs between the helm and the dinette lead down to an open foyer area that plenty of natural light from all of the glass overhead. A companionway leads aft to the full-beam master stateroom. The berth is on the centerline with a single-person seat to port with jewelry box and large mirror ahead. To starboard is a large hanging locker along with several other smaller cabinets aft. To port, the en suite head has a separate shower stall and a vessel sink. Forward, the VIP cabin in the bow has stairs on each side of the island berth with lockers in each aft corner. There’s private entry to the head that this cabin shares with the guest quarters to starboard. This head also has a separate shower stall and similar amenities. The aforementioned guest cabin to starboard has over-under single berths and a small hanging locker.

salon layout

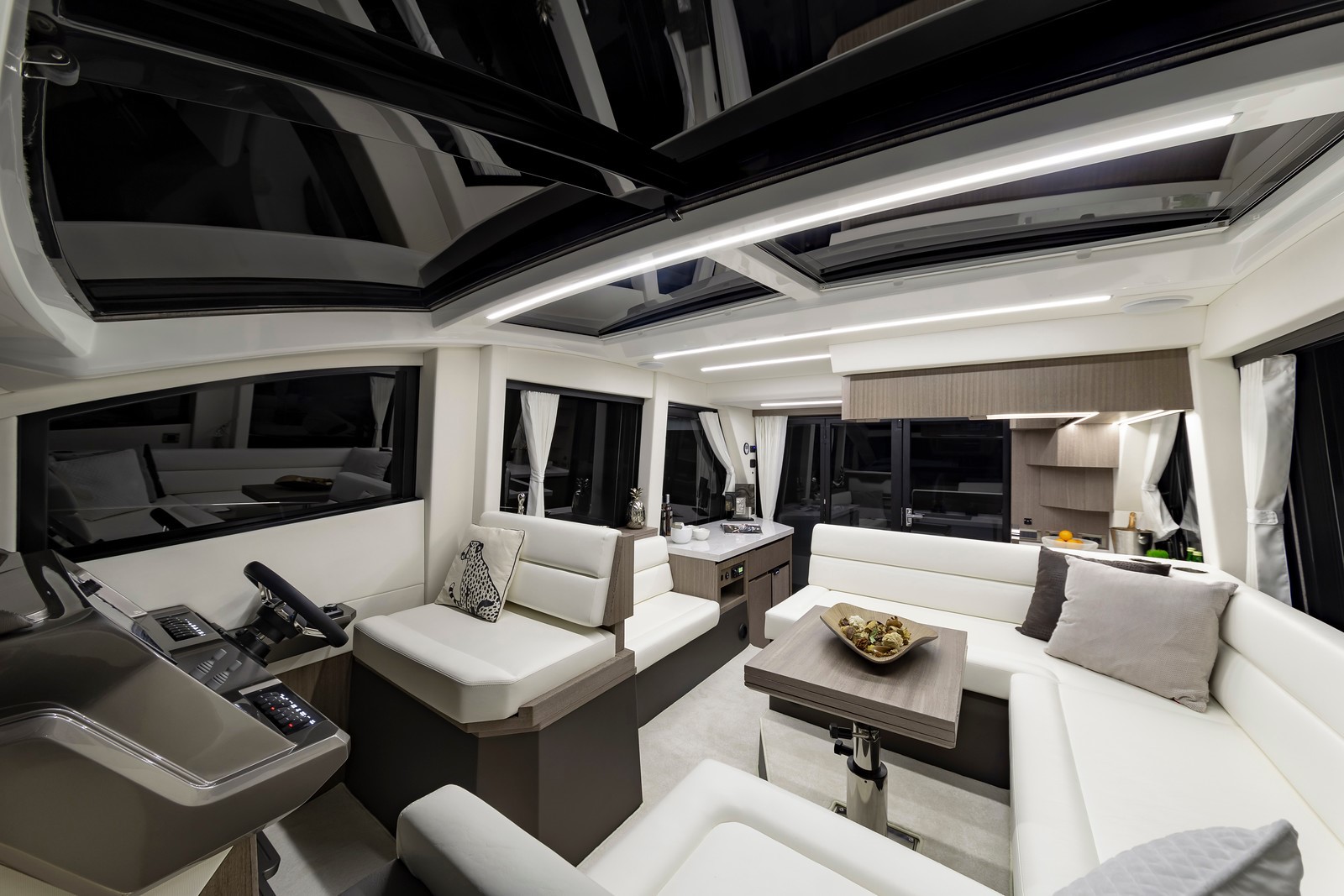

Here we see the salon layout with facing sofas and the dining table.

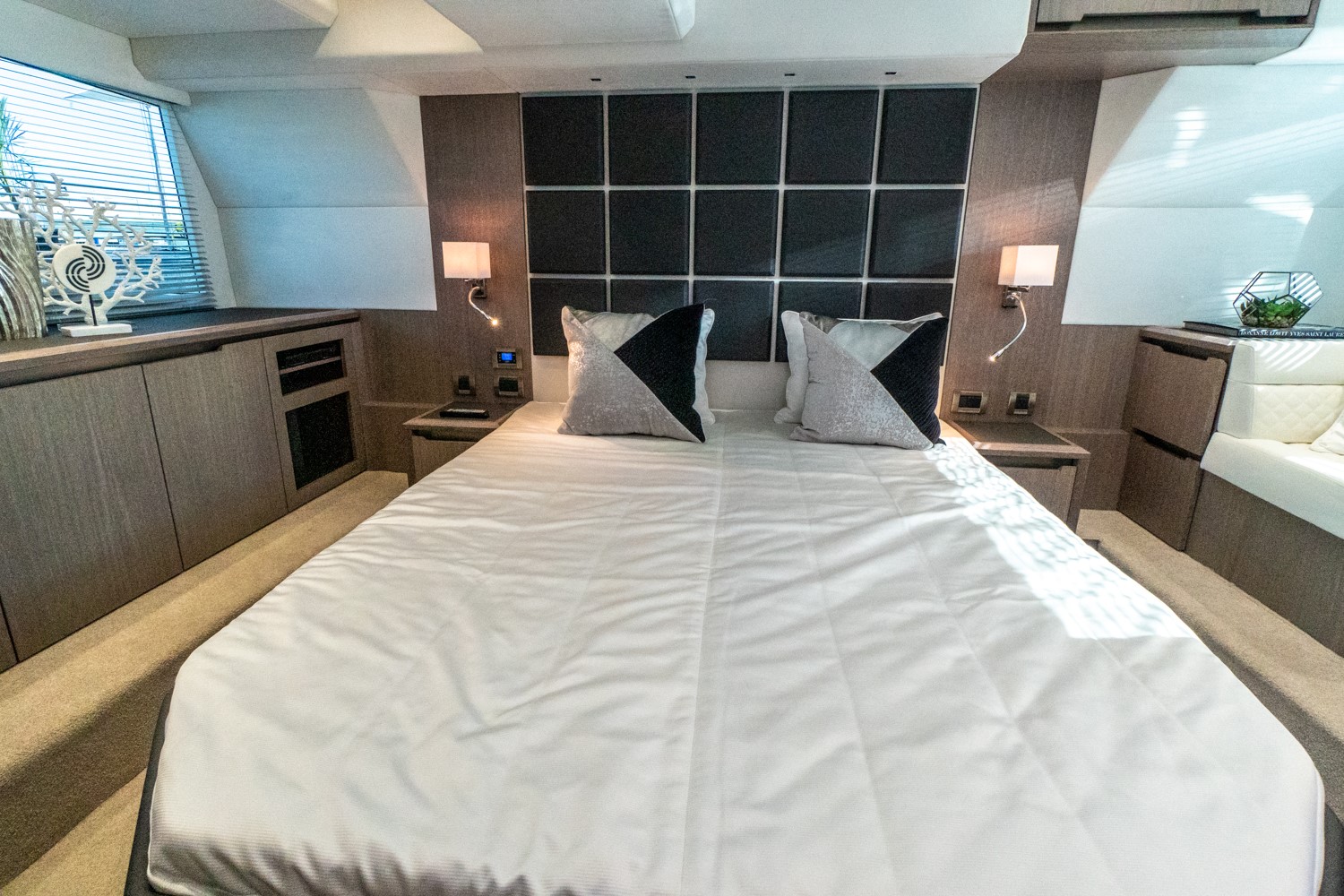

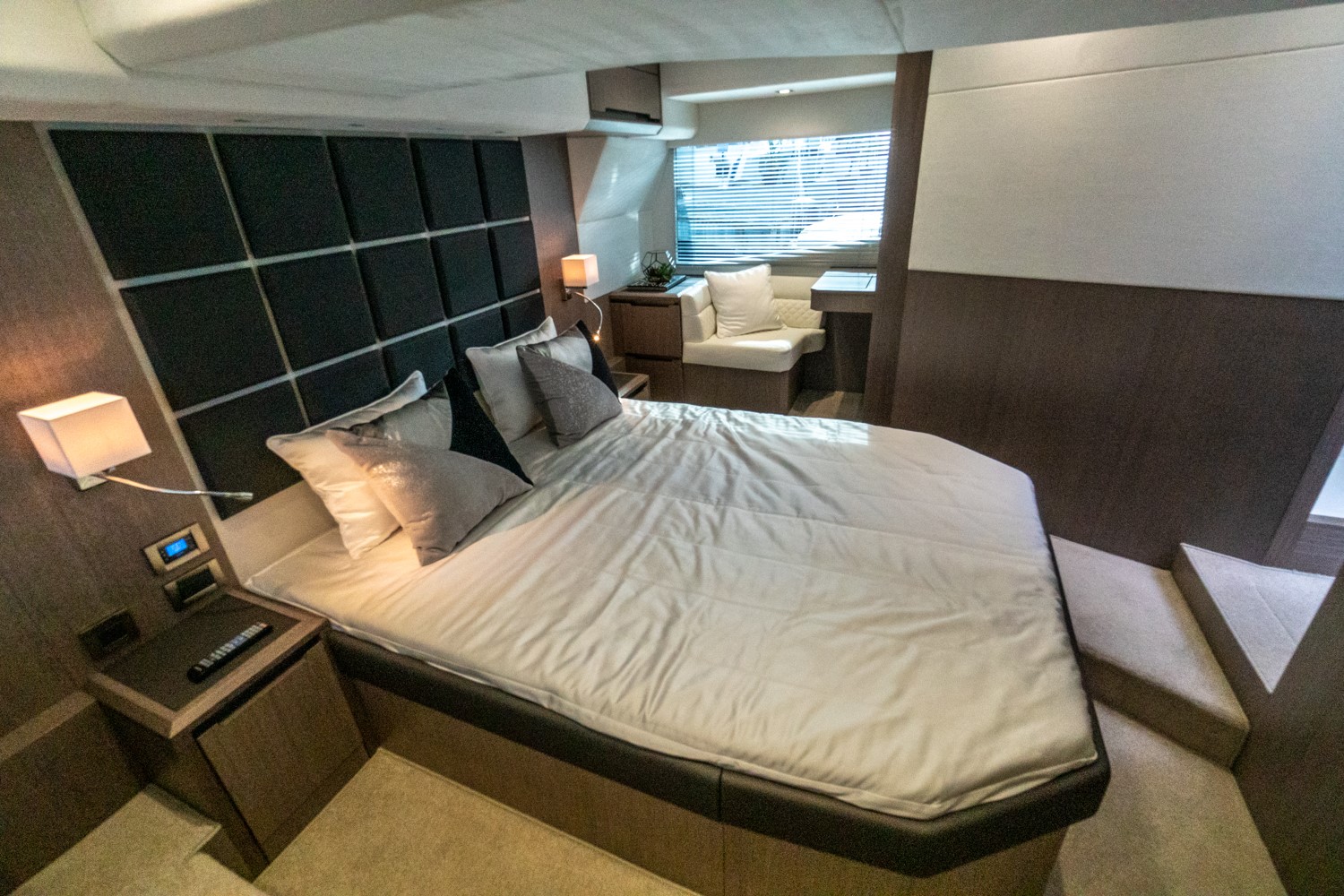

overhead
overhead

By using a lightly colored overhead and textured headboard, Galeon creates an open, airy feel in the master stateroom.

tiles
tiles

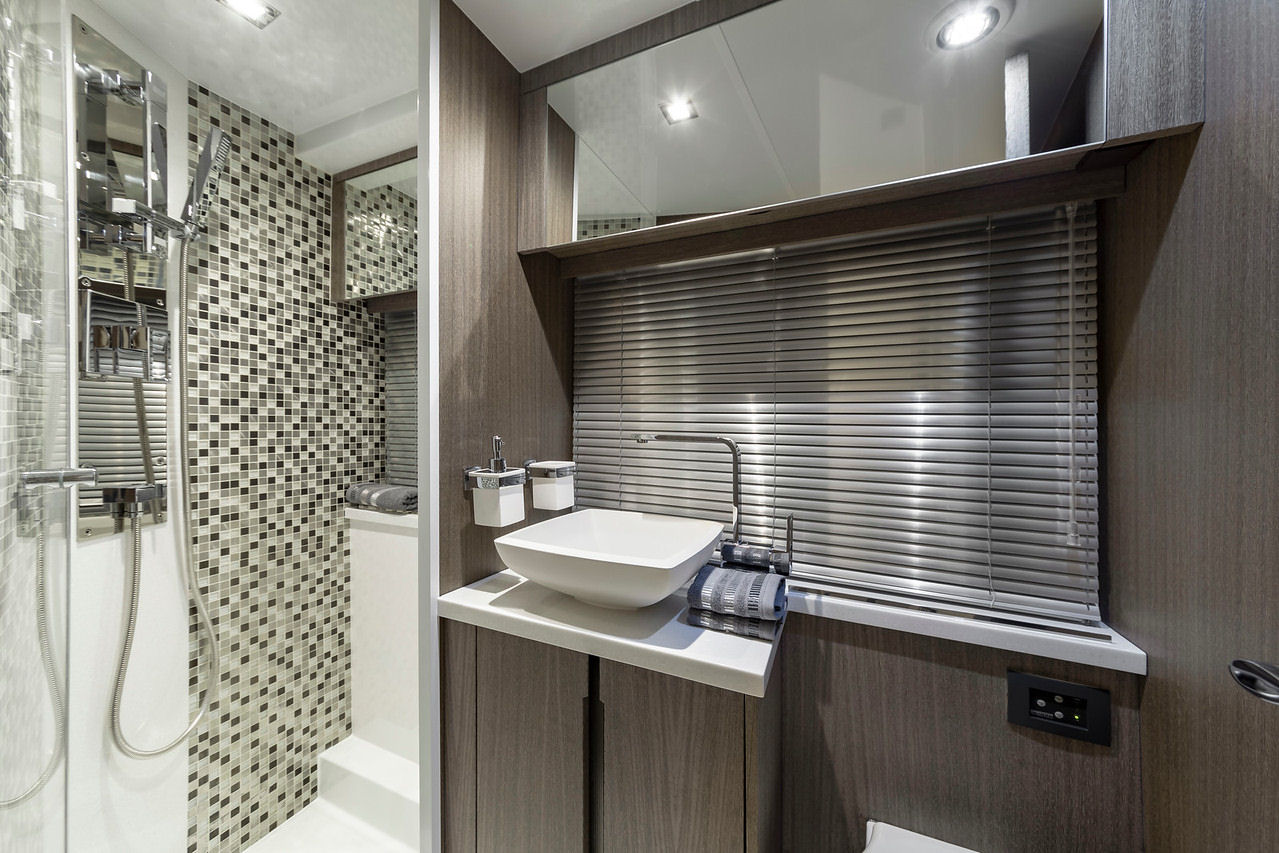

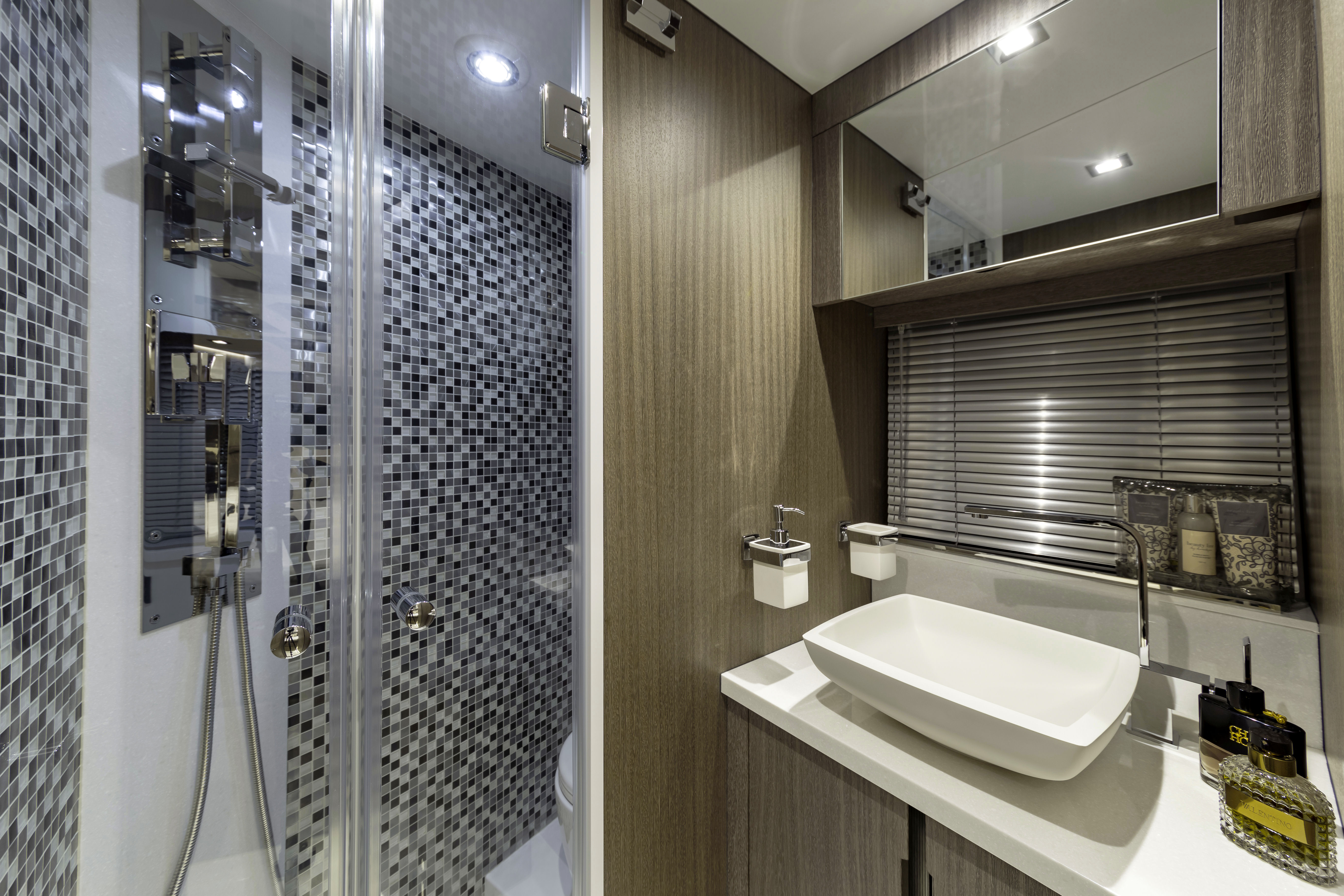

The mosaic tiles and metallic-looking shade in the master head give the area a modern, contemporary look.

 Advanced Design. Galeon has had a long history with Tony Castro Design Studio where they maintain a balance of traditional and current architecture and technology.

Performance

loa

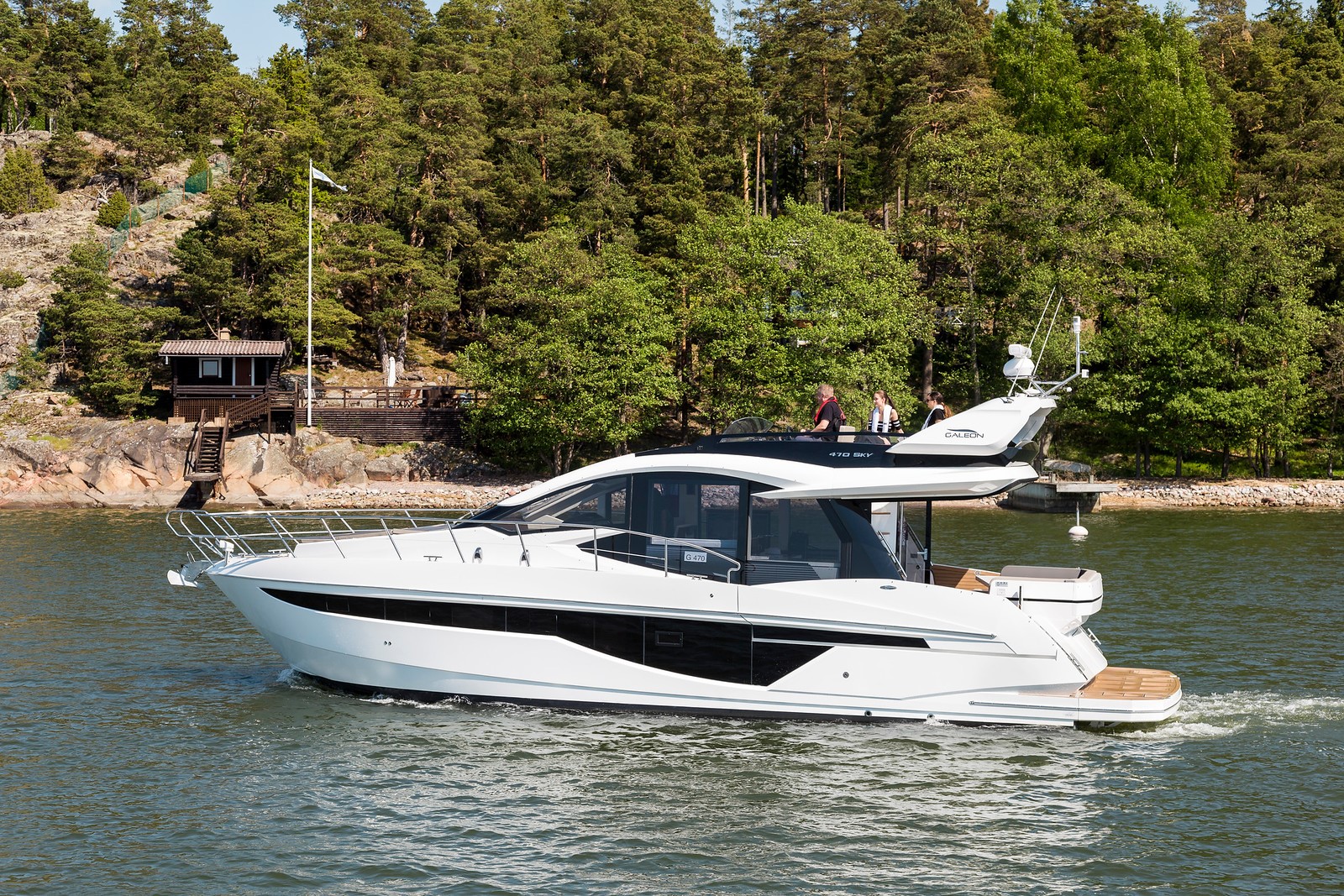

The Galeon 470 SKY has an LOA of 47’5” (14.45 m), a beam of 14’4” (4.37 m), and a draft of 4’3” (1.30 m).

standard power

Standard power on the 470 SKY are twin 600-hp Volvo Penta D8 600 diesels.

The Engines. Standard power in the Galeon 470 SKY is twin 600-hp Volvo Penta D8 600 diesel inboards with V-drive transmissions. The engines are equipped with Volvo Penta’s Vessel Control System. Propeller shafts are stainless steel and the propellers and rudders are bronze. The boat comes standard with hydraulic trim tabs with position indicators.

running

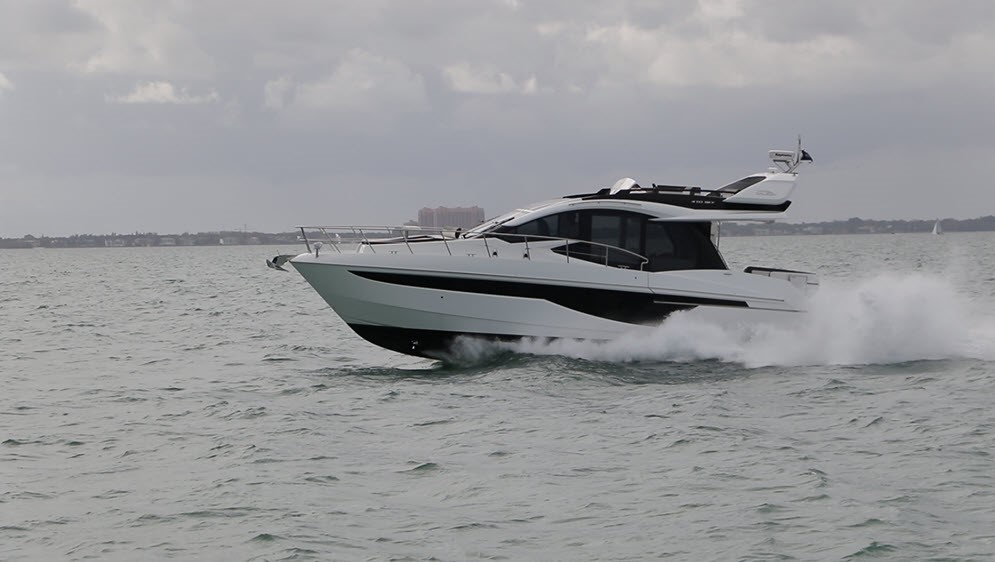

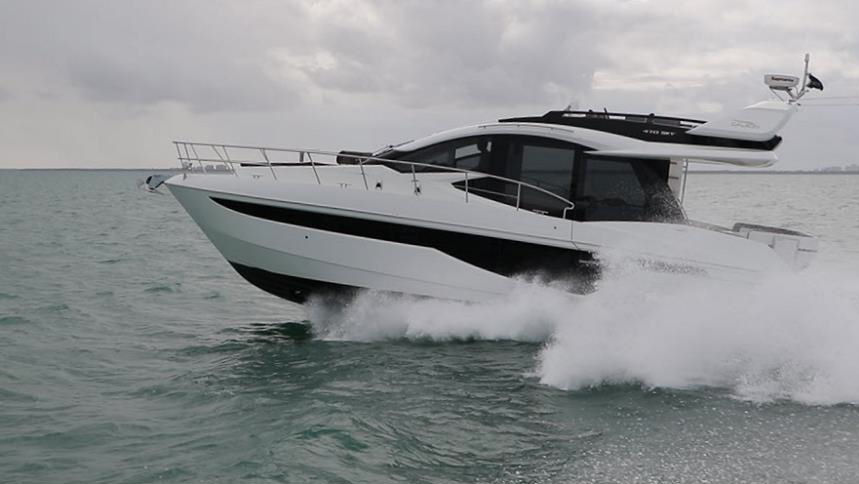

The Galeon 470 SKY reached a top speed of 34 mph at 3600 rpm during our test.

The Galeon 470 SKY has an LOA of 47’5” (14.45 m), a beam of 14’5” (4.39 m) with the wings in, with the wings folded out she has a beam of 18’7” ( 5.66 m) and a draft of 4’3” (1.30 m). With 188 gallons of fuel and 122 gallons of water, and 4 people aboard, our test boat had an estimated test weight if 39,271 lbs. (17,813 kg).

With a dual Volvo Penta D8 diesel engines turning we hit a top speed of 34 mph at 3600 rpm. We found our best cruise speed at 2400 rpm at 25 mph. With a fuel burn of 38 gph, which translated into 0.6 nmpg and a range of 205.9 nautical miles, all while holding back a 10 percent reserve of the boats 396-gallon (1,499-L) fuel capacity. At trawling speed, we recorded a speed of 5.1 mph at 600 rpm and 7.8 mph at 1000 rpm. The boat planed at 12.4 mph in 9.2 seconds and we reached 20 mph in 18 seconds.

Observations

One thing we like about all Galeons is that the standard-equipment list is long and the optional features list is short. Galeon boats are configured with comfort and luxury packages that include all of the “easy boating” options, so while they are packages, they are ordered on every boat and prices vary accordingly.
