Galeon 560 SKY (2020-)

w/ 2 x 725-hp Volvo Penta D11

Brief Summary

Galeon’s 560 SKY is an interesting combination of two designs that seem to come together quite nicely. On one hand, she’s a low and sleek hardtop express cruiser with an opening sunroof that lights up the salon and helm area. On the other, she’s a flybridge yacht with an elevated command station and gathering area.

Key Features

  • Fusion stereo AM/FM with bluetooth module and two speakers
  • Extended swim platform with collapsible three-step stainless steel swim ladder and teak decking
  • 316 stainless steel handrails
  • 240V two-burner induction cooktop
  • C-shape sofa with hi-lo wood dining table and filler cushion
  • 240V upright refrigerator with freezer compartment (5.8 ft3 / 165L)
  • Air Conditioning System, Condaria Chilled water (84,000 BTU) – 240V
  • Hydraulic steering system

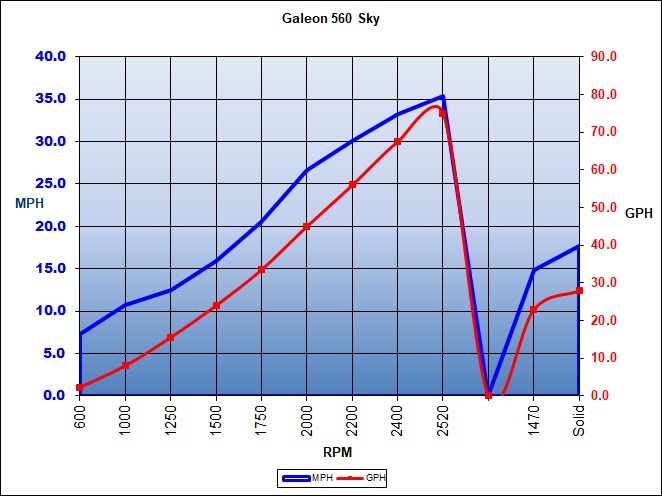

Test Results

600 7.3 6.3 2.3 3.2 2.8 1697 1475.2 66
1000 10.8 9.3 8 1.3 1.2 703 611 68
1250 12.5 10.9 15.5 0.8 0.7 422 366.7 66
1500 15.9 13.8 24 0.7 0.6 346 301.2 69
1750 20.6 17.9 33.5 0.6 0.5 321 278.9 70
2000 26.7 23.2 45 0.6 0.5 310 269.8 74
2200 30.1 26.1 56 0.5 0.5 281 244 75
2400 33.3 28.9 67.5 0.5 0.4 258 224 76
2520 35.4 30.7 75 0.5 0.4 246 214.3 78


Length Overall 58' 1" (17.70 m)
Beam 15' 7" (4.76 m)
Dry Weight 53,462 lbs. (24,250 kg)
Tested Weight 55,915 lbs. (25,363 kg)
Draft 4' 7" (1.40 m)
Max Headroom N/A
Fuel Capacity 581 gal. (2,200 L)
Water Capacity 185 gal. (700 L)
Total Weight 55,915 lbs. (25,363 kg)


See the price by becoming
a BoatTEST member.

Acceleration Times & Conditions

Time to Plane 10.8 sec.
0 to 30 12.5 sec. (0to20)
Ratio N/A
Props Bronze
Load 3 persons, 1/2 fuel, no water, 50 lbs. of gear
Climate 86 deg, 65 humid.; wind: 12-15 mph; seas: moderate

Engine Options

Tested Engine 2 x 725-hp Volvo Penta D11
Std. Power 2 x Volvo Penta D11 725-hp diesel engines
Opt. Power N/A

Captain's Report

Captain's Report by Capt. Steve Larivee

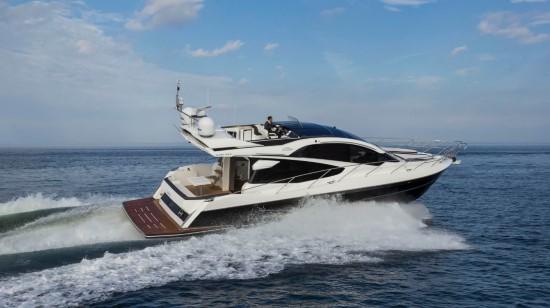

Galeon 560 Skydeck Running

With her Skydeck that can be closed off, the Galeon 560 SKY transforms from a flybridge cruiser to an express cruiser.


Since we first started reviewing Galeon Yachts, the main theme that has been impressing us so much is the attention to detail, particularly in the fit and finish. It begins with the molds that are built to exacting standards. Once assembled and bonded, they fit as a single unit with no creaks or rattles when underway.

Moving to the cabinetry, it’s all made in-house, again to exacting standards. Each piece fits into place meticulously with no cover-up silicone jobs anywhere; it’s just not needed. Doors are book-matched grain and soft close. Ordering a Galeon interior in high-gloss finish means a mirror at every turn. The finish is that flawless.

Galeon also has an in-house metal shop, and the works of these artisans are replete throughout the yacht, both in plain sight and hidden from view. The most visible are the rails and hand holds that have ornate angles rather than straight runs, portholes that have a polished shine to the stainless. Not so visible are the fuel and water tanks made from 516 stainless.

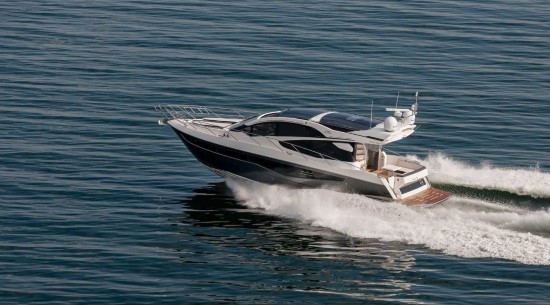

Galeon 560 Skydeck Closed

It takes a keen eye to notice the only telltale sign of this being a “flying bridge” yacht. The cockpit stairs are the only giveaway.

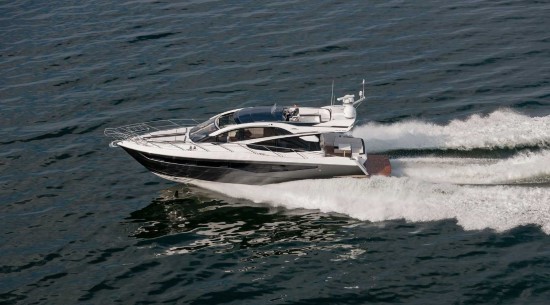

Galeon 560 Skydeck Exposed Skydeck

With the carbon fiber top slid back, a Skydeck is exposed. There’s even an opening sunroof just ahead.

Exterior Features Inspection

Swim Platform

The swim platform serves as a great place to board the 560 SKY, whether from a floating dock or from in the water. Its decking is teak, and offered with an optional hydraulically actuated version with a lift capacity of 1,100 lbs. (498.95 kg). With this version, as the platform lowers, stairs automatically deploy from the flush position to allow easy entry to the aft deck. Thus, the functional teak-beach is created.

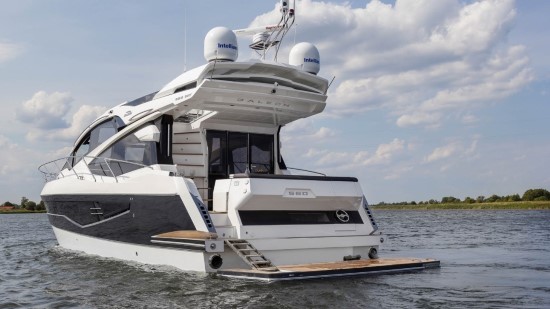

Galeon 560 Skydeck Aft Platform

With the aft platform lowered, stairs to the cockpit are automatically deployed. The door to the crew cabin is to the starboard side.

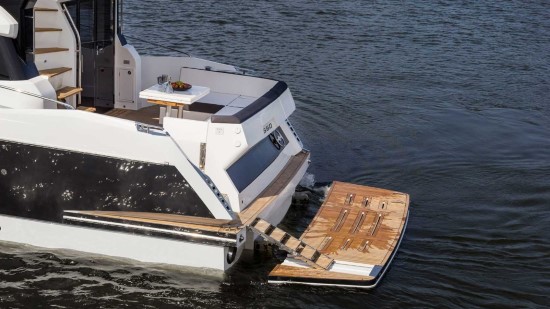

Galeon 560 Skydeck Teak

Notice how the teak continues around the sides, adding a bit of class to what would otherwise be a plain topside.

Aft Deck

The aft deck is accessed from the port side stairway from the swim platform. Teak is used throughout the deck. An L-shaped seat surrounds a plexi table with flip-out leafs, all resting on dual stainless pedestals. Storage is under the seats.

Elevated cleats are to both sides, and for Med-mooring there are optional warping winches just ahead. An opening allows for line storage ahead of the winches. The extended overhead provides protection to the aft deck.

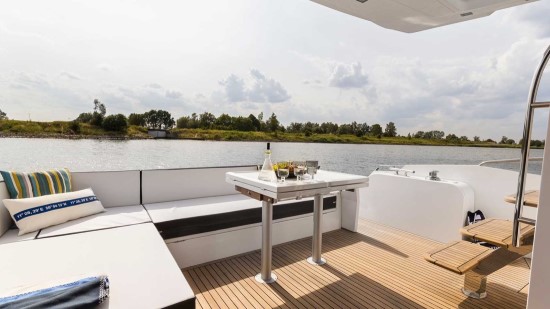

Galeon 560 Skydeck Collapsible Table

L-shaped seating around a collapsible table make up the ingredients for a welcoming gathering area.

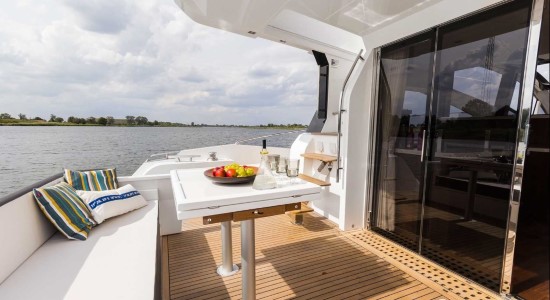

Galeon 560 Skydeck Glass Doors

Stainless and glass doors separate the inside from the outside. Stairs to the Skydeck are to port. Each step is fitted with teak treads and a stainless handrail maintains safety.


Wide side decks and rails to both the outboard and cabin side ensure a safe transition to the bow. Twin sun pads flank the center skylight to the lower cabin. Rails are outboard to maintain safety should these pads be used while underway, an attractive proposition as they both include tilt backs allowing a conversion to chaise lounge position.

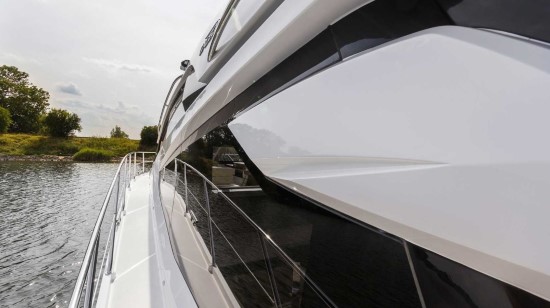

Galeon 560 Skydeck Rails

Transitions to the bow are made safer with rails to both sides.

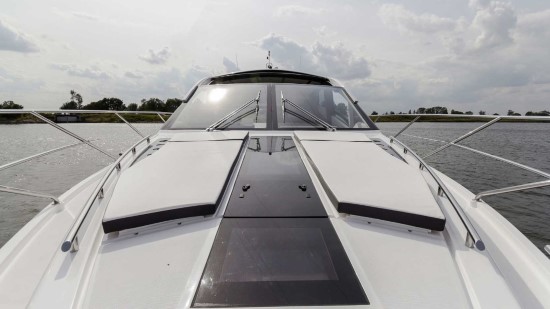

Galeon 560 Skydeck Twin Sun Pads

Twin sun pads flank the VIP stateroom skylights. Rails keep the area safe when underway.

Fully forward there is an electric winch with foot controls and separate controls at each helm. The anchor roller manages a 77-pound (34.9 kg) galvanized anchor attached to 295’ (89.9 m) of 3/8” (9.5 mm) galvanized chain. A hatch alongside provides access to the self-draining rode locker.


Of course, there’s the Skydeck, and in this case it’s like revealing the hidden features of a Swiss Army knife. This deck is normally closed off, and it is this that gives the 560 SKY her sleek appearance consistent with a hardtop express cruiser. However, push a button, and a sliding carbon fiber cover opens to expose an open deck with a wraparound L seat with storage underneath, a wet bar with optional refrigerator, and a fully-featured helm station with another three forward-facing seats. The starboard front seat has a reversible back so it can convert from forward to aft facing.

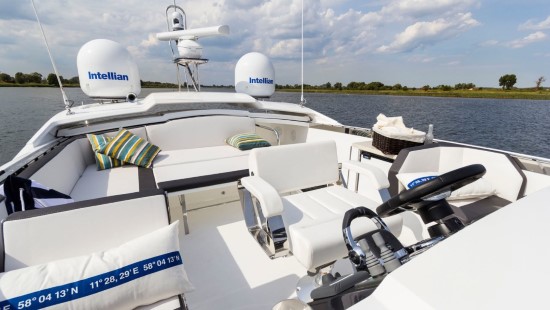

Galeon 560 Skydeck Aft L Seating

Here we can see the aft L seating and the two seats alongside the helm. The one to starboard has a flip seatback. The hardtop can be seen just under the antenna arch.

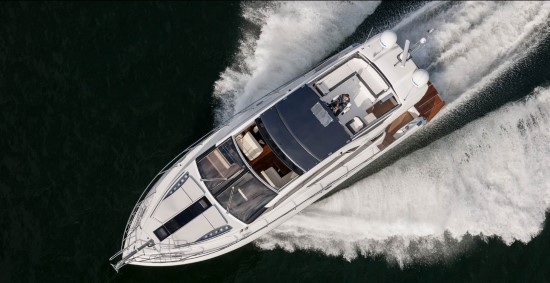

Galeon 560 Skydeck Bird's Eye View

In this view from above, we can see the L seating with the forward seatback flipped ahead to expand the aft seating.

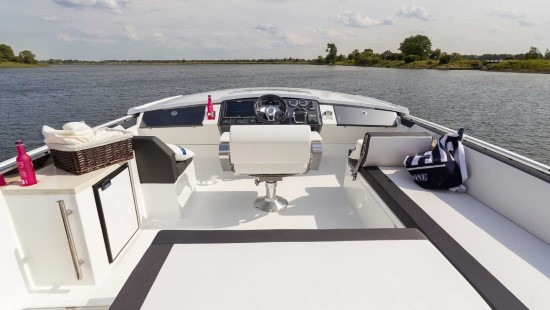

Galeon 560 Skydeck Starboard Seat

With the starboard seat set up as forward facing, guests can be to both sides of the operator and enjoy the same view. Notice the two glove storage compartments to both sides of the collapsible helm panel.

Skydeck Helm

The Skydeck helm is center-mounted. A heavy-duty helm seat is provided and includes a fold-down seatback to accommodate the deck being covered. The panel includes an optional A125 auxiliary multi-function display to port (remember to make sure the master unit down below is turned on) and the controls to the right of the wheel. The Volvo Penta EVC displays are just below. To the right are the engine controls and the bow and stern thruster joysticks.

A small collapsible plexi windscreen is just ahead, and the entire console is collapsible and conceals at the push of a button to accommodate the carbon fiber Skydeck cover.

Galeon 560 Skydeck Helm and Windscreen

Here is the collapsible helm and plexi windscreen. Notice the heavy-duty seat that also includes a fold-down seatback. To the starboard side is the lounge with flip seatback to convert from forward-facing to aft-facing.

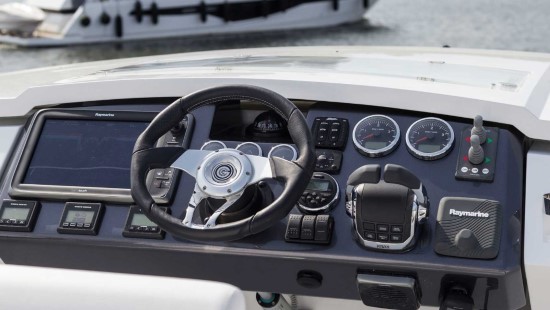

Galeon 560 Skydeck Helm Functionality

The Skydeck helm is fitted with full functionality that lacks for nothing. Here, the windshield is lowered and we can more easily see the low profile. Even the compass won’t interfere with the lower profile.

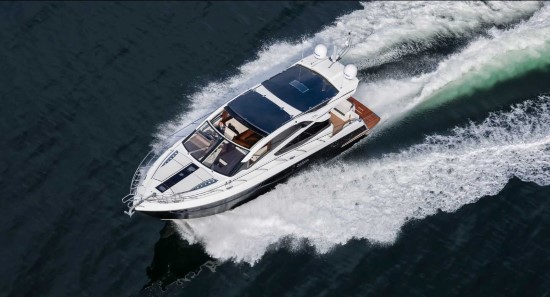

Galeon 560 Skydeck Express Cruiser Look

Here we can see the Skydeck closed off giving the true look of an express cruiser. Notice the opening sunroof just ahead.

Interior Features Inspection

A three-panel glass and stainless-steel door opens fully to create a near seamless transition from the aft deck to the interior. As we move inside, it’s clear that the theme is light and more light. Large side windows and the huge forward windshields fill the bill and bathe the room in natural light and provide good sightlines to the horizon from the seated positions. Light toned upholstery and darker woods provide eye appeal. Choose from either Gloss Walnut cabinetry with Misty Grey decking or Beach Wood Grey for the cabinetry and Shore White flooring. Climate is controlled from the 84,000 BTU Condaria chilled water system.

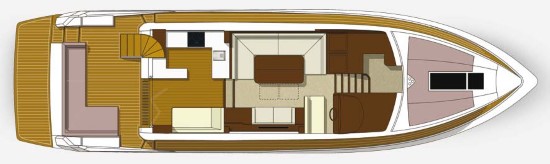

Galeon 560 Skydeck Galley Location

The main deck layout shows the galley centrally located between the outside and inside gathering areas.


The galley is located aft and to the port side on the main deck keeping both it, and the host, in the center of the two main gathering and entertaining venues. The sliding doors just abaft allow the counter to serve double duty as a cockpit service bar.

Inside, the galley is well equipped with plenty of Corian counter space, an additional island for food prep, and a raised counter for buffet serving. A large tempered and tinted glass window to the side ensures that the chef enjoys a continual view. Storage is above the windows showing clever use of space. The double basin stainless-steel sink can be covered with a wood-cutting surface. Directly adjacent is the 240V four-burner induction cooktop. Below is the convection microwave. A 5.8 ft3 (165 L) upright refrigerator is corner mounted to the aft section with open space above, and it supplements the 2.3 ft3 (65 L) refrigerated drawer.

Galeon 560 Skydeck Galley and Salon

The galley is aft and to port. The salon is just ahead and up four steps.

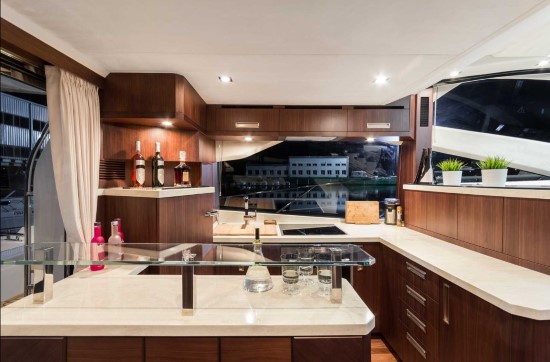

Galeon 560 Skydeck Galley Features

The galley is fully featured and U-shaped counters provide maximum use of space.

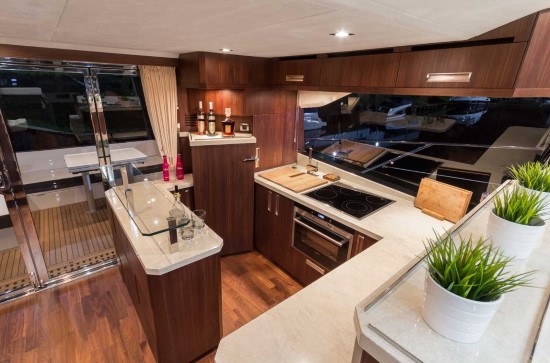

Galeon 560 Skydeck Convenient

Even with the doors closed off, it’s easy to see how convenient the galley is to the cockpit just behind.

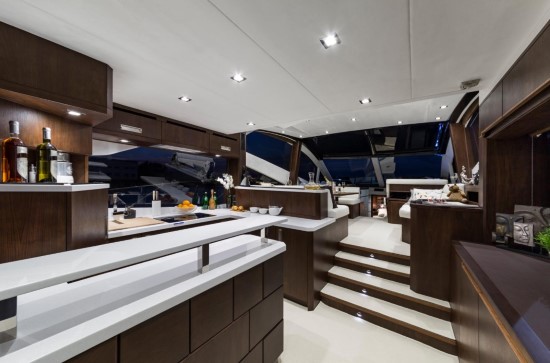

Galeon 560 Skydeck Dark Walnut Interior

Here’s the same view with the optional Dark Walnut interior.

Across to port is more storage and additional counter space.


Continuing forward on the main deck, we move up a set of steps that separates the galley from the salon. Otherwise, it’s an open floor plan with the eye being uninterrupted throughout the level. It also maintains the characteristic high headroom at 6’5” (1.96 m). To port is a U-shaped dinette surrounding a solid wood table on a pair of hi-lo pedestals that allows for a conversion to an extra berth.

Opposing seating is to starboard in the form of a two-across loveseat. The wide planked decking can be covered with the standard carpeting. The side windows admit plenty of natural light in and provide good, though not great, visibility out thanks to the single ornamental trim piece running across their length. Supports to the upper deck are trimmed in matching wood, and the air handler vents are integrated into these supports.

Above all, decorative trim strips along the length of the overhead are well populated with LED lighting.

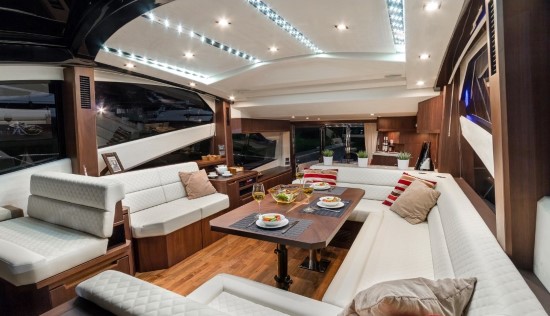

Galeon 560 Skydeck Salon

Opposing seating and a mix of light and dark tones are at once pleasing to the eye. Carpeting can be added to the deck, but that seems to take away from the tasteful look the salon has.

With the clever “Skydeck” arrangement, the 560 provides both an upper command station and the ability to open a sunroof to the forward salon. Additionally, opening side windows add to the mix to let in huge amounts of air and sun, blurring the line between the inside and the outside.

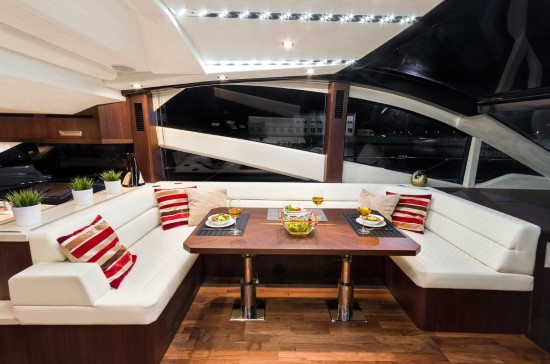

Galeon 560 Skydeck Salon Seating

The main seating of the salon can accommodate a large crowd for dining.

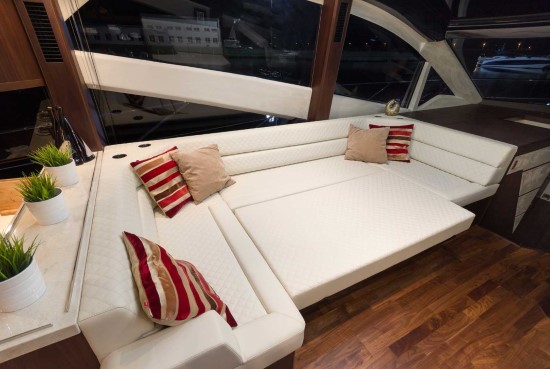

Galeon 560 Skydeck Berth

The salon can accommodate the extra overnight guests with the hi-lo table and a filler cushion.

Lower Helm

Although there is a Skydeck operating station, Galeon also includes a lower station ahead and to the starboard side of the main deck. Visibility to the side is improved here thanks to the trim piece across the aft windows lowering to the side decks at this point and being out of sight. All the windows are tempered glass, with the windows to both sides able to be opened electrically. We’d still like to see either a single piece windshield or a smaller center mullion to further improve visibility. Defrosters are fitted just inside the bottoms of the windshields. Overhead, the opening sunroof allows plenty of fresh air and light.

As for the layout, the lower helm station is professional and efficient. The upper panel is able to accommodate an optional Raymarine A127 12.1” (30.73 cm) multi-function display along with autopilot and depth gauge, and there’s still room to add an optional A125 aux display. To the right is a Volvo Penta EVC display. The lower panel is well populated with gauges and the steering wheel is on an elevated pod. To the left is a large switch panel with the sticks controlling the optional electric bow and stern thrusters right alongside. The engine controls and trim rockers are in a sub-panel well to the right of the helm station.

We’re always happy to see the small panel to the left with a line drawing of the yacht screen printed on the surface. On this is a series of small LEDs that show when pumps are activated and which nav lights are burning.

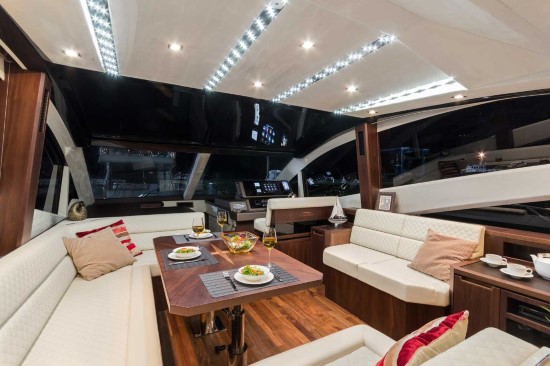

Galeon 560 Skydeck Helm Location

The helm is located ahead and to starboard on the main deck.

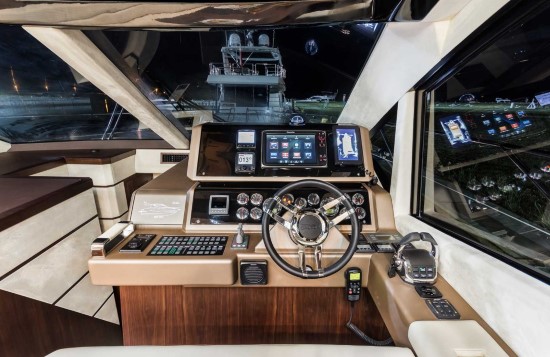

Galeon 560 Skydeck Lower Helm View

The lower helm is professional and efficient. Notice the view out the side windows. Just to the left is the companionway to the lower deck.

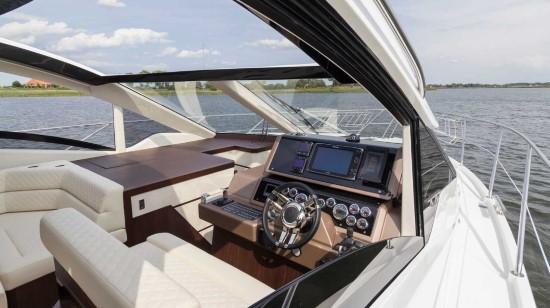

Galeon 560 Skydeck Opening Side Windows

The opening side windows not only add to the feeling of bringing the outdoors in, they also improve visibility when docking.

Galeon 560 Skydeck Windshields

The two-piece windshields have wipers with integrated washers.

Lower Deck Accommodations

A center-mounted companionway leads us to an attractive and well-finished foyer to the staterooms. This welcoming area is well lit from the windows above. On this level are three staterooms and two heads. Along with the beautiful décor, there is an underlying theme of creative use of space. There is a single corner or nook that hasn’t been turned into useful storage. As an example, we see hanging lockers with shelves in the back. Berths have drawers underneath rather than requiring lifting the mattress. Both staterooms have hidden, lighted vanities.

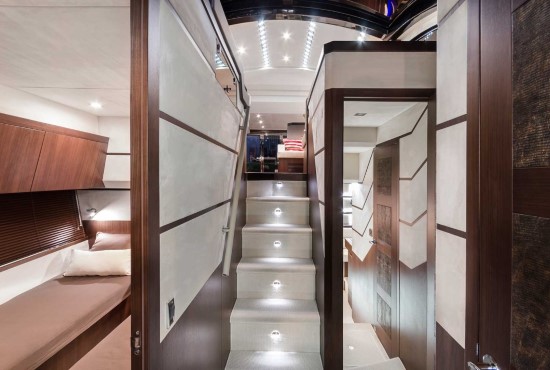

Galeon 560 Skydeck Companionway

The companionway to the lower deck is well lit. To one side is the entry to the master, to the other is the guest cabin with its twin berths.

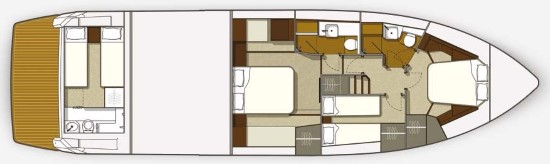

Galeon 560 Skydeck Accommodations Layout

The accommodations layout shows three staterooms and two heads. Additional crew quarters are aft.


A private entrance adjacent to the stairs leads us to the full beam master that is lavishly, but tastefully, decorated. The queen-sized berth is mounted low in the center of gravity and on the centerline of the hull, thereby minimizing any movement. Yes, we know that chances are the boat won’t be underway while we’re sleeping, but there’s a good chance of overnighting on the hook or a mooring.

A bureau of drawers is to starboard offering plenty of storage, but more can be found in hanging lockers and under berth drawers. To port is a comfortable seat and desk providing a place to sit and plan out the next day’s destination. It also doubles as a vanity with a mirrored lid.

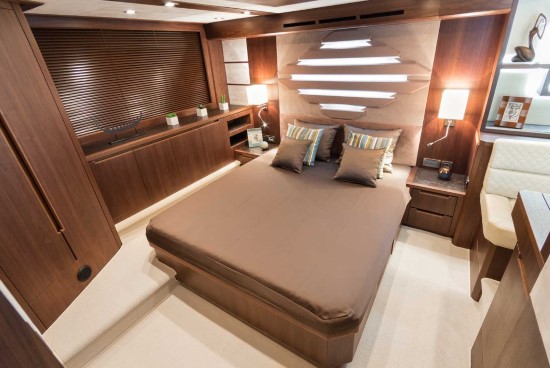

Galeon 560 Skydeck Full-Beam Master

The master is full-beam and includes a center-mounted berth. A bureau of drawers is to starboard, a seat with desk is to port.

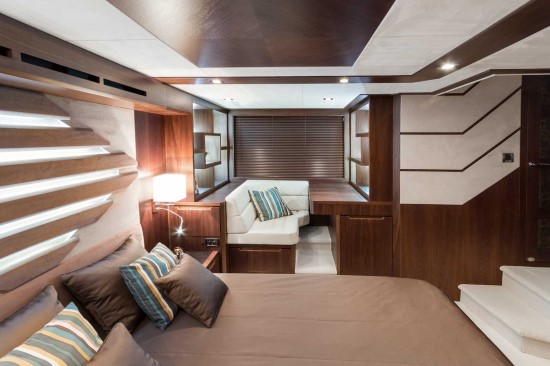

Galeon 560 Skydeck Desk

The desk makes a great workstation as well as a lighted vanity with a mirror underneath the lid.


The VIP is fully forward and it has the familiar layout of a berth mounted into the bow. Access is to the sides up two steps. Hanging lockers are supplemented by the drawer storage under the berth.

Overhead are lengthy skylights providing welcome light and these are all framed by heavy wood trim. This is an unusual design element, but not so unusual for Galeon. Most often, we see the requisite hatch required under certificated guidelines. While these hatches allow light in, these skylights do much more, and the result is quite comforting both to the eye and the mind.

Most pleasing is the way Galeon is able to squeeze every bit of available space and make it usable. A glance at the cabin shows more storage than nearly any other boat in class. We’ve seen instances where builders don’t even add storage to the dead space over the side windows. Here, Galeon has storage above, below, and ahead of the side windows. And that’s just the start of it.

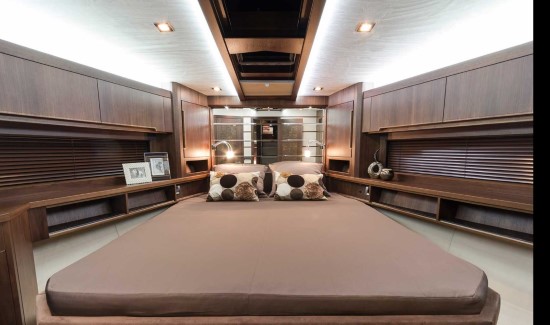

Galeon 560 Skydeck VIP

The VIP is fully forward, and Galeon takes good advantage of the available space and applies it to much needed storage.

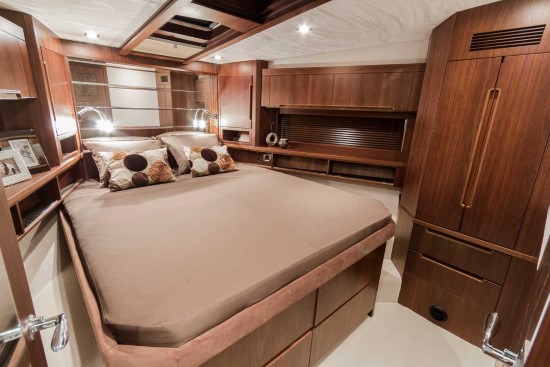

Galeon 560 Skydeck VIP Storage

Even more storage is in front of, and underneath, the berth. Notice there are even drawers under the handing locker.

There’s a private entrance to the head, just abaft and to port. This includes an electric flush toilet, an opening portlight, and a separate walk-in shower. Like the master, it includes a tower-style faucet.

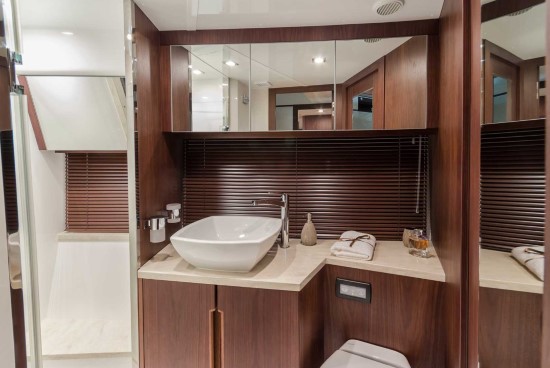

Galeon 560 Skydeck VIP Head

The head is shared so it also serves as a day head.


The guest cabin is to starboard from the foyer and features twin berths. These can also slide together, allowing the 560 to host three couples. An opening portlight allows fresh air to circulate, but when closed the cabin is still climate controlled.

Galeon 560 Skydeck Guest Stateroom

The guest stateroom offers convertible berths and plenty of storage solutions, so two people will not be looking for where to stow their gear.

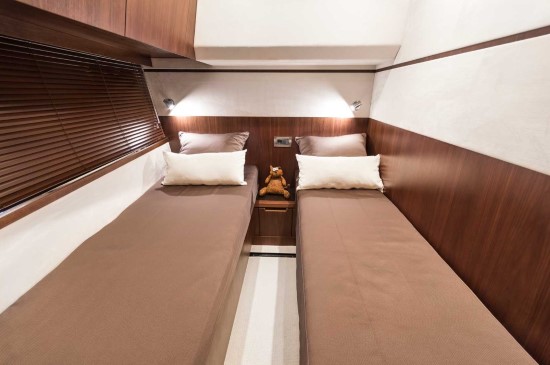

Galeon 560 Skydeck Nightstands

A center nightstand will get covered, and another will reveal when the two berths are slid together.

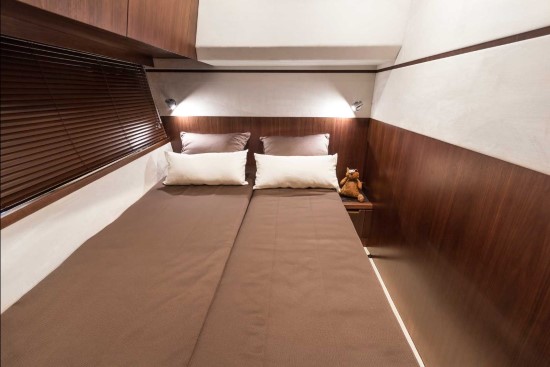

Galeon 560 Skydeck Overnight Accommodations

With the berths converted, the cabin transforms into overnight accommodations for a couple.

Crew Cabin or Storage

The 560 SKY is offered in two different versions. One has lazarette storage and the other offers this space as a fourth cabin. Some call it crew space, but this isn’t really a boat that gets crewed; additional guests, yes, but paid crew, not so much.

As a fourth cabin, it’s actually quite comfortable. Access is through a watertight door to the starboard side of the transom. It includes a pair of berths and a separate, albeit modest, head. If this option is chosen, the 560 can still accommodate a tender on the hydraulic platform.


Galeon is consistent across the entire lineup with building premium-level boats that excel in both quality of construction as well as fit and finish. The 560 SKY proudly carries on that mission. She’s an interesting blend of a yacht carrying the sleek lines of an express cruiser while at the same time providing the raised operational and gathering areas of a flying bridge cruiser. It’s a beautiful combination, and one that Galeon has pulled off quite well in true Galeon form.

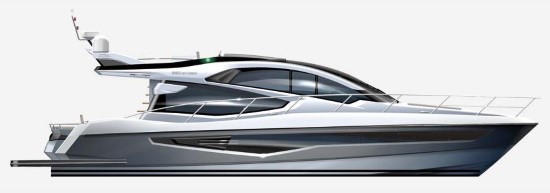

Galeon 560 Skydeck Profile
