Brief Summary

Let’s cut to the chase – Cabo has gotten to where it is today by building better boats than its cheap competition, and lower-priced boats than its high-quality competition. Cabo builds the important things right, yet does not lavish money on fine-yacht grade joiner work, gadgets, complex systems, re-inventing the wheel, and expensive marketing eyewash. What you see is what you get, and if you don’t see it, chances are it’s not there. For the last five years or so Cabo has given Bertram and Viking fits at the small end of their lines, and now it takes on the big battlewagons of the big three – Bertram, Hatteras and Viking.


Length Overall 54' 11'' /
Beam 17' 9''
Dry Weight 50,000 lbs.
Draft 5'
Deadrise/Transom 16 deg.
Max Headroom 6' 8''
Bridge Clearance N/A
Fuel Capacity 1400 gal.
Water Capacity 200 gal.


See the price by becoming
a BoatTEST member.

Engine Options

Tested Engine Currently no test numbers

Captain's Report

Unfortunately, these days there are only six major production boat companies world-wide building convertibles in the 52’ to 55’ range. In addition to the big three there is Ocean Yachts, Riviera and Maritimo. Now, with Cabo entering the 50’+ ranks, there are seven. Some of those builders offer two models in that range so a buyer may find himself with, say, a total 12 or 13 models to choose from. Not many. All seven of these builders know what they are doing, are experienced, and are building good boats. In many respects they are all very similar. But what differentiates them? Isn’t one slightly larger than another, or a better value, or more seaworthy, or faster, or more luxurious below, or have a better warranty, or better for entertaining or cruising, or be more comfortable in some other way?
The answer is a resounding “yes” to all of those questions. To find the right boat for any individual is a matter of lining up one’s priorities and then looking very closely.

Cabo 52 Flybridge

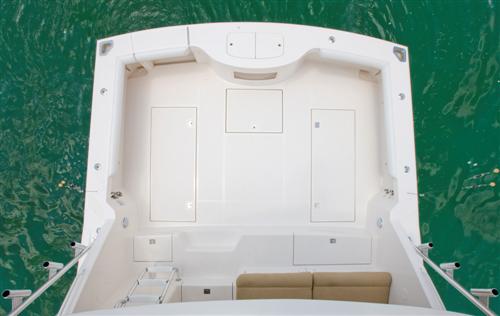

The business end of the Cabo 52 Flybridge model is as fishy as they come. Here there is plenty of room for a fighting chair, a couple of anglers working fish if there is a double hook-up, or a large cocktail party back at the dock to celebrate a successful day on the water.

Cabo is 18 years old and as such is the newest major convertible builder on the American scene and its rise has been nothing short of meteoric. Clearly its founders knew what they were doing. Now the company is owned by Brunswick which also owns Hatteras which builds a competitive 54-footer.

The Cabo Niche

If we had to pick one theme over the years for Cabo, we would say that is “good value.” Cabo’s mission has always been to build a seaworthy boat with all of the fishing amenities for the expert angler who didn’t need to spend money on fine-yacht joinery and lots of glitzy gadgets. And since Cabo was the newest company attacking each market as it slowly built larger and ever large boats, it had the advantage of surveying the existing competition and do them all one better. Cabo has made a career of doing just that and has sold over 1200 boats since it started in business in 1991. That’s an average of 67 boats a year which is a lot for this market in this size range.

Cabo 52 Flybridge

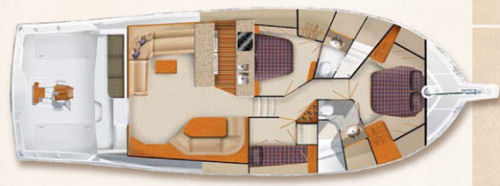

Three staterooms and two heads is the standard accommodations plan in this size boat.

Some Details

Her lines are pretty standard for an American convertible. The 52 has a soft and graceful sheer swooping down to her cockpit coaming. Her cockpit has all of the fishing amenities one would expect, including a 75 gallon live bait well in the transom with picture window, refrigerators and freezers under the mez seating and large fish boxes in the cockpit sole. Her cockpit is not only wide but also ample fore and aft, and there is plenty of room for a mate behind the fighting chair to keep it pointed in the right direction at all times.

Cabo 52 Flybridge

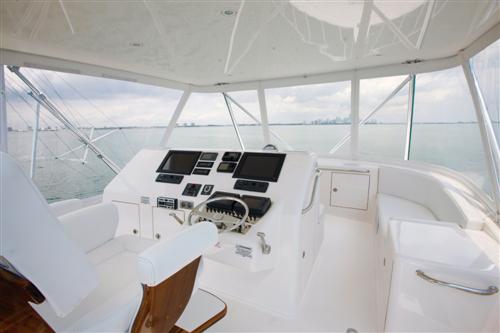

This flying bridge layout is not fancy but time-tested and functional. Note there is plenty of real estate for several screens and the instrument panel is at a 45-degree angle, ideal for seeing the screens when standing or sitting. There is also seating in front of the console.

Steaming Speed

According to the folks at Cabo, the boat can go over 40 knots with the C-32 1675-hp Cats. That is the holy grail of many tournament fishermen. Pull her back to something more reasonable, say, 1600 rpms, and she goes around 28 knots, according to Cabo, giving her a range of about 475 n. miles. Cabo says she is on plane at 1200 rpms which will get her 550 n. miles at 14 knots. She carries 1400 gallons of fuel which means when you slow her down you can go a long way. For example, at 25 knots you can easily make it from St. Pete to Isla Mujeres, Mexico if you want to fish off Cozumel. That would probably be your longest distance between fuel stops in the whole Caribbean.

Cabo 52 Flybridge

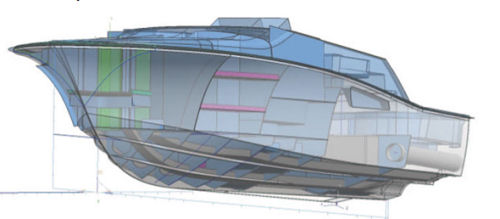

Note her deep, high deadrise forefoot, bow flair, chine flats and propeller pockets. Her DR is 16-degrees at the transom.


The Cabo 52 flying bridge model has the same hull as the Cabo 52 Express that has proven itself over the seasons. The hull has a Divinycell core with an E-glass layup schedule vacuum-bagged with vinylester resin. These are SOTA construction techniques and materials. E-glass and Divinycell, together with the resin infusion, assure that the glass to resin ratio is optimum. This is one of the reasons that the boat is lighter than some of her competitors. We like vinylester resin because it stops water migration to the core, and on the Cabo it is not just a skin coat to avoid blistering. The surface of her hull is ISO/NPG gel coat.
Her warped bottom hull is relatively deep forward and has a 16-degrees deadrise at the transom. This is a nice compromise between a good ride in a head sea and speed when conditions allow.

Cabo 52 Flybridge

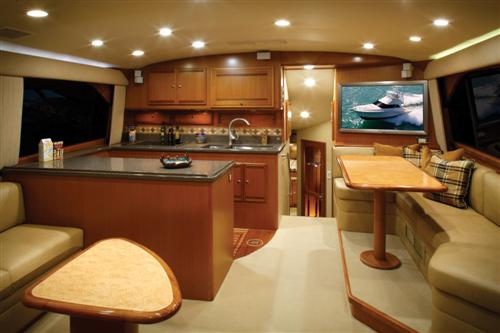

Cabo has placed what appear to be ½-inch fiddles on the starboard and aft sides of the galley counter, but failed to do the same on the interior side. We’d call this a good start, now it needs to complete the job. Note the ample pantry space.


The main salon, dinette and galley are all pretty much the standard arrangement. The galley has two sinks and a four-burner cooktop which is a bit better than some boats we know of this size. Below, the master stateroom is to port and has an en suite head. Forward is the VIP stateroom which is nestled in the bow, and shares a head with the guest stateroom. Both heads are snug, but they both have separate shower stalls. Joinery work and cabinetry quality are what you will find on all of the Cabos no matter what the size.

Cabo 52 Flybridge

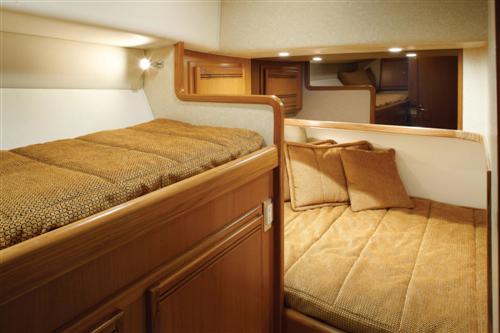

This guest cabin is the most unique layout on the boat. The single bunk is alongside the hull and takes advantage of hull flare, and note that hanging lockers are below. The athawartship bunk is a double, something we’ve never seen in this class of boat.

She appears to have all of the accommodations and amenities of convertibles 5 feet longer, but with a smaller price tag. How does the Cabo 52 do it? First, while the boat has a 17’9” beam at the widest point, she is not as beamy on the waterline as most of her competitors. That saves weight, but it also reduces the interior volume. For example, the Hatteras 54 has a 17’ 3” beam, but actually has more room below. Boats that are 25,000 to 30,000 lbs. heavier – as are many of her 54’ competitors -- are also larger and you can often “feel” that weight inside the boat in added elbow room in cubic volume.
Cabo cleverly uses its hull flare, and trims in the sides of its queen beds to create added accommodation space in a smaller footprint. She is a bit snug here and there, but we think Cabo has successfully squeezed in three staterooms, two heads and a rod locker below.

Cabo 52 Flybridge

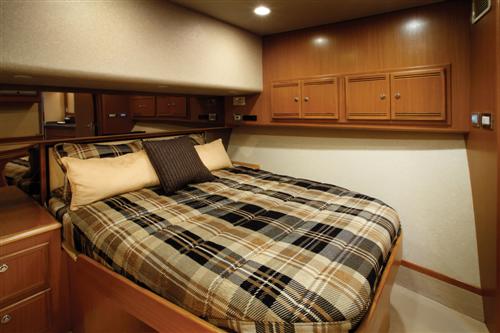

The master stateroom with en suite head is to port, has good storage and a large hanging locker.

Standard and Optional Equipment

As we look down the Cabo 52 Flybridge list of standard equipment a few things pop out at us as either unusual, or just plan something you ought to have no matter what boat you buy. Those things are—
*Transom door with top gate. (Transom doors should open out, but a top gate will keep someone from breaking open the door if they fall on it.)
*Electric priming pumps for the engines.
*Trolling valves on the transmissions.
*Engine-driven emergency bilge pump driven by one engine.
*Glendenning Cablemaster with 50’ of cable. (Upgrade to 100’.)
*Arched stateroom and head doors.
We are happy to report that in our opinion this boat does not need a lot of optional equipment. On our “needed” optional equipment list would be—
*700 gpd watermaker. (Water capacity is only 200 gallons which is actually about the same or more than competitive boats – they all need watermakers.)
*Black mask.
*Hot and cold shower in the cockpit.
*Spare 5-bladed props. (These props are expensive are usually not sitting around in stock, so you may lose valuable days if you don’t have your own spares.)
*Swim ladder.

Cabo 52 Flybridge

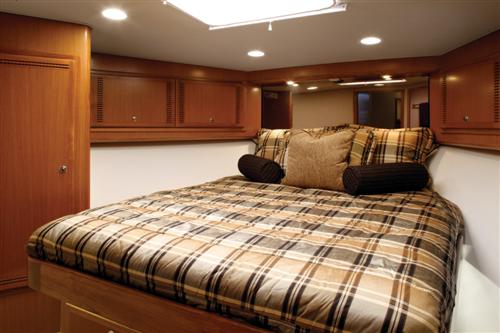

The VIP stateroom is in the bow. Note the good use of bow flare space for the lockers port and starboard.

Power to the People

Probably the most important question a prospective buyer should ask about this boat is what engines to install. The C-32 1675-hp Cats are expensive. While we don’t know how fast the C-18 1015-hp Cats will propel the Caboo 52 flybridge, we suspect that it would be plenty fast for us, say, 30-knots WOT and 25-knot cruise, as a guess. And, of course fuel consumption would be commensurately less.
We have found that one of the biggest reasons why people go for the big engines is not because they want them, but because they are afraid that when they go to sell the boat if they don’t have big engines it will be slow to move. That may be true, but as time goes on, we think that even aggressive tournament fishermen will realize that 10 knots more speed only gets you that 10 miles to the fishing grounds 5 minutes faster. The C-32s are a lot extra money for only five minutes extra fishing time.

Cabo 52 Flybridge

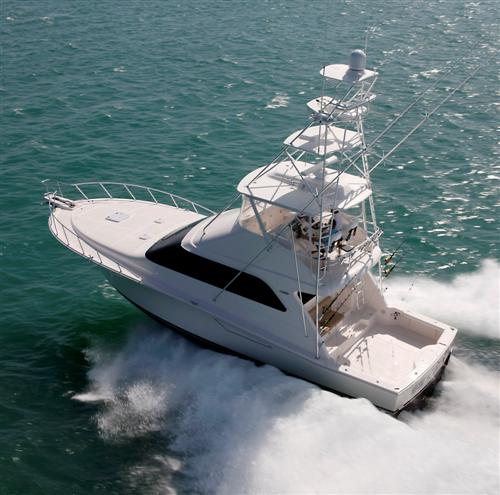

Take her anywhere in the Caribbean and have fuel to spare.

The MSRP base price of the Cabo 52 Flybridge convertible is $1,622,200 with the C-18s. That is not a bad price for a boat so equipped.
We don’t know what the base price of the 52 is with C-32s, but MarineMax’s office in Coconut Grove, Florida has one for sale listed at $2,241,455 with tower and other options. And she is the only Cabo 52 Flybridge that we know of that is available.
For more information, contact the Coconut Grove MarineMax office at 305-856-5830, or go to the Cabo website…
