Manitou 23 Encore SHP 575 Dual Engine (2019-)

2 x 200-hp Evinrude E-TEC G2



Key Features

  • Ski tow bar
  • Powder coated aluminum Bimini top and boot
  • Soft side cooler
  • Dinette table
  • Extended starboard chaise

Test Results

RPM MPH Knots GPH MPG NMPG STAT. MILE NM dBa
500 3.1 2.7 0.5 6.9 6 558 485.2 66
1000 5.3 4.6 1.1 4.8 4.2 390 339.4 68
1500 7.6 6.6 2.3 3.4 2.9 272 236.3 70
2000 11.1 9.6 4 2.8 2.4 224 194.6 83
2500 17.2 15 6.3 2.8 2.4 223 193.8 81
3000 23.6 20.5 8.6 2.7 2.4 222 193.3 82
3500 30.7 26.7 10.8 2.8 2.5 230 199.9 88
4000 36.6 31.8 14.4 2.5 2.2 206 178.8 87
4500 42.8 37.2 17.9 2.4 2.1 193 168.2 91
5000 47 40.8 21.4 2.2 1.9 178 154.9 97
5500 53 46.1 35.2 1.5 1.3 122 106.1 100

Specifications

Length Overall 24' 8'' / 7.52 m
Beam N/A
Dry Weight 3,655 lbs.
1,658 kg
Tested Weight 4,288 lbs.
1,945 kg
Draft N/A
Deadrise/Transom N/A
Max Headroom open
Bridge Clearance N/A
Weight Capacity 1,835 lbs.
832 kg
Person Capacity 13
Fuel Capacity 90 gal.
341 L
Water Capacity N/A
Total Weight 4,288 lbs.
1,945 kg

Acceleration Times & Conditions

Time to Plane N/A
0 to 30 N/A
Ratio N/A
Props N/A
Load 2 persons, 3/8 fuel, no water, 50 lbs. of gear
Climate 84 deg., 81 humid; wind: 5-12 mph; seas: chop

Engine Options

Tested Engine 2 x 200-hp Evinrude E-TEC G2
Std. Power Not Available
Opt. Power Not Available

Captain's Report

Contents of Report

running

With twin 200-hp Evinrude outboards, the 23 Encore SHP 575 Dual Engine topped 50 mph.

Mission

The Manitou 23 Encore SHP 575 Dual Engine is designed to be a high-performance pontoon boat with handling and top end that are superior to competitive pontoon boats, and monohulls as well. She is also equipped with premium features such as reclining captain’s chairs and an available multifunction display instead of analog-style gauges to appeal to a luxury-minded buyer.

Major Features

• Twin Evinrude E-TEC G2 200-hp outboards

• iDock joystick controls

• Heavy-duty stainless-steel ski tow

• Heavy-duty stainless-steel boarding ladder

• Movable bucket seat to fill in bow or stern

• 2 dinette tables

• Privacy station

• Bimini top

• Capacity: 13 people or 1,835 lbs. (832 kg).

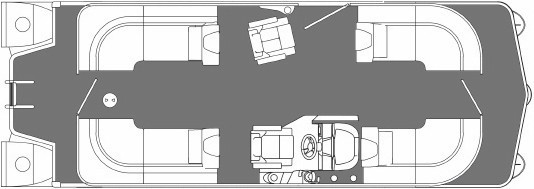

    layout

    The dual captain’s chairs give the boat a more open feel and will facilitate boarding a person in a wheelchair.

    Performance

    The Numbers. The Manitou 23 Encore SHP 575 Dual Engine measures 24’8” (7.52 m) long and has 25” (64 cm) diameter outboard pontoons with a 27” (69 cm) diameter center model. Empty weight is listed at 3,655 lbs. (1,658 kg). With two people, 35.5 gallons of fuel (134 L) and test equipment on board, we had an estimated test weight of 4,829 lbs. (2,190 kg).

    Power. Our test boat was powered by twin Evinrude E-TEC G2 200-hp outboards.

    Top Speed. We tested in warm conditions with light breezes and minimal chop. With the engines hitting a maximum of 5500 rpm, we hit a top speed of 53.0 mph.

    Best cruise came at 3500 rpm where we recorded 30.7 mph and a fuel burn of 21.6 gph. That translated to 1.4 mpg and a range of 115 statute miles with 10 percent of the boat’s 90-gallon (341 L) fuel capacity in reserve.

    running2

    Notice how the water breaks off the lifting strakes on the pontoons, which helps provide a dryer ride.

    Idle Speed. Because pontoon boats typically spend 60% of their engine operating hours at idle, we should also look at her fuel consumption there. At 500 rpm, the 23 Encore SHP traveled 3.2 mph, getting 3.4 mpg. At 1000 rpm, she went 5.3 mph and got 2.4 mpg. Both of these fuel consumption figures are about half of what one could expect in a 4-stroke engine.

    Acceleration. While it is always tough to determine precisely when a pontoon boat get on plane, our best guess is that it was at 3.2 seconds. In any case, she hit 20 mph on 5.5 seconds and 30 mph in 8.6 seconds. These are good times for such a heavy toon, and the torque of the 2-stroke engines obviously was instrumental here.

    Handling

    The SHP package includes lifting strakes on the pontoons to improve turning, and the Barracuda nosecone design which cuts through waves and chop. Our test boat carved through hard turns, holding its line and leaning into the maneuver like a sports boat. This is somewhat unusual for a pontoon boat, and is considered desirable as the Gs keep people in their seats at the high speeds that this boat is capable of.

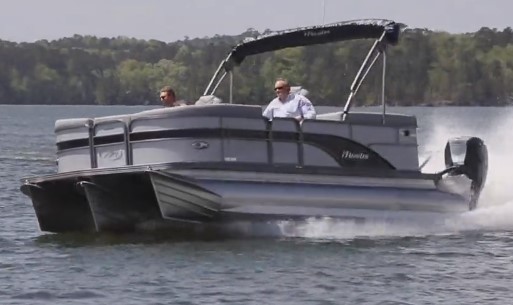

    running3

    Here we see the 23 Encore SHP 575 Dual Engine leaning into a turn at high speed.

    Docking

    To make life easier for the captain when docking, simply pull the control levers to neutral and engage the iDock joystick. This allows the captain to spin the boat or slide sideways into a tight spot. This is an option, but one we recommend for people unfamiliar with docking a big toon. The list price for Evinrude’s joystick upgrade is only $5,999, roughly half of what it might cost with other brands.

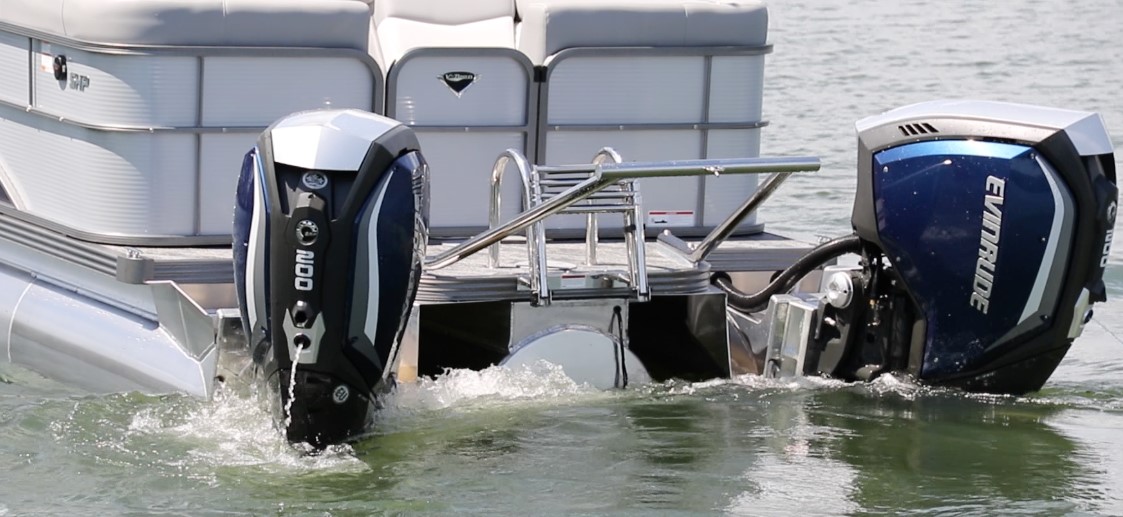

    outboards

    When the boat is being operated with the joystick, the engines move independently of each other.

    Construction

    The Manitou 23 Encore SHP 575 Dual Engine is built solidly with heavy-duty transverse supports beneath the decking that are as close as every 7” (17.7 cm). Its pontoon chambers have fully sealed bulkheads in the pontoons so that in the unlikely event of a pontoon being penetrated, water would only remain in that section. Further, this costly construction method adds rigidity to the toons that others might not have.

    One of the reasons for the 23 Encore SHP’s excellent performance is her lifting strakes that few other pontoon boats have. (See the orange areas in the drawing below.) These give lift to the vessel – much like those on virtually every conventional fiberglass monohull – and help provide superior acceleration and fuel efficiency and higher top speed.

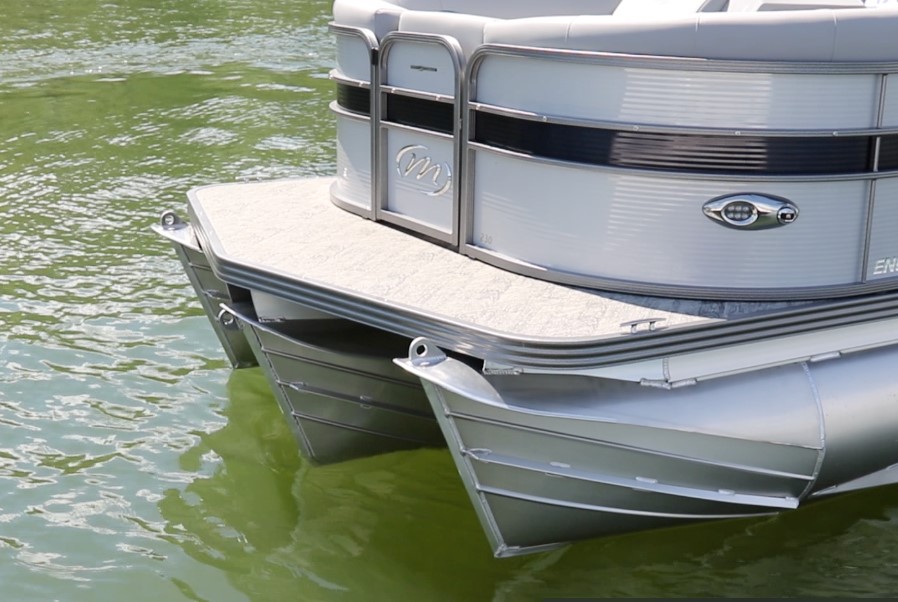

    rails

    The extra-strong welded keels and splash rails knock down spray and can withstand the occasional bump with the dock.

    strakes

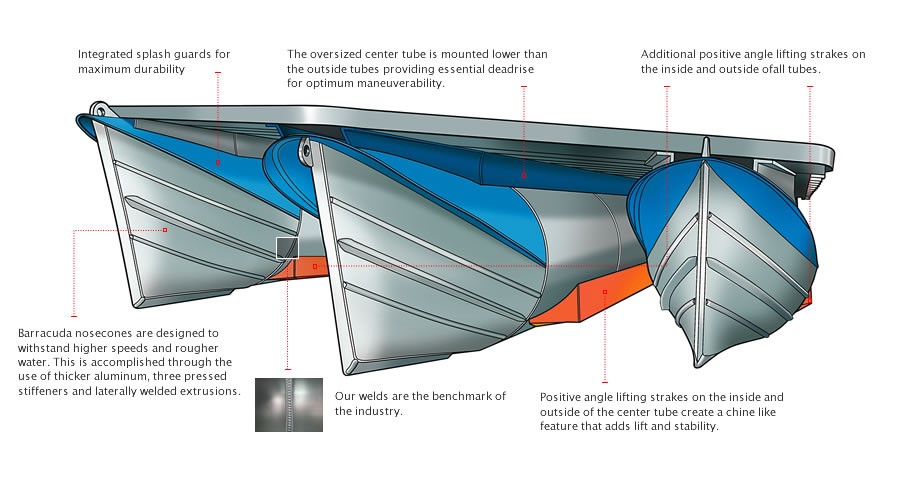

    Details of the SHP system include the positive angle lifting strakes in orange and integrated splash guards in blue. The tubes are 25” (63.5 cm) in diameter.

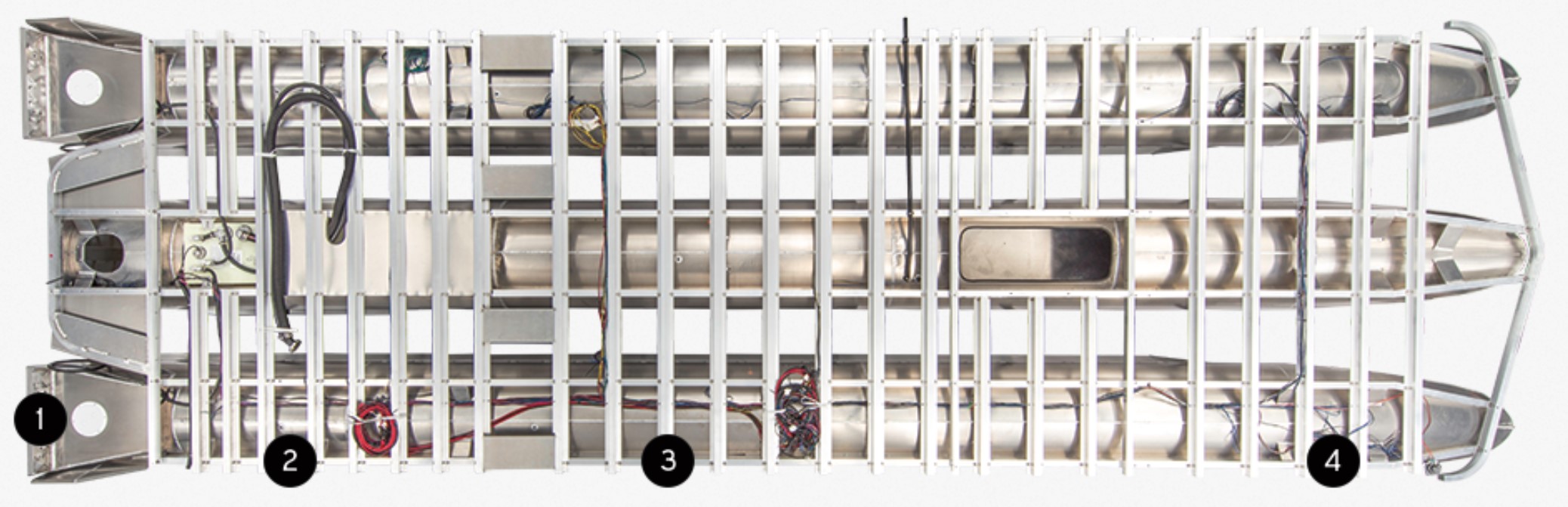

    supports2

    The numerous transverse supports beneath the deck ensure that it doesn’t flex when the boat is running at high speeds in bumpy water. 1) The engine mounts are machined from a solid block aluminum billet to ensure strength with high-horsepower outboards. 2) Manitou places its crossmembers closer together than virtually any other builder for extra strength. 3) Manitou’s cross members are hat sections, which are the strongest design. 4) The builder prides itself on the quality of its welds.

    The Engines

    One reason why the E-TEC G2 200 is a good match to power a pontoon is that it’s a two-stroke engine. That means each stroke is a power stroke. Evinrude says the engine makes 30 percent more peak torque than a comparable 4-stroke. Fuel delivery is handled by direct injection which features an injector in each cylinder.

    At lower rpm, the fuel is injected into a fine mist and fed into the smaller top section of the combustion chamber. At idle, only a small amount of fuel is used – the size of Champagne bubbles, according to the folks at Evinrude. The result is that below 1000 rpm, the Evinrude E-TEC G2 200-hp engine gets twice the fuel economy of all competitive engines.

    60% of the engine hours put on all pontoon boats, on average, is spent at idle. For that reason alone, Evinrude is well suited for this application.

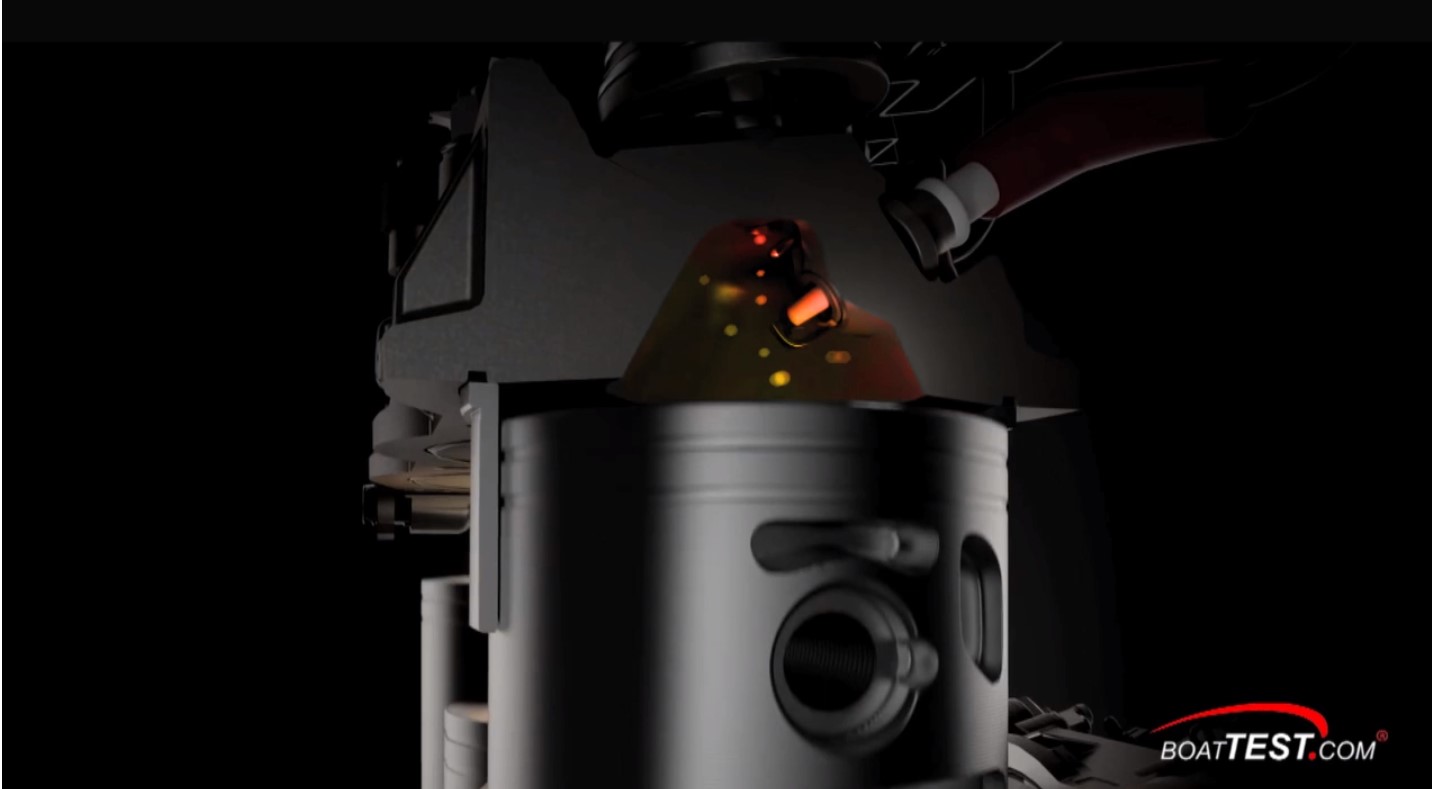

    combustion

    The combination of direct injection in the combustion chamber, an injector that can meter fuel in minute quantities at differing psi, and the combustion chamber design, all makes the 2-stroke Evinrude E-TEC G2 engine the most fuel efficient outboard below 1000 rpm.

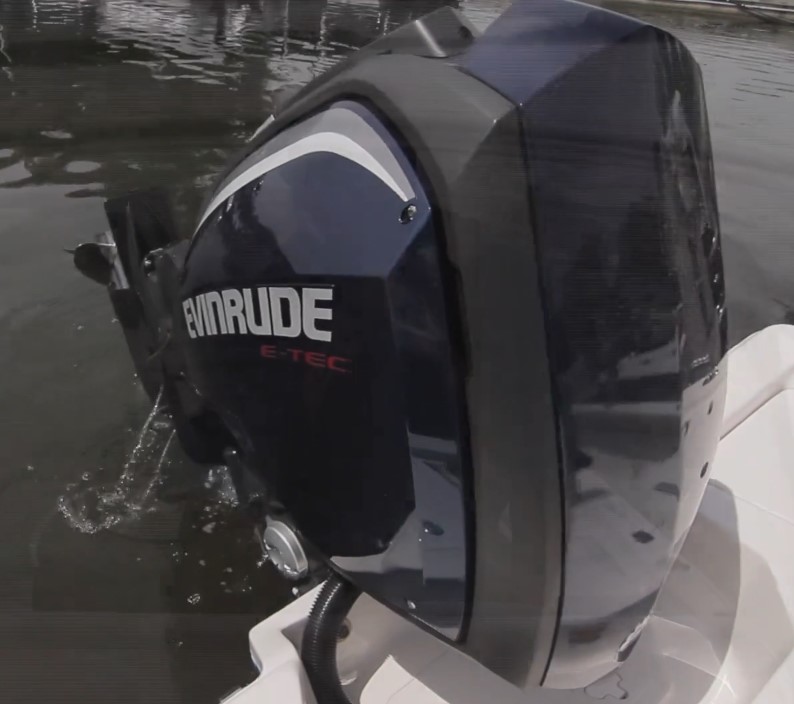

    tilt

    Having the ability to tilt the engine completely out of the water means less corrosion in a salt environment.

     Boat Inspection

    The Stern

    Each engine is installed on an aluminum bracket that bolts to the aft end of the outer pontoons. Removable inspection panels provide access to the lower mounting bolts.

    Between the engines is one of the sturdiest ski tows we’ve seen, and the four-step boarding ladder extends 31” (78.74 cm) below the waterline, which exceeds ABYC standards by 9” ( 22.8 cm). Between the ladder and the 22” (55.88 cm) wide stern gate, the swim platform is 35” (88.90 cm) in length.

    steering

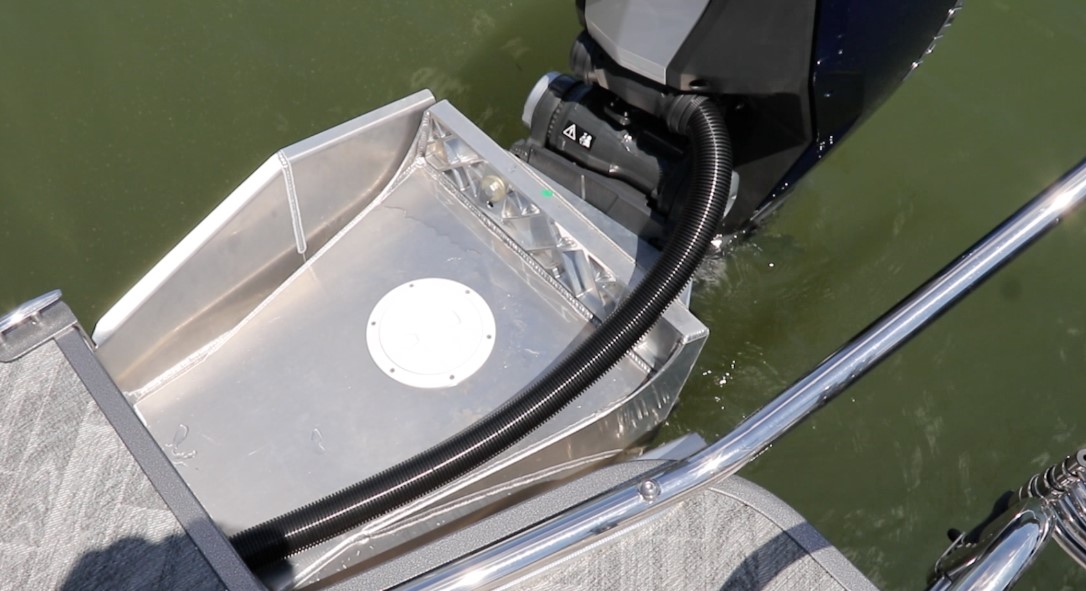

    With the integrated hydraulic steering on the Evinrude engine, rigging is super clean with a single harness connecting to the powerhead.

    skitow

    The standard ski tow extends far aft and minimizes the possibility of getting a line tangled in the engines.

    ladder

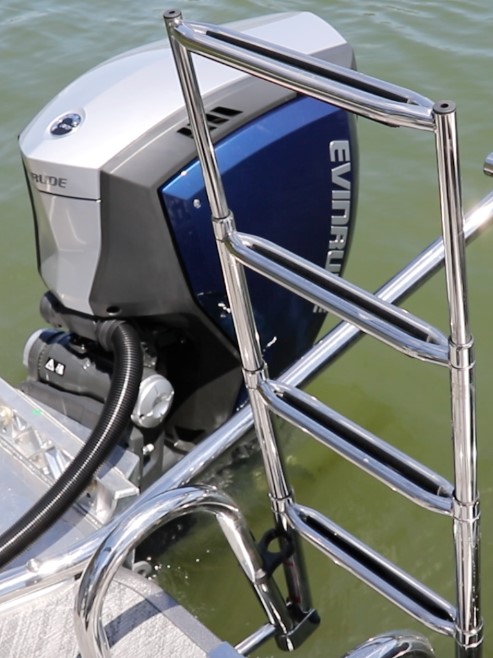

    The four-rung reboarding ladder extends 31” (79 cm) into the water with stainless-steel grabrails. Note that the two-tube rungs are easy on bare feet.

    aftdeck

    The aft deck has enough space for crew members to tend to the towrope or dock lines. Notice the conventional fixed cleat in the aft port quarter. We would like to see pull-up cleats for all deck cleats to avoid toe stubbing. We like the swimming-pool type hand holds to make exiting the water easy.

    The Cockpit

    Passing through the aft gate we enter the cockpit area, where we find twin aft-facing lounges, and settees which have backrests set at a chaise-style incline. With the Bimini top up, we saw that our test boat had the optional LED lights integrated into the frame.

    The 23 Encore SHP 575 Dual Engine comes standard with movable cupholders and a removable table. There are also two cupholders in the seat bases on either side. The hinged backrests tilt forward to reveal additional storage.

    Under the starboard aft lounge, we found Manitou’s smart battery switch; the two batteries being located underneath the aft cushion. To port, there’s another battery plus open storage.

    cockpit

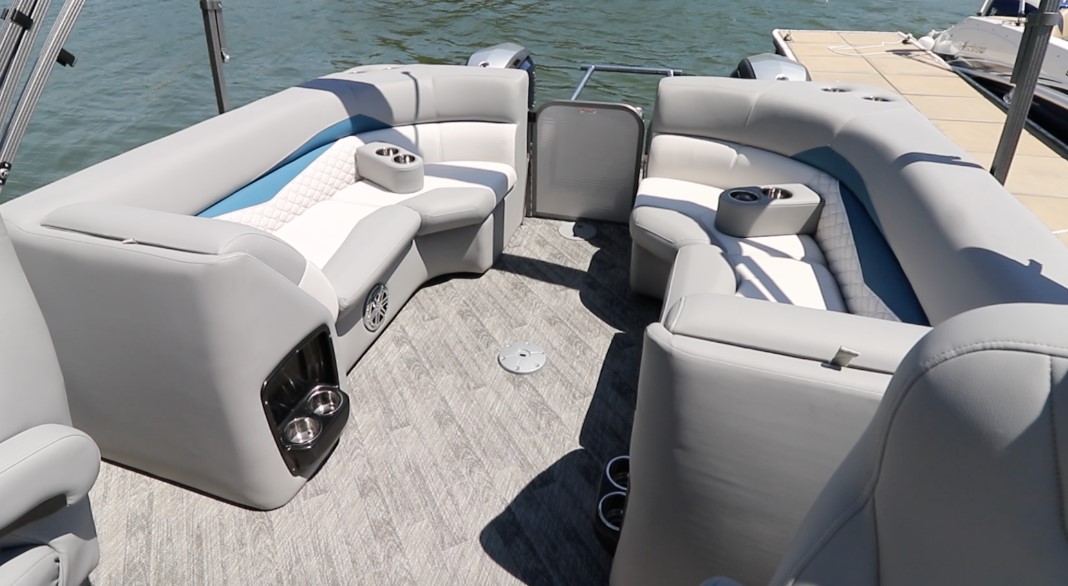

    The cockpit has dual lounges designed for aft-facing travel with cupholders and speakers towards the base.

    cupholders

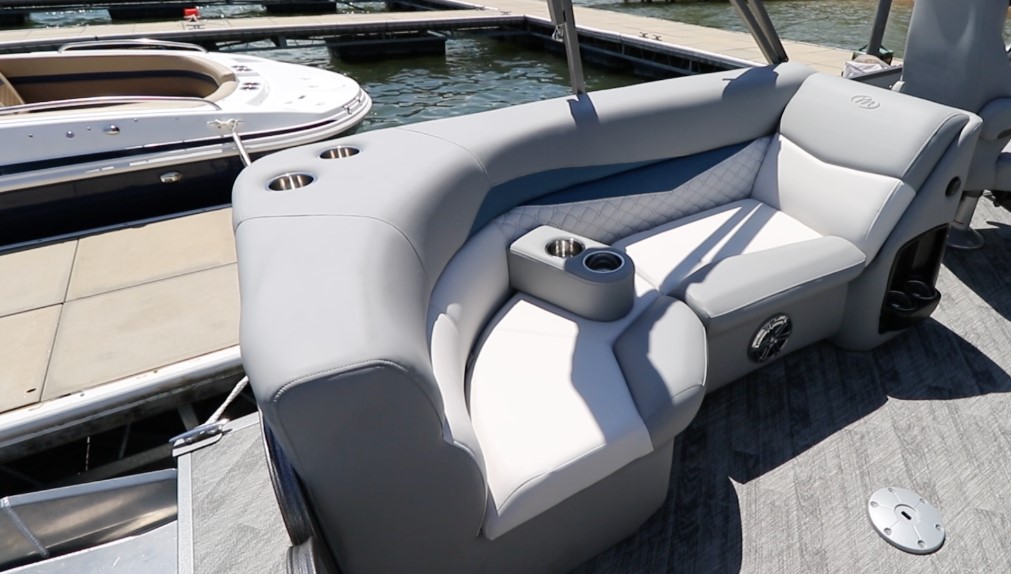

    Manitou provides a plethora of cupholders, including those in the top of the starboard cockpit lounge, the aforementioned pair in the base aft and the moveable set shown in this picture.

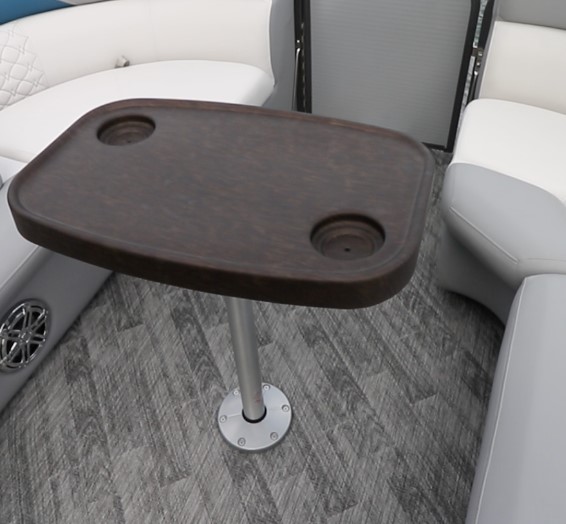

    table

    The standard table, one of two, installs easily and has more cupholders.

    bowstorage

    All of the cockpit and bow storage is accessed via hinged cushions so they’ll always be attached to the boat.

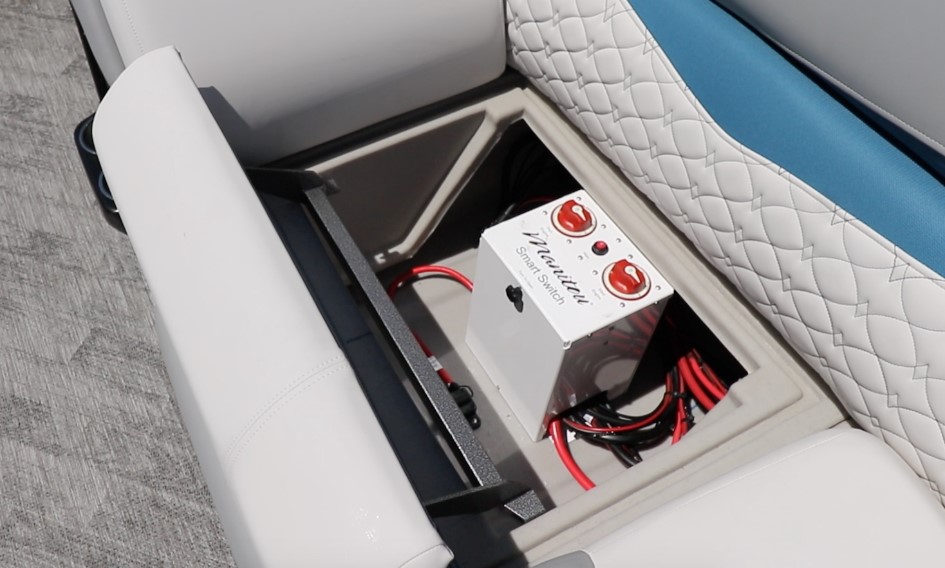

    batteryswitch

    The master battery switch is in the base of the port cockpit lounge.

    battery

    Just aft of the switch are two batteries. A third battery is located in the same location to starboard.

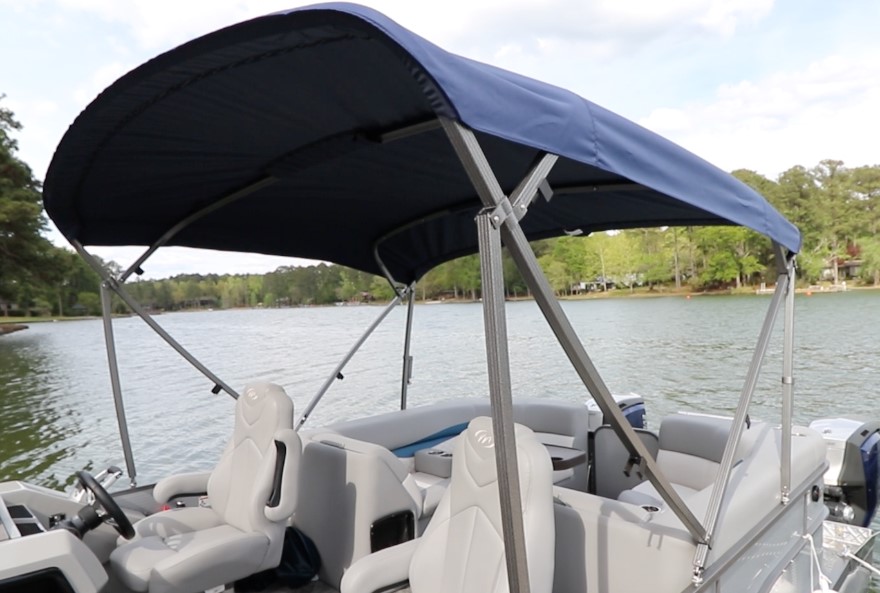

    bimini

    When up, the standard Bimini top provides protection over the cockpit and captain’s chairs.

    led

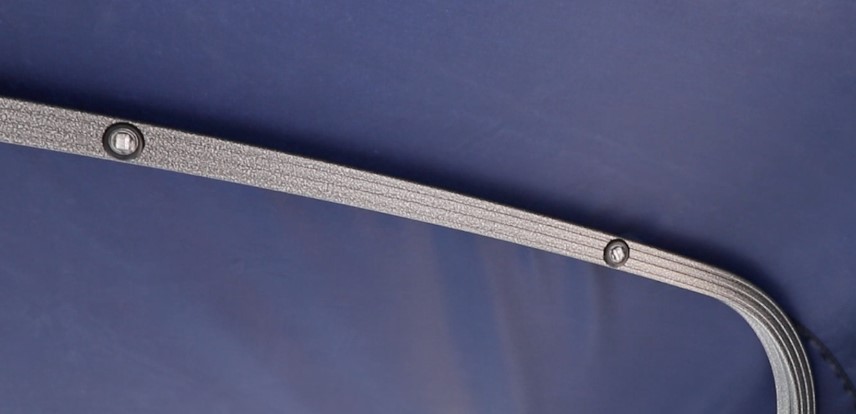

    Our test boat had the optional LED lights integrated into the Bimini top frame.

    Amidships

    Moving forward, twin captain’s chairs swivel and adjust fore and aft. The armrests and bolsters fold up and in an added touch of luxury, the seats have foldout footrests and can recline. Outboard to port, the side gate is 28.5” (72.39 cm) wide and our test boat had the optional foldout table that replaces the privacy curtain.

    captainschair

    Twin captain’s chairs provide ultimate comfort and support and also don’t sacrifice any of the internal entertainment space.

    footrests

    The footrests fold out for an added touch of comfort.

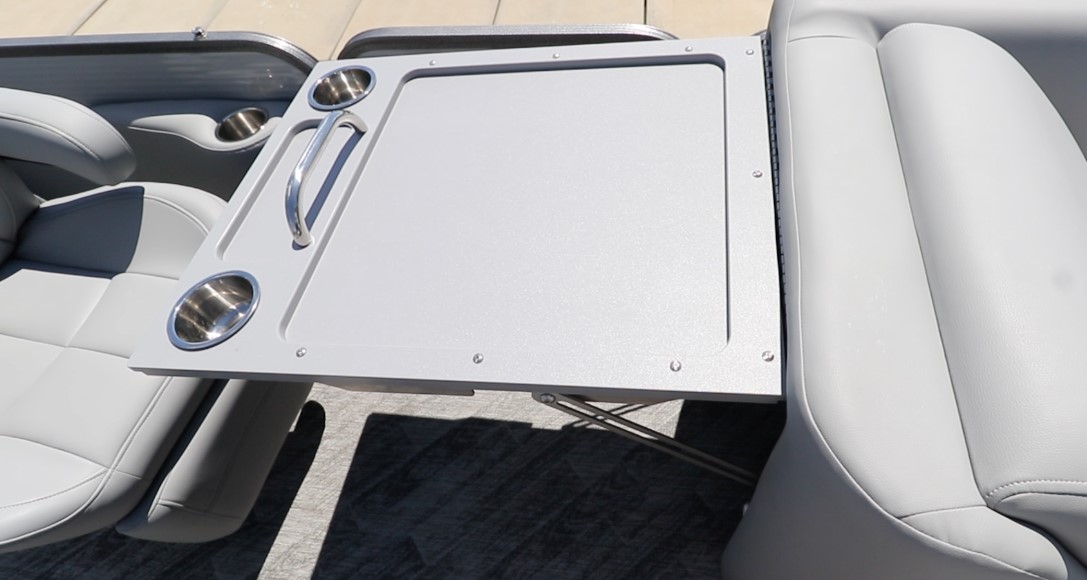

    tray

    Ahead of the port captain’s chair, a tray folds out of the aft end of the port bow lounge.

    The Helm

    The helm console and seat are raised off the deck to give the captain a better view of their surroundings. Instead of conventional gauges, our test boat had the Simrad Go 7 Smart Screen - a 7” (17.78 cm) multifunction display that provides engine and course information.

    To port of the helm is the JL Audio stereo with connectivity and power plugs located above. Accessory switches are separated on each side of the steering wheel. Digital controls are to starboard with the iDock joystick just seaward and aft of the driver’s seat.

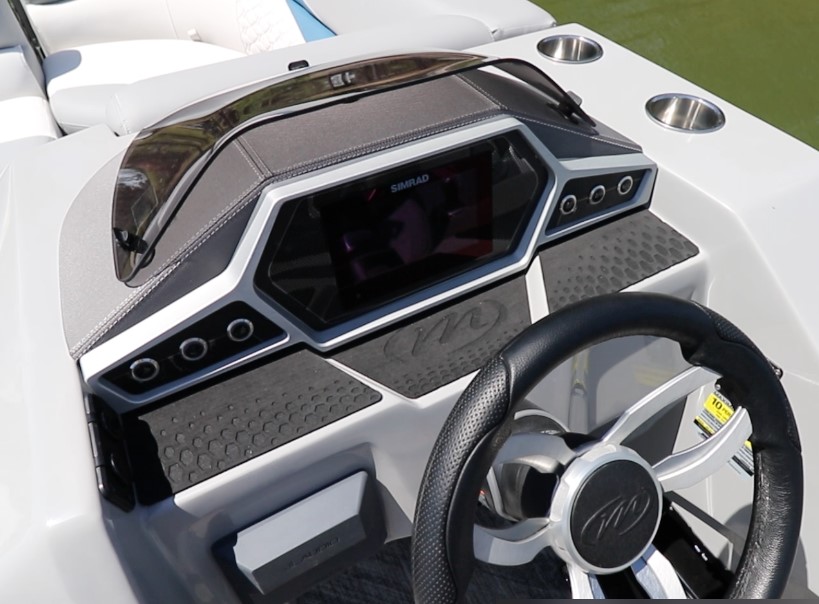

    helm

    Our test boat’s helm looks like something out of a sportboat instead of a pontoon boat.

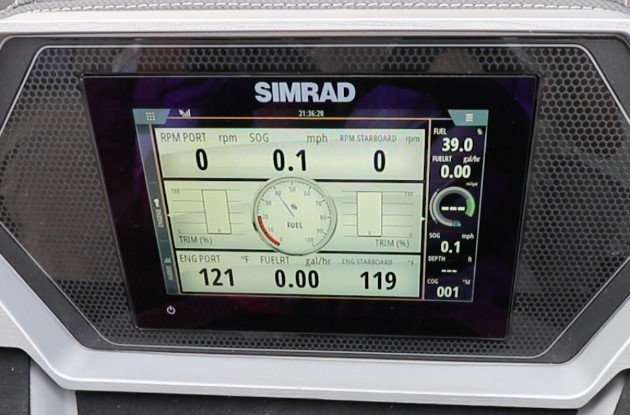

    simrad

    The Simrad multifunction display provides crucial engine data.

    simrad2

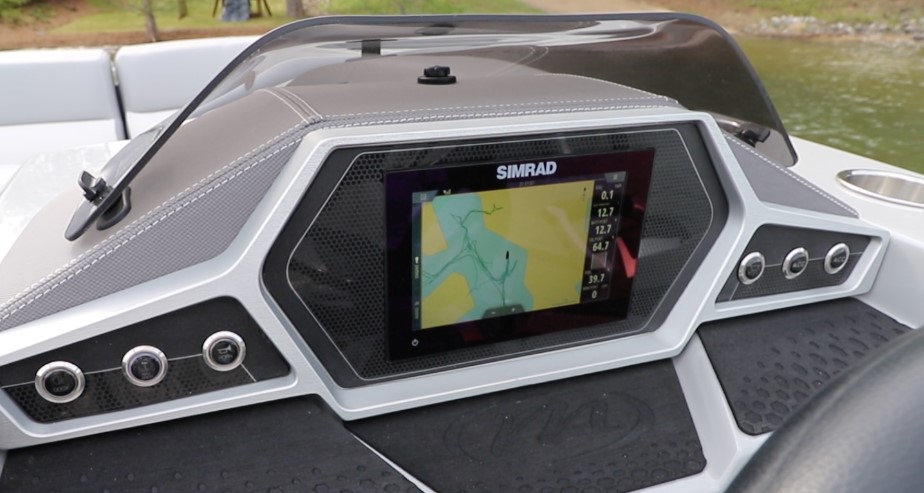

    The Simrad display can be configured a multitude of ways. Our test boat showed the boat’s course heading while still providing speed and other data on the starboard side of the screen.

    accessoryswitches

    Push-button-style accessory switches are set in a faux-carbon panel and add to the boat’s high-end design.

    controls

    Evinrude’s digital controls include individual trim buttons plus many other functions. There are manual iTrim and tilt buttons for each of the engines along with a synchronized function. A toggle switch in the middle allows for the RPMs to be increased or decreased in 50-rpm increments for precise speed adjustments.

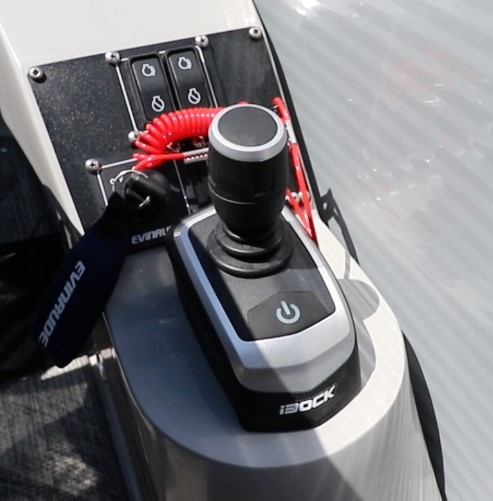

    joystick

    Just below the controls, the iDock joystick is in comfortable reaching distance from the driver’s seat.

    In the port side of the console up top is a glovebox and below, a hatch opens to provide access to the helm rigging and open storage. Our test boat had the optional locker in the center pontoon. The deck was also finished in optional Luna vinyl covering.

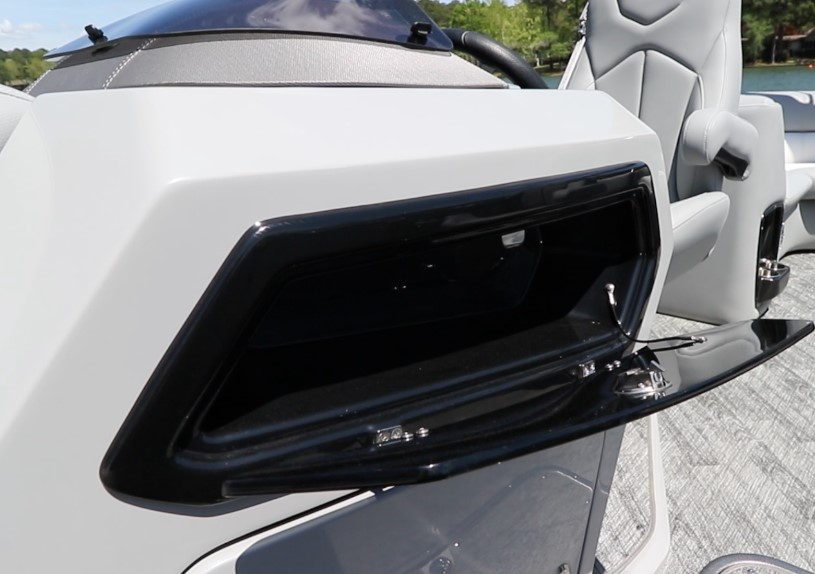

    glovebox

    The in-helm glovebox console adds functionality.

    dash

    Just below, a large hatch opens to provide access to the dash rigging with additional storage space.

    storagelocker

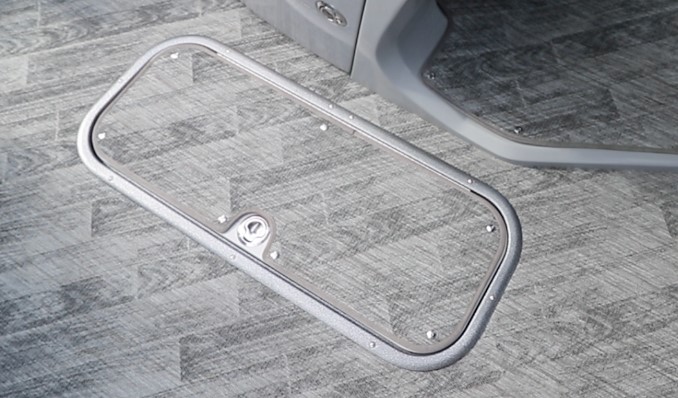

    The storage locker in the center pontoon and the Luna deck covering are both options.

    The Bow

    Our test boat had the optional gate filler seat which can also be used in the stern. Forward of the seat, the gate is 23” (58.42 cm) wide and the full-beam foredeck measures 24” (60.96 cm) fore to aft.

    The Manitou 23 Encore SHP 575 Dual Engine is one of the few pontoon boats in this size range that has a proper bow. The full-forward beam measures 24” (60.95 cm) fore and aft. This allows the crew to easily man mooring lines without fear of falling overboard, as on all too many pontoon boats.

    cleats

    Note the cleats on each side of the foredeck. We’d like to see pull-up cleats here in the trip zone. On each side of the bow are LED navigation and docking lights.

    The bow has angled backrests like the chaise lounges in the stern. And note the different textures and colors in the upholstery which help give the boat an upscale feel. Below are JL Audio speakers and storage is in the seat bases on each side. The bow corner cushions are on hinges for ease of access.

    gatefiller

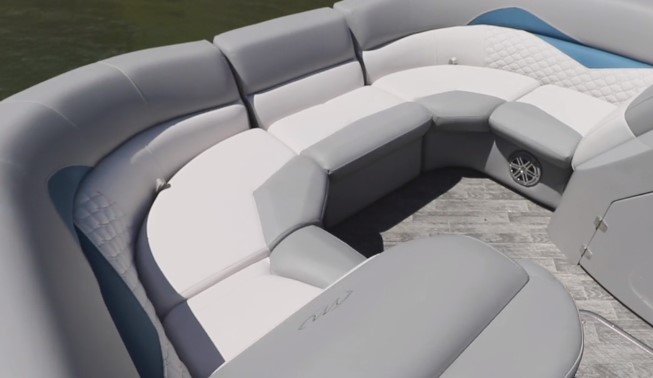

    The bow gate-filler seat is an option which can also be used to fill in the stern.

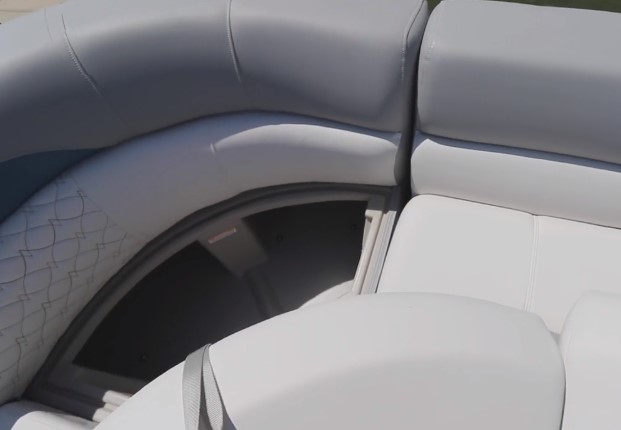

    storage

    Additional storage is located under the corner bow seats. This would be a good place to store the anchor and rode, something that all pontoon boats must carry, but few builders make provision for.

    Optional Equipment

    • Rail-mounted grill

    • Battery charging system

    • PWR-ARM Bimini top

    • Orion 45 super cooler or soft-sided cooler

    • Double Bimini top

    • Full enclosure

    • Portable head

    • Stern remote for stereo

    • Saltwater package

      Colors

      colors

      Powder-coated rails are available in antique silver, black, and champagne.

      furniturecolors

      There are 12 furniture color combinations.

      decking

      Decking comes in 13 different options.

      Price

      The MSRP of the boat with iDock and iTrim, minus power, is $69,500.

      Warranties

      • Limited lifetime on decking (transferable)

      • Limited lifetime on structural components (pontoons, motor mounts, understructures, fence assemblies, Bimini top frame)

      • 5 years on vinyl upholstery

      • 5 years on Bimini fabric

      • 5 years on carpet

      • 5 years on mooring cover

        Observations

        While many people think all pontoon boats are the same, the Manitou 23 Encore SHP 575 Dual Engine proves them wrong. From her billet aluminum engine mounts astern, to her numerous transverse hat section supports, to the bulkheads in her pontoons with lifting strakes, this is one of the very best built pontoon boats on the market.

        Manitou has long had a reputation for building sporty pontoon boats that were strong, durable, and able to hold their own with the fasts monohull sportboats on the lake when necessary. But as a tow and entertaining platform, few conventional monohulls can match her.

        By matching the Manitou 23 Encore SHP 575 Dual Engine with the twin 200-hp Evinrude E-TEC G2s, it has the prodigious 2-stroke torque necessary to pull wake boarders at a time, and the fuel-efficiency at low rpm to be economical to operate.
