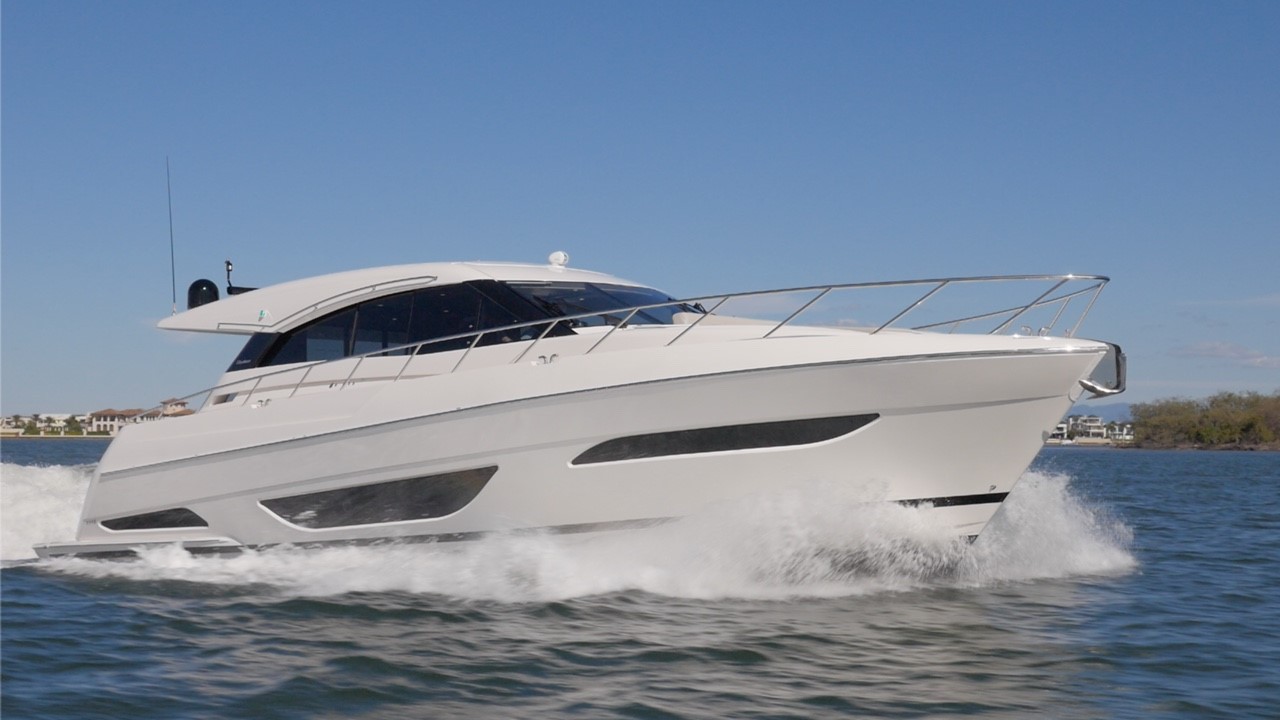

Maritimo X60 (2019-)
(w/ 2 x 1000-hp Volvo D13)

X

Join BoatTest for FREE Now!

Login

Own a boat? Please fill out the following options.

By submitting this form, you acknowledge that you have read and agree with the Privacy Policy & Terms of Use of BoatTEST.com
Signup

Enter in your email below to view all content

Do you have a question?Ask a question about this boat or engine?
See the PRICE by becoming a BoatTEST member.
(It's quick and FREE!)


Brief Summary

Key Features

  • Twin 800-hp Volvo Penta D13

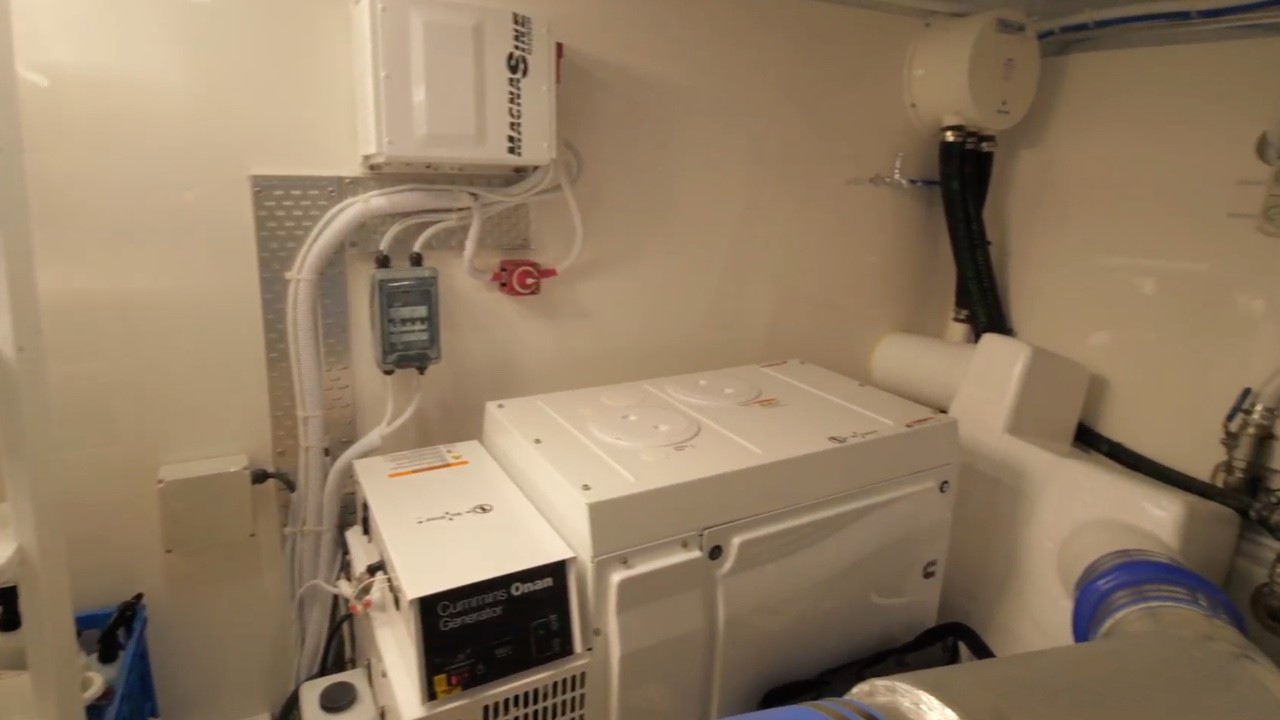

  • 21.5 kW Onan Cummins generator

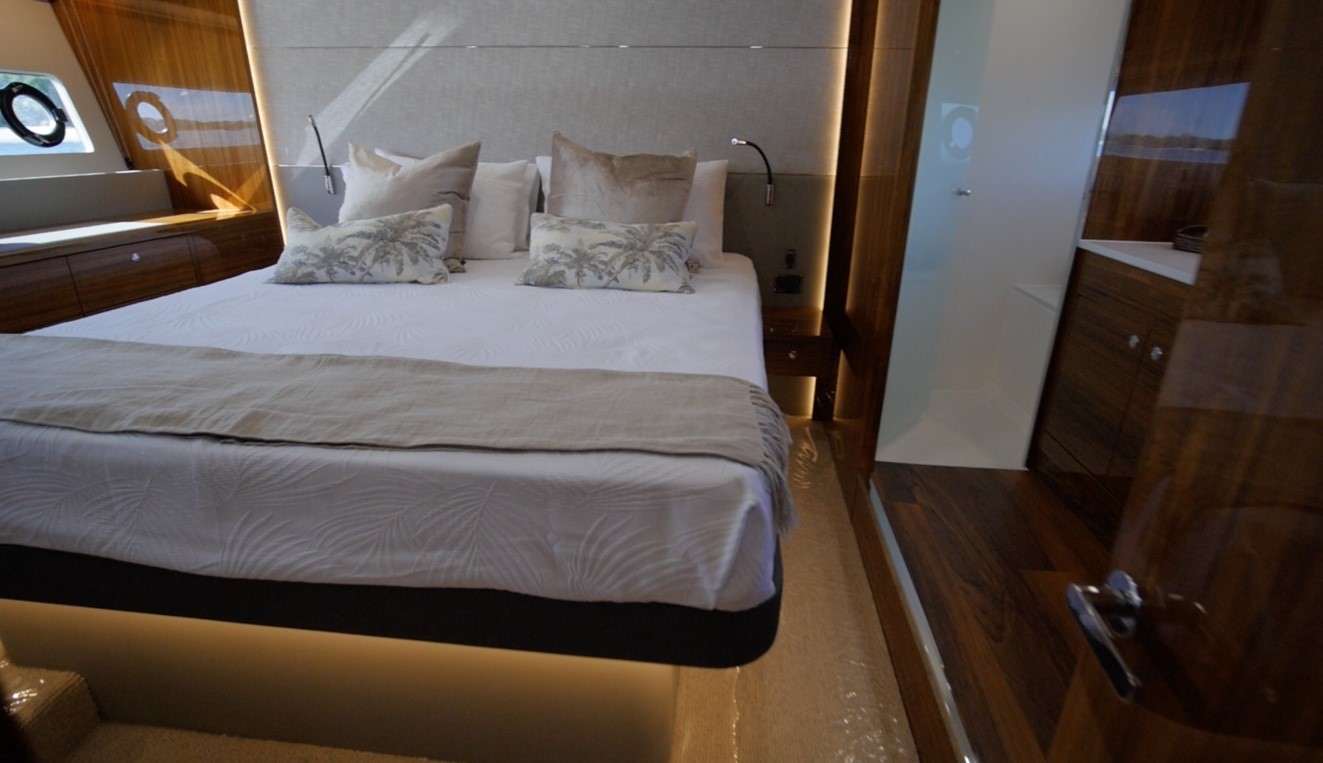

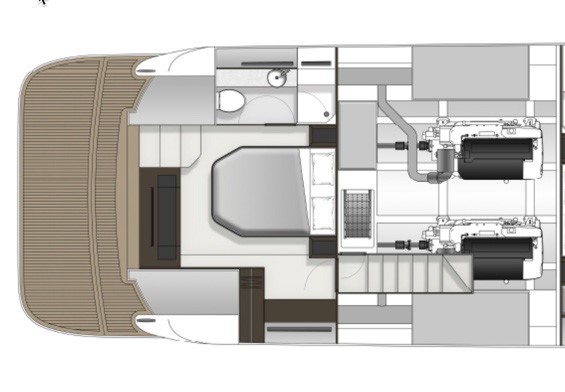

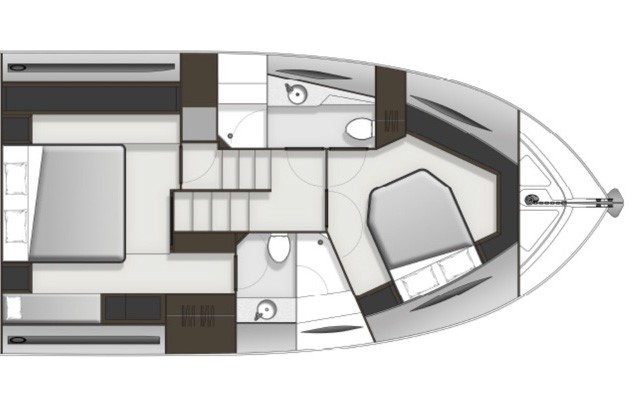

  • 3 standard cabins sleeps 6 persons
  • Specifications

    Length Overall 63' 9''
    19.43 m
    Beam 17' 1''
    5.21 m
    Dry Weight 67,240 lbs.
    30,500 kg
    Tested Weight 69,805 lbs.
    31,663 kg
    Draft 5' 2''
    1.57 m
    - Draft Up N/A
    - Draft Down N/A
    - Air Draft N/A
    Deadrise/Transom N/A
    Max Headroom 7' 6''
    2.29 m
    Bridge Clearance N/A
    Weight Capacity N/A
    Person Capacity N/A
    Fuel Capacity 1,135 gal.
    4,296 kg
    Water Capacity 211 gal.
    799 kg
    Length on Trailer N/A
    Height on Trailer N/A
    Trailer Weight N/A
    Total Weight
    (Trailer, Boat, & Engine)
    N/A

    Prices, features, designs, and equipment are subject to change. Please see your local dealer or visit the builder's website for the latest information available on this boat model.

    Engine Options

    Std. Power 2 x 800-hp Volvo Penta D13
    Tested Power 2 x 1000-hp Volvo D13
    Opt. Power 2 x 1000-hp Volvo Penta
    2 x 1200-hp Volvo Penta

    Test Results - Change Measurement Unit

    RPM MPH Knots GPH MPG NMPG Stat. Mile NM dBa
    1000 10.4 9.0 10.3 1.0 0.9 1036 901.3 84
    1250 11.3 9.8 20.1 0.6 0.5 575 500.2 89
    1500 17.1 14.8 32.7 0.5 0.5 533 463.1 85
    1750 22.8 19.8 46.2 0.5 0.4 503 437.4 90
    2000 29.1 25.3 63.5 0.5 0.4 468 407.1 93
    2200 33.0 28.7 79.3 0.4 0.4 425 369.3 93
    2400 36.3 31.5 91.5 0.4 0.3 405 351.9 93
    2460 38.1 33.1 93.3 0.4 0.4 417 362.4 93
    RPMNMKMKPHLPHKPLdBA
    1000 901.3 1667 16.70 38.99 0.43 84
    1250 500.2 925 18.20 76.09 0.26 89
    1500 463.1 858 27.50 123.78 0.21 85
    1750 437.4 810 36.70 174.89 0.21 90
    2000 407.1 753 46.80 240.37 0.21 93
    2200 369.3 684 53.10 300.18 0.17 93
    2400 351.9 652 58.40 346.36 0.17 93
    2460 362.4 671 61.30 353.18 0.17 93

    All fuel consumption numbers are the total for all engines in the boat. Speeds are measured with Stalker ProSports radar gun or GPS. Fuel consumption (gallons per hour) measured with Floscan digital fuel-flow meter or by on-board factory-installed diagnostic instruments. Range is based on 90% of published fuel capacity. Sound levels determined using Radio Shack digital decibel meter on A scale. 68 dBA is the level of normal conversation. Time to plane is measured from start of acceleration to formation of rooster tail behind boat.

    Performance Chart

    Performance Chart

    Acceleration Times & Test Conditions

    Time To Plane N/A
    0 to 30 N/A
    Ratio N/A
    Props 2 X 5 blade
    Load 8 persons, 1/4 fuel, 1/4 fuel, 50 lbs. of gear
    Climate 71 deg., wind: 5-10 mph; seas: 3 ft

    Captain's Report

    Test Result Highlights

    • Top speed for the Maritimo X60 (2019-) is 38.1 mph (61.3 kph), burning 93.3 gallons per hour (gph) or 353.14 liters per hour (lph).
    • Best cruise for the Maritimo X60 (2019-) is 22.8 mph (36.7 kph), and the boat gets 0.5 miles per gallon (mpg) or 0.21 kilometers per liter (kpl), giving the boat a cruising range of 503 miles (809.5 kilometers).
    • Tested power is 2 x 1000-hp Volvo D13.

    Standard and Optional Features

    Boats More Than 30 Feet

    Generator Standard

    Warranty

    Full Warranty Information on this brand coming soon!
