Nitro Z20 (2019-)
(w/ 2 x 250-hp Mercury Pro XS 4-stroke)

X

Join BoatTest for FREE Now!

Login

Own a boat? Please fill out the following options.

By submitting this form, you acknowledge that you have read and agree with the Privacy Policy & Terms of Use of BoatTEST.com
Signup

Enter in your email below to view all content

Do you have a question?Ask a question about this boat or engine?
See the PRICE by becoming a BoatTEST member.
(It's quick and FREE!)


Brief Summary

The Nitro Z20 is a tournament-level bass boat, designed to get to the fishing spot first and offer all of the fishing amenities available on far more expensive boats.

Key Features

  • NITRO® Vortex Technology™ (NVT™) hull
  • Rapid Planing System™ (RPS™)
  • Adjustable 12" (30.48 cm) jack plate
  • Dual-axle NITRO® trailer with fold-away tongue
  • Lowrance® HOOK2 5 Combo flush-mounted fishfinder
  • Hydraulic steering with tilt
  • Specifications

    Length Overall 20' 2''
    6.15 m
    Beam 7' 10''
    2.39 m
    Dry Weight 2,000 lbs.
    907 kg
    Tested Weight 3,105 lbs.
    1,408 kg
    Draft 16''
    0.41 m
    - Draft Up N/A
    - Draft Down N/A
    - Air Draft N/A
    Deadrise/Transom 16-deg.
    Max Headroom open
    Bridge Clearance N/A
    Weight Capacity 575 lbs.
    261 kg
    Person Capacity 4
    Fuel Capacity 50 gal.
    189 L
    Water Capacity N/A
    Length on Trailer N/A
    Height on Trailer N/A
    Trailer Weight N/A
    Total Weight
    (Trailer, Boat, & Engine)
    N/A

    Prices, features, designs, and equipment are subject to change. Please see your local dealer or visit the builder's website for the latest information available on this boat model.

    Test Results - Change Measurement Unit

    RPM MPH Knots GPH MPG NMPG Stat. Mile NM dBa
    600 3.6 3.1 0.8 4.8 4.2 216 187.8 62
    1000 5.4 4.7 1.4 4.0 3.5 180 156.5 61
    1500 7.2 6.2 2.6 2.8 2.4 124 107.6 68
    2000 9.1 7.9 3.5 2.6 2.2 116 101.2 74
    2500 21.3 18.5 4.3 4.9 4.3 222 193.4 77
    3000 26.3 22.9 5.3 5.0 4.3 223 194.2 80
    3500 32.1 27.9 6.9 4.7 4.1 211 183.4 81
    4000 39.5 34.3 8.4 4.7 4.1 213 185.1 82
    4500 47.9 41.7 11.0 4.4 3.8 197 171.2 80
    5000 58.0 50.4 13.7 4.2 3.7 190 165.5 85
    5500 66.9 58.1 17.6 3.8 3.3 171 149.1 85
    6000 75.1 65.3 22.9 3.3 2.9 148 128.5 86
    6200 76.6 66.6 23.4 3.3 2.9 148 128.3 87
    RPMNMKMKPHLPHKPLdBA
    600 187.8 348 5.80 3.03 2.04 62
    1000 156.5 290 8.70 5.30 1.70 61
    1500 107.6 200 11.60 9.84 1.19 68
    2000 101.2 187 14.60 13.25 1.11 74
    2500 193.4 357 34.30 16.28 2.08 77
    3000 194.2 359 42.30 20.06 2.13 80
    3500 183.4 340 51.70 26.12 2.00 81
    4000 185.1 343 63.60 31.80 2.00 82
    4500 171.2 317 77.10 41.64 1.87 80
    5000 165.5 306 93.30 51.86 1.79 85
    5500 149.1 275 107.70 66.62 1.62 85
    6000 128.5 238 120.90 86.69 1.40 86
    6200 128.3 238 123.30 88.58 1.40 87

    All fuel consumption numbers are the total for all engines in the boat. Speeds are measured with Stalker ProSports radar gun or GPS. Fuel consumption (gallons per hour) measured with Floscan digital fuel-flow meter or by on-board factory-installed diagnostic instruments. Range is based on 90% of published fuel capacity. Sound levels determined using Radio Shack digital decibel meter on A scale. 68 dBA is the level of normal conversation. Time to plane is measured from start of acceleration to formation of rooster tail behind boat.

    Performance Chart

    Performance Chart

    Acceleration Times & Test Conditions

    Time To Plane 3.8 sec.
    0 to 30 7.7 sec.
    Ratio N/A
    Props 24p fury
    Load 2 persons, 3/5 fuel, no water, 50 lbs. of gear
    Climate 85 deg., 62 humid; wind: 0-5 mph; seas: 0
    Elevation 908

    Captain's Report

    Contents of Report

    Nitro Z20 running
    Serious bass anglers want to know, how fast does it go? BoatTEST’s answer for the Nitro Z20 with Mercury 250L Pro XS is 76.6 mph WOT.

    Nitro Z20: Mission

    Nitro Z20 running
    The Nitro Z20 is a freshwater fishing platform outfitted for tournaments, with rod and tackle storage, plus electronics to get on the fish, and then the speed to get them back to the dock for weigh-in.

    Major Features

      • Z-Core™ seating system for driver and passenger seats

      • Guardian™ 19-gallon (71.92 L) livewells with digital timers

    Nitro Z20: Design

    Nitro Z20 nvt
    Nitro’s Vortex Technology (NVT) hull design contributes to the Z20’s speed, lift, and handling.

    When people start designing “organic parabolic strakes” into their hulls, protecting the design, and trademarking the names, it could have some advantage beyond simple marketing. So BoatTEST dug a little deeper and asked Nitro about the Z20 hull’s running surface properties.

    Their response was that it “delivers a remarkable hole shot, exceptional top end speed and lift – plus improved midrange acceleration-all while maintaining the agility and smooth dry ride in rough water that are Nitro’s trademarks.” According to Nitro, parabolic shapes are stronger than flat or angled surfaces, providing reduced resistance and truer tracking at higher speeds and improved strength to weight ratio in the finished product.

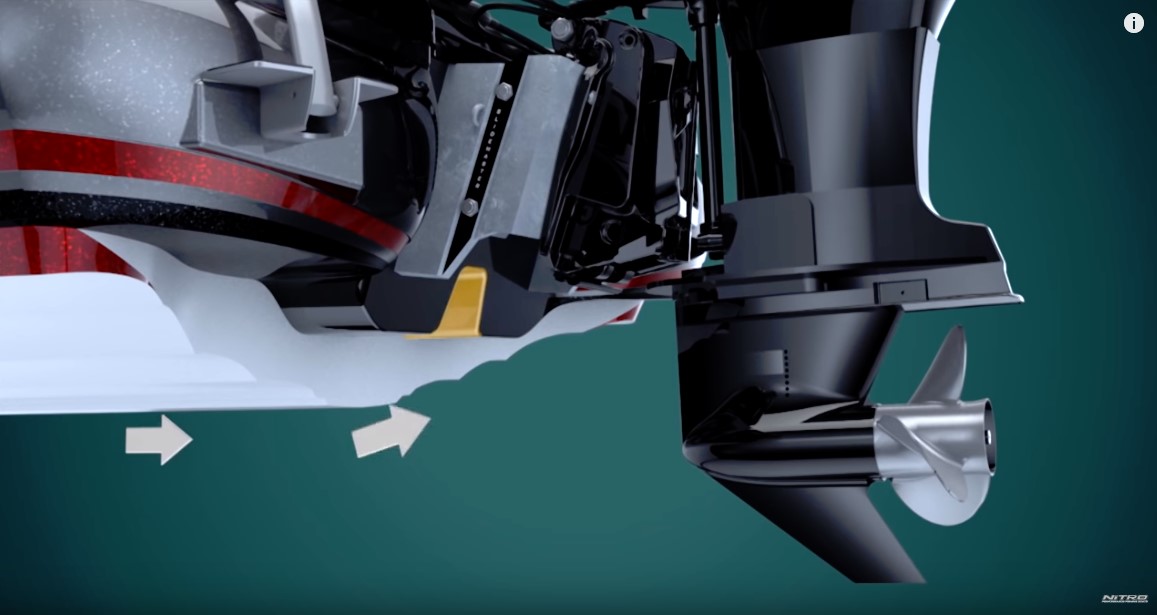

    Nitro Z20 rps
    Nitro’s bottom design, Rapid Planing System™ or RPS, consists of a stepped transom with a notch in it. The reason for this is to “release air during a hole-shot and deliver undisturbed water to the prop for better performance and more responsiveness”.

    When Nitro combines NVT with their Rapid Planing System (RPS), they say the boat gets up on plane faster, is more efficient (less drag), and turns positively.

    Engine and Propeller

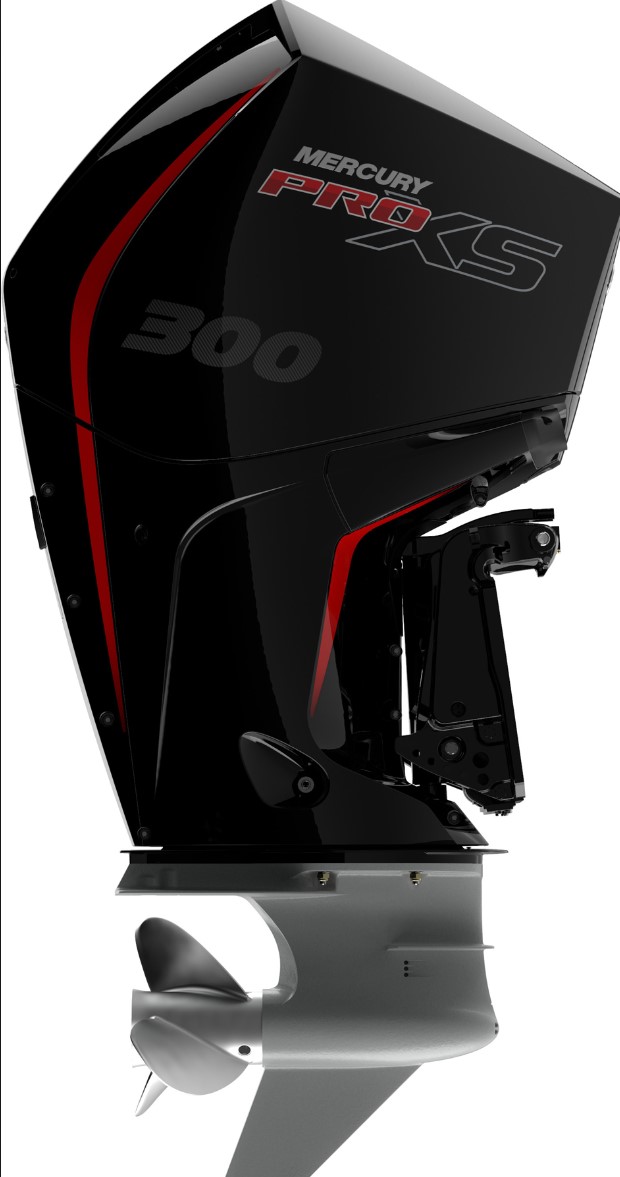

    Nitro Z20 outboard
    The 4-stroke 8-cylinder Pro XS Series is factory tuned to provide top-end speed and good hole shot times. Mercury claims it gets 1.5 mph (2.41 kph) better top-end speed and provides 15% quicker hole-shots than their discontinued 2-stroke OptiMax engines. The 250-hp is the maximum recommended engine for the Z20.

    Why is ANY outboard engine a distinguishing feature? The short answer is, because it was designed specifically for use in tournament bass boats.

    Mercury’s Pro XS Series V-8 engines range from 175 to 300-hp and are aimed at those wanting professional level performance, particularly competitive anglers looking for every advantage they can squeeze out of their equipment. They’re paired with the Torque Master gear case – a beefed up 19-spline stainless steel prop shaft specifically designed for high-speed boats.

    Nitro Z20 fury prop
    Mercury’s Fury prop has a smaller diameter than most (14”, 35.56 cm), but has larger surface area along the hub. The prop comes in 3 or 4-blade configuration and is shipped with no vent plugs, for maximum air.

    Mercury claims its top-of-the-line Fury Propeller, an X7 alloy prop is 30% stronger than standard stainless and provides better top end speed and better hole shots. Our test boat topped out at 76.6 mph WOT at 6200 rpm in our tests.

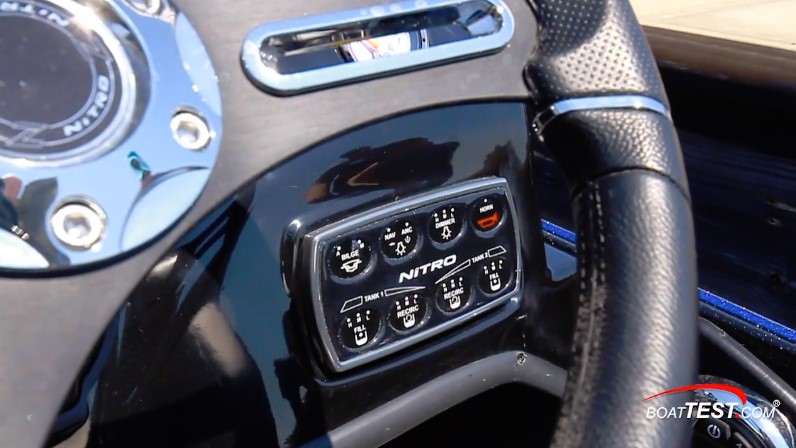

    Nitro Z20 accessory switches
    Accessory switches for the bilge pump, lights, horn, and livewells use the capacitive touch keypad.

    Sealed touch pad switches are not new, but neither are they common on a small boat. The waterproof, capacitive touch digital keypad is another example of how Nitro deploys technology and that distinguishes them from the competition.

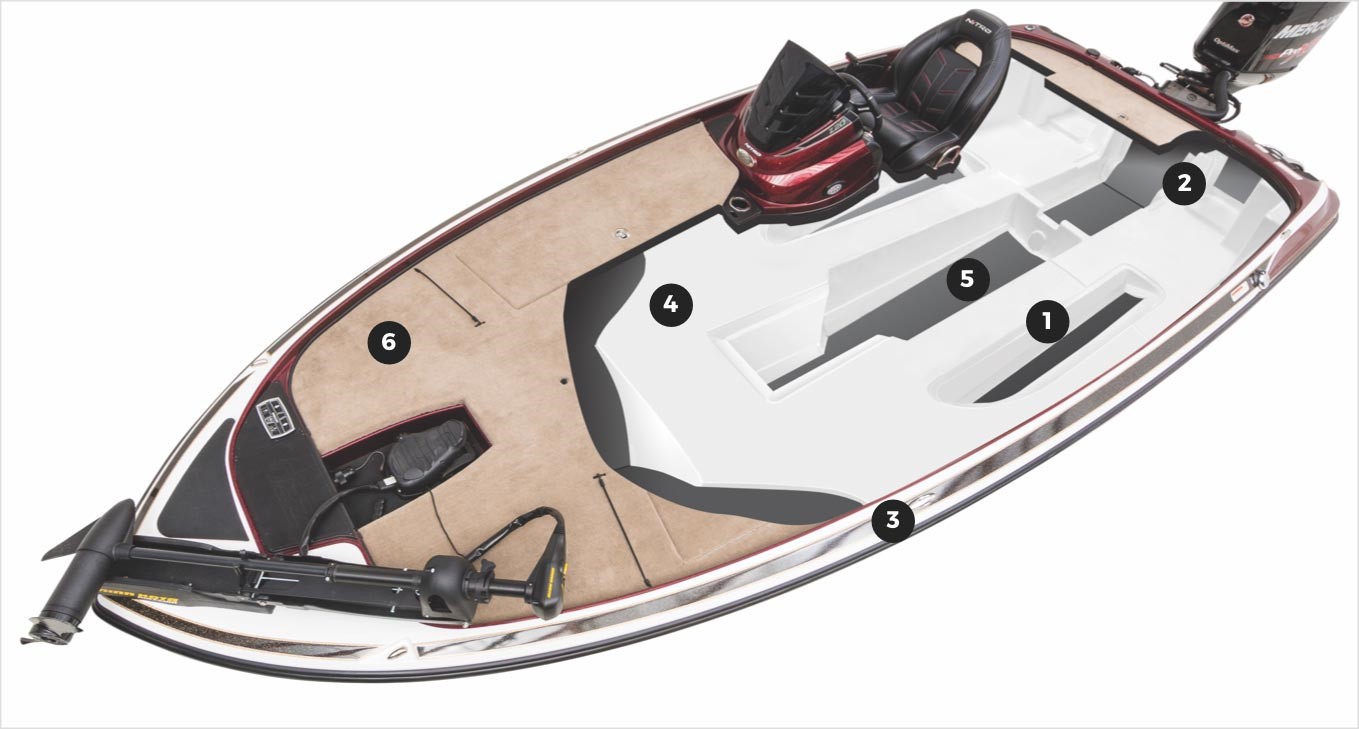

    Nitro Z20 deck plan
    The passenger console is a factory fastened option, but the boat is designed for it to be removable as well.

    Nitro Z20: Performance

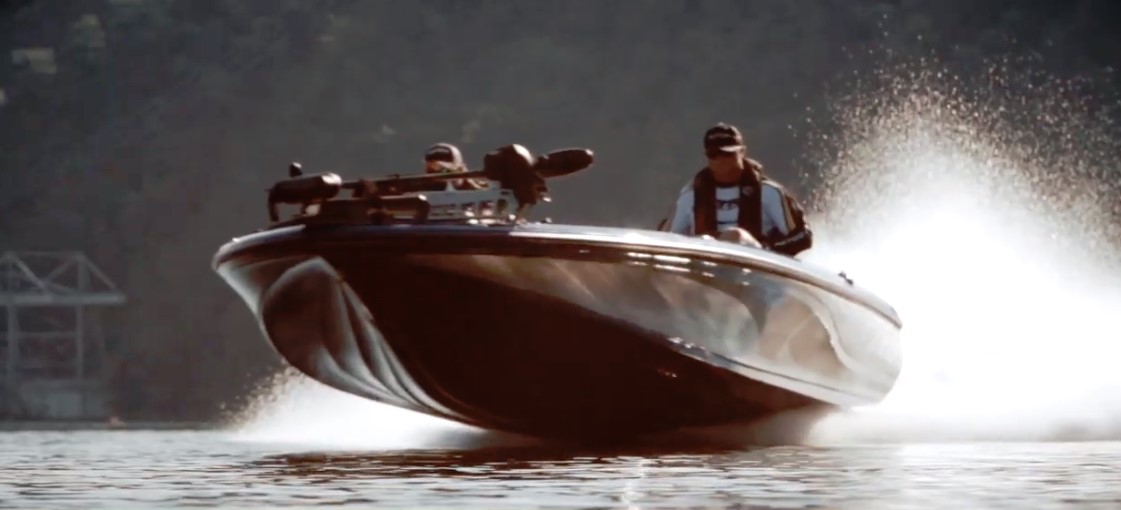

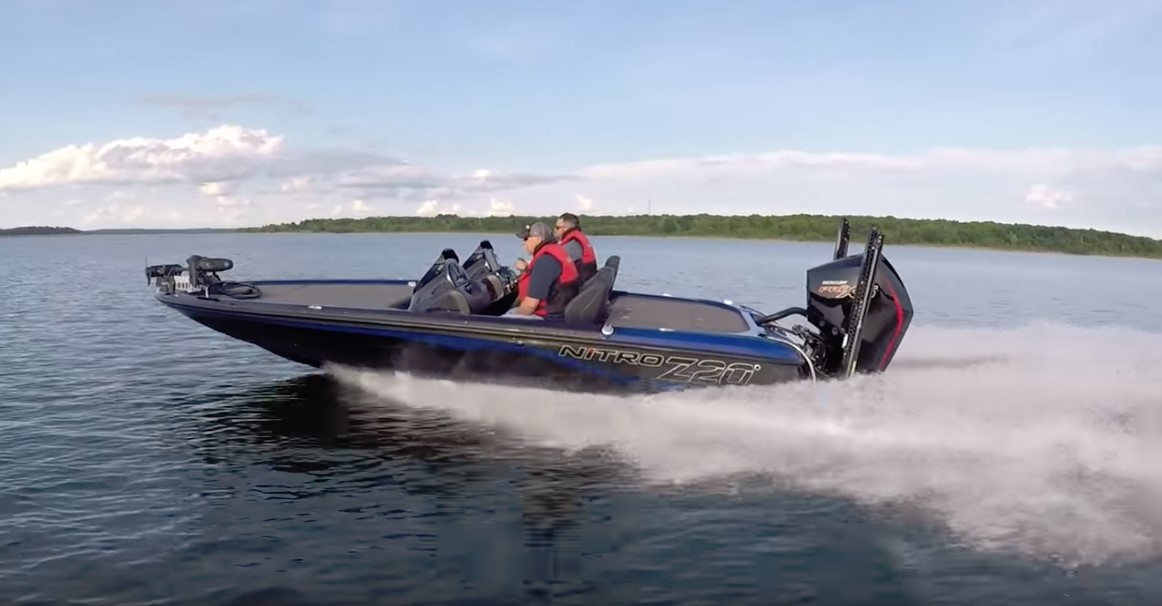

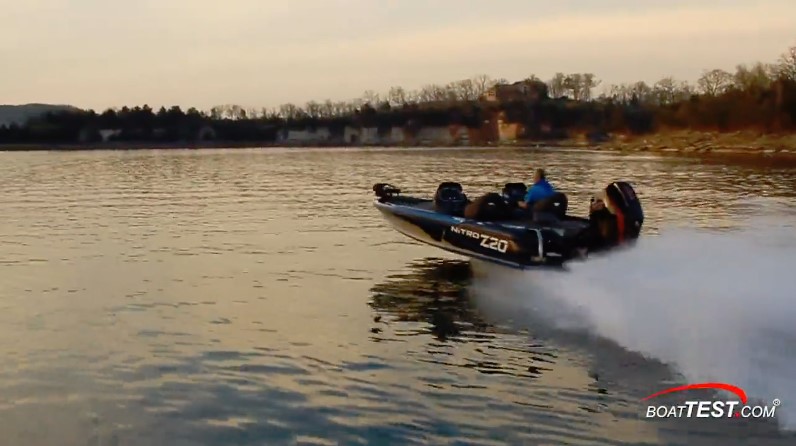

    Nitro Z20 running
    The Nitro Z20 rides at speed on a small fraction of the hull.

    Nitro offers the Z20 with a standard Mercury 225 Pro XS Fourstroke or the upgrade to the 250 Pro XS. Our test boat had the optional 250 ($1,180) on an optional 12” (30.48 cm) T-H Marine hydraulic jackplate.

    The Nitro Z20 measures 20’2” (6.15 m) long with a 7’10” (2.39 m) beam and the hull draws 16” (40.6 cm). The empty weight is listed at 2,000 lbs. (907 kg). With two people, 30 gallons (114 L) of fuel and test equipment on board, we had an estimated test weight of 3,105 lbs. (1,408 kg).

    Nitro Z20 running
    Trimming for speed, an optional wheel mounted trim control is available.

    Our 250-hp Mercury four-stroke outboard motor spun a stainless-steel 14” x 24” (35.5 x 60.9 cm) Fury three-blade X7 Alloy propeller.

    Top Speed. We ran the engine up to 6200 rpm, hitting a top speed of 76.6 mph (122.3 kph).

    Best cruise came at 3000 rpm where we saw 26.3 mph (42.3 kph) and a fuel burn of 5.3 gph (20 lph), giving us 5.0 mpg (2.1 kpl) and a range of 223 statute miles (358.88 km) while holding 10 percent of the boat’s 50-gallon (189 L) fuel capacity in reserve.

    Nitro Z20: Acceleration

    Nitro Z20 running
    The bow rise of the Z20 coming out of the hole doesn’t last long, as the boat’s Rapid Planing System assists the boat onto a level ride.

    The Z20 is equipped with Nitro’s Rapid Planing System and she leveled off in 3.8 seconds and ran through 20 mph (32.1 kph) in 5.3 seconds and through 30 mph (48.2 kph) in 7.7 seconds.

    Nitro Z20: Handling

    Nitro Z20 running
    In turns, the boat comes off the keel pad and digs in the six parabolic shaped strakes that run the full length of the boat.

    The Z20 wants to climb up onto the pad and haul the mail. In arcing turns, she holds her line well and completes the maneuver. Running across boat wakes or through chop, just touch the down button on the trim and she rides smoothly. A side note, water doesn’t wash over the transom during deceleration.

    Mid-range acceleration with the four-stroke motor is strong enough to plant passengers in their seats.

    Nitro Z20: Boat Inspection

    Nitro Z20: Cockpit

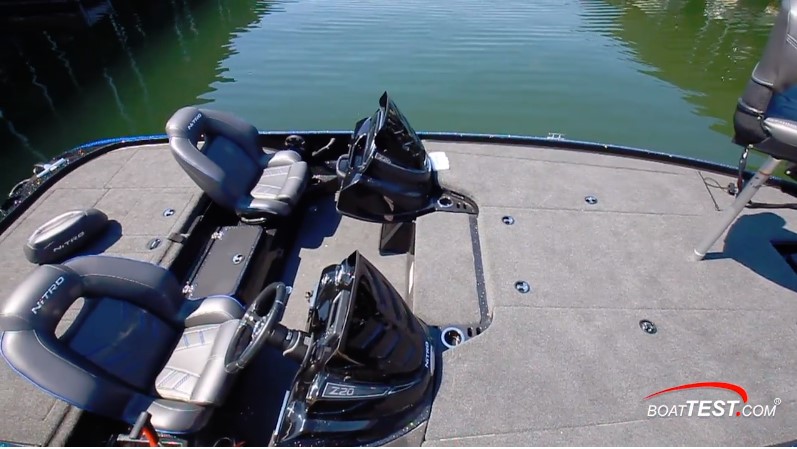

    Nitro Z20 lumbar support
    An optional Power-adjust pneumatic lumbar support is available for the driver’s seat.

    The twin Z-Core bucket seats are built with Force Flex suspension and contoured frames. Nitro team angler Kevin VanDam worked with the company on the seat design. The collaboration worked, as we found the seats comfortable and supportive, even at 75 mph (120.7 kph).

    Nitro Z20 bucket seat
    Forward of the port bucket seat is the optional second console, for anglers who like to fish with a partner and run at high speed.

    The removable second console has a locking glovebox with an opening that measures 16” (406. cm) wide and 6” (15.24cm) tall. There are grab handles forward and outboard.

    Nitro Z20 passenger console
    The passenger console has six built-in rod holders (red arrow) next to the footrest.

    Outboard of the port seat is a carpeted ramp for butt ends for six rods. Forward under the console, there are six dedicated racks for fishing rods plus additional storage just inboard forward of the angled footrest.

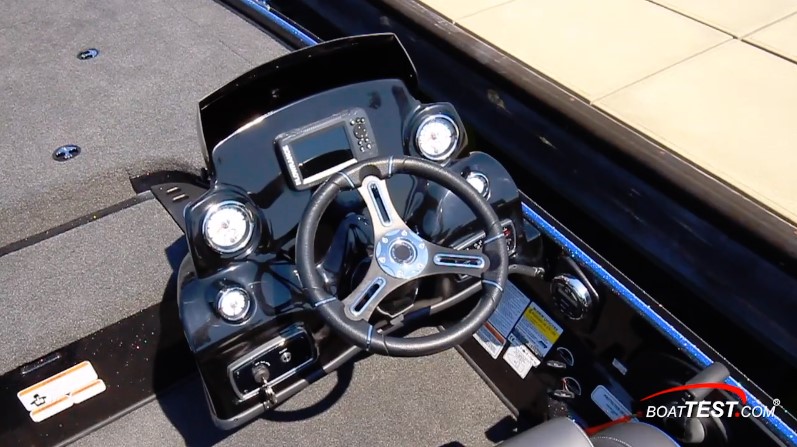

    Nitro Z20 helm
    Optional single or dual wheel-mounted engine trim controls require also ordering a hydraulic jack plate.

    To starboard, the helm console has Veethree analog gauges, including the tachometer with an integrated trim indicator to port, the speedometer with a built-in fuel gauge to starboard and instruments for water pressure and volts. The Lowrance Hook2 5 fishfinder comes standard and owners can choose from a plethora of additional electronics.

    To port of the tilt steering wheel are the master power and ignition switches. On the starboard side of the steering wheel, a panel houses the switches for navigation/anchor lights, the bilge pumps and all the livewell controls. Just below are the switches for the livewell pumps.

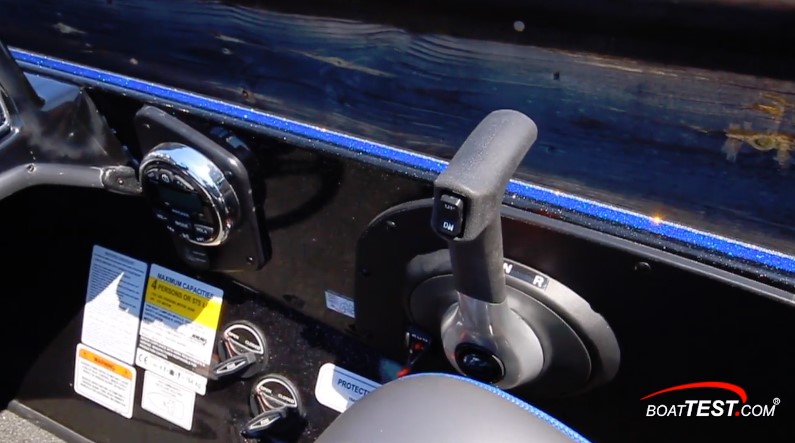

    Nitro Z20 stereo
    The round stereo remote to the left of the throttle is for the optional Bluetooth®-capable Sony® stereo system.

    Outboard to starboard are the stereo remote and the conventional shift/throttle controls. The Z20 comes standard with hydraulic steering and on a boat that tops 75 mph, we would add the optional foot throttle and turn-signal-style trim switches so drivers can keep their hands on the wheel.

    Bow Casting Deck

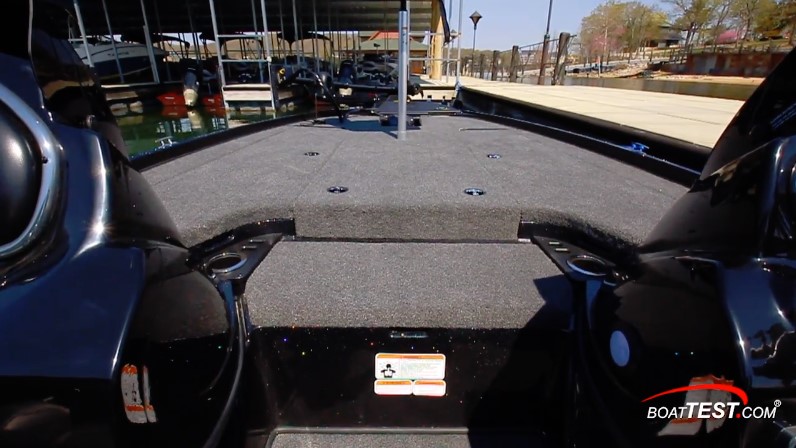

    Nitro Z20 cockpit
    Viewed from the cockpit, the step to the carpeted casting deck houses a cooler below.

    Between the consoles are steps up to the forward casting deck. On each side of the step are cupholders and tool racks.

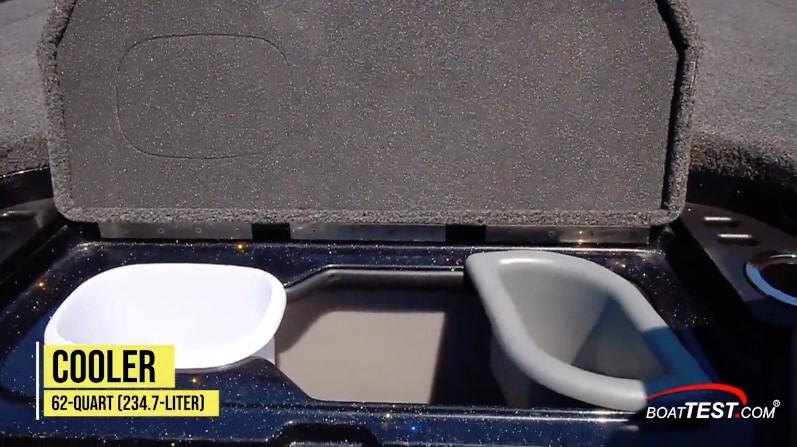

    Nitro Z20 cooler
    Beneath the hinged step between the consoles is a 62-quart (59 L) cooler that has a removable wastebasket and sandwich tray.
    Nitro Z20 bow deck
    The bow casting deck has an anti-fatigue mat below the carpet as standard equipment.

    The forward casting has bungee cord tiedowns for rods during a quick run to the next spot.

    Forward, the Z20 comes standard with a Minn Kota 24-volt trolling motor with 70 lbs. (32 kg) of thrust and a 42” (106.68 cm) shaft.

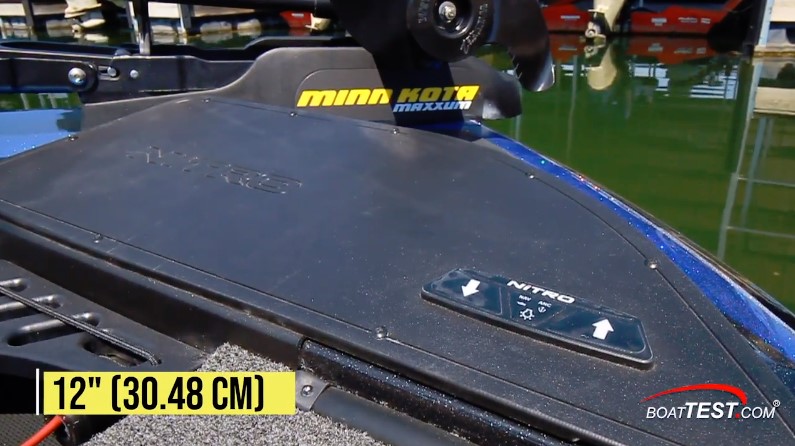

    Nitro Z20 bow panel
    The bow panel has space for optional fishfinders up to 12” (30.48 cm), and to starboard are the switches for the navigation lights and outboard motor trim.
    Nitro Z20 foot pedal
    The foot pedal control for the trolling motor is recessed – standard.

    Just aft are a tool rack and cupholder, plus the foot pedal for the trolling motor. The boat comes standard with a folding fishing seat built with a composite frame. When the seat is in place in the bow, the trolling motor foot pedal should be a comfortable reach.

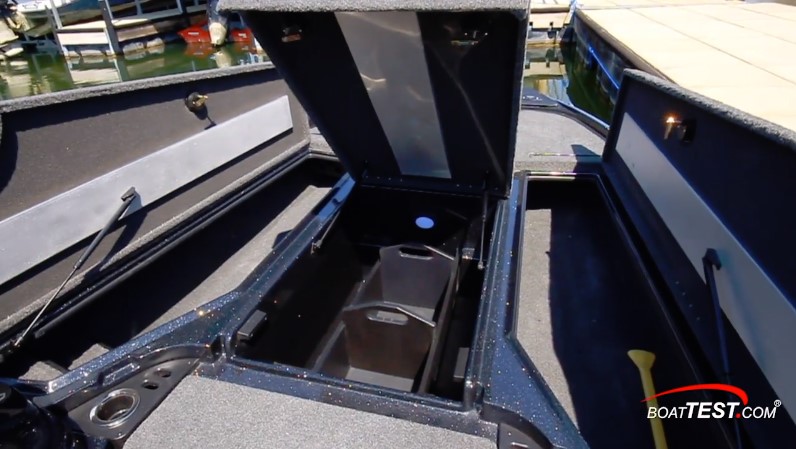

    Nitro Z20 bow storage
    Bow storage is found in three lockers, all of which open on gas struts and can be locked.

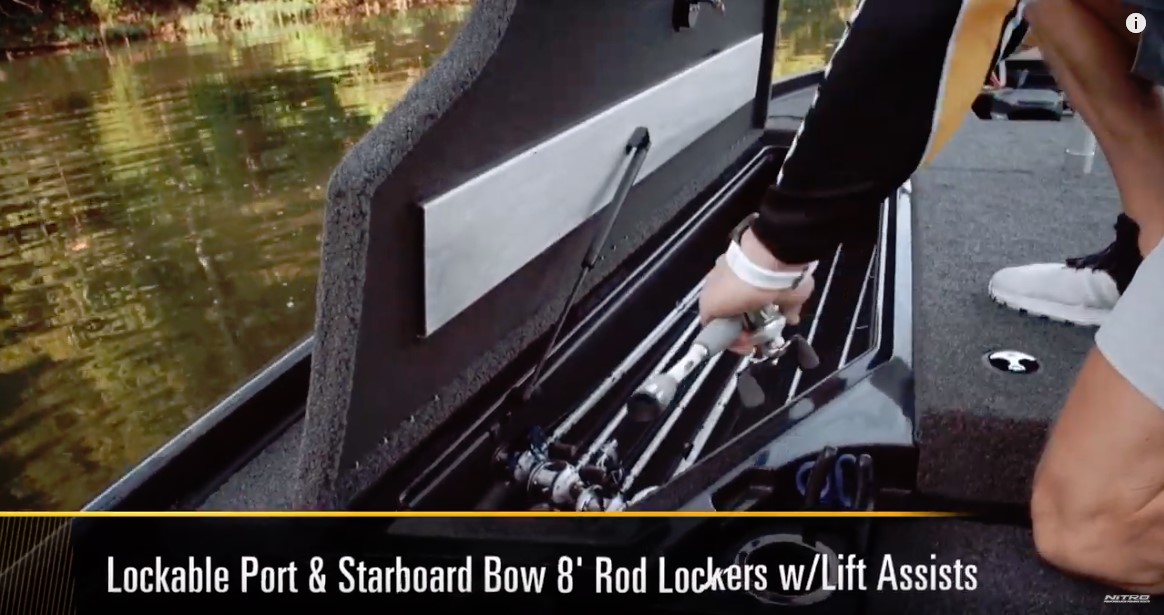

    Nitro Z20 port side locker
    The port side locker can store 10 rods.

    New for 2019, there are cupholders inside the center locker, which is lighted, measures 38” (96.52 cm) long by 24” (60.96 cm) wide and has removable dividers. The starboard locker is open and has clips for securing a paddle and a fire extinguisher.

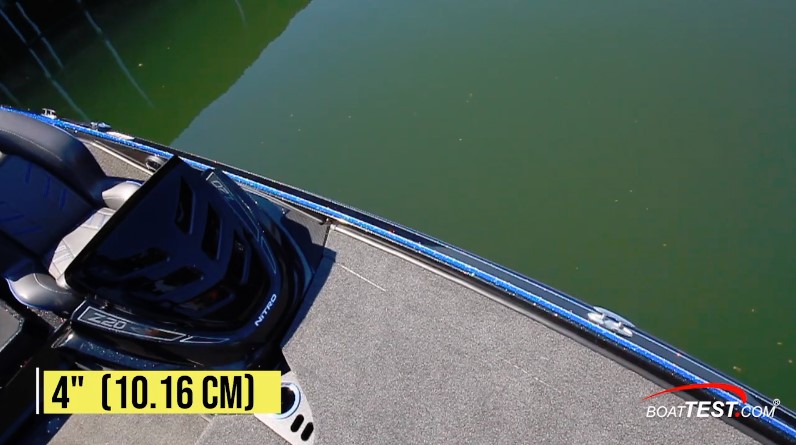

    Nitro Z20 cleats
    For tying up to a dock or hanging fenders there are two 4” pull-up cleats on each side.

    Aft Casting Deck

    Nitro Z20 aft deck
    A hinged storage box with non-skid top acts as a step to the aft casting deck.

    Moving to the aft casting deck, there’s a 22” (55.88 cm) wide step between the cockpit seats. Beneath the non-skid covered step is a shallow storage tray.

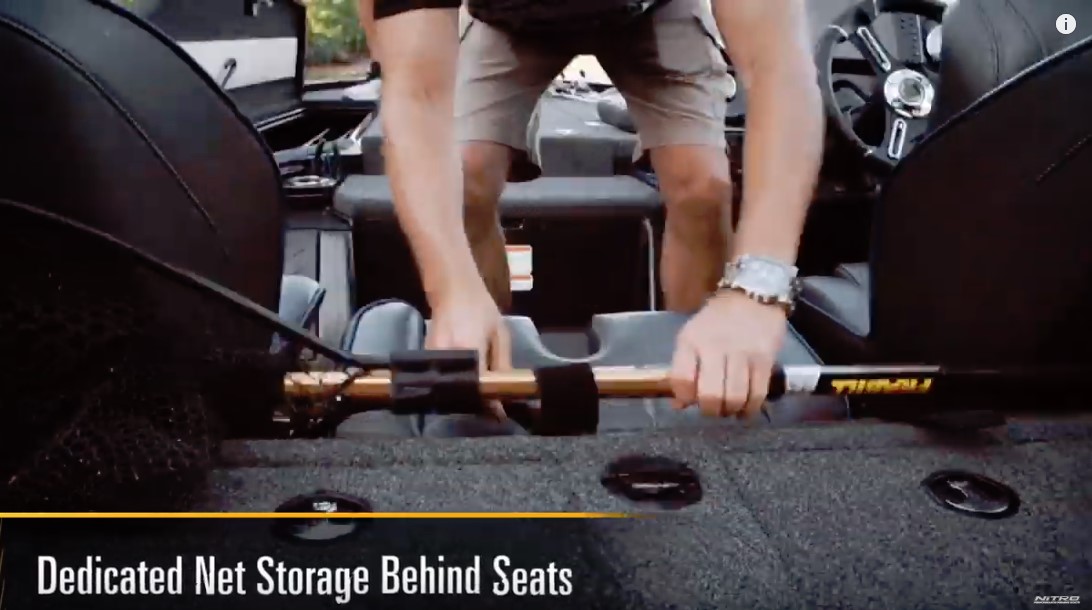

    Nitro Z20 net
    Abaft the seats, there’s a spot to store a net. There is also a removable catch ruler. Note, the center seat shown is optional.

    The standard aft deck carpet covers non-fatigue padding, as in the bow.

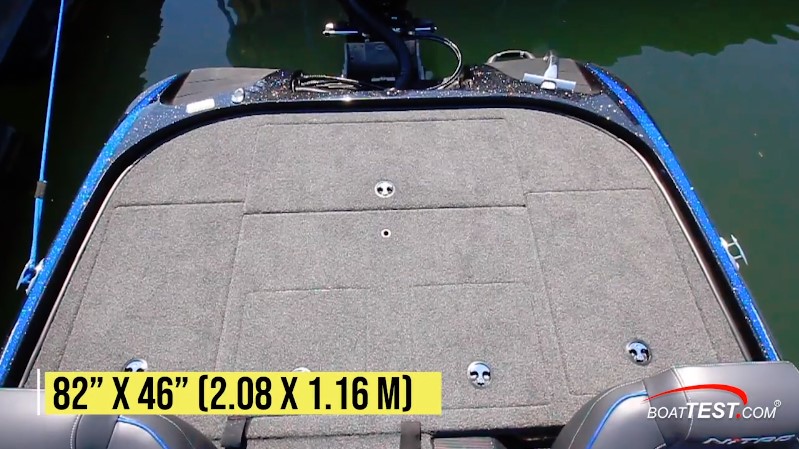

    Nitro Z20 gunwale
    The dimensions of the aft casting deck run gunwale to gunwale with two swim steps behind.

    The second of the two standard fishing seats secures in an in-deck socket so it won’t fly out when underway.

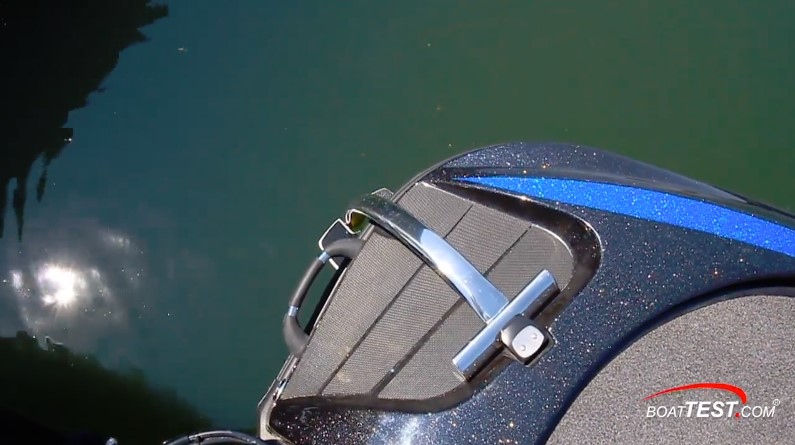

    Nitro Z20 boarding ladder
    In the port quarter, the boarding ladder folds up on a non-skid step and there’s a padded grab handle.

    There are four hatches in the aft deck. Those in the center, lift to reveal twin 19-gallon (72 L) Guardian livewells with digital timers, 750-gph (2,839 lph) pumps, a recirculation system and rounded corners. Outboard on each side are removable tubs with slots for seven Plano 3700 tackle trays.

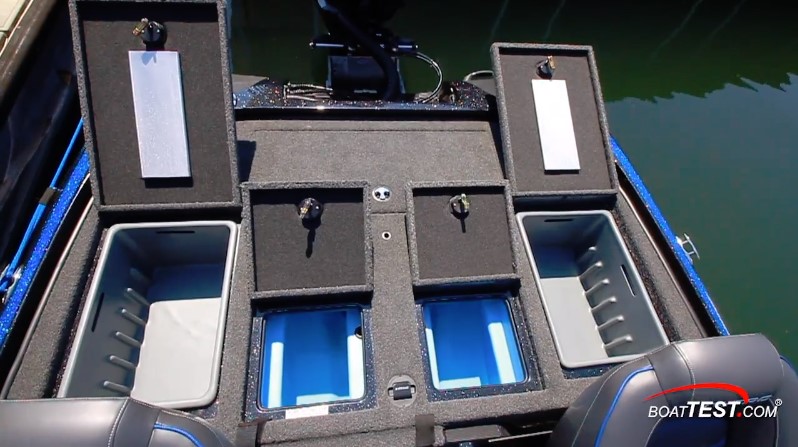

    Nitro Z20 storage
    In-deck storage for Plano tackle boxes flank the livewells.

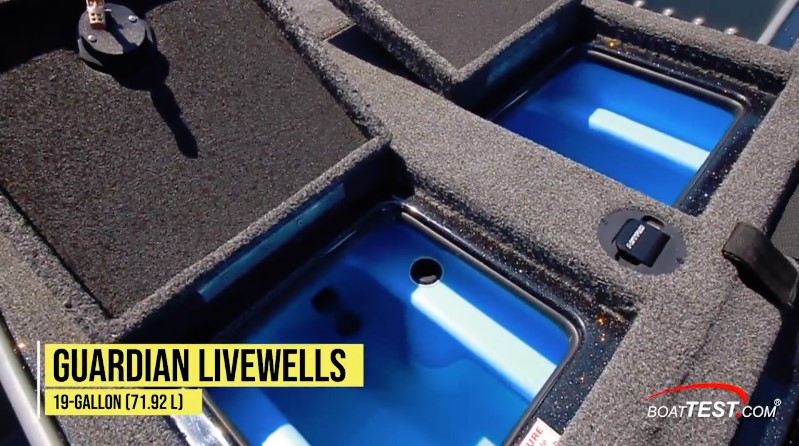

    Nitro Z20 livewell
    An optional factory installed CoolGuard™ livewell cooling system can be added to the twin livewells.

    Abaft the livewells, a large hatch opens to provide access to the batteries, switch, charger and other mechanical accessories. The boat comes with dual trolling batteries plus a dedicated engine starting battery.

    Nitro Z20 trolling motor
    An extra trolling motor battery can be added in the battery compartment along with an optional four-bank, 40-amp battery charger.

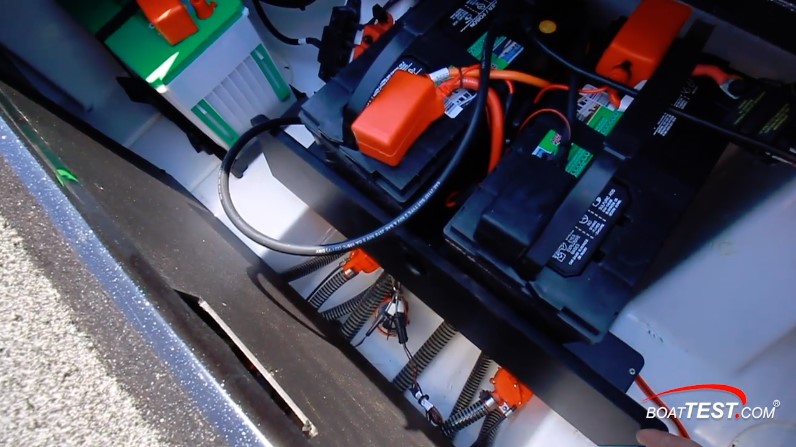

    Nitro Z20 battery
    The panel, lower left, provides access from the battery locker to the pumps for the livewell system.

    A hinged panel ahead of the batteries folds up to reveal the bilge and livewell pumps. There’s also a removable tray that drops in place above the batteries for more storage.

    Construction

    Nitro Z20 interior
    The internal grid of the Z20 is gelcoat-finished so that it also acts as a liner for storage compartments. This is an important detail and distinguishes the boat from some fiberglass bass boats and all aluminum ones.

    Hand-laid fiberglass hulls are built with engineered, woven fiberglass fabric for strength and chopped fiberglass strand for puncture resistance. The Z20’s one-piece stringer grid is constructed with a resin-infused closed molding process and then bonded to the hull to provide longitudinal and transverse supports to the running surface.

    Extra-thick, molded knee supports reinforce the transom to hold outboards and shallow-water anchors. The 100-percent composite transom is chemically bonded in place. The deck is both chemically and mechanically bonded to the hull.

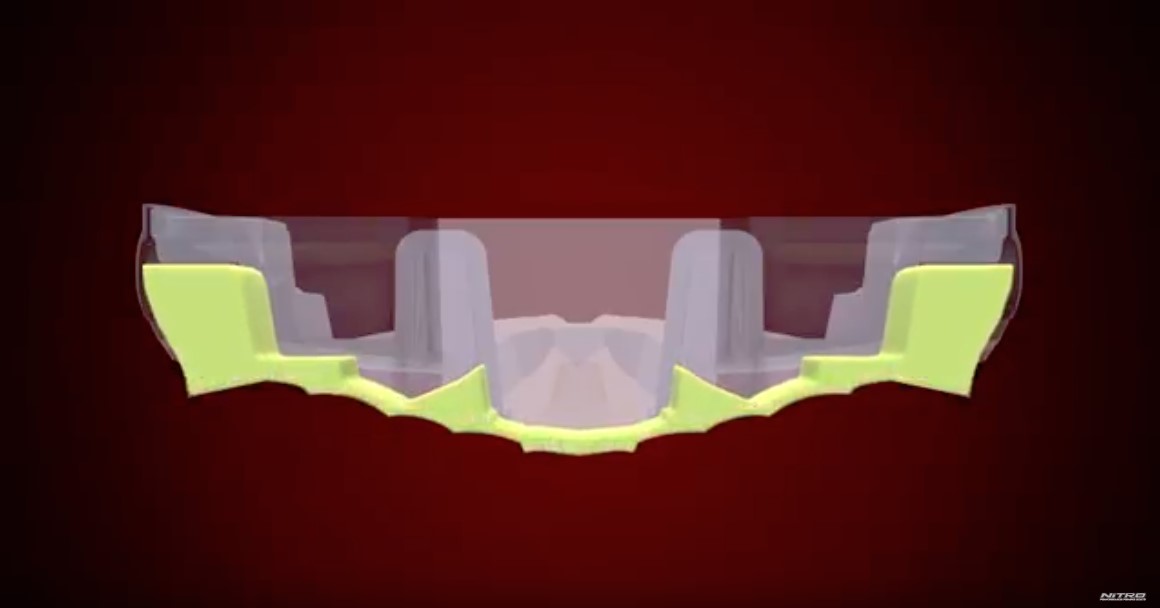

    Nitro Z20 foam
    Expanding foam is injected below the Z20’s liner to meet USCG level floatation regulations if the boat is swamped.

    Trailer

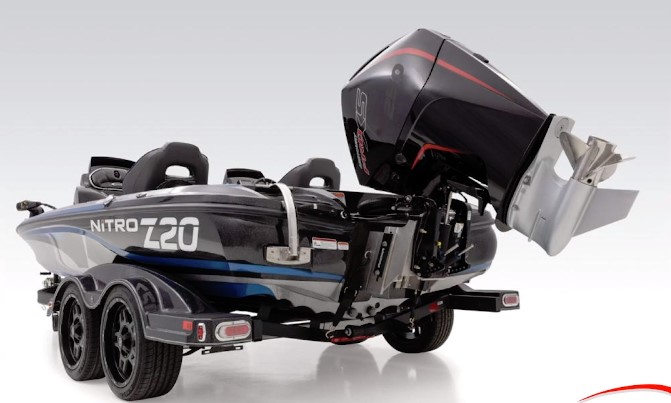

    Nitro Z20 trailer
    A dual-axle trailer with fiberglass fenders is included; optional retractable tiedown straps are available.

    To complete the package, the Z20 comes standard on a custom-made trailer that has a swing-away tongue.

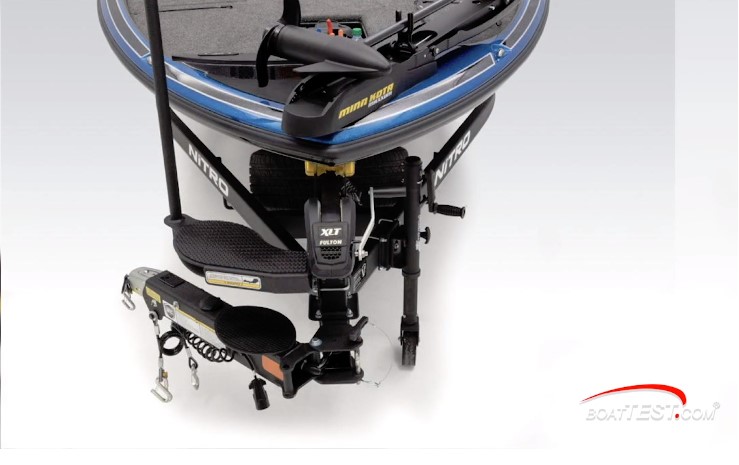

    Nitro Z20 tongue
    The Z20’s stowed length with the tongue folded away is 23’8” (7.21 m).

    Nitro Z20: Equipment Discussion

    Nitro combines many of the favorite options together in a “Pro Package” upgrade that saves the buyer $3,530 over individually ordered upgrades. It includes:

      • Bow Hummingbird® HELIX™ 9 DI G3N gimbal-mounted fishfinder with MEGA Down Imaging, CHIRP Digital Sonar and GPS

      • Console Hummingbird® HELIX™ 10 SI G3N flush-mounted fishfinder with MEGA Down Imaging, CHIRP Digital Sonar and GPS

      • 2 Minn Kota® 10’ (3.05 m) Talon shallow-water anchors (bracket mounted, dealer installed)

      • Minn Kota® Ultrex® 36V, 112-lb. (50.8 kg) thrust, 45” (1.14 m) shaft trolling motor with Universal Sonar 2 and i-Pilot® Link™

      • 3-way ethernet communication between bow and console fishfinders and trolling motor

      • T-H Marine G-Force Conservation livewell culling system

      • Power-adjust pneumatic lumbar support for driver’s seat

      • Factory-applied keel protector

      • 1 standard and 1 automatic bilge pump

      • Hot Foot™ throttle and Pro-Trim lever

      • 4-bank, 40-amp battery charger

      • 1 extra trolling battery

      • Retractable transom trailer tie downs

    Nitro Z20: Optional Equipment to Consider

      • Hot Foot™ throttle ($185)

      • Trim Lever on wheel ($70)

      • Dual trim lever on wheel (requires hydraulic jack plate) ($120)

      • Carpet embroidery ($190)

      • Spinning rod organizer ($95)

      • SmartCraft gauges ($840)

      • Ventilation fan in bow storage box ($155)

      • Removable port console (factory installed) ($1,025)

      • 12” (20.48 cm) TH Marine hydraulic jack plate ($1,070)

      • 12” (20.48 cm) Bob’s Marine hydraulic jack plate ($1,150)

      • Bluetooth capable Sony stereo system ($350)

      • Power-adjust pneumatic lumbar support for driver’s seat ($175)

      • Two oxygen generators with shutoff switch ($390)

      • Automatic bilge pump ($125)

      • Coolguard livewell cooling system (factory install) ($550)

      • HydroWave electronic fish attractor ($540)

      • Keel Protector in black or white ($315)

      • Loc-R-Bar with alarm (dealer install not included) ($230)

      • Mooring cover for 2 consoles ($755)

    Nitro Z20: Price

      $42,795 with Mercury 225l Pro XS motor and trailer

      $43,975 with Mercury upgrade to 250L Pro XS

      Nitro Z20: Observations

      Nitro Z20 fish
      The Nitro Z20 will delight any bass fishermen.

      The Nitro Z20 is a tournament-quality bass boat and when paired with the Mercury Pro XS outboard has the speed to compete. Numerous standard features keep the price down.

      With the new hull design, this boat should be able to go toe-to-toe with any bass boat on the market in terms of performance, with like engines. And, she can do that for far less money.

      Test Result Highlights

      • Top speed for the Nitro Z20 (2019-) is 76.6 mph (123.3 kph), burning 23.4 gallons per hour (gph) or 88.57 liters per hour (lph).
      • Best cruise for the Nitro Z20 (2019-) is 26.3 mph (42.3 kph), and the boat gets 5.0 miles per gallon (mpg) or 2.13 kilometers per liter (kpl), giving the boat a cruising range of 223 miles (358.88 kilometers).
      • Tested power is 2 x 250-hp Mercury Pro XS 4-stroke.
      • Time to plane for the Nitro Z20 (2019-) is 3.8 sec. seconds.
      • Time from 0 to 30 of the Nitro Z20 (2019-) is 7.7 sec. seconds.

      Standard and Optional Features

      Marine Electronics

      Fishfinder Optional
      GPS/Chart Optional

      Systems

      Battery Charger/Converter Standard
      CD Stereo Optional
      Shore Power Standard

      Exterior Features

      Outlet: 12-Volt Acc Standard
      Swim Ladder Standard

      Boats More Than 30 Feet

      Generator Optional

      Warranty

      Full Warranty Information on this brand coming soon!

      See the PRICE by becoming a BoatTEST member.
      (It's quick and FREE!)
