Prestige Yachts 590 (2019-)

2 x 600-hp Cummins 8.3



Brief Summary

The new version of the Prestige 590 is a direct result of customer feedback including the extra-large salon windows, cockpit lounge, and spacious bow seating area. The cockpit and salon are on the same level to create a spacious entertainment zone. Belowdecks, there’s a separate entrance to the master stateroom and, overall, she sleeps six. Power is a pair of 600-hp Cummins engines with Zeus pod drives.

Key Features

  • Redesigned cockpit lounge adjusts to multiple positions
  • Hydraulic swim platform can be equipped with tender cradles
  • The bow sun pad is one of the largest we’ve seen
  • Extra-large salon windows create a wide-open view
  • Separate entrance to the master stateroom
  • Separate master shower
  • Zeus pod drives with joystick controls

Test Results

RPM MPH Knots GPH MPG NMPG STAT. MILE NM dBa
600 2.9 2.5 1 3 2.6 1569 1364.1 62
1000 8.2 7.1 3.7 2.2 1.9 1168 1015.3 65
1250 9.5 8.2 7.1 1.3 1.2 696 605.2 64
1500 11.6 10.1 11.9 1 0.8 510 443.2 67
1750 12.8 11.1 20.1 0.6 0.6 334 290.3 68
2000 13.6 11.8 28.7 0.5 0.4 247 214.7 69
2200 15.5 13.4 35 0.4 0.4 231 200.7 72
2400 20.7 18 42.4 0.5 0.4 255 221.4 74
2600 24.9 21.7 49.5 0.5 0.4 263 228.7 74
2800 29 25.2 59 0.5 0.4 257 223.5 76
2970 30.3 26.3 64.8 0.5 0.4 245 212.8 76

Specifications

Length Overall 61' 4'' / 18.69 m
Beam 15' 10''
4.83 m
Dry Weight 42,968 lbs.
19,490 kg
Tested Weight 46,547 lbs.
21,113 kg
Draft 4' 5''
1.35 m
Deadrise/Transom N/A
Max Headroom N/A
Bridge Clearance N/A
Fuel Capacity 581 gal.
2,199 L
Water Capacity 201 gal.
761 L
Total Weight 46,547 lbs.
21,113 kg

Acceleration Times & Conditions

Time to Plane 13.8 sec.
0 to 30 15.3 sec.
Ratio N/A
Props Zeus pods
Load 4 person, 4/5 fuel, no water, 50 lbs. of gear
Climate 83 deg., 74 humid; wind: 15-20 mph; seas: 2

Engine Options

Tested Engine 2 x 600-hp Cummins 8.3
Std. Power 2 x 600-hp Cummins QSC 8.3
Opt. Power Not Available

Captain's Report

Contents of Report

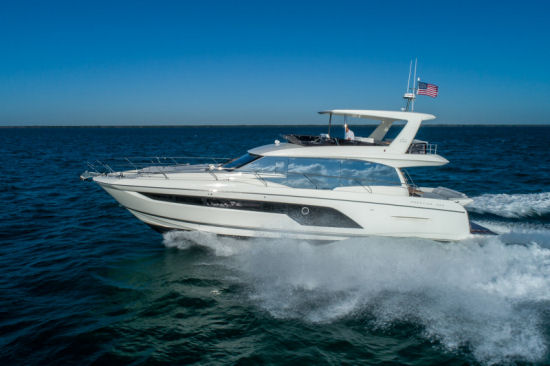

Prestige 590 running

The Prestige 590 measures 61’4”’ (18.69 m) with a 15’10” (4.83 m) beam and is designed to be powered by pod drives.

Mission Statement

The newest and largest model in Prestige’s Flybridge series, the 590 is designed to entertain and cruise with equal comfort and style. There’s seamless flow from the cockpit to the galley and salon and the use of multi-position lounges inside and out enhance the boat’s versatility. Unique in class, there’s a separate entry to the master stateroom. From a performance perspective, twin 600-hp Cummins diesels linked to pod drives give the boat a sporty feel and help improve speed and range.

Prestige 590 floor plan

There’s unencumbered passage from the swim platform all the way to the bow.

Features Inspection

The Aft Deck

Prestige has done away with the conventional wraparound seating in the 590’s cockpit, replacing it with a redesigned lounge that lets users choose between sunning or relaxing around an expandable solid-wood table. Folding in the table leafs reveals stainless-steel rails and cupholders in the table frame. Ahead to cockpit is a refrigerator and the 6’8” (2.03 m) -long fiberglass overhead provides protection from the elements. An awning can be expanded to provide added shade.

Prestige 590 cockpit lounge

The 590 puts a modern comfortable twist on the cockpit lounge with this reclined backrest.

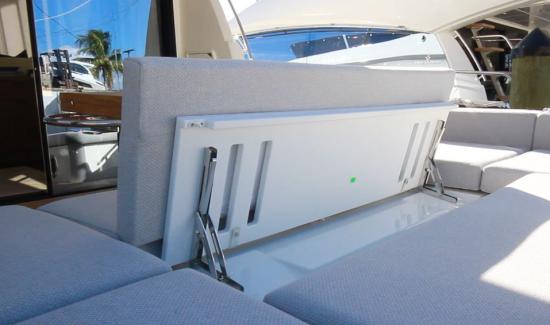

Prestige 590 back rest

The backrest for the cockpit lounge can be adjusted to a few different angles.

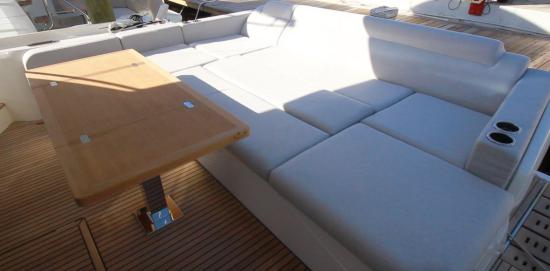

Prestige 590 cockpit lounge

Here the backrest is in the full upright position and notice the double cupholders in each outboard armrest.

Prestige 590 table

Folding in the leafs on the table shows the rugged stainless steel frame and cupholders, but also notice how thick the table itself is.

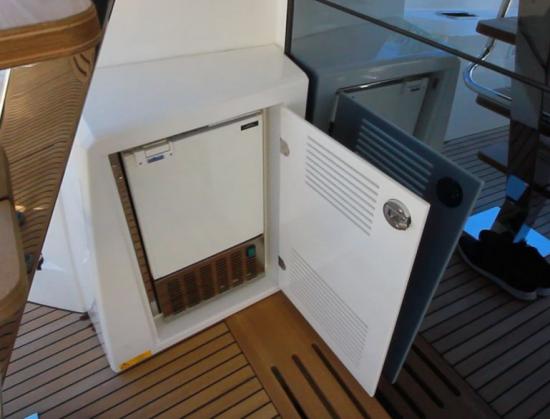

Prestige 590 refrigerator

Tucked away beneath and forward of the flybridge stairs, the cockpit refrigerator is positioned for convenient access.

The Swim Platform

Stairs to port that close off with a gate lead aft from the cockpit to the 590’s swim platform. It measures 5’8” (1.73 m) fore to aft with an integrated hydraulic section that’s 5’1” (1.55m) and can be lowered into the water for tender loading. For swimmers, to port, there are stairs that lower with the platform to make it easier to re-board. There’s a recessed rail in the center of the platform’s trailing edge so swimmers have something to grab onto.

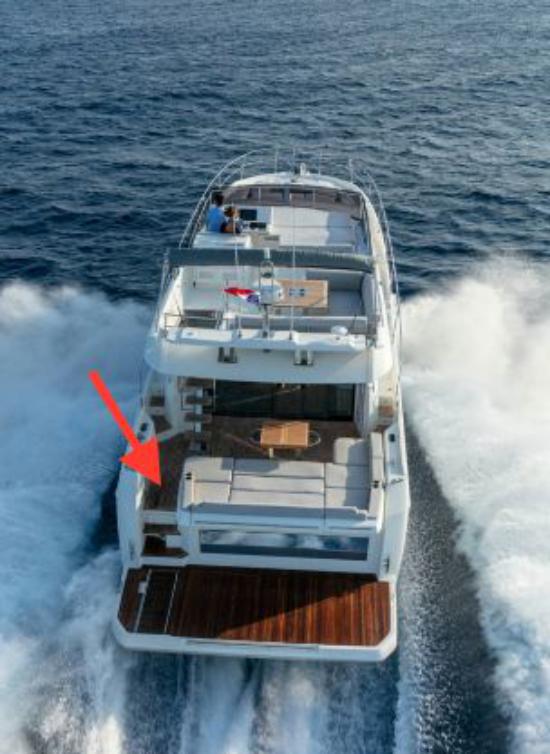

Prestige 590 running

Access to the swim platform is provided via a passageway to port. Not having the starboard-side passage allows for the larger cockpit lounge.

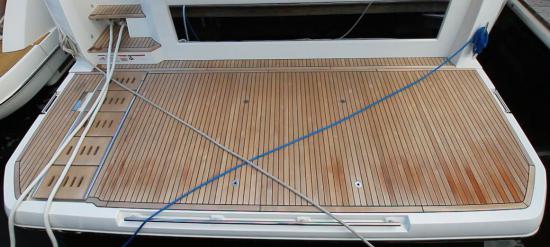

Prestige 590 swim

The swim platform is covered in teak and the ventilated section to port is the stairway that deploys when the platform is hydraulically lowered into the water.

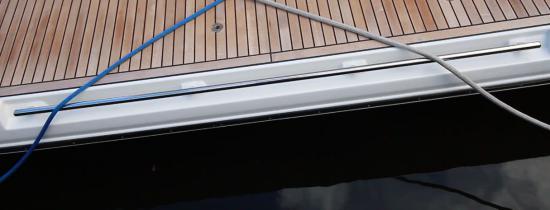

Prestige 590 swim

The recessed stainless-steel grabrail will come in handy for swimmers.

The Bow

Climb the stairs into the cockpit and there are two steps on either side that make it easy to head forward to the 590’s spacious bow. There’s also a boarding gate in the starboard hullside. Once we were up there, we measured the sun pad at 8’ x 8’ (2.44 m x 2.44 m) and extended sections on each side ran 9’7” (2.92 m) fore to aft. As we saw in the cockpit, the backrest height can be adjusted. Rails are in the sides of the lounge with drinkholders aft.

Prestige provides a removable Bimini top that is supported on carbon-fiber stanchions. A walkway separates the bow seating area from the foredeck that houses the windlass, a stainless-steel anchor roller supports the glimmering anchor. There are cleats on each side of the roller and chocks are just ahead. Hatches on each side of the windlass open on pneumatic struts to access the rode locker. The windlass control is to starboard and the washdown connections are to port.

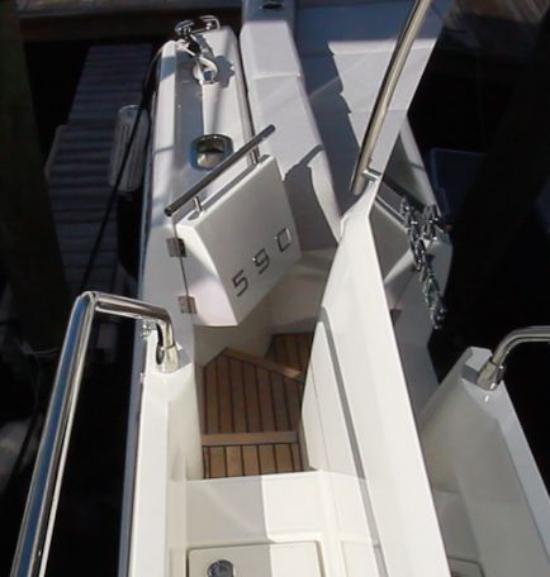

Prestige 590 door

Board via this door in the hullside and climb the stairs to head to the bow.

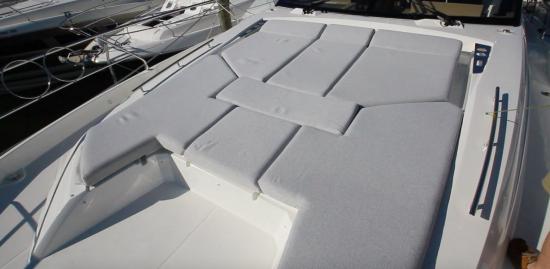

Prestige 590 bow lounge

The 590’s bow sunlounge has 64 sq. ft. (6 sq. m) of space to stretch out.

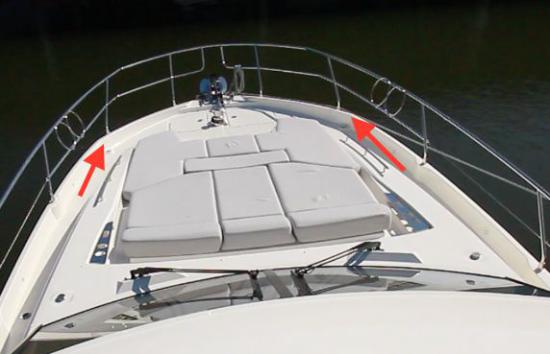

Prestige 590 bow sun pad

This photo provides a good look at how Prestige carried the beam as far forward as possible.

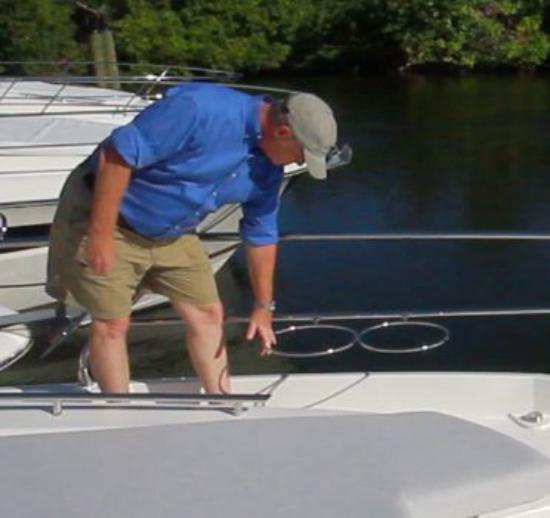

Prestige 590 bow fender

Twin racks on each side of the hull provide dedicated storage for fenders.

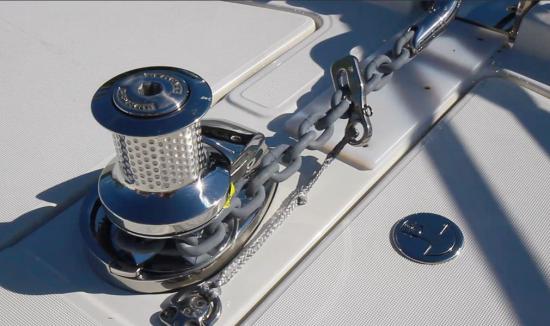

Prestige 590 windlass

The Lewmar windlass could use a chain stopper to take the standing load off the unit when the anchor is deployed.

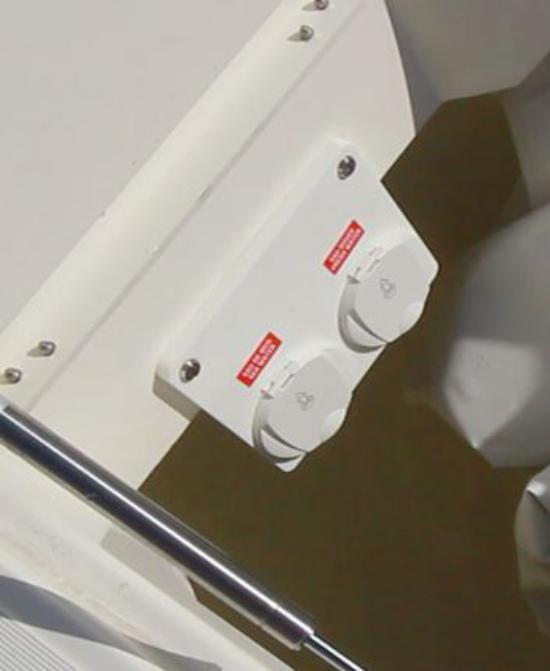

Prestige 590 wash down

The quick connects for the raw and freshwater washdowns are under the port foredeck hatch.

The Flying Bridge

We made our way aft to the cockpit and up the portside stairs to the 590’s flybridge. Up top, there are several social zones. Aft, is a large L-shaped settee that wraps to port around a solid-wood table on twin fixed stainless-steel stanchions. Beverage holders are in the center and to the sides of the lounge.

Just ahead is a seat with a flip-up backrest that switches from forward to aft facing. Forward, alongside the upper helm is a sun pad that converts to twin chaise lounges. There’s just one position for the backrest but it would be easy for Prestige to add more positions. To port, abaft the upper helm is a galley with an electric grill, sink, and a refrigerator and storage. Overhead is a fiberglass hardtop.

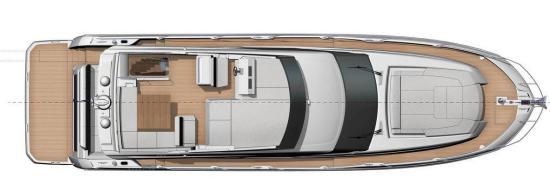

Prestige 590 helm

The 590’s upper helm and bow offer plenty of space for sunbathers to stretch out.

Prestige 590 stairs

The flybridge stairs are at a comfortable angle and the stainless-steel rails positioned where they should be.

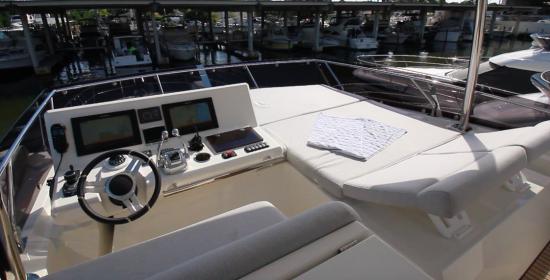

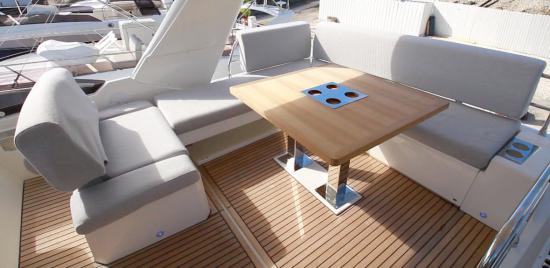

Prestige 590 lounge

The wraparound lounge and table make the flybridge a comfortable place to relax and hangout.

Prestige 590 lounge

The lounge adjacent to the flybridge helm has backrests that can be set in multiple positions.

The Flybridge Helm. Positioned to port, the flybridge helm is to port with the wheel mounted outboard. This allows a companion to comfortably join the captain at this station. Twin 12” (3.0.48 cm) screens flank the 4” (10.16 cm) Seakeeper control and the 5” (12.70 cm) Cummins engine display. To the left of the steering wheel are the Zeus joystick and the bow thruster control. To the right of the wheel are the engine controls, twin beverage holder, and a glovebox with a charging port.

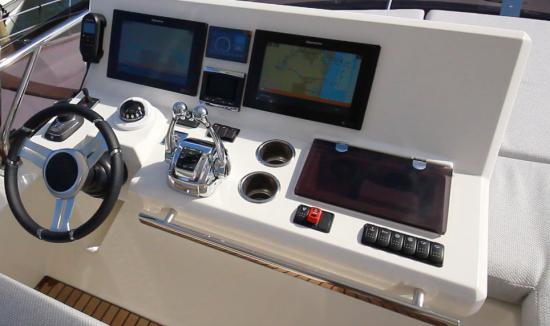

Prestige 590 helm

The 590’s upper helm is smartly laid out with the thruster controls ahead of the joystick and the steering wheel positioned to port so a companion can accompany the captain comfortably.

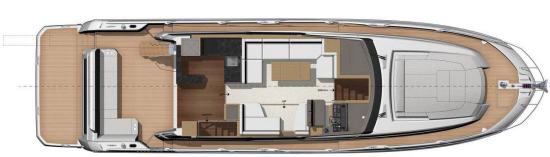

Prestige 590 layout

Prestige designers laid out the 590’s cockpit and salon for optimum entertaining efficiency.

The Galley

Heading inside, Prestige has positioned the galley immediately inside the mirrored sliding door that transitions from the cockpit to indoors. The deck remains flush across the threshold and to further enhance the open feel, a window in the galley opens toward the stern. Headroom is 6’3” (1.91 m) and the overhead is finished in Alcantara Suede. To port, there is ample counterspace and two pieces pull out to unveil the stainless-steel sink. We like that there’s a retaining rail where the hatches can be secured when the sink is being used. A powered vent above the electric cooktop keeps the area odor-free and there’s a full-sized refrigerator. Our test boat had the optional dishwasher and there’s plenty of storage in cabinets, including dedicated space for glassware.

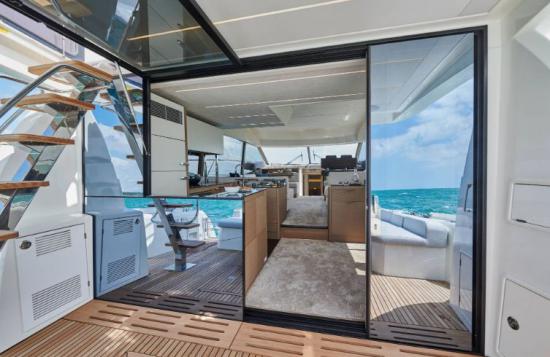

Prestige 590

Here we see the mirrored doors that close off the passage from the cockpit to the salon.

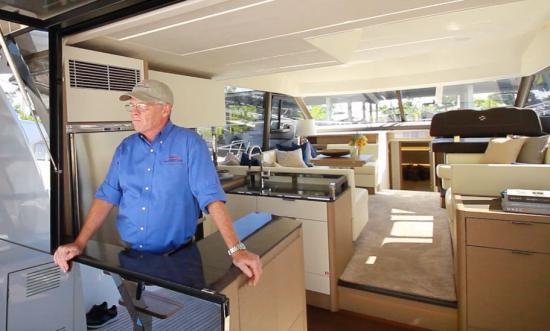

Prestige 590 salon door

With the salon door and bulkhead window open, the salon and cockpit basically become one large entertainment space.

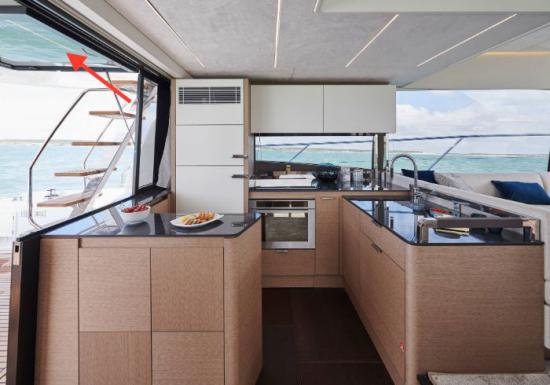

Prestige 590 galley

Here we get a good look at the overall galley area and notice the aft bulkhead window held in its raised position by a pneumatic strut.

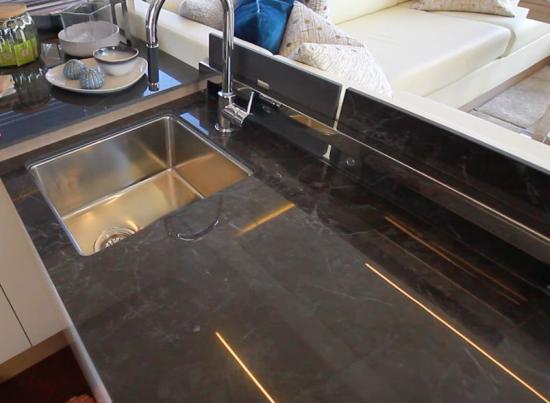

Prestige 590 twin hatches

Twin hatches pull out of the counter to expose the stainless-steel sink and they secure in place between this rail and the backrest for the salon lounge.

Prestige 590

A full-sized stainless-steel refrigerator offers good cold-storage capacity, always welcome on a cruise.

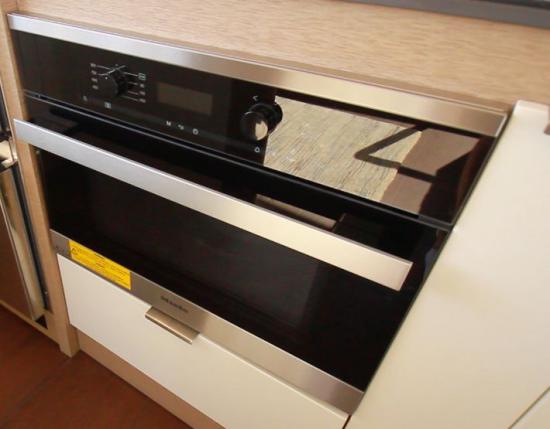

Prestige 590 microwave

The Miele combination microwave and conventional oven adds cooking options.

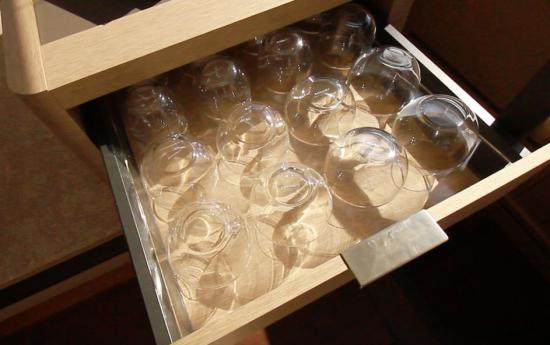

Prestige 590 glassware

Galley storage includes this dedicated drawer for these cocktail tumblers.

The Salon

It’s an easy step up to the 590’s salon, which has an extra spacious feel thanks to the newly designed windows that extend from the overhead to below the furniture level. Combine this with the trim also being lowered at the windows and the boat has what could be the best sightlines and amount of natural light in class.

Seating includes a U-shaped sofa to port that wraps around an expandable table on a polished stainless-steel base. Opposite of the sofa is a loveseat and a single corner seat on a slightly elevated platform that has wide-planked hardwood flooring. Push a button at the helm to raise the 40” (101.6 cm) TV on an electric lift. A port-side window and a starboard door can be opened to create cross ventilation.

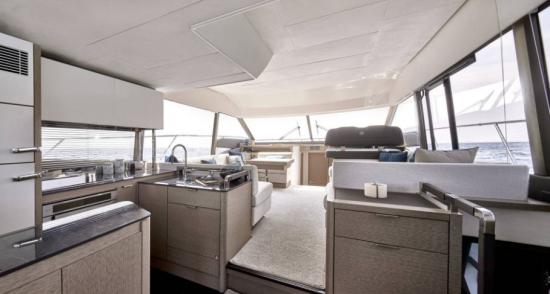

Prestige 590

It’s a smooth transition from the galley to the salon and notice that the overhead is raised as it extends forward to retain the interior headroom.

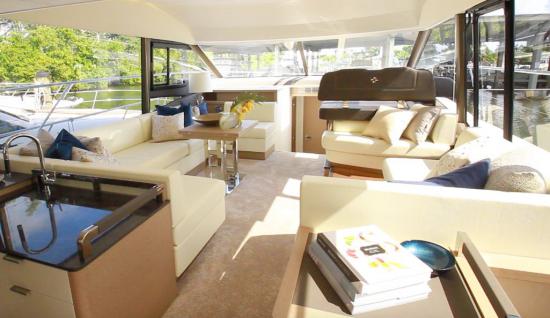

Prestige 590 salon table

The 590’s salon has space for a crowd with a wraparound sofa to port and a choice of smaller seats to starboard.

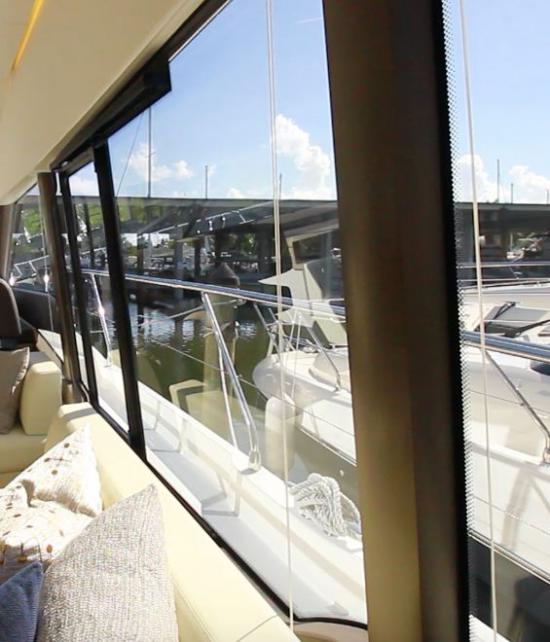

Prestige 590 salon windows

The salon windows extend below the backrests of the salon lounges, creating as much open space as possible.

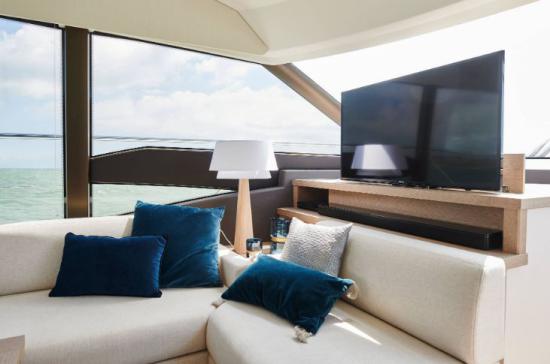

Prestige 590

When the crowd disperses and it’s time to relax and watch the end of the game, this 40” (101.6 cm) TV pops up from the leading edge of the salon lounge to port.

The Lower Helm

Positioned to starboard, the lower helm has dual 12” (30.48 cm) displays flanked by air conditioning vents. The VHF radio is outboard to starboard and below are the Seakeeper and autopilot control panels. Just to the right of the steering wheel are the ignition controls and the joysticks for the thrusters and Zeus pod drives. Engine controls are just behind. The double-wide leather helm seat adjusts fore and aft and there is a footrest should the captain or a companion want to sit during a long cruise.

Prestige 590 lower helm

The lower helm station has a compact feel but exhibits an intelligent layout. Nothing is out of position.

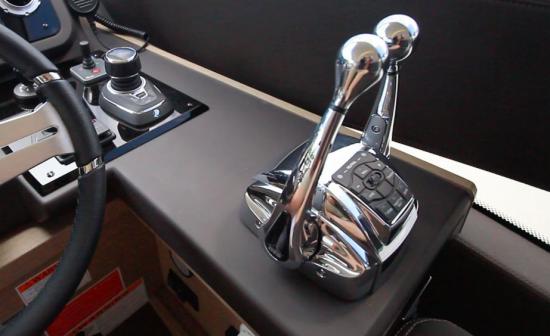

Prestige 590

Here’s an example of that intelligent layout, all the controls are to starboard. The captain can easily run the joysticks for the pods and thrusters with both hands if needed.

Accommodations

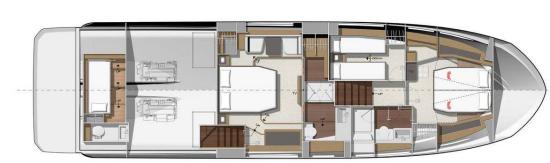

Prestige 590 layout

This plan shows the crew quarters abaft the engines. The boat can also be ordered with a tender garage in place of those accommodations.

The Master Stateroom

The aforementioned separate entrance to the 590’s master stateroom is a feature that sets apart the boat from others in class. The wide planked decking used in the foyer to the entrance to the master’s quarters can be replaced with optional carpeting. Inside, the stateroom spans the boat’s beam and has a center-mounted berth that measures 6’6” x 5’6” (1.98 m x 1.68 m) and an average headroom of 6’3” (1.91 m).

Windows with opening ports are to port and starboard and the mirrored overhead is finished Alcantara suede. The headboard is backlit and there are reading lights to each side. A built-in desk area is to starboard. On the bulkhead at the foot of the berth is a 40” flatscreen TV. To port is a small booth with facing seats and a table beneath the window. Integrated in the table are a mirrored vanity and jewelry storage. Larger storage for this stateroom includes a walk-in closet ahead of the booth and a smaller compartment aft, plus drawers in the base of the berth.

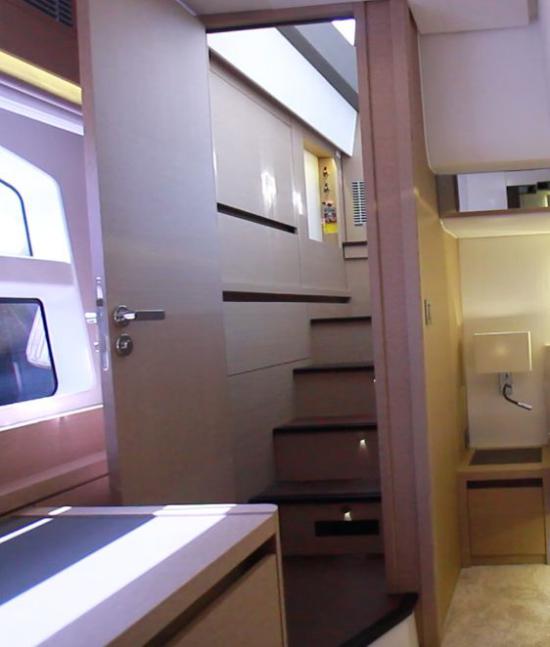

Prestige 590 master entry

The master entryway is to starboard.

Prestige 590

The berth is on the boat’s centerline and outboard on each side are large windows with opening ports.

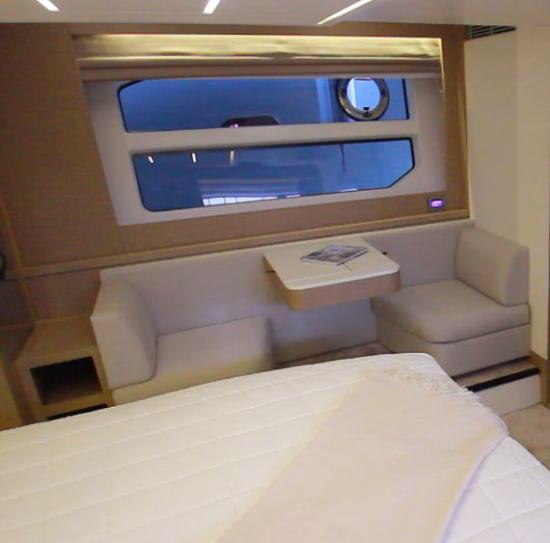

Prestige 590 booth

The small booth to port has a mirrored vanity and jewelry storage in the small desk.

The Master Head. From the walk-in closet, passengers enter first the separate shower area and then the head. The shower is a full standup stall with glass doors. The head area has a sink recessed into the countertop and the toilet is opposite. As we saw throughout the 590, there’s ample storage in a variety of cabinets in the head.

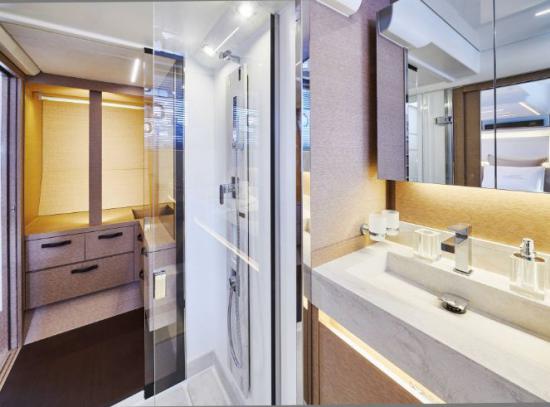

Prestige 590 master shower

From the walk-in closet to port, the owner enters first the shower and passes through to the head area.

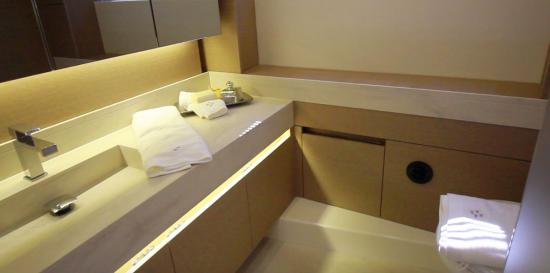

Prestige 590 sink

The sink is recessed in the Corian countertop, which leaves more countertop space than a vessel-style model.

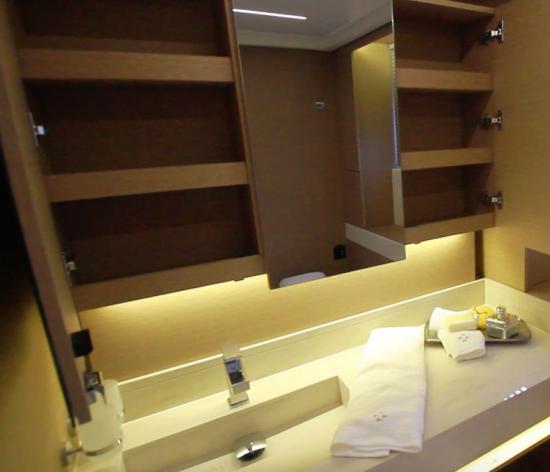

Prestige 590 master head

As we saw throughout the boat, the master head has a plethora of storage options.

The VIP Stateroom

A central stairway adjacent to the lower helm provides access to the 590’s other two cabins. Forward, the VIP has an island berth with dimensions of 6’8” x 5’4” (2.03 m x 1.62 m) when closed. It can open into two V-shaped mattresses that are 2’7” (.78m) wide as well. Hullside windows are to port and starboard and there’s an overhead skylight.

Ahead of the berth is a small vanity and storage includes a hanging locker to starboard. This closet can also be configured as an ensuite head for the guest cabin. The VIP’s head has a walk-in shower, recessed sink, a window with an opening port and ample storage.

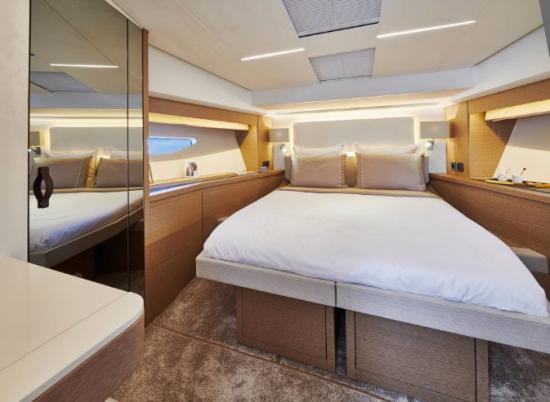

Prestige 590 hull windows

The bow hullside windows and smart use of mirrors give the VIP stateroom a larger feel.

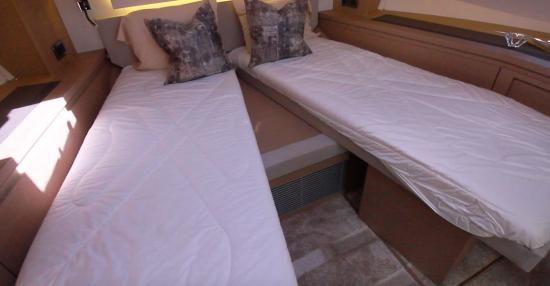

Prestige 590

Separate the berths in the cabin to create individual sleeping areas for two.

Prestige 590

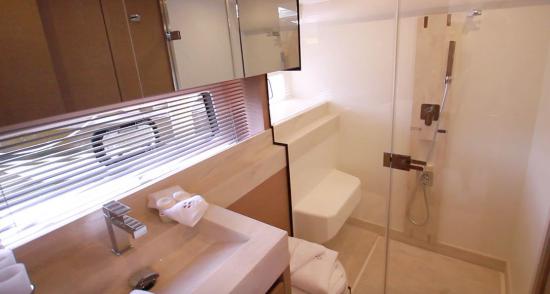

The VIP has a separate shower and notice there’s even a space to sit down in the stall.

Guest Cabin. Abaft the VIP stateroom to port, the guest cabin has two single berths, a mirrored headboard, and a hullside window. There’s an aft hanging locker, but it would be sacrificed if an owner orders the ensuite head for the guest quarters. In the configuration on our test boat, the guest cabin occupants would use the VIP head.

Crew Quarters. Aft, the captain enters a single-berth cabin from the stern. It has a hanging closet and basic head, plus there are removable panels of the cabin sole to access the Zeus pod drives.

Prestige 590

The portside guest cabin has two separate berths and a hanging locker at the foot.

Systems

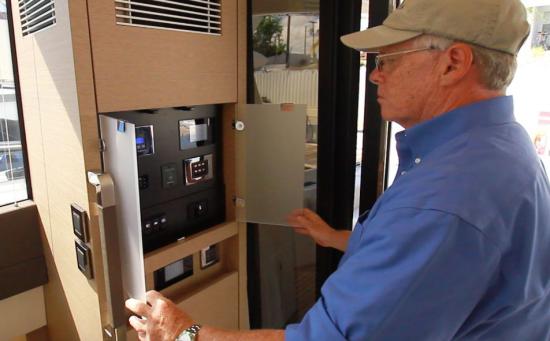

Just inside the salon door is the master switch panel behind smoked glass panels. Of course, there’s storage below. To get to the engines and mechanical accessories, there’s a hatch in the cockpit deck. Inside there’s space to move between and around the twin Cummins QSC 600 engines. Fuel tanks are aluminum and on both sides of the forward bulkhead with fuel-water separators installed in accessible locations. Between the mains are the 21.5 kW generator above and the optional Seakeeper 6 gyro stabilizer below.

Prestige 590

Controls for all the major onboard systems are in this cabinet just inside the salon doors.

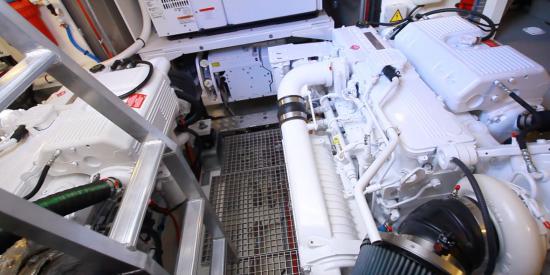

Prestige 590

The sturdy aluminum ladder into the engine room is angled for maximum space between the motors and forward are the generator above and Seakeeper below.

Performance

The Numbers. Prestige 590 has an LOA of 61’4” (18.69 m) with a beam of 15’10” (4.83 m) and a draft of 4’5” (1.35 m). With an empty weight of 42,968 lbs. (19,490 kg), 80 percent fuel and four people on board, estimated test weight was 46,547 lbs. (21,113 kg).

With the twin 600-hp Cummins 8.3 engines turning Zeus pods and spooling up to 2970 rpm, we reached a top speed of 26.3 knots while running in 2’ (.61 m) seas. On the flat, we expect that she could do better and Prestige tells us the boat has hit 29 knots in company tests.

At 2600 rpm, we recorded a best cruise of 21.7 knots and a fuel burn of 49.5 gph, which translated to .4 nmpg and a range of 228.7 nautical miles with 10 percent of the boat’s 581-gallon (2,200 L) fuel capacity in reserve.

In acceleration tests, the boat planed in 13.8 seconds and accelerated to 20 mph in 15.3 seconds. In choppy conditions, pulling back the throttles to a calmer cruise produced a smooth ride. She throws spray low and wide and there’s no hull slap, whatsoever.

At the docks, the Zeus joystick and thrusters made it easy to put the 590 wherever we wanted.

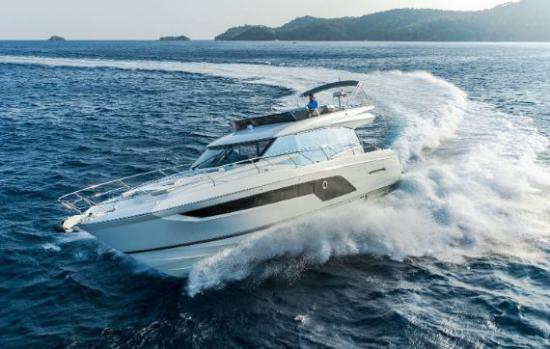

Prestige 590 running

The 590 acquitted itself well in a 2’ chop, providing a smooth, dry ride and solid handling.

Construction

Prestige builds the 590 with advanced automation including robotics for precision and uses resin infusion for most large parts to ensure higher strength and lower weight while employing a more environmentally friendly construction process.

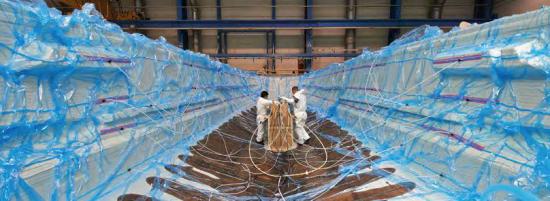

Prestige 590

Large parts including hulls and decks are built with resin infusion to ensure that there is proper saturation of the laminate.

Warranty

    • Three-year general warranty covers parts, labor and the majority of on board components.

    • Five-year warranty against hull blistering.

    • Seven-year structural warranty.

Observations

The new version of the Prestige keeps pace with several trends that we have been seeing the last couple of years. By making these changes and not holding on to an old design that is being superseded by competition, the builder is keeping this model viable. The major changes are—

    Separate Entrance to Owner’s Stateroom. This creates more privacy for the owners and guests and facilitates genteel cruising by two couples.

    Extra-large Bow Lounge/Sun Pad. This has been a growing trend and makes better use of a lot of the boat’s square footage that otherwise is going to “waste” for entertaining.

    Opening Aft Galley. With this window and the salon doors open it brings the fresh air into the boat and makes for a large mingling area when hosting a cocktail party.

    Dropping the Salon Windows Lower. By dropping the lower sill of the windows to the tops of the furniture, or even lower, it brings in more light, and makes passengers be more in touch with their environment.
