The Remarkable New Sharrow Propeller™ Model MX-1
Sharrow Propeller™: The Back Story
Inventor Greg Sharrow did not start out to create a new kind of propeller. Instead, this Berklee College of Music graduate, who was working as an Executive Producer and Director in the video production field, originally set out on a mission to develop an ultra-quiet drone for use in the entertainment industry and for military purposes, where noise is a critical factor. By dramatically reducing or eliminating tip vortices, Greg knew he could significantly reduce the noise that is produced by propellers, when compared to conventional blades.
Greg knew the key to dramatically reducing or eliminating the tip vortices in the most extreme way possible meant eliminating the tip itself. But how could you make a tip-less propeller? What would it look like and how would it function?
During a daily morning walk, after a day of pondering these questions, the idea for the Sharrow Propeller™ came to him, and he immediately understood the benefits of the novel design, he says. “It’s a propeller that not only dramatically reduces or eliminates tip vortices and tip cavitation, but it also has many other benefits, including reduced noise and vibration. After that “ah-ha” moment, he began assembling the legal team, engineering team, partnerships, and funding for the massive R&D effort that would come next.
During the R&D and design process, Greg and his team of engineers discovered many other advantages of the Sharrow Propeller™ across a range of applications and fluid densities, but the original inspiration came from Greg’s desire to make a quiet drone.

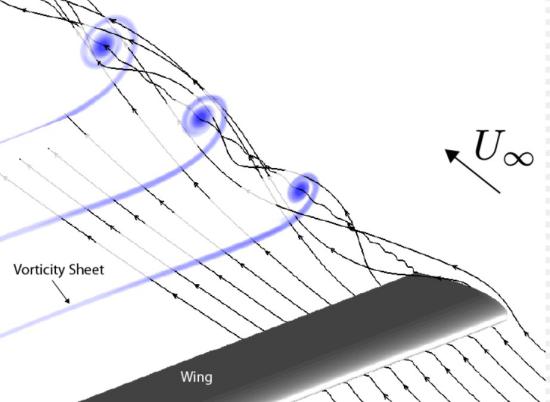

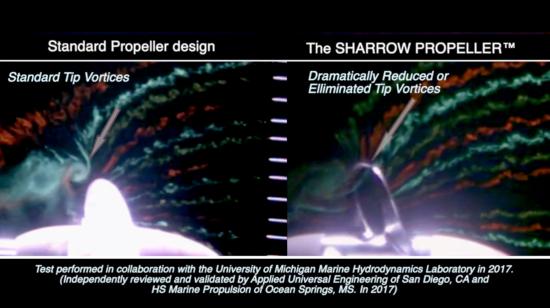

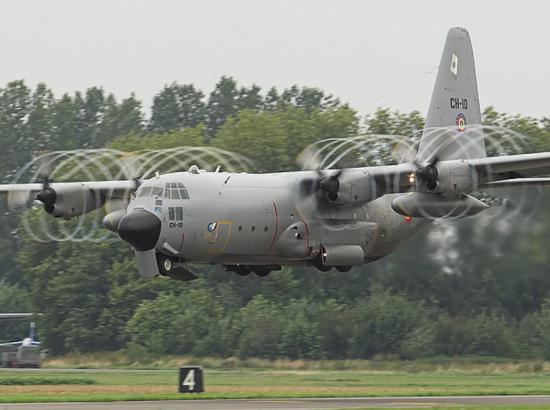

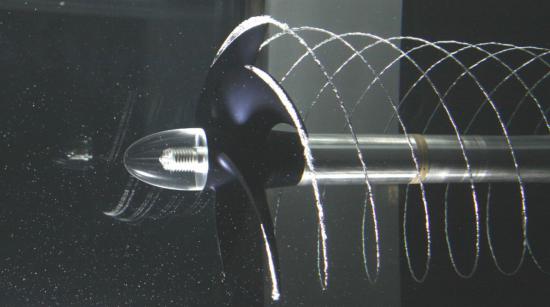

Aeronautical engineers and naval architects had long known that propeller tips created vortices that induced drag, slowed propulsion, and increased fuel consumption. Over the years, many engineers have attempted to design a propeller with modified tip properties that would reduce tip vortices, but none have reduced the amount of tip vortices like the Sharrow Propeller™, according to Sharrow.
“It’s been an incredible journey so far”, says Sharrow. “And now, after 7 plus years of R&D we have 22 patents around the world with many others pending, development and manufacturing partnerships with some of the world’s largest ship builders and propeller manufacturers, and a product and methodology for generating new designs for different purposes that is simply amazing”.
Sharrow Propeller™: Design & Testing

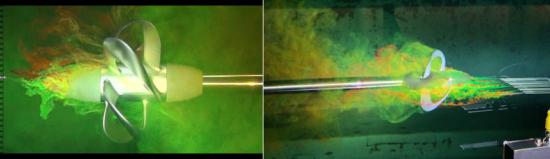

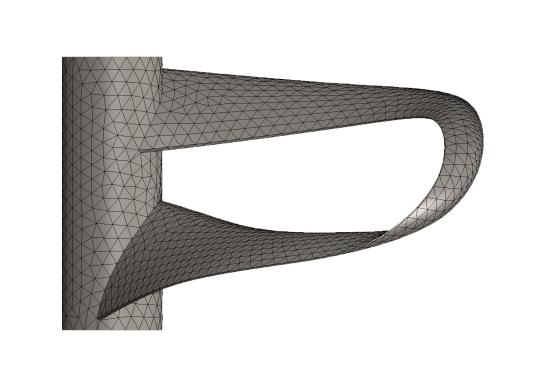

Using modern computer modelling and additive manufacturing (3D), Sharrow Engineering has solved some basic problems of rotary propulsion – including the reduction of tip cavitation and vortices. Their goal is to design new propulsion technologies for the nautical and aeronautical sectors, with propellers which exhibit a wider peak efficiency curve for greater utility over a wider scope of operational ranges.
The application for these props is extensive, and recreational boating use is only the tip of the iceberg.
The development of the Sharrow Propeller™ has been an extensive process taking a theory of operation, design concept, and working models through years of CAD modeling, R&D, and testing with reviews by top engineers in the marine and aerospace industries. Sharrow says the process was 1% inspiration and 99% perspiration.

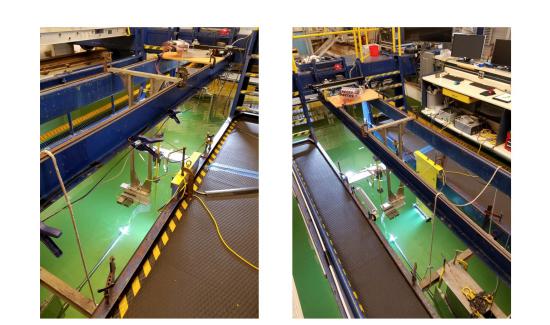

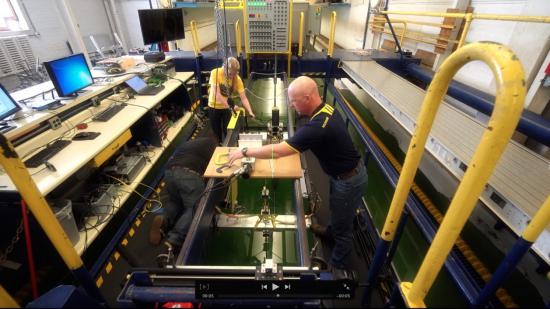

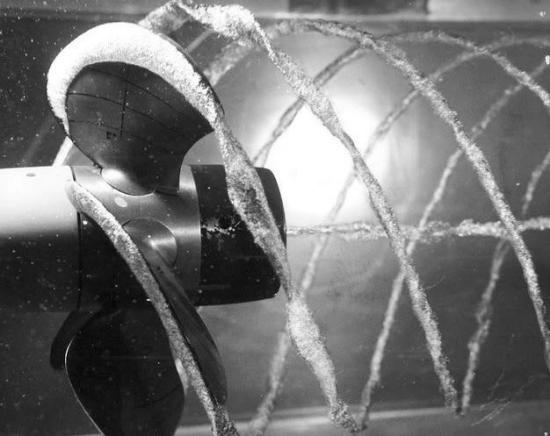

University of Michigan Marine Hydrodynamics Laboratory: In 2013, Sharrow Engineering formalized an extensive research and testing program with the University of Michigan’s Marine Hydrodynamics Laboratory (regarded by many as the number one ranked university for naval architecture in the U.S.) to provide insight and independent validation of Sharrow Engineering research findings through third party testing. Here, scale models of the propellers were tested for all sorts of applications to exacting standards.
This relationship with a third-party test facility provided Sharrow Engineering with the vital resources to validate numerical models and CFD simulations with physical tests of actual propeller prototypes. Through this R&D effort, Sharrow Engineering developed a proprietary method for creating new geometries for a wide range of applications from tugboats, to super tankers, to recreational boats, to planes and drones. “The ‘Closed Loop’ iterative design process is the gold standard for state-of-the-art engineering processes,” says Sharrow.
The most lucrative application this radical new propeller is on supertankers and other large commercial ships, where it can potentially save them millions of dollars a year in reduced fuel consumption per ship.
Sharrow Propeller™: Manufacturing
The Sharrow Propeller™ design is a radical departure from conventional propeller designs and seems to be a solution that has long evaded propeller designers. As such, it required an innovative approach to manufacturing as well.

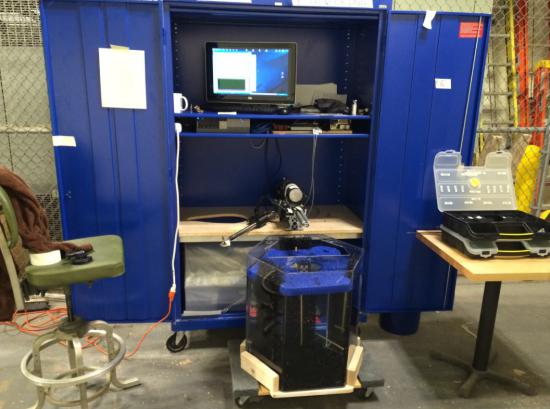

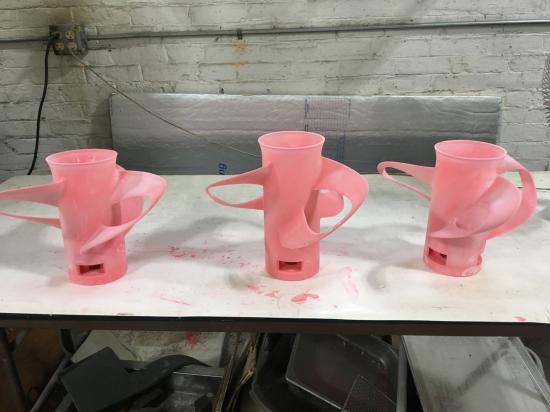

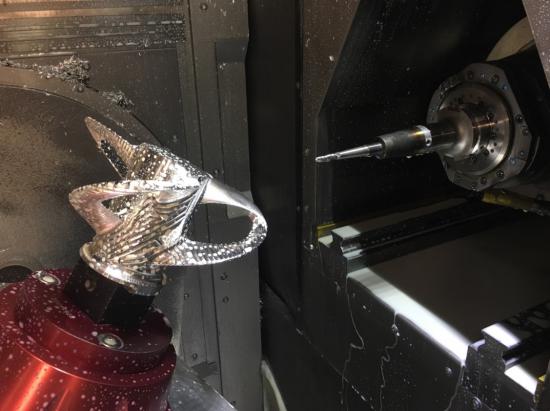

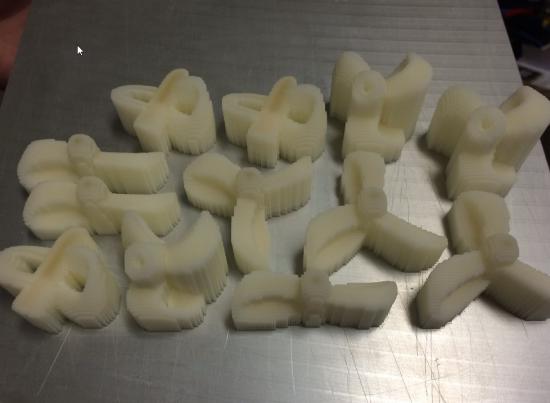

Advanced additive manufacturing technologies played a large role in Sharrow Engineering’s development process, particularly for model scale validation testing because, and the design-test cycle was accelerated considerably. Currently, casting patterns come from 3D printed waxes, but 3D printing is still not at the stage where it scales to production volumes. The ability to manufacture very precise high-quality propellers is essential to Sharrow Engineering’s testing and manufacturing programs.
Traditional investment casting is used for both protypes and production versions of the Sharrow Propeller™. Depending on the application and market volume, Sharrow uses the manufacturing process that makes the right propeller for the right application at best value to the customer.
Sharrow Propeller™: Testing by the BoatTEST Team
Will this new design concept work on small recreational power boats? And, how will it match up with some of the most efficient conventional props on the market? To find out, BoatTEST sent a four-member team to Detroit, Michigan and spent seven days testing the innovative new design along with two other conventional props to compare their performance.
The testing procedure used by BoatTEST was the most rigorous ever used in its testing because when it comes to prop design and performance, even a 1% improvement in prop design is significant. We tested two conventional “benchmark” propellers and the Sharrow Propeller™ by means of long test runs at each RPM. Once we were able to get the boat at a “steady state” we recorded RPM, speed through the water, and fuel flow.

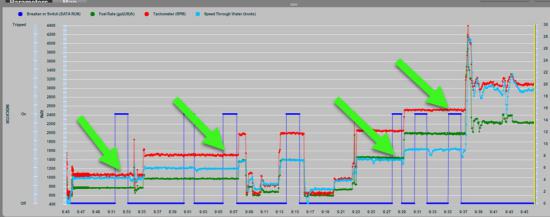

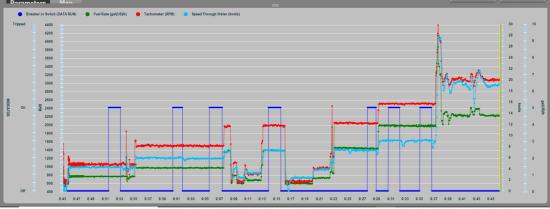

These readings came from a conventional speed-through-water sensor installed through the hull of the boat, and from the RPM and fuel flow data that was sent from the Mercury engine to the NEMA 2000 network. This data was recorded in real-time onto an off-the-shelf vessel data recorder. Once a “steady state” was reached after several minutes of traveling at a certain RPM, an indicator switch was triggered by the boat captain for a period of 15 seconds to over a minute. Then, using computer software, the steady-state period was averaged together to give us the results published below.

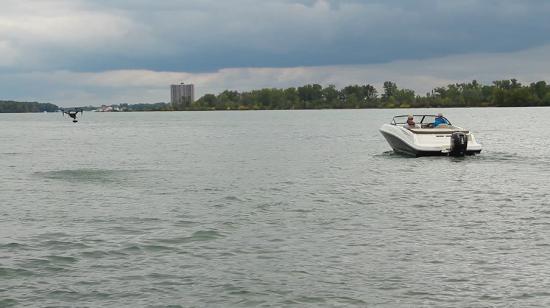

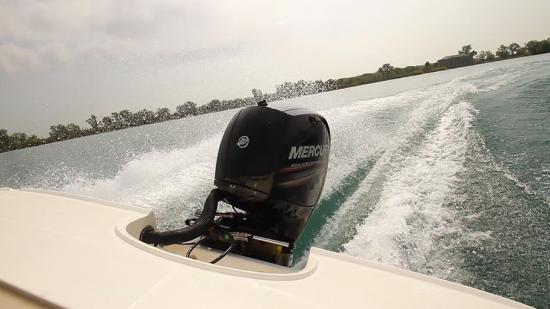

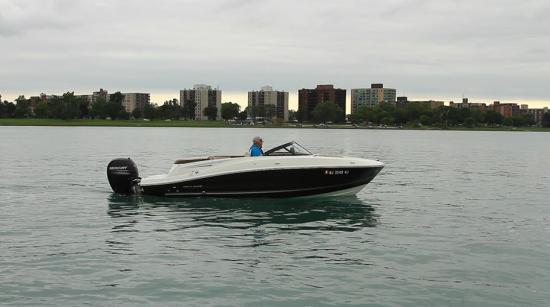

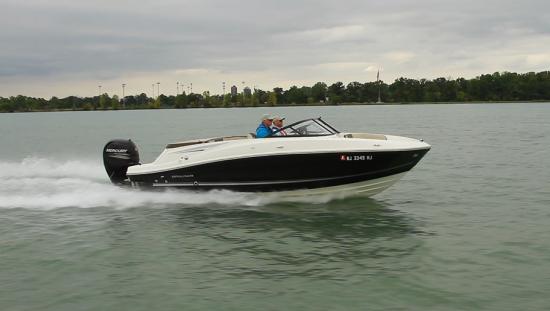

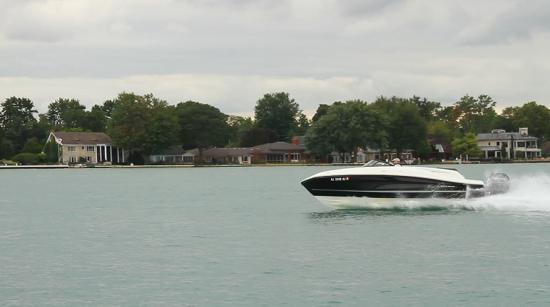

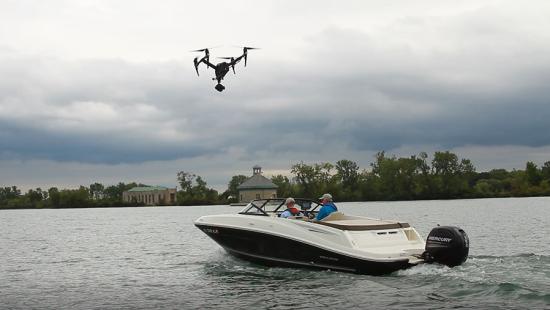

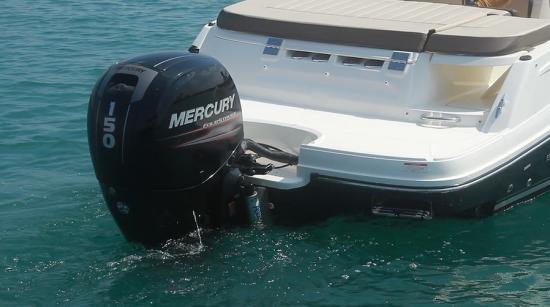

Our test boat was a 20’ (6.21 m) plain-Jane bowrider with an 8’ (2.43 m) beam like millions of other boats on the water. It had a total tested weight of 3,543 lbs. (1,607 kg), including jack plate, two-person test team, equipment, and fuel.

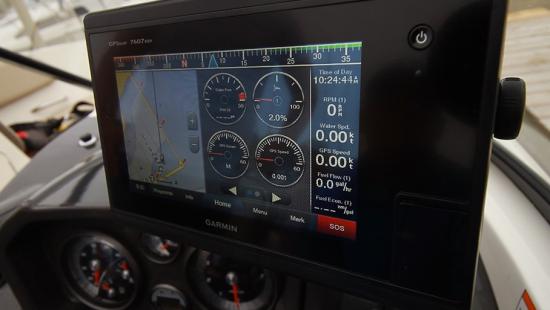

Our test boat was rigged with Mercury’s fuel flow sensor technology which is extremely accurate, and fuel consumption was displayed on our Garmin screen. Speed through the water data came from a calibrated in-water sensor.
Lengthy Testing Procedure. Perhaps the most important aspect of our testing was the rigor of making sure the test numbers we eventually would publish were as accurate as possible. The boat was in a “steady state” at every rpm setting – and this usually took 10 or 15 minutes to achieve – before we triggered the recording for as long as a minute, and then was averaged.
When performing tests of this type, speed, fuel flow and even RPM are constantly fluctuating, even in calm conditions. Each little change in the texture of the surface will have its effect on a vessel as light as this one, slowing the speed, calling on a bit more fuel, slowing RPM, then releasing all three to go back to a more normal state.
These days, instruments are so well-tuned, every minute change is seen and must be averaged. This makes sure there are no spike readings up or down, and it is done for RPM, speed, and fuel flow.
We took our performance readings during a “steady state” that lasted, for example, approximately 12 minutes at 1500 RPM. Then, when we visually saw our gauges, what appeared to be average readings, we turned on the recording device, captured the red RPM data, blue speed numbers, and the green fuel flow numbers. The data captures can be seen in the graph above. At some RPM settings there were two data captures, and that was because we felt that the first one might be flawed, and so a second one was made to ensure accuracy.
After the test, the computer averaged the readings in each period to ensure that the highs and lows were taken out, so a repeatable number could be ascertained.
Our test boat’s fuel tank held 33 gallons (125 L) and the overall full fuel weight was 200 lbs. (91 kg). Our two-person test crew were nearly identical in weight. In any boat, weight is one of the most critical aspects when testing. BoatTEST was careful to top off the fuel tank after every propeller was tested and all other weight aboard the boat was kept the same, propeller to propeller.
Sharrow Propeller™: Test of Propeller #1

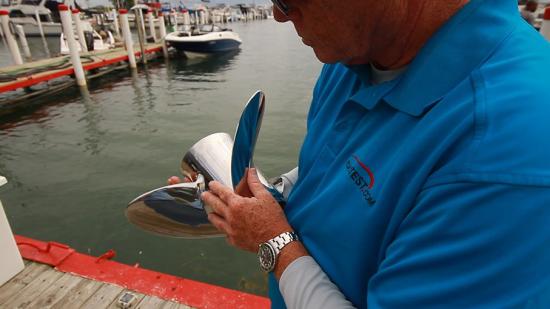

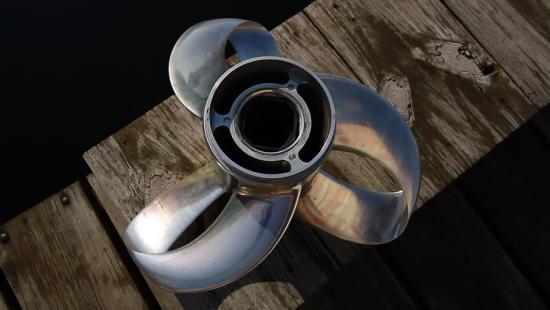

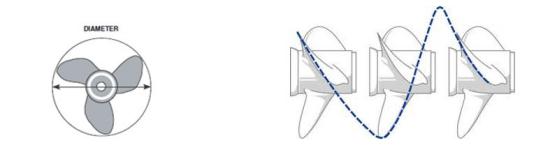

The first propeller we tested was a 14-3/4” by 15” 3-blade stainless steel propeller. It is an industry favorite and has been used for years on thousands of boats both as original equipment and in the aftermarket. It should be noted that this propeller had a diameter ¼” less than the other two. This difference in geometry put it to some disadvantage, but as we will see, it also had its attributes.
PROPELLER #1 TEST RESULTS
Test of Propeller #2:

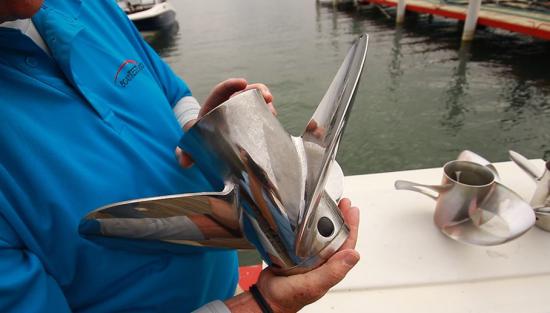

The second propeller we tested was also a premium industry 3-bladed propeller, and one known for its fuel efficiency at cruising speeds. Like the first propeller, it’s made of high-strength stainless steel. This one measured 15” Diameter by 15” Pitch. Again, we went from idle to 1000 RPM, and then up to wide open throttle in 500 RPM increments.
This propeller performed nearly identically to propeller number one, except it got on plane at 3400 rpm, and at 3500 rpm, went 21.2 mph, with a running angle of 2.6-degrees, getting 4.3 mpg for a range of 128 statute miles. This is the major advantage of this propeller vis a vis the first propeller tested – it can get on plane at lower rpm. Note that fuel consumption for the two props is almost identical except at 3500 rpm.
PROPELLER #2 TEST RESULTS
Test of Propeller #3:

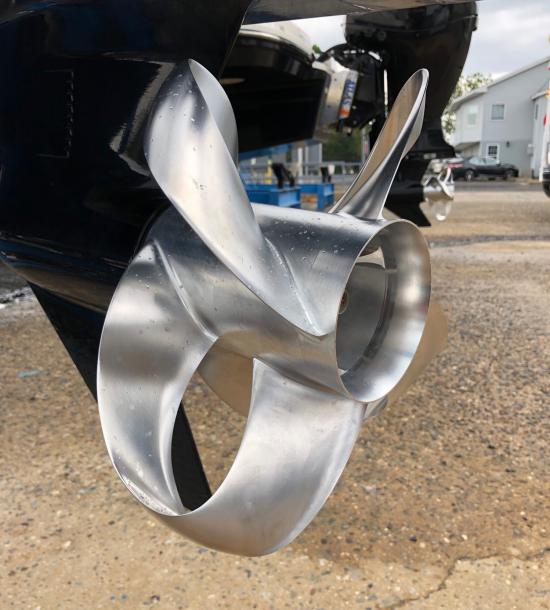

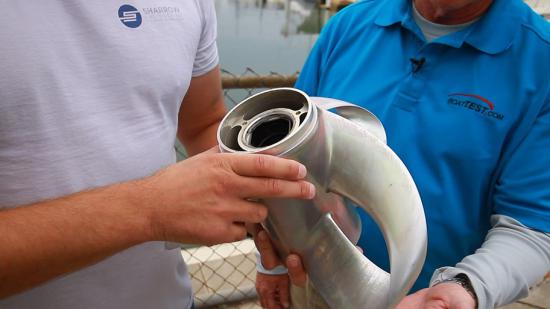

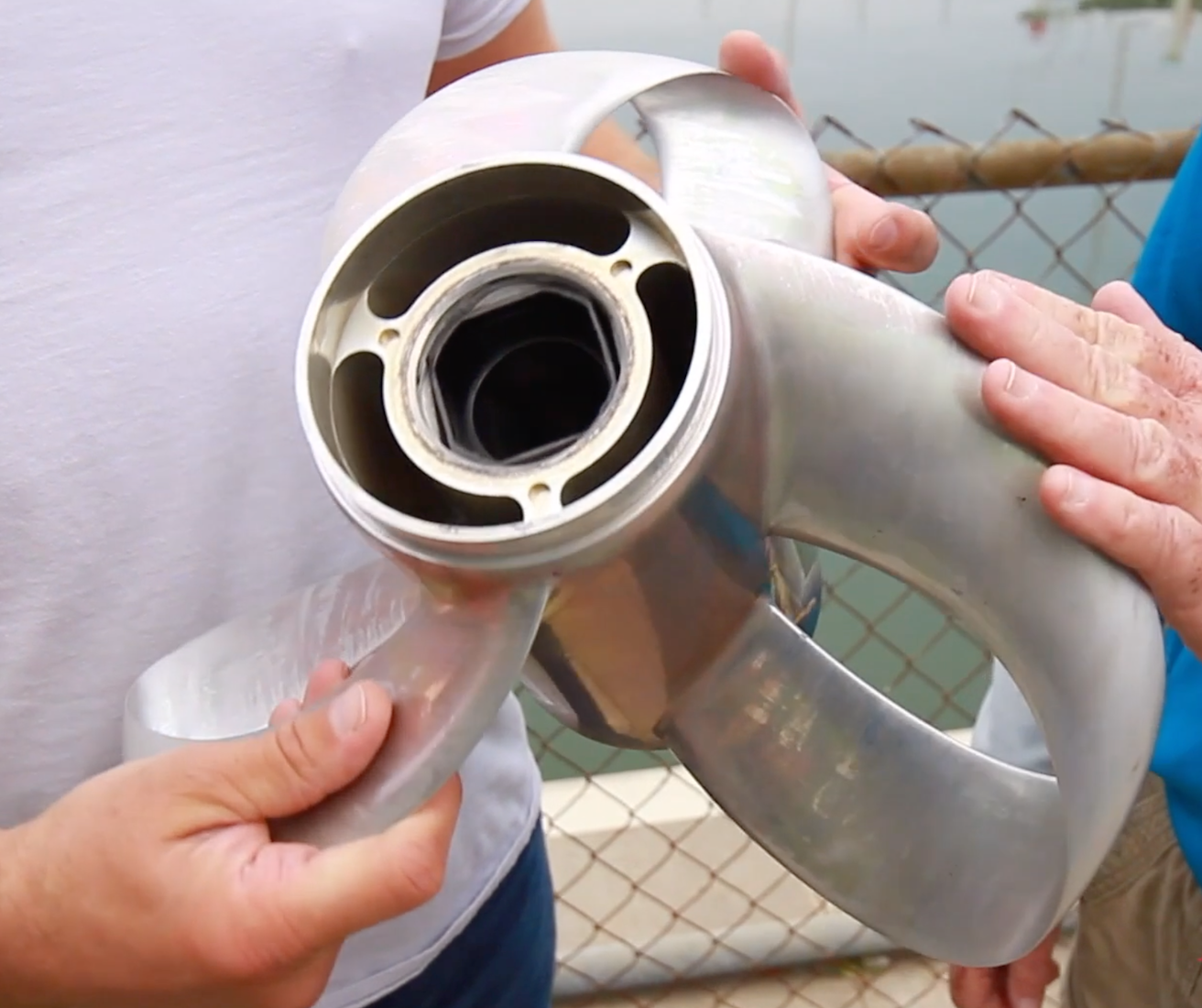

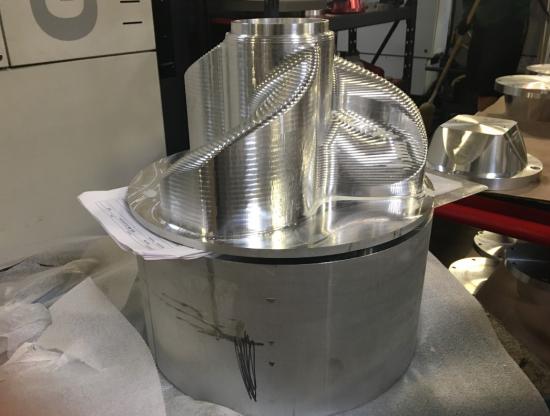

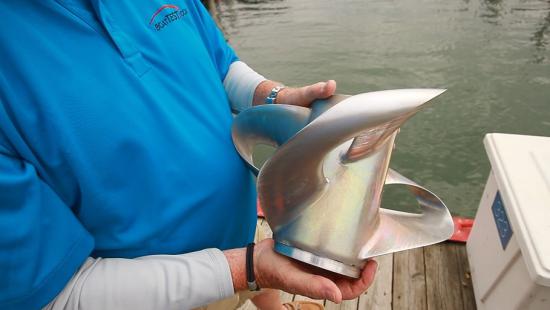

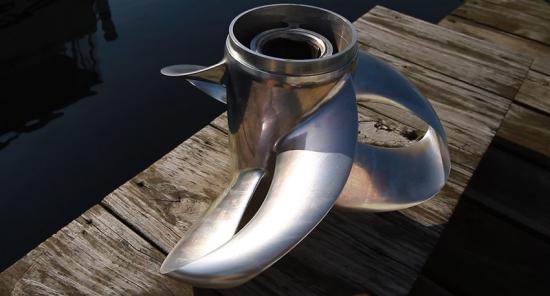

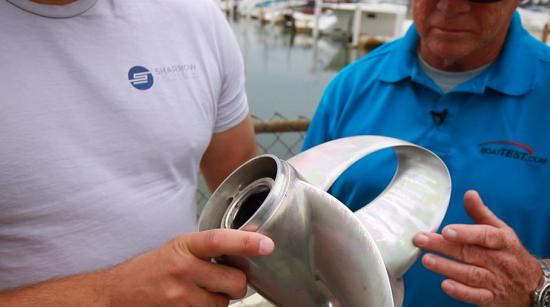

The Sharrow Propeller™ MX-1 we tested was made by a 5-axis router out of a relatively soft billet of aluminum alloy. Its geometry was 15” x 15”. The very first thing we noticed upon firing up the engine after refueling was the absence of vibration. Three-blade props are notorious for vibration. Since the Sharrow MX-1 was really more like a 6-blade propeller, and one with no open blade tips at that, it was little wonder that the engine now had virtually no detectible vibration. While this aspect of the propeller’s performance was not measured scientifically, lack of vibration was obvious to all.

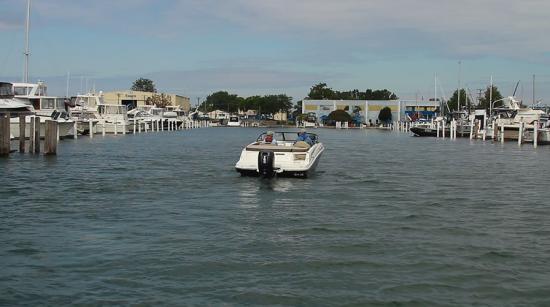

Handling. After the performance testing, Captain Steve put the boat through his normal handing maneuvers. Then, he conducted rapid, hard-over turning procedures at high speed, something we rarely try on most boats for safety reasons. Back at the dock, we asked him to characterize the boat’s handling with the Sharrow MX-1 compared to the two conventional props and he said, “A vast improvement.”
“We were able to make hard port and starboard turns at speed without the hull sliding or fear of overturning the boat, Captain Steve said. “The boat seemed ‘glued’ to the water.” That is because of the tremendous traction the Sharrow Propeller™ gets with what amounts to six blades grabbing the water.
Backing the boat into a slip, our captain reported, was also much easier than with a conventional 3-blade propeller because of the added hold on the water and reduced slip.
SHARROW PROPELLER™ Model MX-1 TEST RESULTS
Sharrow Propeller™: Comparisons
Speed. When we compared the Sharrow Propeller™ to the readings we got for the other two props, we found it was 16% faster than both at the idle RPM of 650. And, the miles per gallon difference was again 16% better for the MX-1. Range increased 14.8%.
Because this is where 40% of the engine hours are employed, on average, according to ICOMIA, this data point is particularly important.
At 1000 RPM we again compared the numbers we got for the Sharrow MX-1 propeller with the other two. It was 14% to 17% faster than the other two conventional props at the same RPM and gets from 4% to 8% more miles per gallon.

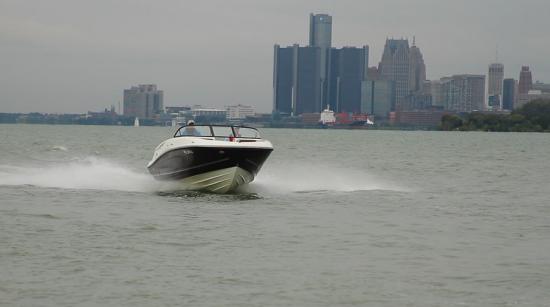

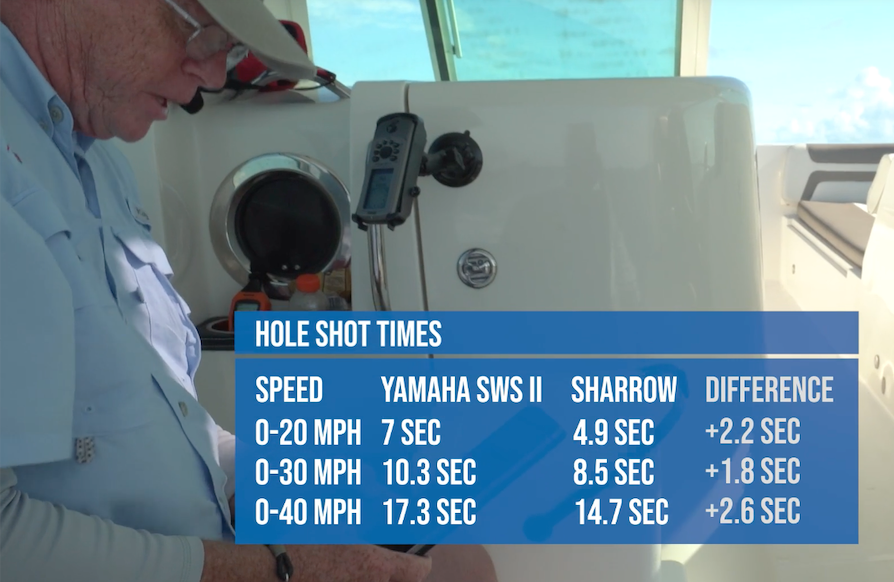

3000 RPM -- First to Plane. The Sharrow Propeller™ got on plane at 2700 RPM. At 3000 RPM, we were going 23.7 mph and the running angle was 2.3-degrees, solidly on plane. This clearly out-performed both of the conventional three-bladed stainless-steel props.
The Sharrow MX-1 propeller doubles the speed, miles per gallon, and range of the other two props, while they are trying to get over the hump and on plane, even though the propeller pitch was only 15”, which is standard on this boat with a 150 outboard.
At 3500 RPM we see that the propeller #2 got on plane while propeller #1 was still struggling along pushing its bow wave.
At 4000 RPM, when the boat was solidly on plane with all three props, the aluminum prop was 17% to 19% faster than the conventional ss props.
Fuel Efficiency Planing. When we compare fuel efficiency for the whole RPM range, we find the at idle, the MX-1 was 16% more efficient at idle and 15% more efficient at 5500 RPM. But the biggest difference was at planing speeds where the Sharrow MX-1 was as much as 179% more fuel efficient.
Top to Bottom Speed Performance. Props can be designed to outperform the average in one, and sometimes two parameters. For example, boaters that want the highest top speed possible, and buy a propeller built for that purpose, typically find it will be less efficient at low and mid-range RPM settings. However, the Sharrow MX-1 outperformed two benchmark props across the board. This is a remarkable result.
At the end of the day, the numbers speak for themselves…and the most important number on this chart is the one at 3000 RPM when the Sharrow MX-1 was solidly on plane going 23.7 mph while the boat with the other props was still struggling to get on plane.
Fuel Economy for a Given Speed-Through-Water. The data table below is, again, remarkable because it shows that the Sharrow Propeller™ Model MX-1 is not only faster at all RPM, but also more fuel efficient at all speeds.
For a few RPM settings it appears the MX-1 is not the clear mpg at three RPM settings – but that is because it is driving the boat a lot faster at those RPM.
Sharrow Propeller ™: Sound and Vibration
Our sound readings in decibels are on the charts above. Engine noise is a combination of things, including sound emanating from the engine combustion itself, and sound coming from the harmonics of the boat caused by vibration transmitted to the transom.
As can be seen, the MX-1 prop was quieter than the Prop #1 at all RPM settings except two, where it tied. Compared to Prop #2, it was higher at one RPM, tied at three, and lower in decibels at all of the rest. So, overall, the test boat and engine were generally quieter with the MX-1 than with the conventional 3-blade props.
But there is more to the story. Without prompting, both of our test captains said the boat was noticeably quieter with the Sharrow MX-1 than the other two, and that difference is not adequately characterized by the decibel numbers – which are not linier. We suspect that there may be a frequency sound issue here, but we really don’t know at this point. In any case, the boat seems to be noticeably quieter to the human ear with the MX-1.
Vibration has already been touched upon. While we did not measure it scientifically, it was noticeably less with the MX-1 as reported by our test captains. Since 3-brade props typically have more vibration than 4-blade props, it is not surprising that the MX-1 has less vibration, because it really has 6-blades.
Sharrow Propeller™: Testing Summary
Not Apples-to Apples. Our testing of the aluminum alloy Sharrow MX-1 compared to two other stainless steel props of similar geometry was, in all likelihood, not fair to the MX-1 because typically stainless steel props far outshine aluminum ones in terms of performance. Greg Sharrow used aluminum alloy as a material for his prototype propellers because the relatively soft aluminum is easier and less costly to mill than stainless steel.
And, as noted, prop #1 had ¼” less diameter. Otherwise, our testing was as fair as we could make it for all three props.
After our testing and driving the boat with all three props, our conclusion is the following. The Sharrow Propeller™—
1. Performs significantly better at idle.
2. Plans at a lower RPM
3. Is faster at all RPM settings
4. Gets significantly more mpg at 3000 and 3500 RPM
5. Is more fuel efficiency at every speed-through-water setting
6. Is as much as 18% more fuel efficient at 26-28 MPH
7. Produces the highest top speed
8. Creates noticeably less vibration
9. Is generally quieter
10. Has superior handling in tight turns at high-speed
11. Improves handling in reverse
12. Provides the greatest range at all speeds
Sharrow Propeller™: Next Stop, Recreational Boating
Early-Adopter Registration Form
The Sharrow Propeller™ will make its exciting debut to the recreational boating community at the International Miami Boat Show in 2020. A select variety of pitches and diameters will be sold initially based on highest demand from the “Join the Propulsion Revolution” form on their website, which can be found here: Click Here
According to Sharrow, thousands and thousands of people have already filled out the early adopter “Join the Propulsion Revolution” form on their website. Additionally, several boat builders and engine manufacturers have expressed interest in OEM versions as well. The naysayers will undoubtedly hit the boating forums almost immediately, so let us just say when we first heard about the prop, we were highly dubious.
But our testing and our investigation into the prop’s development has convinced us that there is a new prop design that not only excelled in our tests but may well make many non-loop propellers obsolete. That means millions of dollars in tooling owned by the engine and prop makers of the world might have to be written off as a loss on their books.
If that becomes true, we count on push-back from certain quadrants of the industry, rather than a more reflective wait-and-see posture. More tests, on more different types of boats, and with different prop sizes will likely be needed to sway the mossbacks. Progress is usually painful to someone.
