Yamaha FX Cruiser HO (2019-)
(w/ 1 x 1812cc four-stroke four-cylinder)


Join BoatTest for FREE Now!


Own a boat? Please fill out the following options.

By submitting this form, you acknowledge that you have read and agree with the Privacy Policy & Terms of Use of

Enter in your email below to view all content

Do you have a question?Ask a question about this boat or engine?
See the PRICE by becoming a BoatTEST member.
(It's quick and FREE!)

Brief Summary

The Yamaha FX HO Series encompasses two machines, the FX Cruiser HO and the FX HO. Essentially these are the same waverunners except for a few cosmetic differences. When I arrived for testing, the first thing that caught my eye was the lines and the redesigned front end; it has a much lower and flatter profile. I especially liked how they incorporated the wing mirrors into the overall design.

Key Features

  • Available in Pure White with Electric Green or Black Metallic with Slate Blue Metallic
  • RiDE
  • NanoXcel Ultra-lightweight hull and deck
  • Hydro-Turf mats
  • 4-cylinder, 4-stroke, 1.8 Liter High Output Yamaha Marine engine
  • Cruiser seat
  • Cruiser Assist/No wake mode
  • Multifunction instrumentation panel
  • Reboarding step
  • Reverse in RiDE with traction control
  • Specifications

    Length Overall 140.2''
    3.56 m
    Beam 48.4''
    1.22 m
    Dry Weight 831 lbs.
    377 kg
    Tested Weight N/A
    Draft N/A
    - Draft Up N/A
    - Draft Down N/A
    - Air Draft N/A
    Deadrise/Transom N/A
    Max Headroom open
    Bridge Clearance N/A
    Weight Capacity N/A
    Person Capacity N/A
    Fuel Capacity 18.5 gal.
    70 L
    Water Capacity none
    Length on Trailer N/A
    Height on Trailer N/A
    Trailer Weight N/A
    Total Weight
    (Trailer, Boat, & Engine)

    Prices, features, designs, and equipment are subject to change. Please see your local dealer or visit the builder's website for the latest information available on this boat model.

    Engine Options

    Std. Power 1 x 1812cc 4-stroke four-cylinder Yamaha Marine Engine
    Tested Power 1 x 1812cc four-stroke four-cylinder
    Opt. Power Not Available

    Test Results - Change Measurement Unit

    RPM MPH Knots GPH MPG NMPG Stat. Mile NM dBa
    1000 3.7 3.2 0.6 6.7 5.9 112 97
    2000 5.2 4.5 1.0 5.2 4.5 86 75
    3000 6.8 5.9 1.7 4.1 3.6 69 60
    4000 20.5 17.8 2.9 7.2 6.3 120 104
    4500 30.1 26.1 4.8 6.3 5.5 105 92
    5000 32.6 28.3 5.1 6.5 5.6 107 93
    6000 44.7 38.8 7.1 6.3 5.5 105 92
    7000 56.5 49.1 11.0 5.1 4.5 86 74
    7400 62.6 54.4 13.6 4.6 4.0 77 67
    1000 97 180 6.00 2.27 2.86
    2000 75 138 8.40 3.79 2.19
    3000 60 111 10.90 6.44 1.75
    4000 104 193 33.00 10.98 3.06
    4500 92 169 48.40 18.17 2.69
    5000 93 172 52.50 19.31 2.75
    6000 92 169 71.90 26.88 2.69
    7000 74 138 90.90 41.64 2.19
    7400 67 124 100.70 51.48 1.96

    All speeds are measured by a hand held Stalker PRO radar gun and a hand help digital timer, so the human elements is a factor. Temperature, saltwater versus fresh, load, and water conditions are all a factor and the reason why test results may vary.

    Performance Chart

    Performance Chart

    Acceleration Times & Test Conditions

    Time To Plane N/A
    0 to 30 2.0 sec.
    Ratio N.A
    Props 3-blade 17.6 degree pitch stainless steel
    Load Load: 1 person, Fuel: 1/2 full, Water: none, Gear: none
    Climate Temp: 97 deg., Humid: 87%, Wind: calm, Seas: calm

    Captain's Report

    By Christopher Hughes

    Yamaha FX HO Series
    On the back deck the rider can see the safety waterspout and how the design of the bow area adds to the sleek looks. The entire top deck is painted in a metallic flake silver and not gel-coat.

    The FX HO has a low profile, smoother design which in my opinion is better suited for the more aggressive sporty type rider. With a lower, flatter profile the FX HO looks like she means business. I especially liked how Yamaha incorporated the wing mirrors into the overall design.

    Yamaha FX HO Series

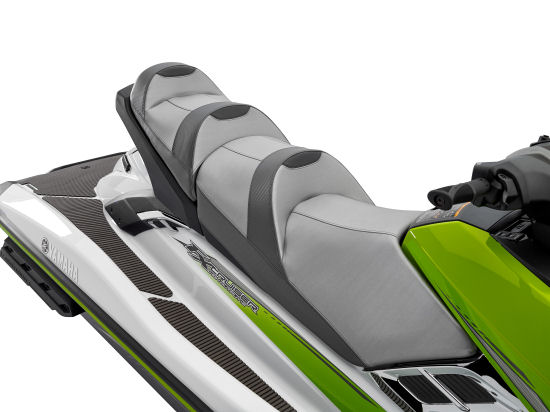

    Seen here is the FX Cruiser HO version with the scalloped backrests.
    Yamaha FX Cruiser HO

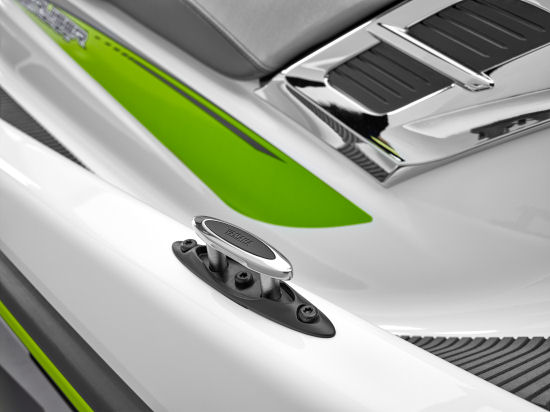

    Notice the FX Cruiser HO's pull-up cleats, located within easy reach of the drive while seated, offered on the Cruisers version only.
    Yamaha FX HO Series
    The Yamaha FX HO has a low profile sport seat.

    Seating Is Key

    Before we look at what propels these PWCs through the water, we need to look at the seats, which happen to be one of the differences between the FX Cruiser HO and the FX HO. Both have a two part seating design, with an aft and main section. The FX HO has a low profile smoother seat design that's better suited for a sporty style of riding. The FX Cruiser HO on the other hand has seating designed more for comfort and support, with defined sections for all three riders and fully scalloped back support. When the aft seat section is removed, the rider has access to storage. With the removal of the storage bucket, there's access to the battery which can easily be removed and replaced. Also located in the area is the sump pump and exhaust/muffler components.

    Yamaha FX HO Series

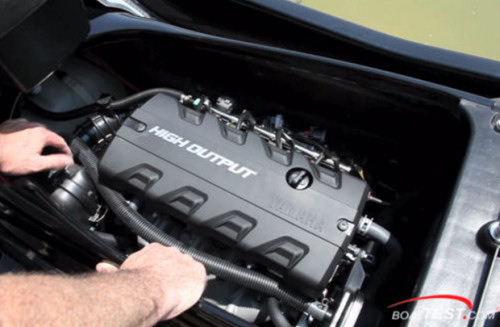

    The engine compartment for the Yamaha FX HO Series has plenty of room all around the engine and most components can be accessed easily.

    Checking the Beast's Ticker

    When removing the main seat section, there's access to the belly of the beast -- the engine compartment. The engine is a purpose-built 1.8L 4-stroke, 4-cylinder high output marine engine. This engine is naturally aspirated and tuned to run on regular 87 octane gasoline. There is a fair amount of room around the engine and getting to the oil filter, the air filter, the spark plugs and most every component is quite easy.

    Yamaha FX HO Series

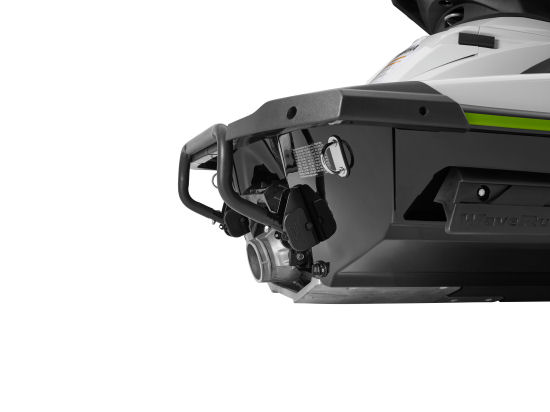

    The 155mm jet pump nozzle, pump assembly and ride plate are all manufactured from an aluminum alloy.

    The engine is connected via direct drive to the jet pump. What this means is that there is no transmission, no extra parts to go wrong or wear out, and no reduction gear. The drive shaft comes out of the engine and connects directly to the impeller which is incased in the jet pump unit. The impeller is stainless steel and has three blades with a 17.5-degree pitch forcing the water out a 155mm jet pump nozzle. The entire jet pump unit is manufactured from an aluminum alloy which significantly reduces corrosion issues. The only non-metal component is the reverse gate.

    Yamaha FX HO Series
    The reverse level is ergonomically designed to the shape of one's hand.

    Neutral Feature

    Back in the driver’s seat is where an important new feature comes in to play. On the starboard side of the console is the reversing lever, right where it would be expected, but this one is different. To operate it, first squeeze the release handle, and then pull the level back. Now the PWC is in reverse and the bucket is deployed in front of the jet nozzle.

    Yamaha FX HO Series

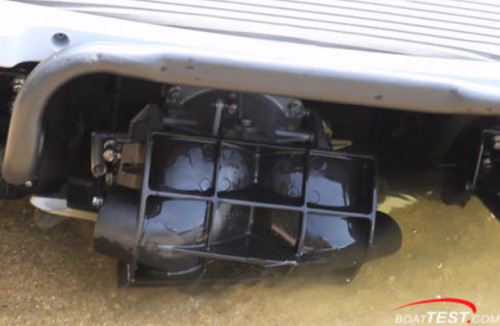

    The reverse bucket is seen in the deployed position. The bucket diverts the flow of water from the nozzle to allow for reversing. See how the sides have ducted cut-outs, these provide nimble directional control in reverse.

    The feature is a mechanical neutral. Push the reverse lever forward and it will lock into place and in the new sight window on the lever will be displayed a green “N”. The PWC is now in neutral. During my test, I left it in the position for several minutes while I finished off a few bottles of water. As advertised, it was a neutral; I didn’t drift forward or aft. By squeezing the release handle and pushing the lever full forward, you are now in regular forward operating mode; a clever yet simple solution.

    Yamaha FX HO Series

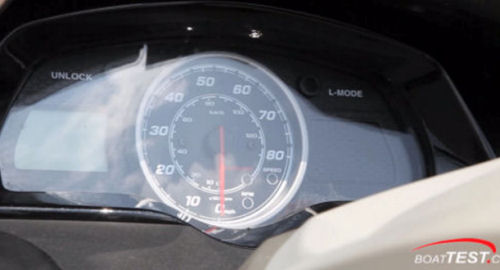

    When driving, the rider has very good visibility of the display, even in direct sunlight as one can see here.


    Back on the console we have our multifunction display which consists of a large easy to read analog gage with a digital display on the port side. The function buttons are located under the handlebars on the aft section of the console, this way the operator is not reaching over the handlebars to set the display modes. To the right of these button is the handlebar tilt lever, allowing one to raise and lower the handlebars to their preferred setting.

    Yamaha FX HO Series

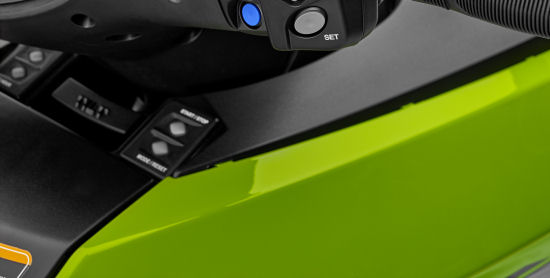

    The control button is located under the handlebar which means the rider does not need to reach over the handlebar when driving should they want to change the display modes or function.
    Yamaha FX HO Series

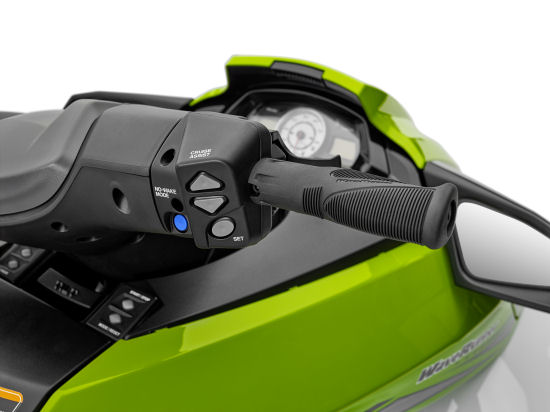

    Shown on the FX Cruiser HO's handle is the Cruise Assist/No Wake Mode.

    Room For Lunch and More

    There is a total of over 30 gallons of storage spotted around the FX HO series with the largest being the forward compartment. It can be easily opened one-handed with a simple pull handle centered on the top of the cover. There is watertight storage on top of the console to port, that's ideal for keys, wallet, cell phone, etc.

    Yamaha FX HO Series

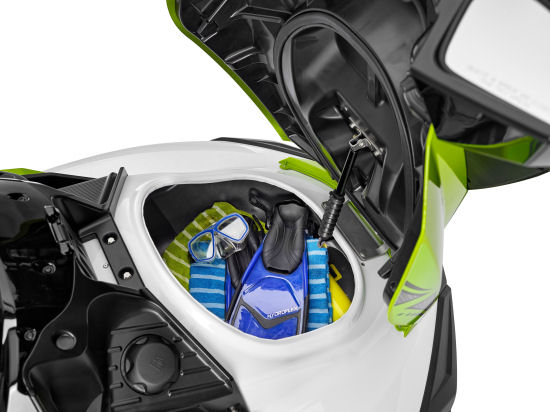

    The forward storage compartment has a good size cover, which has a gasket to help keep the contents dry. On my test I had my papers, and some test gear inside and they stayed dry.

    Just forward of the driver is another storage area, large enough to fit a marine radio, and two bottles of water. We already touched on the rear storage under the aft seat.

    Yamaha FX HO Series
    The storage forward of the driver is large enough for a GPS, radio and two beverages.
    Yamaha FX HO Series

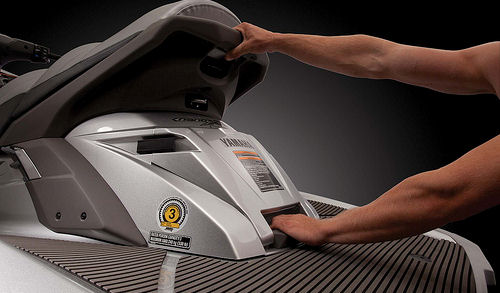

    There is a small storage compartment under the tow point which Yamaha said they added as a place to store your tow line. It has a convenient cut-out which allows the tow line to stay connected while stored. Notice the hand hold area built into the aft seat support.
    Yamaha FX HO Series
    The foot wells are padded with Hydra-Turf and provide a secure feeling when riding. I would like to see a seat strap for passengers to hold onto.

    Basic Specs

    The FX HO series measures in at 140.2” (3.56 m) in length, has a beam of 48.4” and a height of also 48.4” (1.23 m). Each version has an 18.5 US gallon (70 L) fuel tank but the weights are slightly different. The FX Cruiser HO weighs in at 831 lbs. (377 kg) and the FX HO weighs in at 829 lbs. (376 kg), but these are dry weights, so your operating weight will be just north of 938 lbs. (425 kg).

    Yamaha FX HO Series

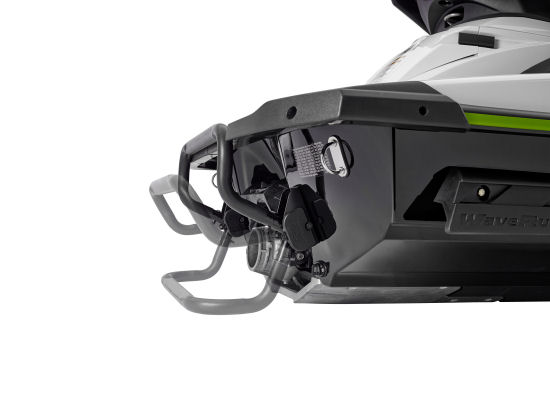

    The re-boarding step seen here is one of the largest we have seen on a PWC. When fully down, it is much deeper in the water allowing one to get their foot on it much more easily.


    In our test we recorded an average top speed of 62.6 mph at 7400 rpm while burning 13.6 gph which translates into 4.60 mpg for a range of 77 statute miles. Since there is no best cruise on a PWC, mainly because we don’t drive them like boats, I did find myself at 5000 rpm most of the time which gave me an average speed of 32.6 mph, burning only 5.1 gph for a range of approximately 107 statute miles. We tested our time from 0 to 30 and recorded an average of 2.0 seconds.


    As far as handling during the test, I did notice that the longer hull was a little more forgiving than the shorter previous model. The new units turn very aggressively when the rider wants them to if on the power, but they are also easily controllable and more stable in less aggressive turns. Something else I noticed was the smoothness of the ride. There is a smoother transition when crossing wakes and the hull throws the water and spray out to the sides, instead of bashing it into submission head-on.

    The Bruise

    OK, so now you want to know how much. Well the MSRP for the FX Cruiser HO is $13,599 and the FX HO is $13,099. They are offered in Pure White with Carbon or Black Metallic and Deep Blue Metallic or Black Metallic, respectively.

    Test Result Highlights

    • Top speed for the Yamaha FX Cruiser HO (2019-) is 62.6 mph (100.7 kph), burning 13.6 gallons per hour (gph) or 51.48 liters per hour (lph).
    • Best cruise for the Yamaha FX Cruiser HO (2019-) is 32.6 mph (52.5 kph), and the boat gets 6.46 miles per gallon (mpg) or 2.75 kilometers per liter (kpl), giving the boat a cruising range of 107 miles (172.2 kilometers).
    • Tested power is 1 x 1812cc four-stroke four-cylinder.
    • Time from 0 to 30 of the Yamaha FX Cruiser HO (2019-) is 2.0 sec. seconds.

    Standard and Optional Features


    Hull Warranty
    1 year
