Brief Summary

Key Features

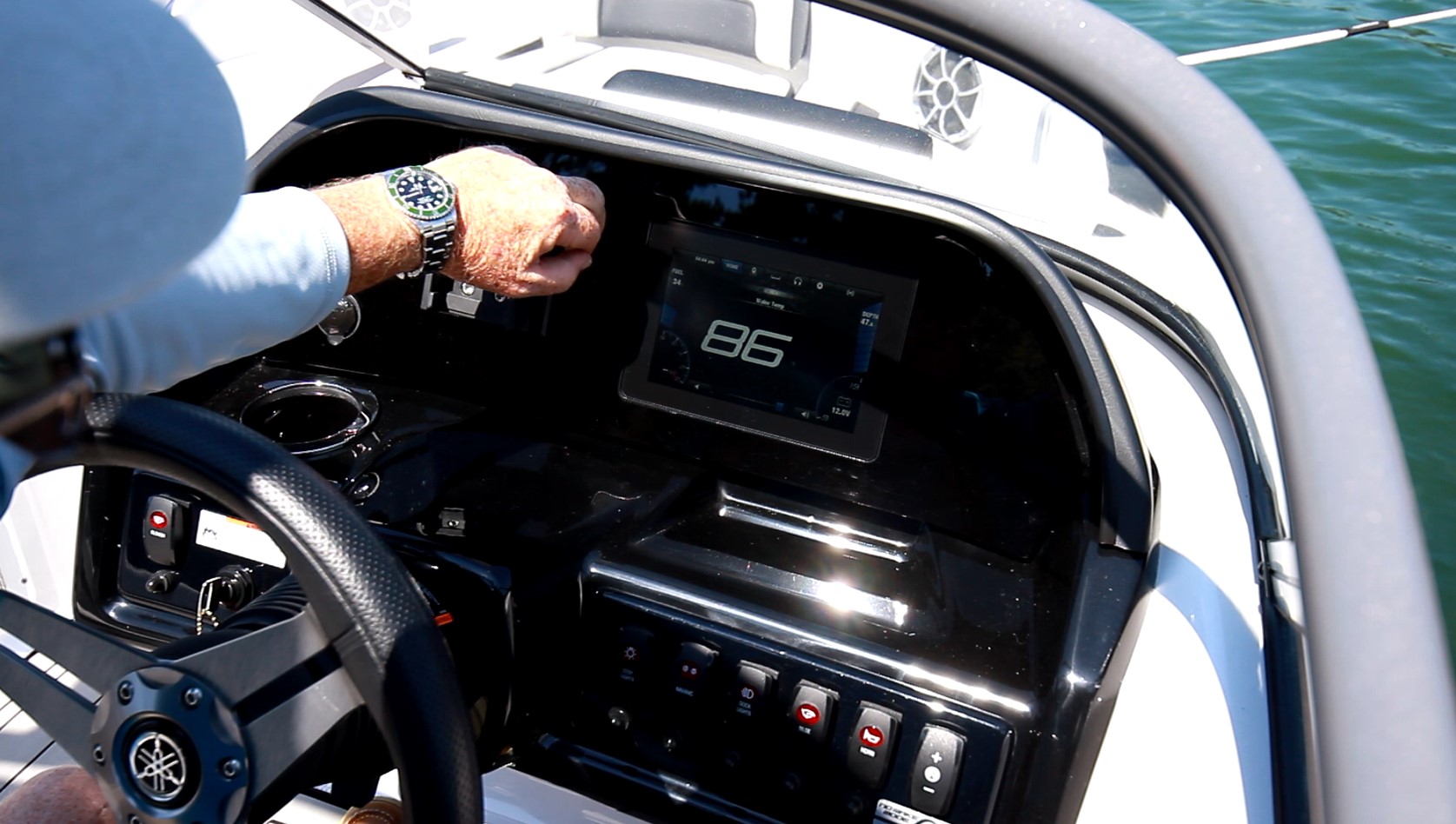

  • Connext with touchscreen

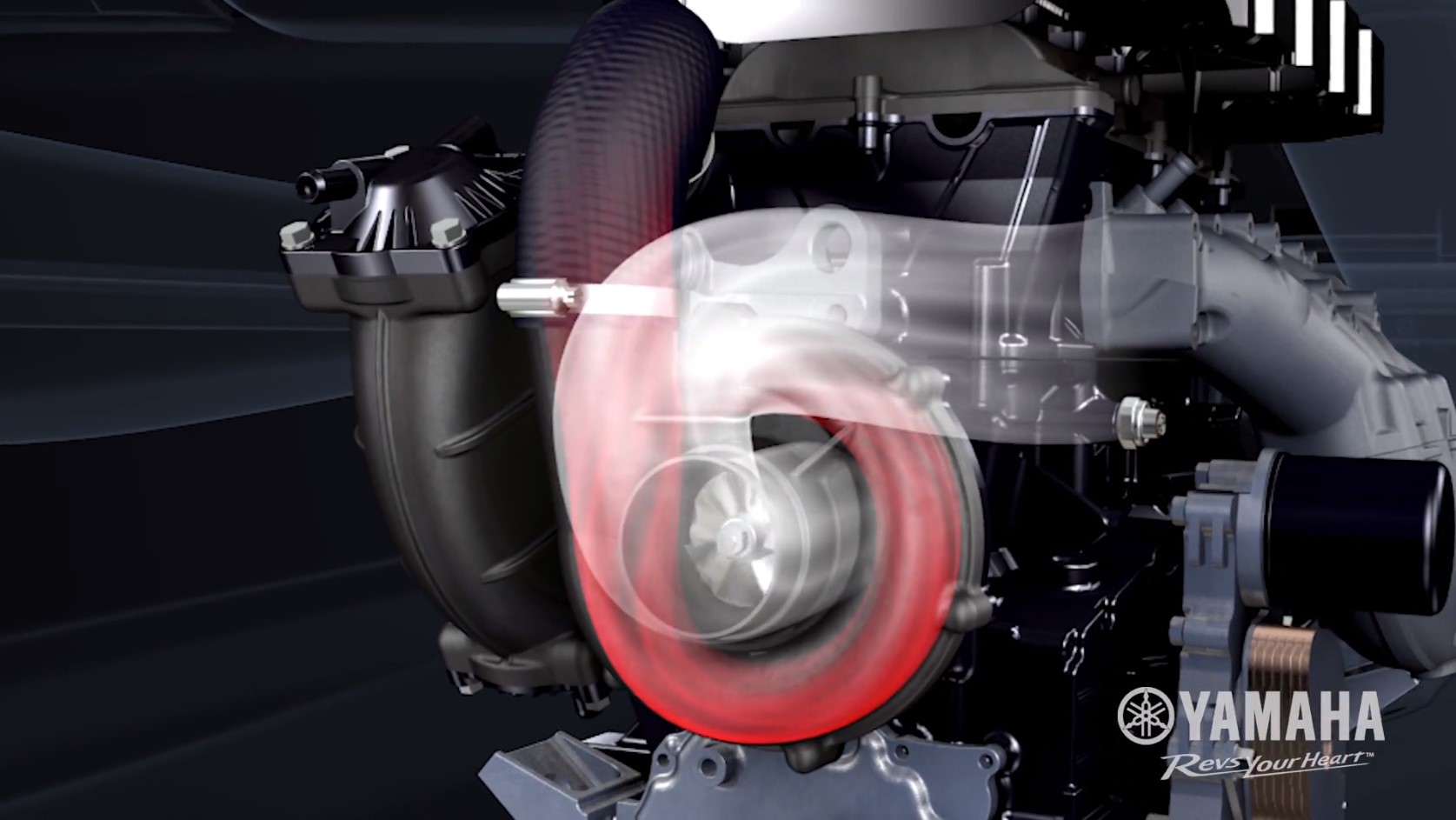

  • Single Yamaha 1.8 liter, super vortex high output engine
  • Aluminum folding wakeboard tower
  • Painted trailer with swing-away tongue
  • Specifications

    Length Overall 19' 5"
    5.91 m
    Beam 8' 2'
    2.48 m
    Dry Weight 2,509 lbs.
    1,138 kg
    Tested Weight 3,109 lbs.
    1,410 kg.
    Draft 15''
    0.38 m
    - Draft Up N/A
    - Draft Down N/A
    - Air Draft N/A
    Deadrise/Transom 18-deg.
    Max Headroom open
    Bridge Clearance 7' 6"
    2.28 m
    Weight Capacity 1,600 lbs.
    726 kg
    Person Capacity 8
    Fuel Capacity 40 gal.
    151 L
    Water Capacity N/A
    Length on Trailer 21' 2"
    6.45 m
    Height on Trailer 122''
    309.89 cm
    Trailer Weight N/A
    Total Weight
    (Trailer, Boat, & Engine)
    3,179 lbs.
    1,442 kg

    Prices, features, designs, and equipment are subject to change. Please see your local dealer or visit the builder's website for the latest information available on this boat model.

    Engine Options

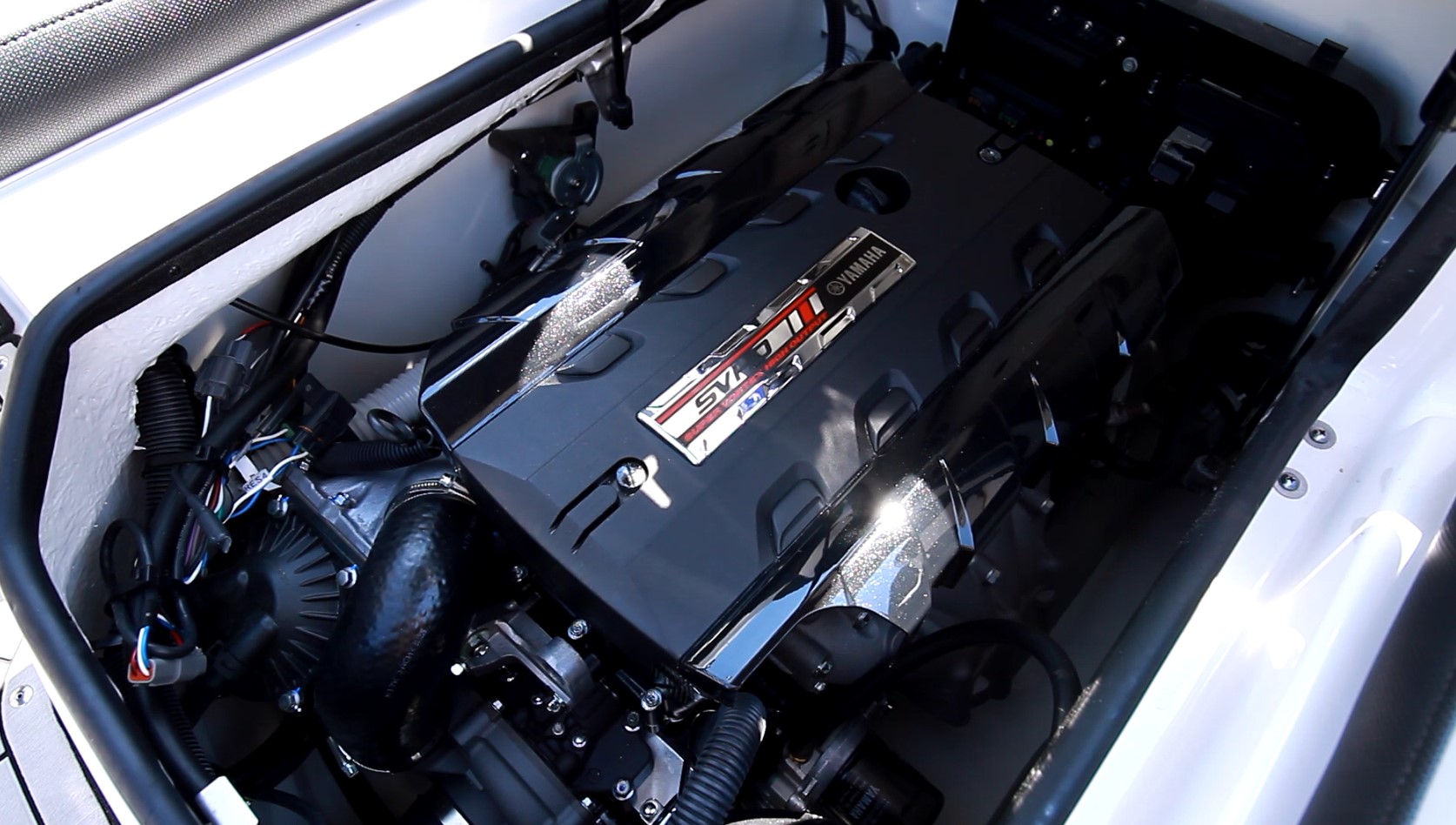

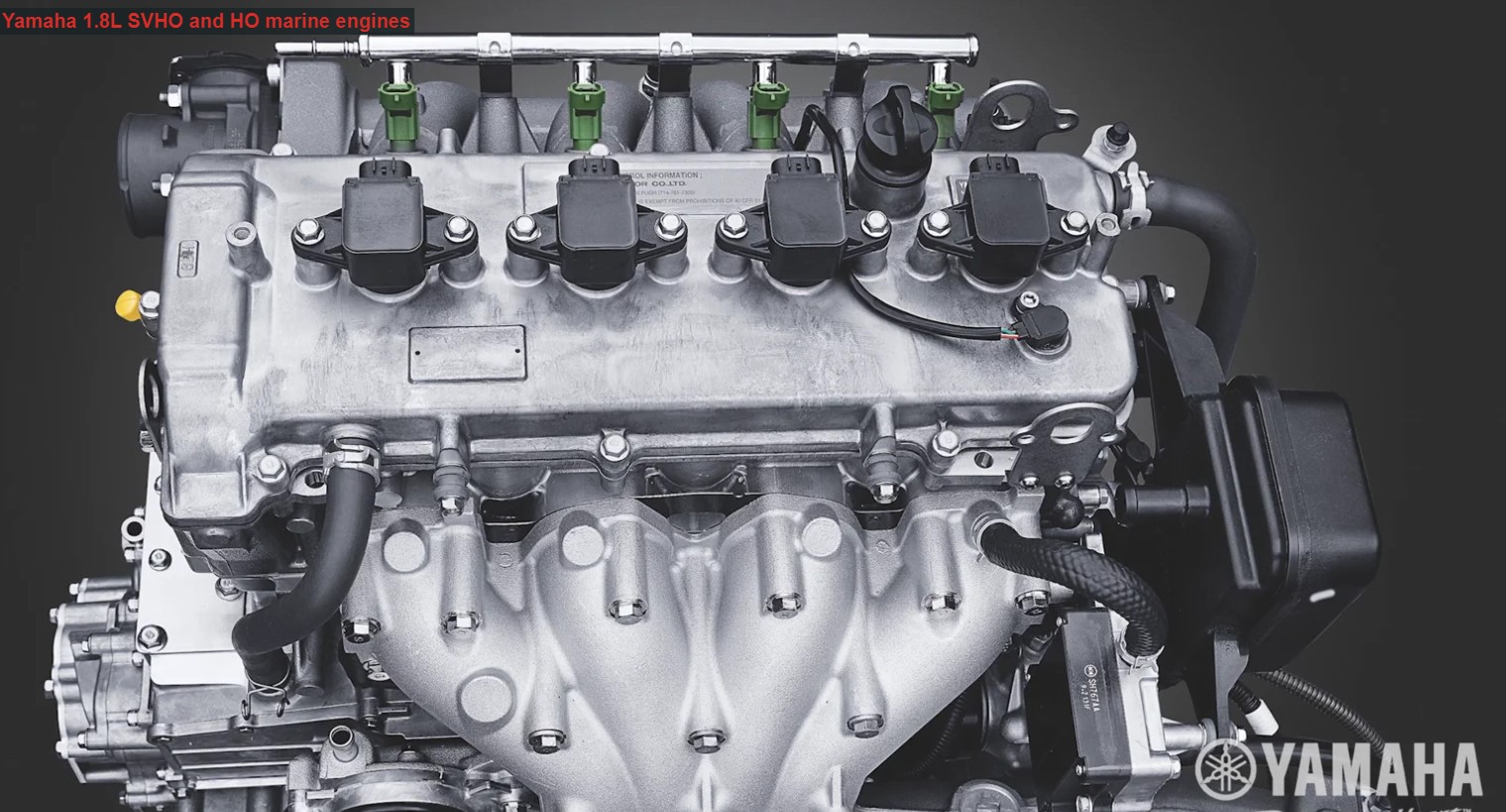

    Std. Power 1 x 1.8 Liter Yamaha super vortex high output engine
    Tested Power 1 x 1.8 L SVHO
    Opt. Power Not Available

    Test Results - Change Measurement Unit

    RPM MPH Knots GPH MPG NMPG Stat. Mile NM dBa
    1250 2.1 1.8 0.6 3.5 3.0 126 109.6 72
    2000 5.5 4.7 1.0 5.5 4.7 196 170.6 75
    2500 6.1 5.3 1.6 3.9 3.4 141 122.2 78
    3000 6.7 5.8 2.0 3.4 2.9 121 104.9 79
    3500 7.3 6.3 2.7 2.7 2.3 97 84.1 78
    4000 8.4 7.3 3.9 2.2 1.9 79 68.3 77
    4500 11.0 96.0 5.1 2.2 1.9 78 68.2 79
    5000 14.7 12.7 6.9 2.1 1.8 76 66.5 85
    5500 24.6 21.3 8.6 2.9 2.5 103 89.9 86
    6000 31.3 27.2 10.6 3.0 2.6 107 92.9 86
    6500 36.4 31.6 13.3 2.7 2.4 99 85.9 87
    7000 41.7 36.3 16.5 2.5 2.2 91 79.1 87
    7540 48.5 42.1 20.8 2.3 2.0 84 73.1 88
    RPMNMKMKPHLPHKPLdBA
    1250 109.6 203 3.40 2.27 1.49 72
    2000 170.6 315 8.90 3.79 2.34 75
    2500 122.2 227 9.80 6.06 1.66 78
    3000 104.9 195 10.80 7.57 1.45 79
    3500 84.1 156 11.70 10.22 1.15 78
    4000 68.3 127 13.50 14.76 0.94 77
    4500 68.2 126 17.70 19.31 0.94 79
    5000 66.5 122 23.70 26.12 0.89 85
    5500 89.9 166 39.60 32.55 1.23 86
    6000 92.9 172 50.40 40.13 1.28 86
    6500 85.9 159 58.60 50.35 1.15 87
    7000 79.1 146 67.10 62.46 1.06 87
    7540 73.1 135 78.10 78.74 0.98 88

    All fuel consumption numbers are the total for all engines in the boat. Speeds are measured with Stalker ProSports radar gun or GPS. Fuel consumption (gallons per hour) measured with Floscan digital fuel-flow meter or by on-board factory-installed diagnostic instruments. Range is based on 90% of published fuel capacity. Sound levels determined using Radio Shack digital decibel meter on A scale. 68 dBA is the level of normal conversation. Time to plane is measured from start of acceleration to formation of rooster tail behind boat.

    Performance Chart

    Performance Chart

    Acceleration Times & Test Conditions

    Time To Plane 3.4 sec.
    0 to 30 6.1 sec.
    Ratio N/A
    Props N/A
    Load 2 persons, 3/4 fuel, no water, 50 lbs. of gear
    Climate 97 deg., 78 humid.; wind: 0-5 mph; seas: calm

    Captain's Report

    Test Result Highlights

    • Top speed for the Yamaha 195S (2020-) is 48.5 mph (78.1 kph), burning 20.8 gallons per hour (gph) or 78.73 liters per hour (lph).
    • Best cruise for the Yamaha 195S (2020-) is 5.5 mph (8.9 kph), and the boat gets 5.5 miles per gallon (mpg) or 2.34 kilometers per liter (kpl), giving the boat a cruising range of 196 miles (315.43 kilometers).
    • Tested power is 1 x 1.8 L SVHO.

    Standard and Optional Features

    Systems

    CD Stereo Standard Fusion marine stereo
    Power Steering Standard Rack and pinion
    Shore Power Standard Painted trailer with swing-away tongue

    Exterior Features

    Outlet: 12-Volt Acc Standard
    Swim Ladder Standard Stainless steel telescopic reboaringladder

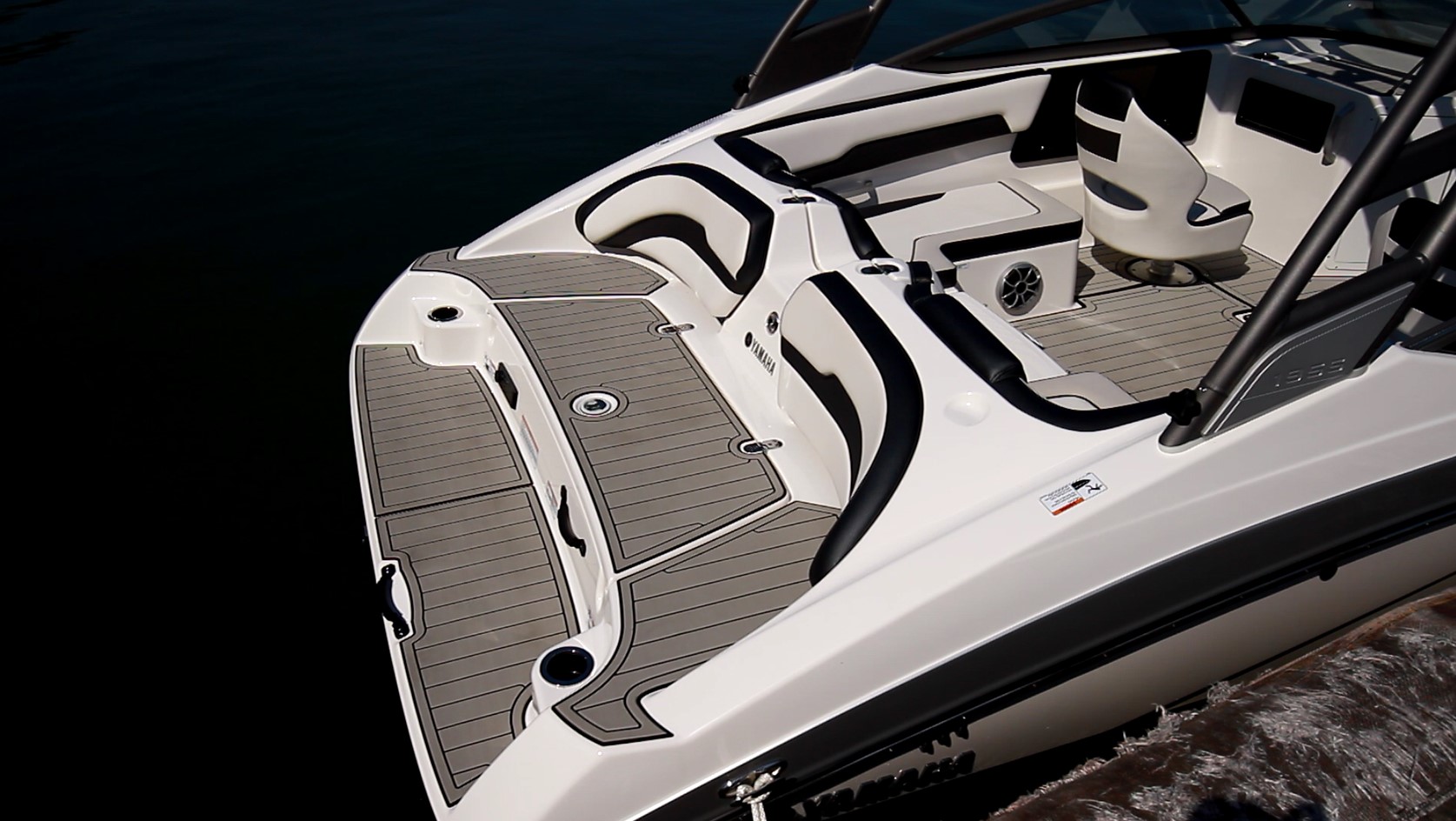

    Swim Platform Standard Intergrated swim platform

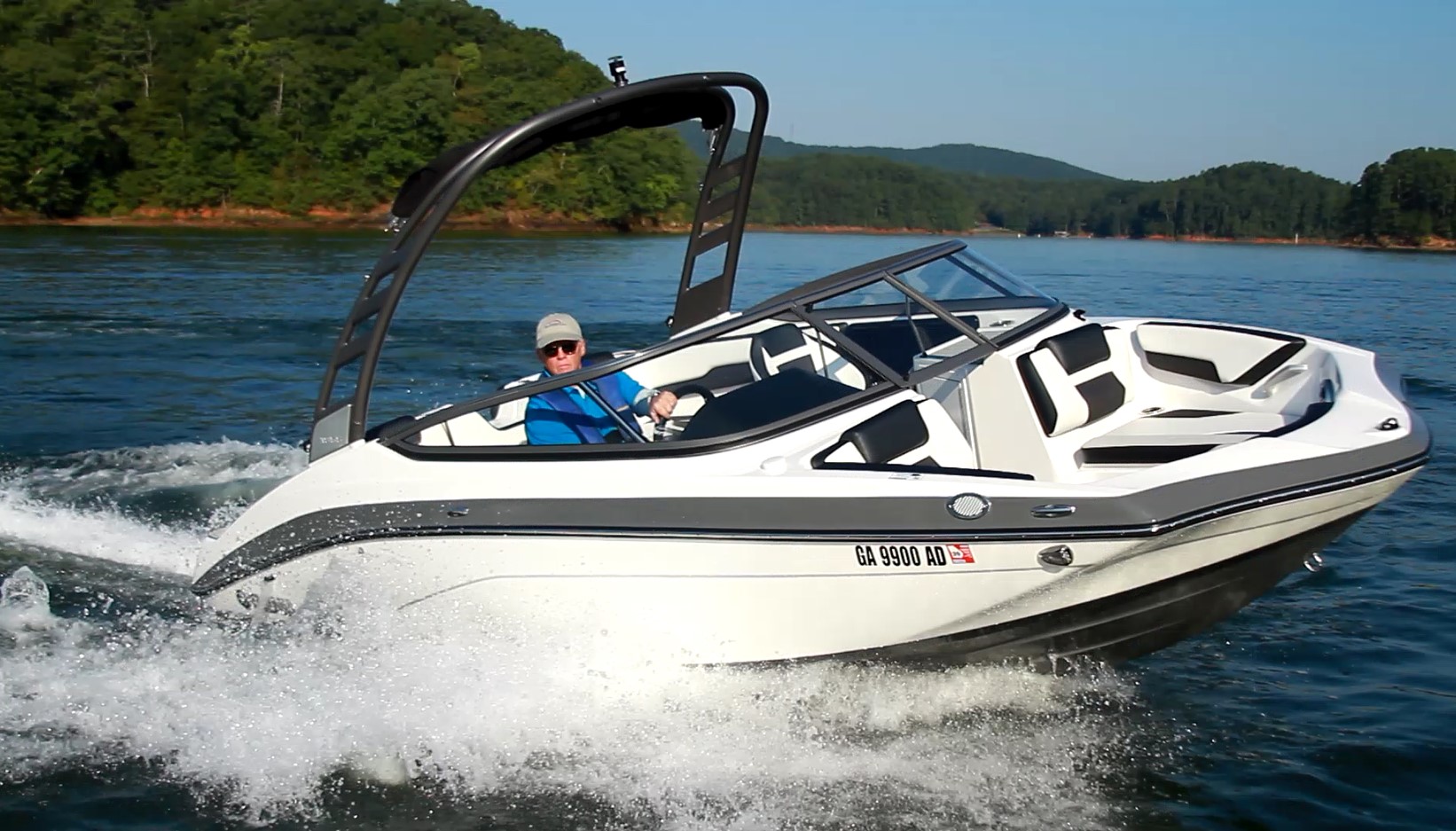

    Tower: Watersports Standard Aluminum folding wakeboard tower

    Canvas

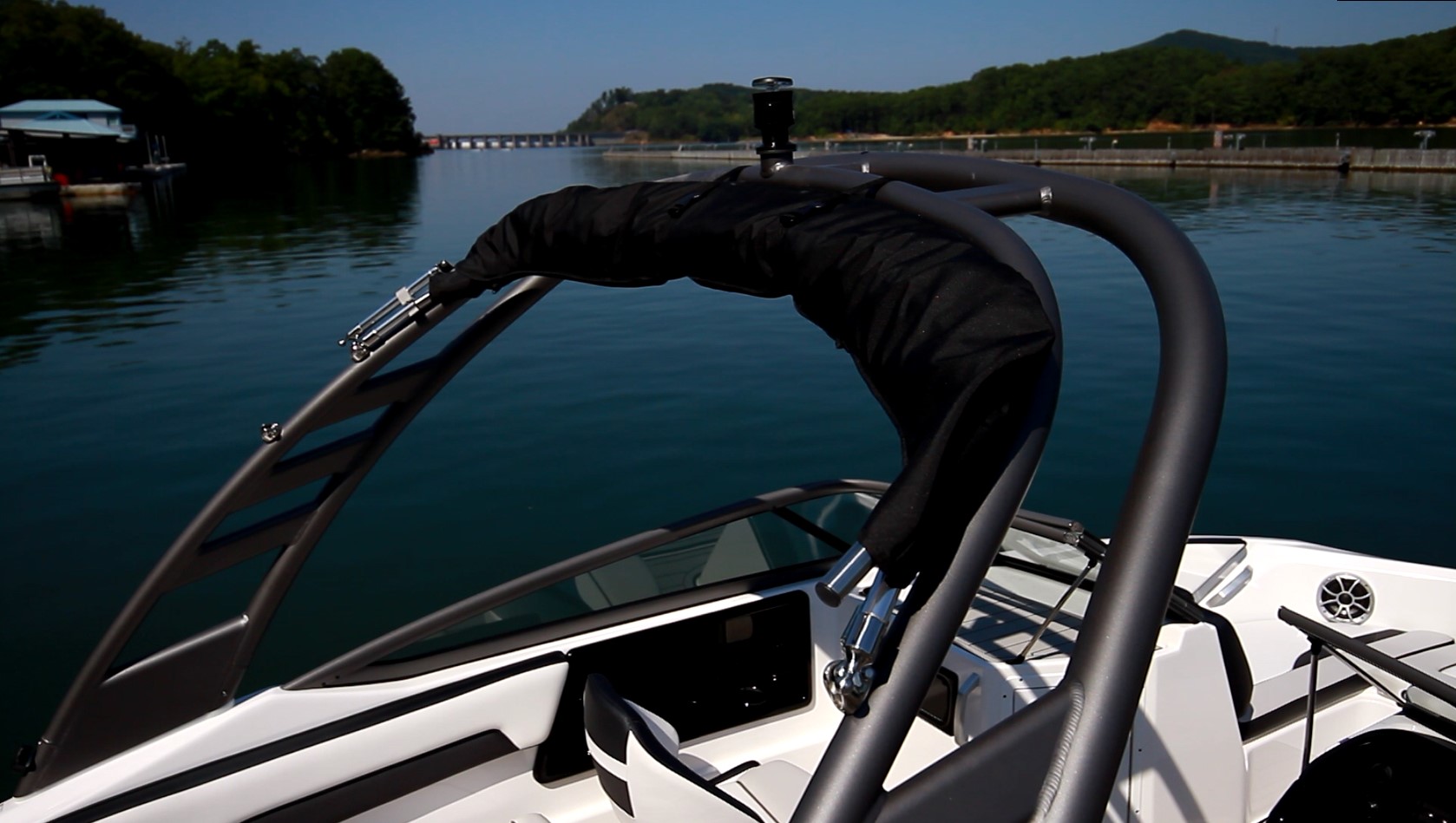

    Bimini Top Standard

    Warranty

    Full Warranty Information on this brand coming soon!
