Inside the Mold: How Boston Whaler Builds the "Unsinkable Legend"
Behind The Build
Inside the Mold: How Boston Whaler Builds the "Unsinkable Legend"
A detailed factory walkthrough into the CAD cutting, proprietary composite backing, and closed-mold Unibond® injection that fuse hull and deck into a single, bulletproof platform.
Superior design, high-grade laminates, and advanced manufacturing protocols are what set Boston Whaler apart in an industry driven by production speed. While most builders pop their fiberglass components early, Whaler’s hulls remain locked inside their structural molds throughout the vast majority of the assembly process—ensuring the running surface and exterior gelcoat stay dead fair, true, and smooth.
Axial cloth saturated for optimized glass-to-resin ratios and reduced weight.
Engineered composite prevents hardware loosening, rot, and screw back-out.
Liquid foam cures rock-hard in 2 minutes under extreme hydraulic toggle pressure.
Precision Lamination & Hardware Mounting
Deck assemblies and inner liners are molded simultaneously, joined with axial fiber fabrics precision-cut by automated CAD CCM machinery. The dry glass is fully resin-saturated before positioning within the molds to fuse as a single piece. This strict process yields a markedly improved glass-to-resin ratio: the structure sheds dead weight while increasing shear strength, meaning cleats, stanchions, and deck gear stay rock solid through years of punishing offshore vibration.
To ensure critical components never yield to dynamic loads, Whaler beds a high-density, rot-proof composite called Whale Board anywhere screws or thru-bolts fasten. Because Whale Board grips screw threads tenaciously without moisture absorption, hardware won't strip or back out over time.

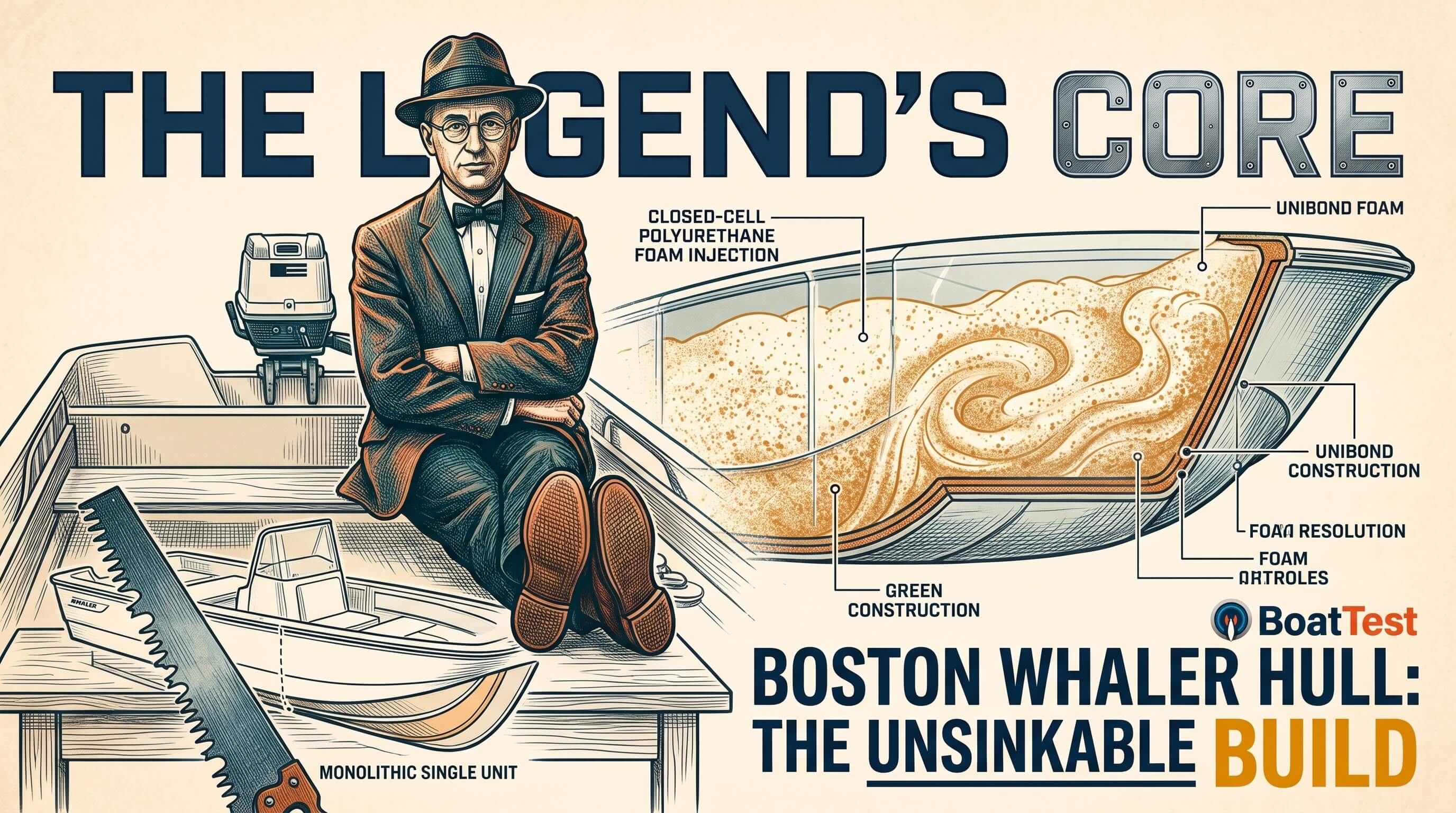

The Unibond® Clamshell Injection
Before the two halves mate, mating surfaces are thoroughly primed with chop strand and bonding resin. The deck-and-liner tooling is inverted, lowered directly into the hull mold, and mechanically toggled down under extreme pressure.
Polyurethane foam and a rapid catalyst are pumped into the cavity. Within two minutes, the chemical reaction expands with intense heat and force, filling every void until excess foam vents out the hull sides. Once cured rock-hard, the inner liner, hull skin, and dense core become a unified monolithic unit—delivering a quiet ride, incredible rigidity, and undeniable unsinkability.
The result of this comprehensive system isn't simply peace of mind—it's noticeable on the water in reduced hull shudder, lower decibel levels, and crisp tracking through heavy chop.
