Hells Bay Boatworks Estero (2019-)



Brief Summary

Hell’s Bay Boatworks in Titusville, FL builds skiffs and flats boats for serious anglers. Their Estero™ model, a 24’ (7.32 m) center console, is the largest boat in the lineup. It is designed for coastal and protected water work with what is literally a bullet-proof hull that is both light, strong, and has a shallow draft. The company sells factory-direct.

Key Features

  • 53-gallon (201 L) baitwell on seachest
  • Wired trolling motor
  • Built-in 130-gallon (492 L) fishbox with macerator
  • All Vinylester resin hull
  • Hull covered in Kevlar

Specifications

Length Overall 24' 10" (7.57 m)
Beam 8' 6" (2.59 m)
Dry Weight 3,659 lbs. (1,660 kg)
Tested Weight 4,579 lbs. (2,077 kg)
Draft 13' (3.96 m)
Deadrise/Transom N/A
Max Headroom N/A
Bridge Clearance N/A
Fuel Capacity 80 gal. (302 L)
Total Weight 4,579 lbs. (2,077 kg)

Price

Base Price $110000.00
Price Range
Prices, features, designs, and equipment are subject to change. Please see your local dealer or visit the builder's website for the latest information available on this boat model.

Engine Options

Tested Engine
Std. Power EvinrudeE-TEC G2 300-hp
Opt. Power N/A

Captain's Report

idle

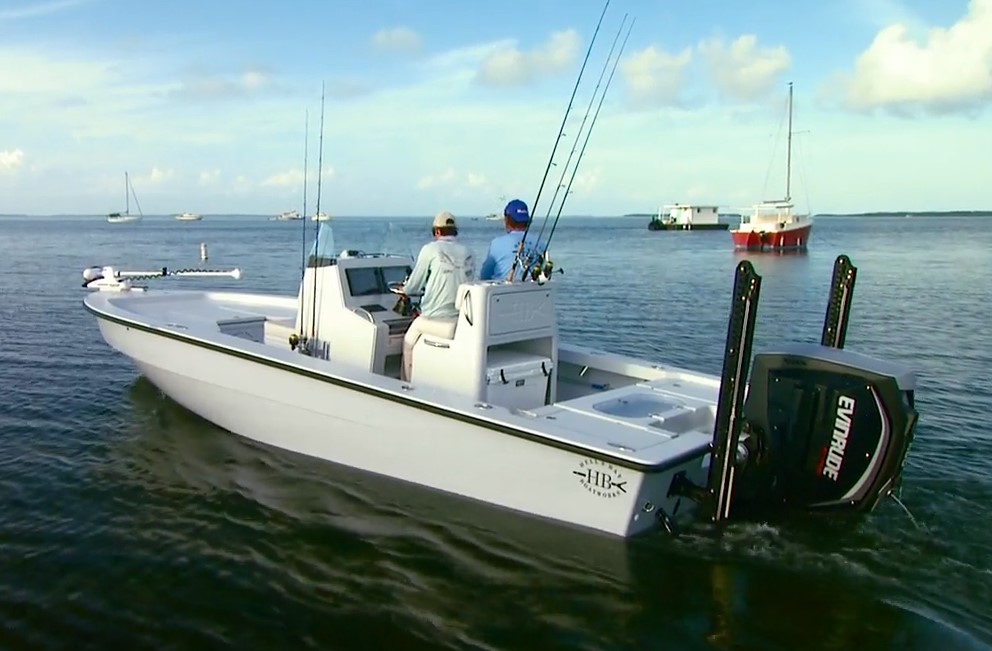

 This Hell’s Bay Boatworks Estero is equipped for flats fishing with Power Poles and a trolling motor.

Mission

The Hell’s Bay Boatworks Estero™ is designed for flats, bay, and near-coastal fishing for serious anglers who are not looking for expensive amenities and family-friendly features. This boat is a no compromise fishing boat for specific shallow water operations.

running

Evinrude’s iTrim automatically produces the best trim for all rpm and speeds. This feature can be overridden manually using the trim tab buttons, but our testing team found that generally it did the best job of trimming.

Major Features

• Shallow draft

• Conventional and fly rod storage

• Dual-axle aluminum trailer

• Kevlar in the hull

• Battery management system

    The Back Story

    Hell’s Bay Boatworks was formed by renowned Florida fishing guide, Flip Pallot, along with boat designer Chris Morejohn with one goal in mind – to build the best flats fishing boat. Merely improving conventional designs was not good enough. They wanted to make sweeping changes in design and construction that would revolutionize the shallow water fishing industry.

    Today, Hell’s Bay Boatworks is still led by a team of dedicated fishermen, outdoorsmen, and adventurers. This team is guided by Captain Chris Peterson and his wife Wendi Peterson. The company is small compared to some other skiff builders, but what it does not have in numbers it makes up for in innovation, fishing expertise, and passion for building a quality product for a reasonable price.

    The reason the price is reasonable is because the company sells factory direct, thus reducing selling costs, which can be substantial on large boats. Buying factory direct also permits a degree of personalization often not available in boats bought through dealerships.



    Overview

    After two years of development, Hell’s Bay Boatworks has produced its flagship bay boat designed for hardcore fishermen and serious weekend anglers. The Estero™ is the first Hell’s Bay boat designed around inshore and near-shore fishing. She combines the classic features of a Hell’s Bay skiff with the capability to handle the rougher waters found along the coast. At a full 24’10” (7.57 m) in length with an 8′6” (2.59 m) beam, this boat is rated for up to a 400-hp engine. While stable and fast, the Estero™ only draws 13” to 15” (33 cm to 38 cm) of water on the flats.



    Design

    Hard chines further aft are okay for flatter water, but deflecting any kind of seas required a more aggressive approach on the bow, so upper spray rails had some priority in the overall design.

    front

    Keeping dry while ripping along at 55 mph in more open waters is the reason for the high spray rail design.
    profile

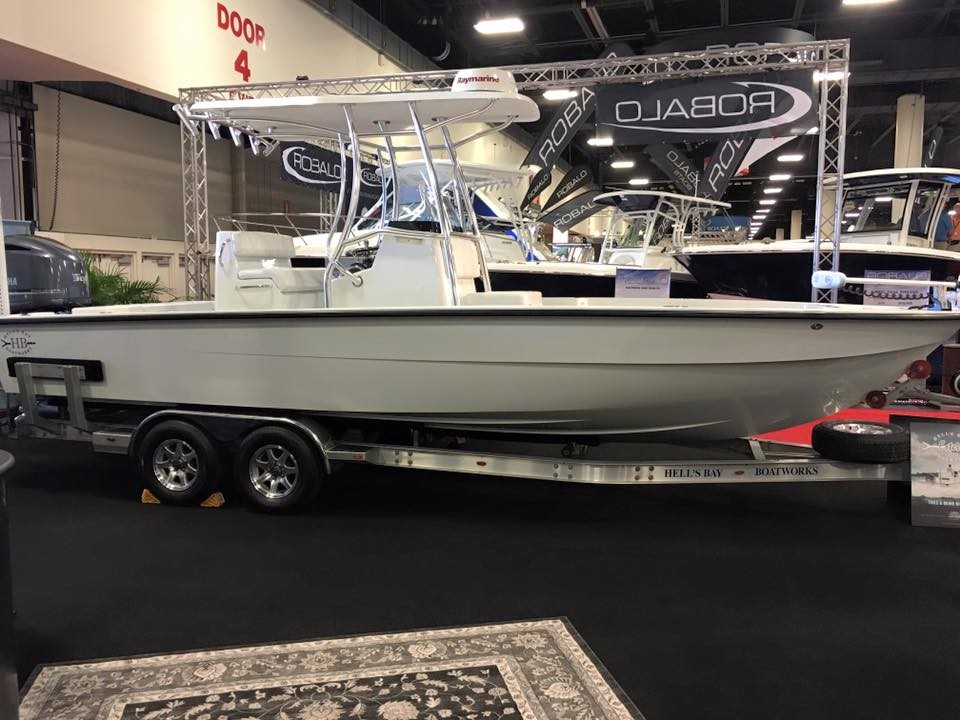

    This view shows the transition from hard chines aft to the spray rail forward, which is an unusual design approach. The dual-axle comes standard.

    Construction

    The Estero is built using 100% Vinylester resin, vacuum infused over Core Cell™ PVC foam and Kevlar throughout the entire hull structure, according to the builder. This is costly construction and Hell’s Bay Boatworks is the only builder in class that we know of that has an all vinylester and Kevlar hull laminate.

    The vinylester resin is impervious to water migration, and virtually all builders use it as a skin coat, to eliminate hull blistering. However, few builders in any class or size use it throughout the laminate because it is more expensive. Vinylester resin is also stronger and adheres to other materials better than polyester resin, according to the literature.

    Kevlar, as most people know is used on bullet-proof vests, and is used by some builders in the keels to provide protection in case of hard groundings, and in the stern quarters to reduce the chance of stress cracking in the gelcoat. Hell’s Bay Boatworks uses it in the entire hull because it is light weight, far stronger than several layers of glass fiber, and is more puncture resistant.

    Single Hose Clams. During our inspection, we noticed that single clamps were used on the hoses connected to the boat’s through-hull fittings and seachest. While this construction meets ABYC standards, we prefer to see double clamps on all hoses below the waterline that handle seawater.



    The Engine

    engine

    The Evinrude E-TEC G2 engines come in a wide range of color combinations – including camouflage.

    Hell’s Bay Boatworks offers Evinrude 300 horsepower engines as standard equipment. Our test boat was powered with an Evinrude E-TEC G2 300-hp outboard with a 15” x 22” 4-blad ss prop.

    Advantages of Evinrude E-TEC G2s on a Skiff—

    1) Greater Low-End Torque. The 2-stroke Evinrude E-TEC G2s have the advantage of having greater low-end torque, so gets on plane faster with less bow rise than 4-stroke engines.

    2) 81-Degree Tilt. Evinrude’s built-in power steering mechanism eliminates the need for an external SeaStar steering arm in the front of the engine, allowing the E-TEC G2 to tilt 81-degrees, more than any other engine on the market. This is important with a skiff which has a low freeboard transom to get the lower unit completely out of the water when not in use.

    3) No Oil Change Hassel. Evinrude as an internal 2 gallon (8 L) oil tank and not an external one that would take up valuable space in the boat. There is enough oil in the tank for 50 to 75 hours of use, a season of operation for most people – and, of course, no oil changes are needed and no new oil filters.

    4) Lower Total Price. When the Evinrude E-TEC G2 engines with its standard power steering and iTrim (automatic trimming) are compared to other engines, which require an up charge for power steering, it is less costly to buy.

    5) Lower Operating Costs. Perhaps most importantly, the Evinrude E-TEC G2 300 is the most economical outboard engine on the market to operate. There is no scheduled dealer maintenance for 5 years or 500 miles, whichever comes first, and no oil changes and new oil filters to buy every year or 100 hours.

    6) Longest Anti-Corrosion Warranty. Because Evinrude coats all of its lower unit parts and any metal part that comes in contact with raw water, with titanium oxide, and because all of its metal fasteners are stainless steel, the company is able to offer a 5-year anti-corrosion warranty, which is the longest in the industry.

    engine2

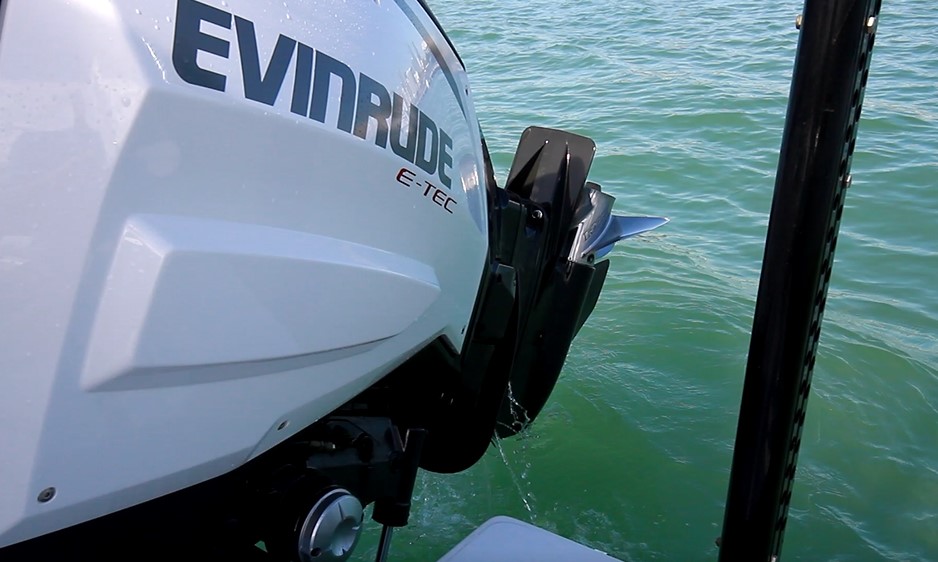

    The internal tilt mechanism, which works on a worm gear, lifts the engine all the way out of the water- articulating a full 81-degrees.

    oiltank

    The internal tilt mechanism, which works on a worm gear, lifts the engine all the way out of the water- articulating a full 81-degrees.

    nooilchanges

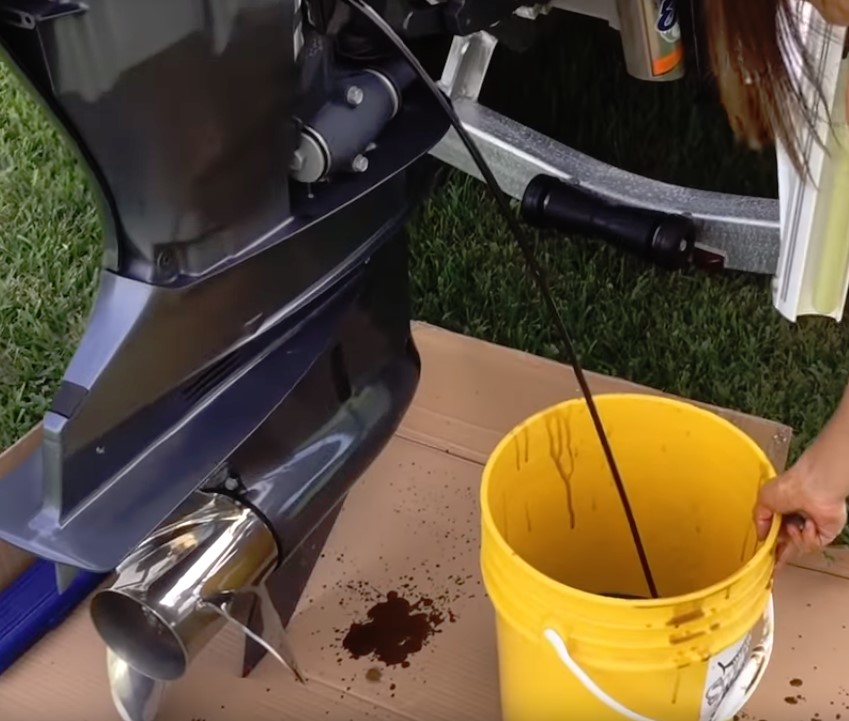

    And there are no messy oil changes with a 2-stroke Evinrude like there are in 4-strokes.

    Engine Specs. Evinrude used computational fluid dynamics to design a big block and heads configured to maximize combustion, reduce fuel consumption, and effectively lower emissions. The 300 horsepower is from a normally aspirated 3.4 L, 74-degree V6 that will rev to 6000 rpm and turn a reduction gear case of 1.85:1. The bore and stroke of the cylinders measure 3.85” by 3.00’’.

    cylinders

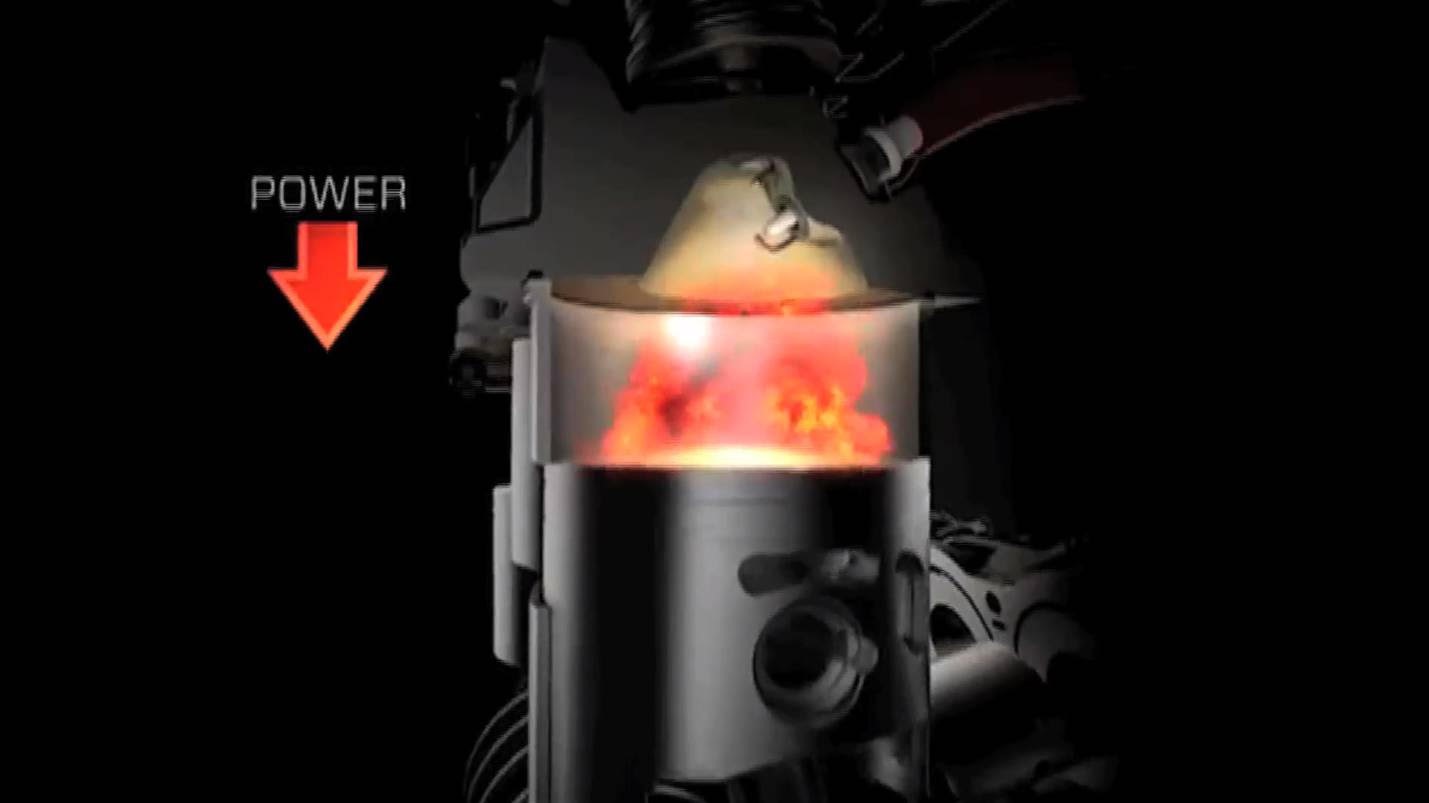

    All cylinders are fed by direct, in-cylinder fuel injection. Fuel is delivered inside the combustion chamber, rather than in the intake manifold as is the case with a 4-stroke engines, resulting in more accurate – and more efficient fuel delivery.

    Stratified Combustion. At idle and low RPM, the patented Evinrude injector sprays a light mist of fuel in the upper combustion chamber to minimize fuel burn. At WOT, Evinrude calls this the homogeneous mode, where the cylinders fill with gas and air to maximize power. This two-mode combustion is called “stratified combustion.” It results in lower emissions, and better fuel efficiency – and has been documented by rigorous testing procedures that are standardized by all outboard engine makers.

    A special electronic oil-injection system meters oil to lubricate the engine's internal components. The resulting combustion is fired by BRP’s Fast Rise Inducted Ignition system that produces a higher energy, longer duration spark for improved fuel burn.

    magneto

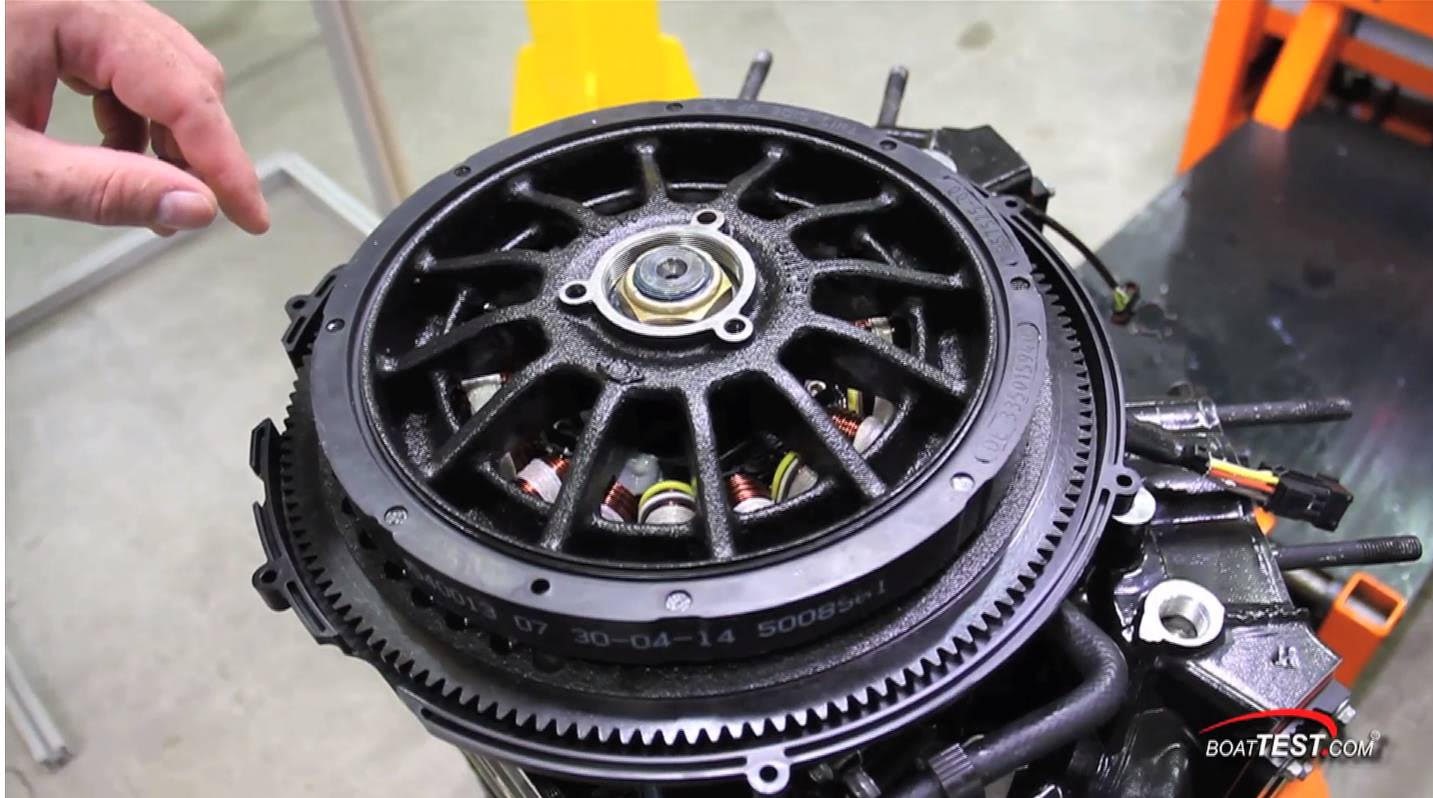

    On the top of the engine is a magneto charging system, which is the most reliable power source in the industry which uses alternators that have belts, pulleys, and brushes that can wear out.

    The maintenance free, magneto-style charging system produces 133-amps with an allotment of 50-amps being directed to the boat's house battery and electrical components. This unit produces more available charging power than is available in any 4-stroke engine in class.

    touchscreen

    The touchscreen engine display has a selection for adding extra oil to the Evinrude engine for winter storage. It takes about 1 ½ minutes – no muss, no fuss.

    The Evinrude E-TEC G2 300-hp outboard is also equipped with a very handy winterizing engine-fogging feature that occurs at the touch of a button, safeguarding motor storage for next season – and eliminating a costly trip to the dealer for winterization.

    lowerunit

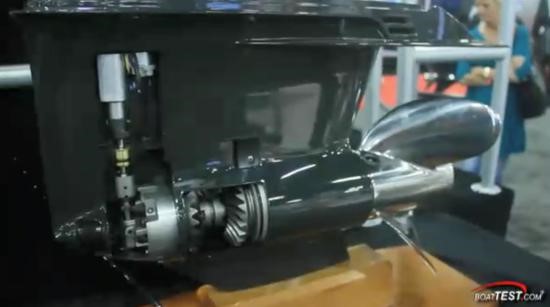

    This cut-away view of the Evinrude E-TEC G2 lower unit shows the robust gears that allow for more flexibility in prop size while contending with the substantial power and strong low-end torque that 2-stroke engines produce.

    running

    The internal steering of the Evinrude engine can be adjusted by the operator to provide the desired steering resistance in three different speed ranges.

    Performance

    upperhelm

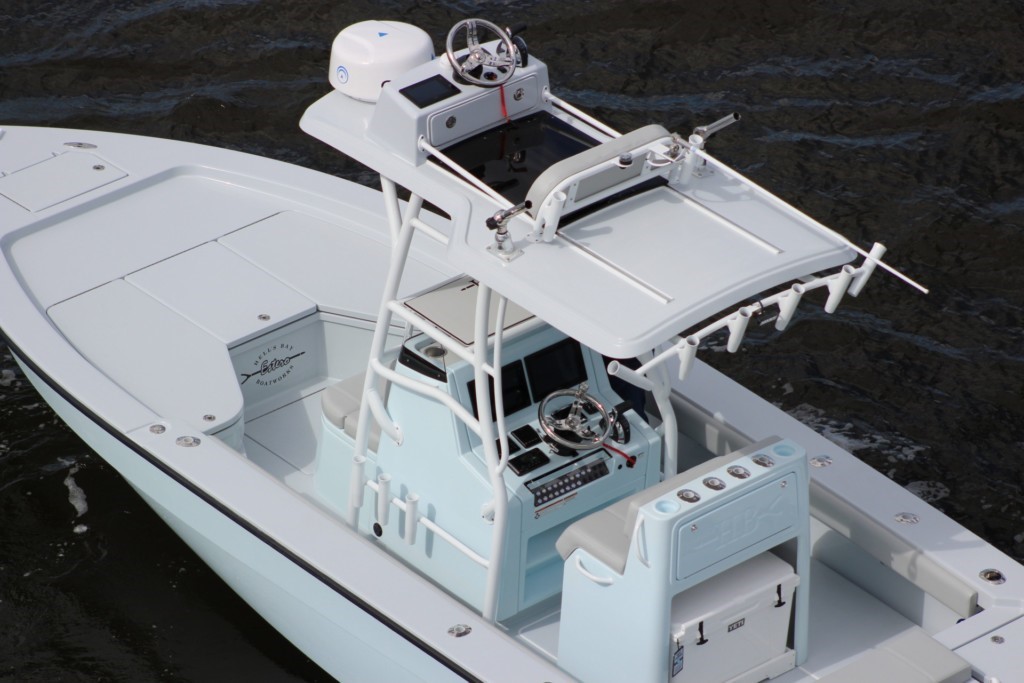

    This Estero includes an upper helm option for the hardtop and those hard to spot fish.

    The Hell’s Bay Boatworks Estero has a LOA of 24’10” (7.57 m), a beam of 8’6” (2.59 m), and a draft of 13” (.33 m). With an empty weight of 3,659 lbs. (1,660 kg), full fuel of 80 gallons (302 L), plus two people and test gear onboard, there was an estimated test weight of 4,579 lbs. (2,077 kg).

    Timing at this year’s Miami boat show prevented us from personally testing the performance of this boat, but the Evinrude techs certainly have - we thank them for these numbers.

    With a single Evinrude E-TEC G2 300-hp gas outboard turning a 15” x 22” 4-bladed prop, the Estero reached a top speed of 55.6 mph at 5600 rpm. The wind was blowing 10 knots, kicking up a heavy chop.

    When backing off to 3000 rpm and 27.5 mph, the best fuel economy, with a burn rate of 7.05 GPH and a range of 289 statute miles was found, all while still holding back a 10-percent reserve of the boat’s 80 gallon (302 L) total fuel capacity.

    running3

    The Estero gets on plane quickly.

    Acceleration

    Time to plane: 4.9 seconds

    Boat Inspection

    The Bow

    bow

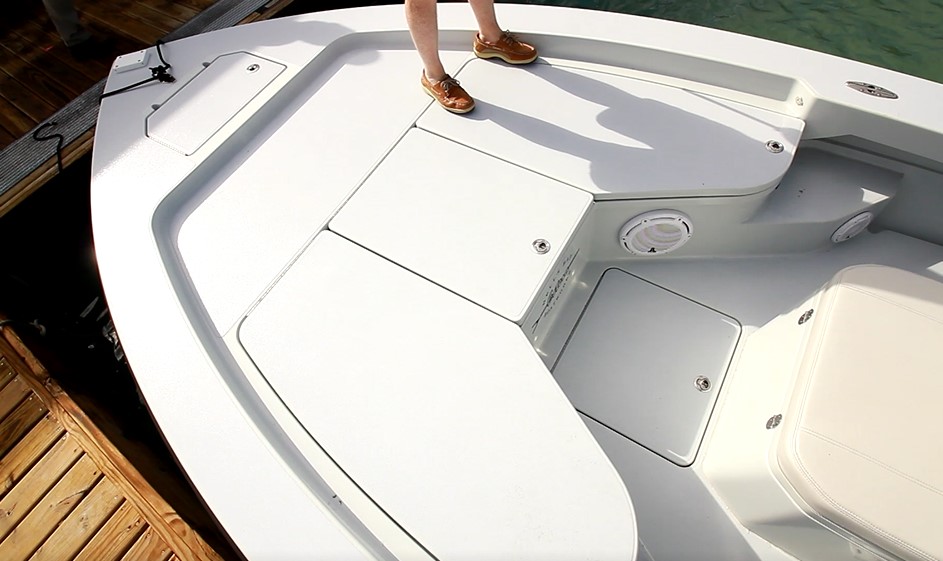

    The forward casting deck has a convenient storage below, and optional JL stereo speakers in the step risers.

    The forward casting deck is 6’6” fore and aft x 6’6” wide (1.98 m x 1.98 m) (and 4’7”/1.39 m in the middle). There are five 6” (.15 m) pull-up cleats, two on each side, with another one centered on the bow.

    anchorlocker

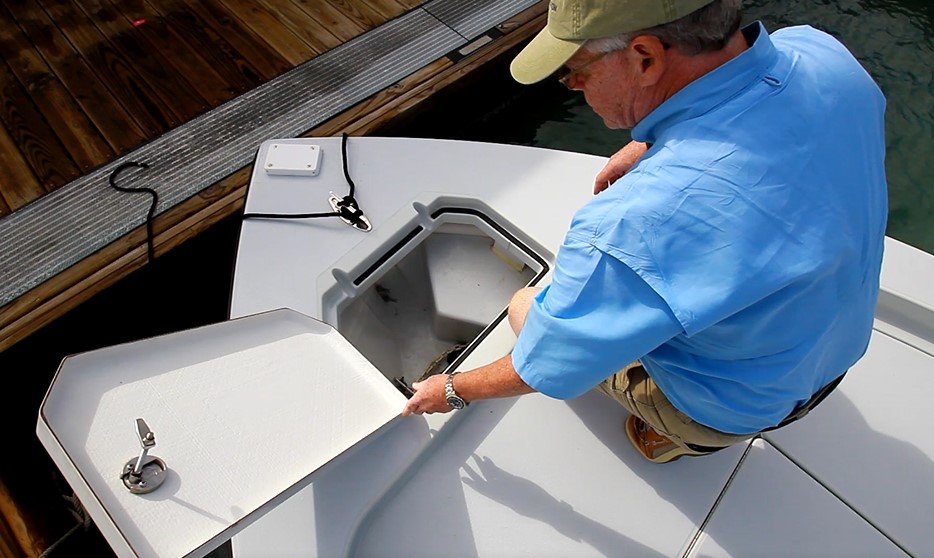

    Captain Steve inspects the anchor locker. He likes how the cover opens sideways and stays open. A trolling motor hookup is prewired inside.

    The anchor locker has a twist and lock latch. We usually find keepers for a Danforth-style anchor in the anchor locker for center console boats, but the absence on them does not diminish the value of the locker which is large. Note the channels in the deck at the hatch for rode when at anchor.

    Forward, the freeboard is 32” (81.28 cm) while aft it slopes down to 19” (48.26 cm).

    There is a generous 11” (27.94 cm) caprail around the boat and 14” (35.56 cm) of sidedeck clearance around the console. The cockpit depth is 20” (50.8 cm) forward.

    To the sides of the foredeck area are steps that lead up to the casting deck.

    batteries

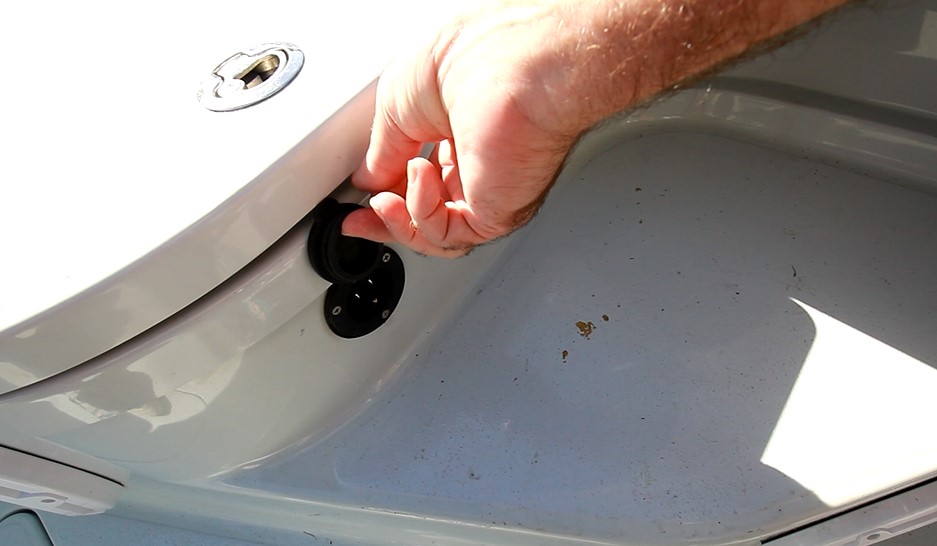

    A 110v port in the stair riser is to facilitate charging the Optima trolling batteries.

    fishbox

    There is a 130-gallon (492 L) fishbox with macerator under the deck in front of the center console seat.

    storagelockers

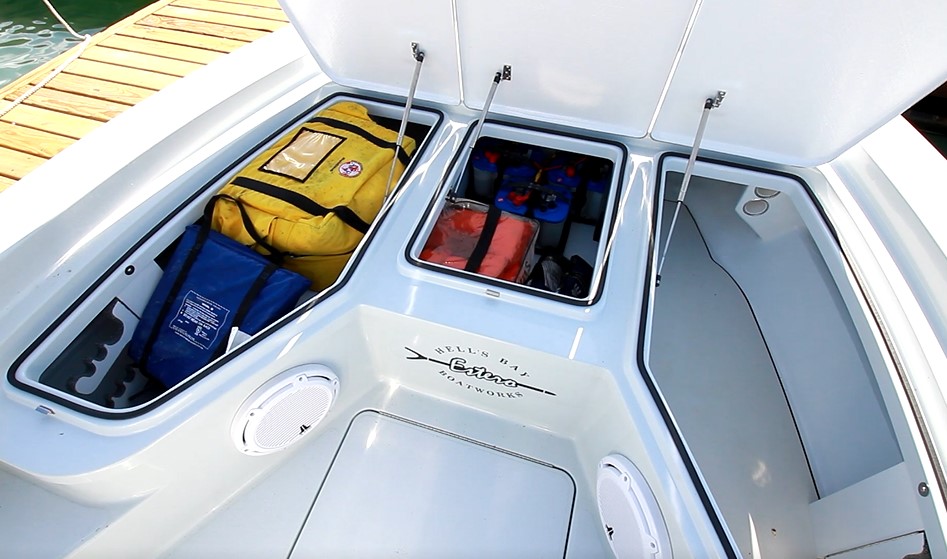

    Under the forward casting deck are three storage lockers with lift and lock latches. The lids have gas shocks and the openings are gasketed. Channels around the hatches direct rainwater into the cockpit. Note the rod holders in the starboard compartment.

    The port and starboard lockers have rod storage. The center locker has three Optima batteries for the trolling motor.

    rodholders

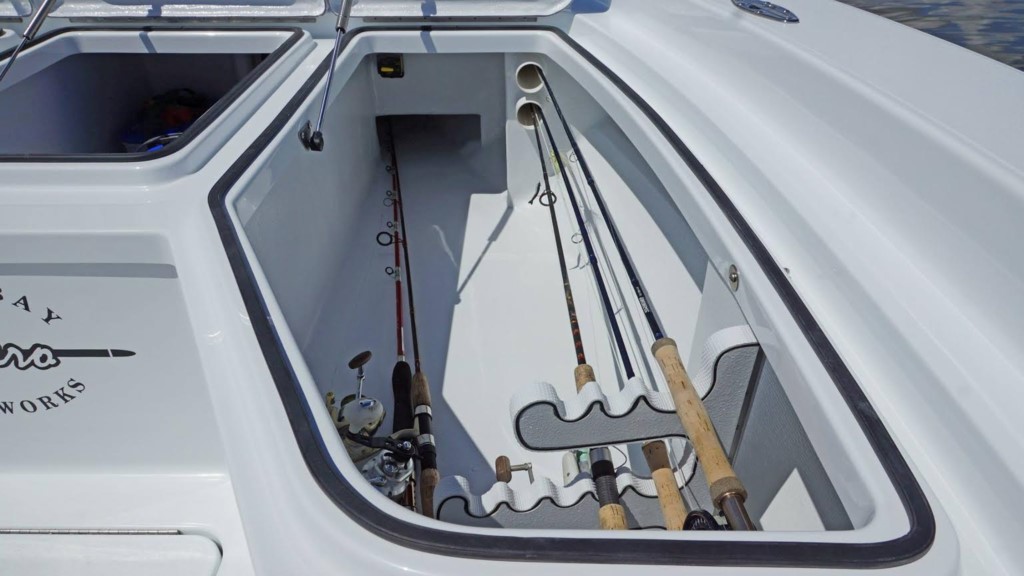

    Rod holders in the forward lockers can handle conventional and fly casting rods.

    The Helm

    helm

    The helm console has a center-mounted wheel, which means that the driver can’t sit or stand behind the wheel if there is a companion on the leaning post.

    hardtoppipes

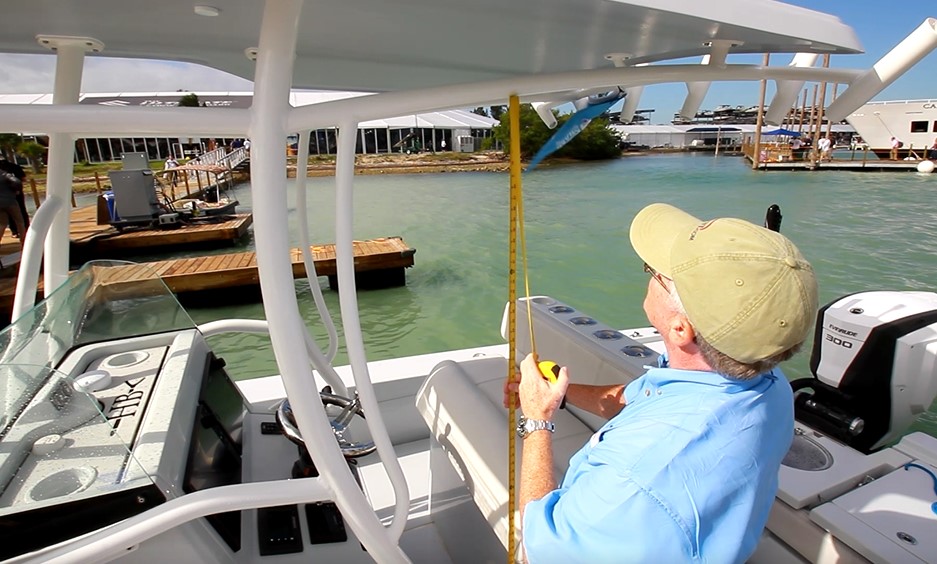

    The pipe supporting the hardtop has 6’3” (1.90 m) clearance, while the hardtop itself has a 6’11” (2.11 m) clearance. There are convenient handholds and grab handles.

    The helm console has dual 12” nav screens.

    cupholders

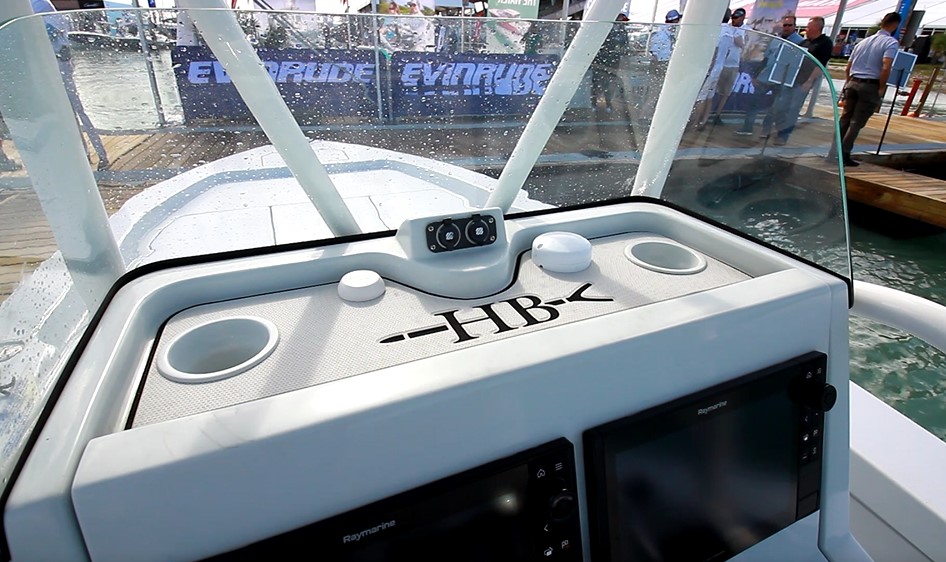

    The center console has a recess on top with non-skid mat and two cup holders. Charging and USB ports are in the center. A single piece windshield wraps around the console. A GPS and a Sirius unit can be seen in the tray.

    helm

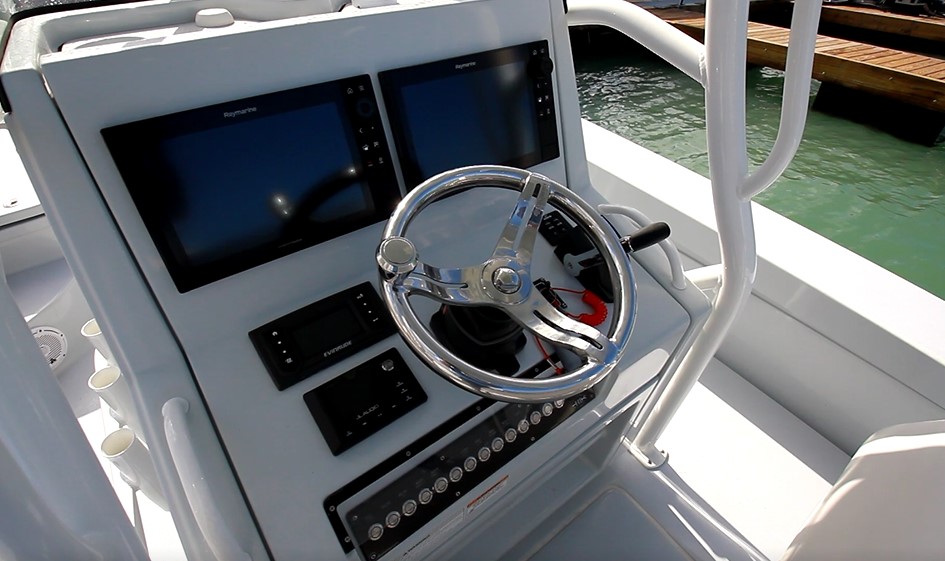

    The Evinrude engine display by the speed knob on the wheel monitors everything from fuel consumption to oil levels. It even allows programming for three levels of steering sensitivity, in addition to iTrim, Winterization, and other functions.

    The helm includes two Raymarine 12” (30.47 cm) touchscreens and a throttle on the right with trim tabs in front of the throttle. The ignition with lanyard is just to the right of the wheel. To the left of the wheel is the Evinrude engine display and the JL audio system. The stainless steel wheel has a tilt adjustment and a speed knob.

    Accessory buttons are below the wheel with a small plexi cover. Below the accessory switches are angled footrests at two levels.

    batteryswitch

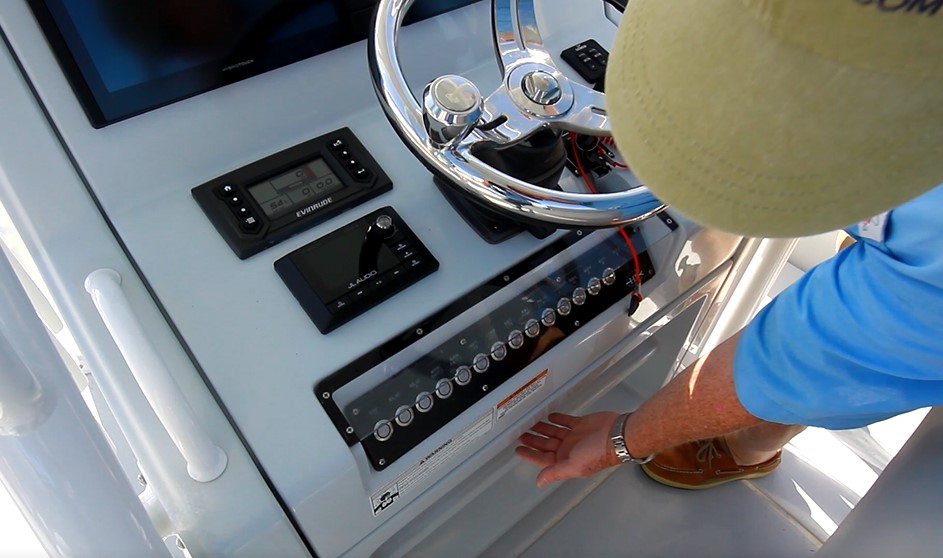

    Hidden from view, by Captain Steve’s hand, in the top footrest recess are three battery switches.

    helmseat

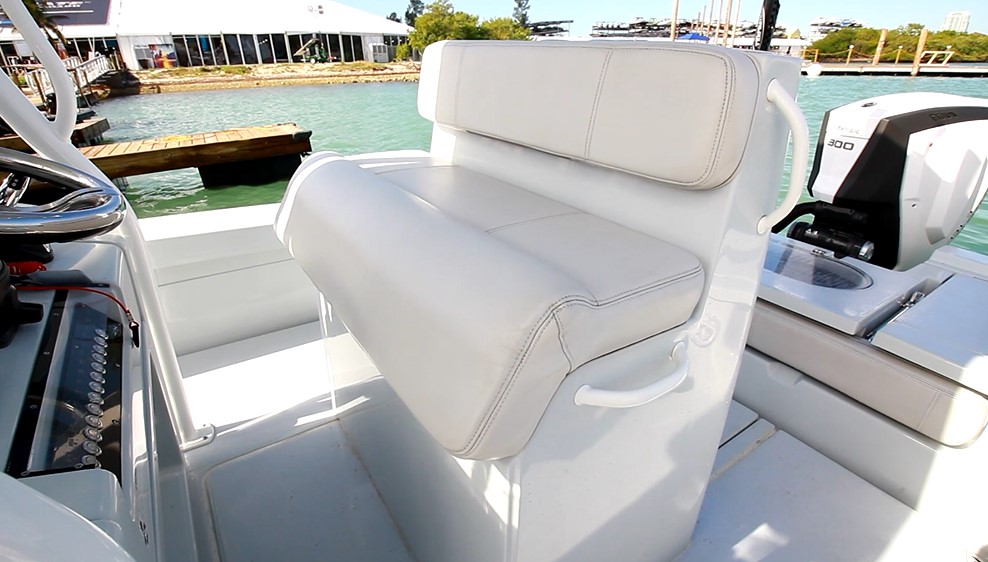

    The double-wide padded helm seat with grab handles sits on a fixed base.

    frame

    The optional hardtop frame is bolted to the deck and the center console so it projects out, restricting sidedeck clearance to 14” (35.56 cm). The upside is that this system of hardtop support is far less costly than aluminum supports integrated into the console. Powder coating eliminates the impossible maintenance of raw aluminum tubing.

    rocketlaunchers

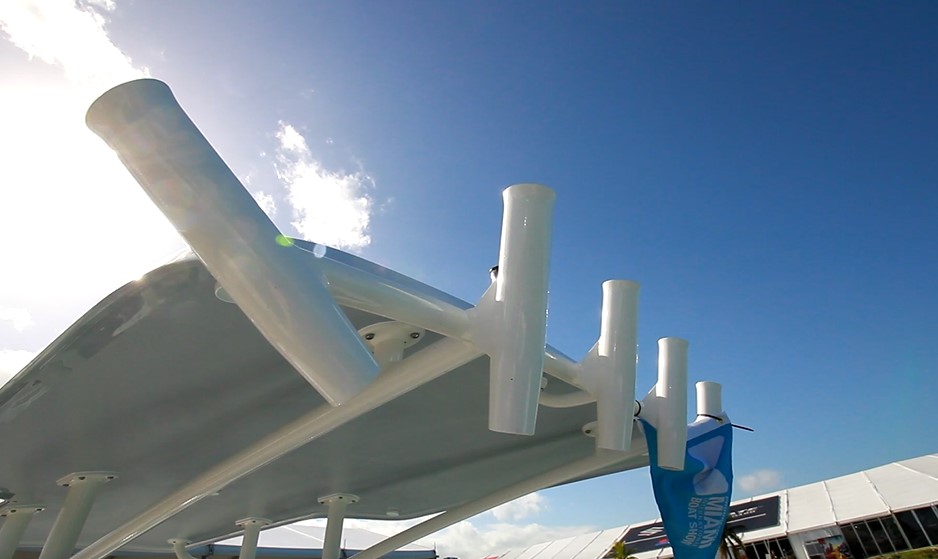

    The frame has six rocket launchers on the trailing edge of the hardtop. The hardtop itself is sculpted narrower forward over the seat and flares wider over the console. The hardtop has a spreader light on the forward end.

    livewell

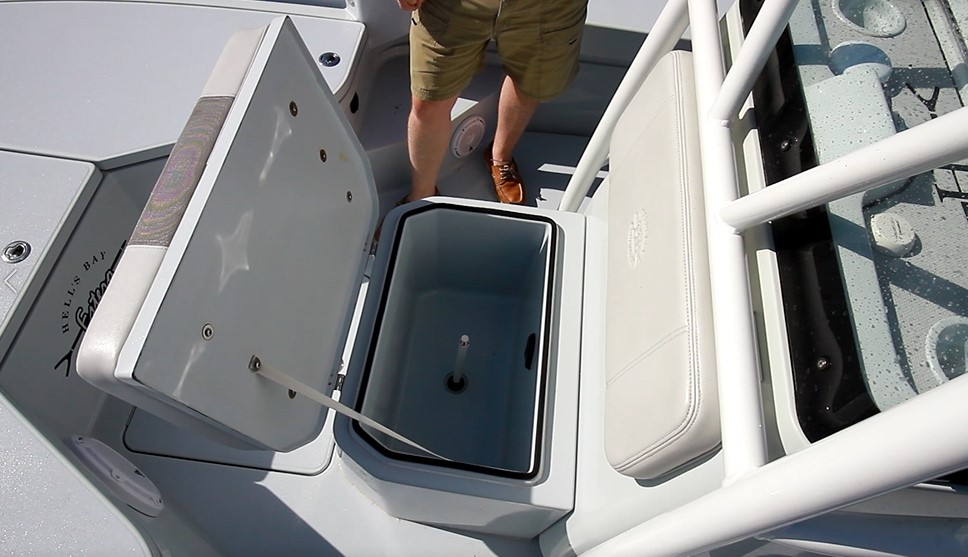

    The front of the helm console has a seat with an optional 30-gallon (114 L) livewell below the seat cushion.

    Three more rod holders are built into each side of the base of the hardtop frame.

    electrical

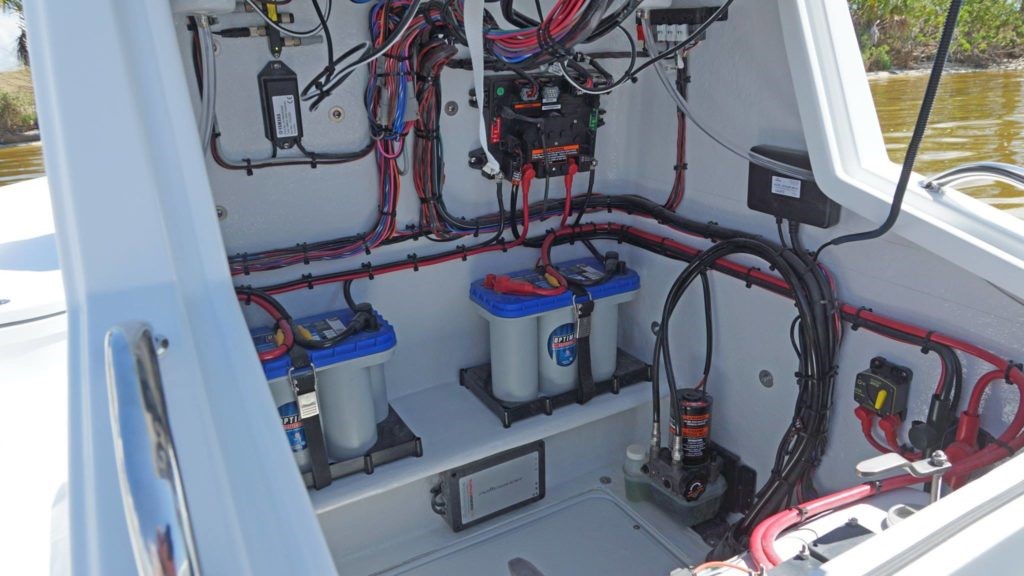

    Inside the helm console we get a glimpse of the electrical setup. The port exterior side of the console also has a 110v port for charging the house batteries.

    Sidedecks

    The gunwales have two rod holders per side. There are two stereo speakers aft, totaling six in all. There is a deck drain on the forward end of the sidedeck, and another set of scuppers aft.

    sidedeck

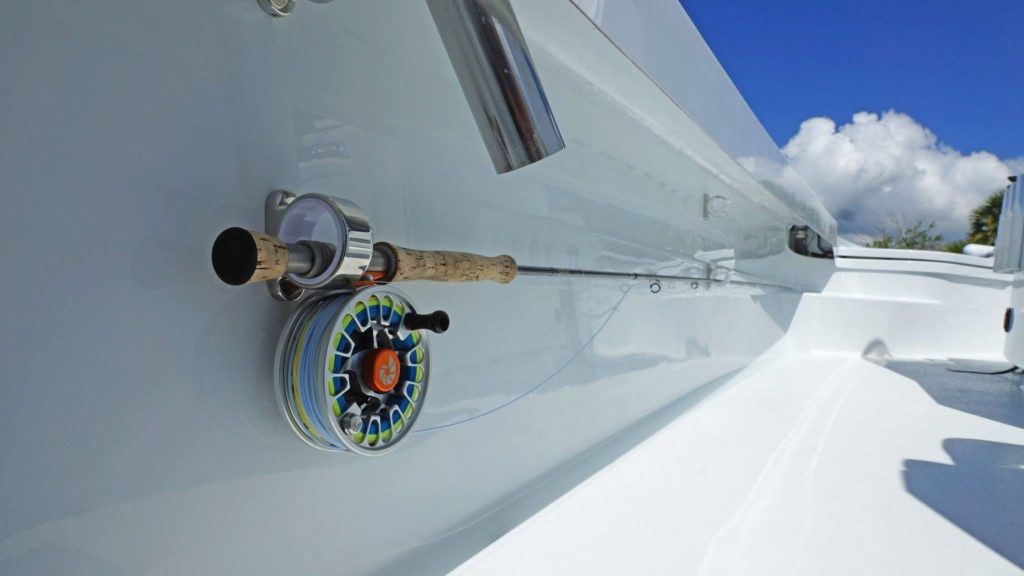

    A drainage channel runs the length of the sidedeck between the deck drains.

    The Stern

    The cockpit depth aft is 17” (43.18 cm.). This is a bit on the low side, causing us to want to use this boat primarily in protected water and coastal water on pleasant days. As we said, this is an angler’s boat.

    livewell2

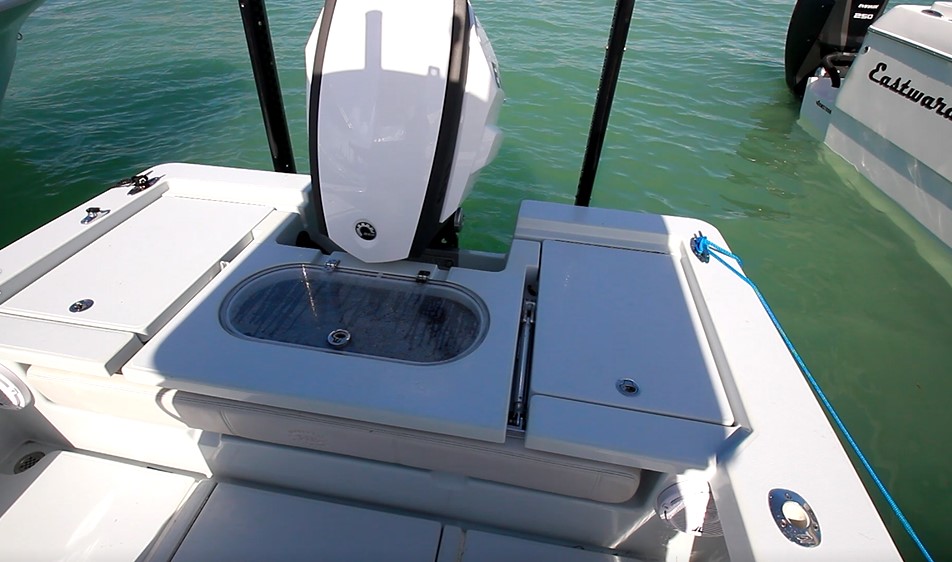

    The aft casting deck measures 38” (96.5 cm) fore and aft (96.52 cm) x 20” wide (50.8 cm) on either side of the 53-gallon (201 L) livewell.

    aftlivewell

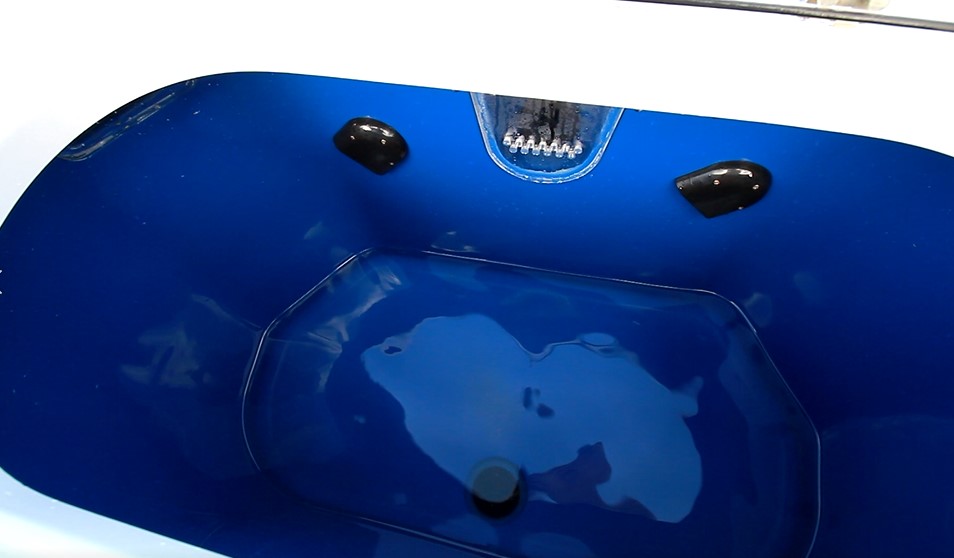

    The aft livewell is plumbed to a seachest with combined 1100 gph pump capacity.

     For additional seating, there are cushions and a bolster that swings up over the aft casting deck and livewell. Under the aft casting deck is more storage.

    bilge

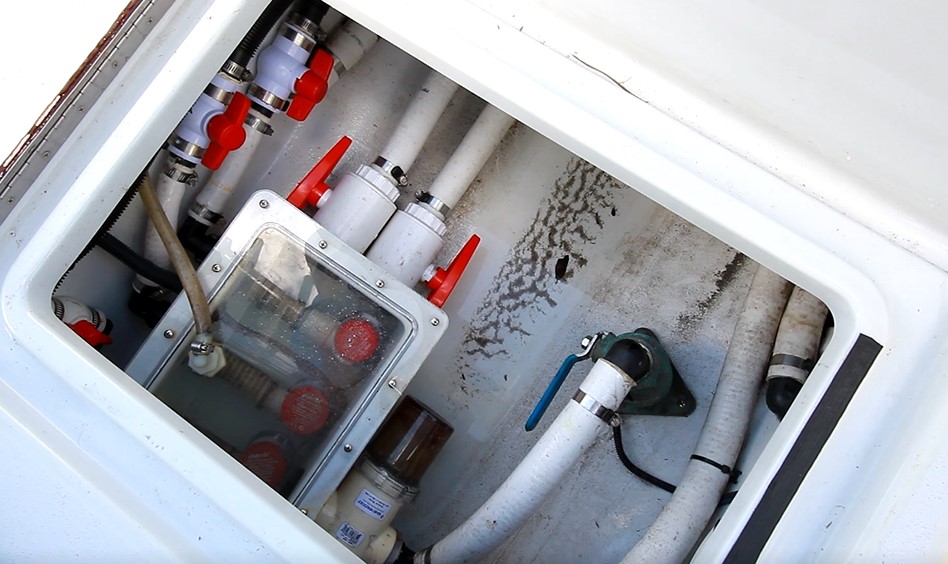

    In the bilge compartment behind the helm seat is access to the through-hulls. Please note that there are single clamps going on the hoses leading to the through-hull fittings and the sea chest – which is all that are required by current ABYC standards.

    space

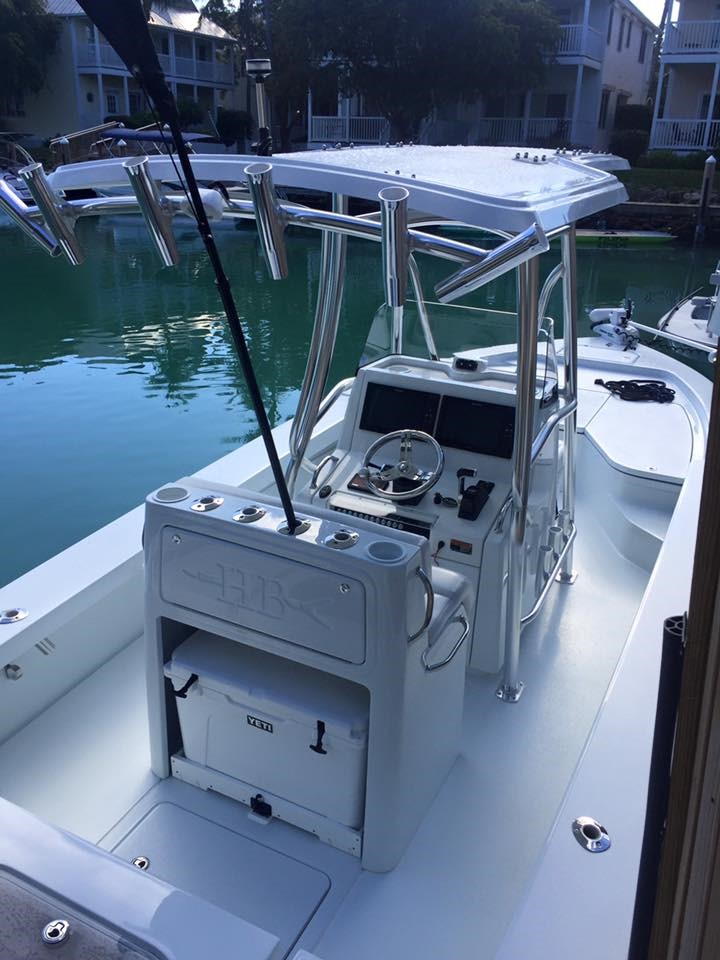

    The walking space behind the helm seat/leaning post is 25” (63.5 cm).

    There are four rod holders with drains flanked by cup holders on the back of helm seat/leaning post. Below is a 105 quart (99 L) Yeti cooler on a slider.

    powerpoles

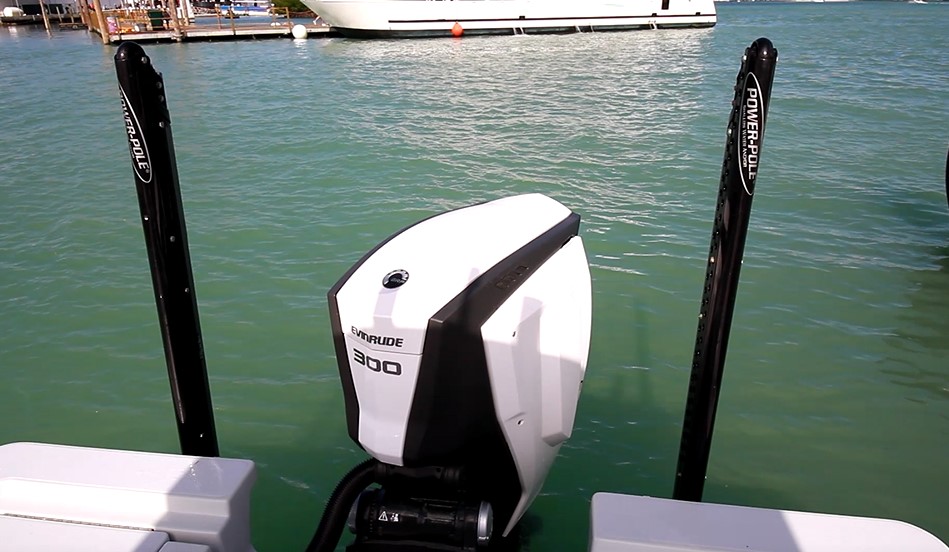

    Aft are two optional Power Poles on either side of the engine for holding the boat in place over a chosen shallow-water fishing spot.

    Equipment (Included)

    • Bennett trim tabs

    • Battery charger

    • Pumps with seachest for aft livewell

    • Aft cushions and backrest

      Optional Equipment to Consider

      • Hardtop ($9,500)

      • Glovebox ($1,200)

      • Second helm hardtop ($25,000)

      • Hardware powder coat package ($900)

      • JL audio system ($3,900)

      • Atlas jackplate ($1,700)

      • Fresh water washdown ($850)

      • Raw water washdown ($500)

      • Cooler slide ($500)

      • Swim platform with ladder ($1,300)

      • 10’ Power-Pole ($2,500)

      • 36v Minn Kota Riptide Ulterra trolling motor ($3,725)

      • 3 bank charger for TM batteries ($530)

      • Forward console seat plumbed 30-gallon (114 L) pitchwell ($2,600)

      • Bolsters on gunnels ($2,520)

      • Forward seatback inserts ($1,240)

      • Spreader lights ($400)

      • Livorsi underwater lights ($725)

      • Stainless rubrail ($844)

        Price

        $110,000 with engine and trailer.

        Observations

        We understand the legacy at Hell’s Bay Boatworks and applaud their laser focus to fishing clientele. They’ll include options, like cushions and bolsters, to broaden the boats’ appeal, but that is not what they are focused on – fishing is.

        The Estero is lightweight because of the Kevlar, PVC coring, and vacuum resin infusion to minimize resin in the laminate and maximize strength, which makes the boat faster and more fuel efficient – and draw less water. With the large casting decks and fishing amenities, we think it makes an excellent bay and flats boat, with near coastal capabilities.

        From a price and value standpoint, because Hell’s Bay Boatworks is factory direct, it can offer a greater value for money spent simply because selling costs are reduced.
