Key West 210 BR

Specifications

Length Overall	21' 1" 6.4 m
Beam	8' 2.4 m
Dry Weight	1,900 lbs. 861.82 kg
Draft	12" 0.3 m
Fuel Capacity	50 gallons 189.27 L

Builders Commentary

The 210 Bay Reef is our first venture into the performance bay boat market adding a pro-level to our extensive and growing line up. The 210 BR represents a bold new approach in hull design. We've kept the time-proven great ride of the 19-degree deadrise hull, but we've added a lifting pad to the bottom and an integrated jack plate to the transom. Now you can have it all with improved performance, fuel economy, and a great ride, and as a bonus, it even sports a bit less draft. The improved hull isn't all you get. The interior has been tweaked and squeezed to get everything a serious fisherman could ask for such as space for 10 7+' rods in the lockable rod boxes, dual live wells, spacious front and rear deck, under gunwale molded-in rod racks, and the first bay boat in its class with a potty room under the console. Yes, this is a family-friendly bay boat as well with features such as fold-away jump seats in the rear deck, and generous cup holders throughout. Check out the pictures and then check out the real deal at a dealer near you.

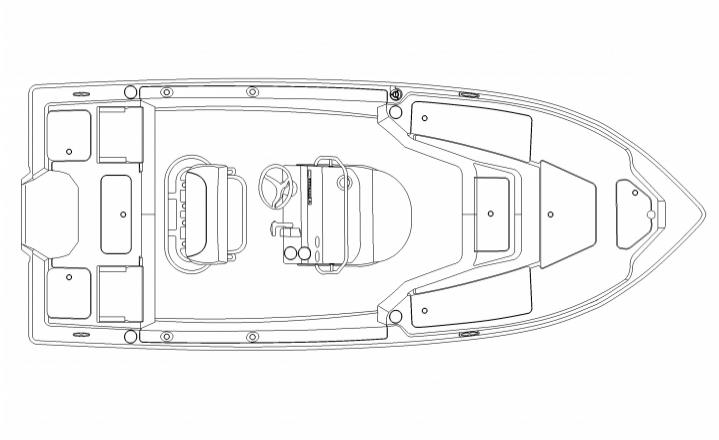

Layout

Interior

Standard Features

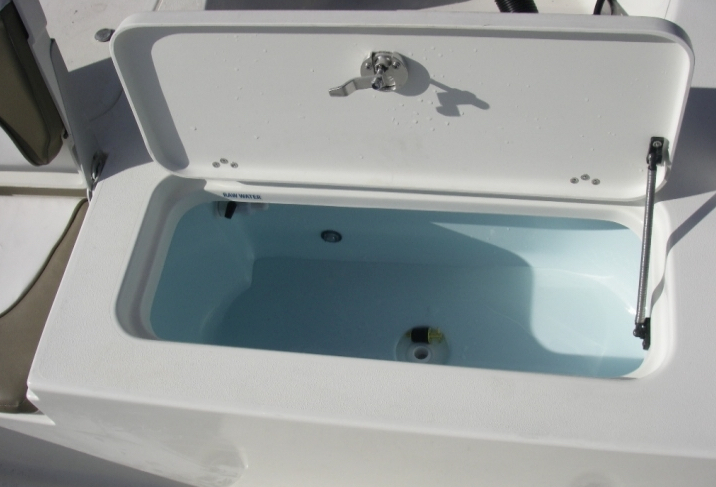

• Live/Release wells front and rear decks.
• 2 Rod Boxes lockable with 5 rod capacity each.
• Folding jump seats in the transom store flush and out of the way.
• Molded-in seat with cushions on front of the console.
• Closed cell positive foam flotation
• Cup holder on console.
• Sea Star hydraulic steering.
• Cockpit bolsters.

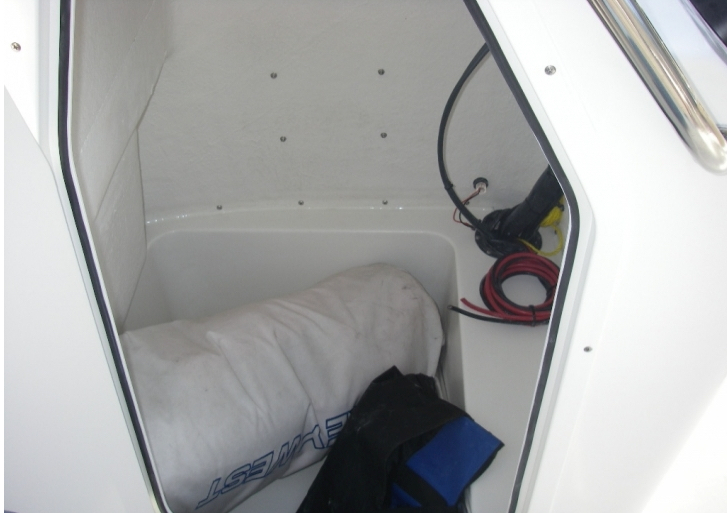

• Changing room under console can accommodate a potty.
• Generous bow casting deck.
• Recessed horizontal gunwale rod racks.
• Molded non-skid inner liner.
• Folding stern light.
• Courtesy lights.
• Black accents.
• 4 SS trolling rod holders with integrated drains.
• Pull up cleats.
• Compass.
• Electric horn.

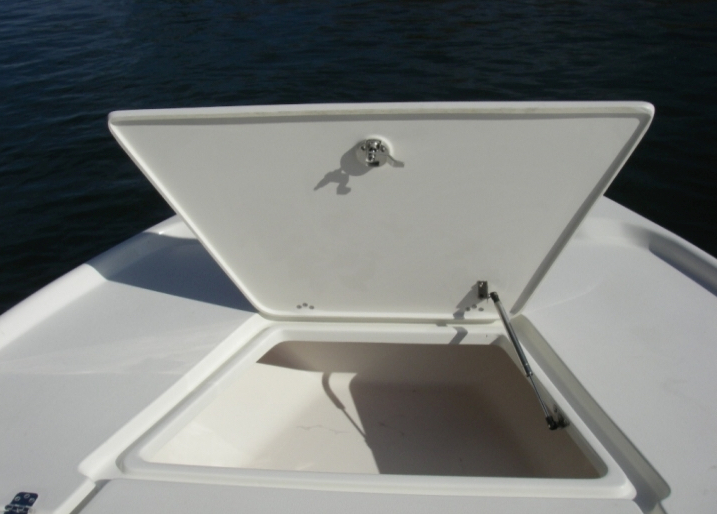

• Large storage compartment in bow.
• Stainless Steel Hardware.
• Bilge Pump with Automatic Switch
• Rear Storage for Battery and Accessories

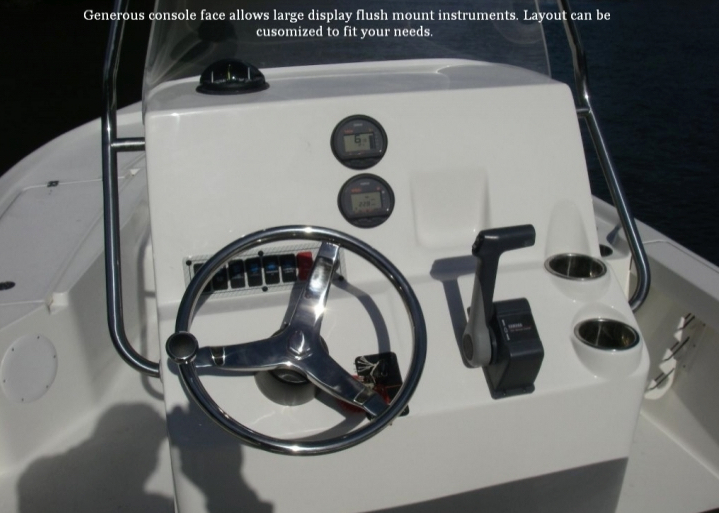

• Engine builder matched analog gauge package.

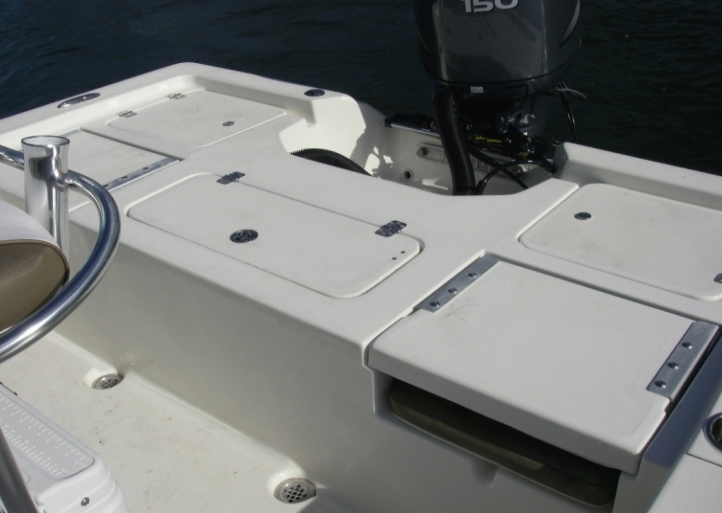

• Bow and rear casting decks.
• Tinted windshield with SS grab rail
• Troll motor harness and plug.
• Built-In Fuel Tank
• Foam Injected Fiberglass Stringer System
• High Speed Pick-Up Livewell
• Self-Bailing Cockpit
• Ten (10) Year Hull Warranty
• No Wood-No Rot Construction

Options

• Sea Star hydraulic tilt steering.
• Pull up fender holders, set of 4.
• Dual battery switch and wiring.
• Trim tabs.
• Bow lifting eye.
• Poling platform.
• Push pole.
• Push pole brackets.
• Quick release bracket for Minn Kota Riptide troll motor.
• Troll Package; Minn Kota 24V Riptide 70lb thrust hand control with wiring and dual charger.
• Troll package; Minn Kota Riptide 24V hand control 80 lb thrust with wiring and dual charger.
• Stereo and MP3 port with 4 speakers.
• Flip flop cooler seat with 94Qt. cooler.
• Casting seat base only.
• Casting seat with base and pole.
• Bow cushion.
• Outrigger bases and/or outriggers.
• T-top deluxe with radio box, spreader lights, and rocket launchers.
• Stainless steel bimini top and boot.
• Aluminum bimini top and boot.
• Sunbrella console cover.
• Flip flop cooler cover.
• Leaning post cover.
• T-top spray shield.
• T-top gull wings.
• Yamaha multi function tachometer and speedometer.
• Yamaha Command Link 2 gauge package.
• Swim platform, molded fiberglass with telescoping SS ladder.
• Additional pull up cleat or cleats.
• Side grab rails.
• Deluxe leaning post with back rest and rod holders.
• Portable toilet.
• Fresh water shower station.
• Power pole anchor system.
• Auto retract switch and level indicator for trim tabs.
• Rear deck cushion with back rest.
• Minn Kota iPilot 80lb 24 volt Riptide system including quick release and 2 bank charger
• Minn Kota Riptide iPilot 70 lb 24Volt troll motor system including quick release and 2 bank charger
• High-pressure raw water wash down system
• Hydraulic jack plate.
• T-top mooring cover.
• Standard mooring cover.
• Sunbrella mooring cover.
• Shipping cover.
• Recirculating live well forward.
• Recirculating live well aft.
