Bayliner 180 Bowrider (2020-)

Specifications

Length Overall	18' 0" 5.49 m
Beam	7' 7" 2.31 m
Dry Weight	1,878 lbs 852 kg
Draft	2' 7" .79 m
Deadrise/Transom	19-degrees
Weight Capacity	1,087 lbs 493 kg
Person Capacity	8
Fuel Capacity	28 gal 106 l

Engine Options

Std. Power	90 HP EFI 4 Stroke Mercury Outboard
Opt. Power	115 HP EFI 4 Stroke Mercury Outboard 150 HP EFI 4 Stroke Mercury Outboard

Builder Commentary

Tons of storage, a smooth ride, sporty styling and an awesome value price put the 180 in a class by itself. Its fuel-efficient standard 90 HP Mercury 4-Stroke outboard means long days on the water. Exceptional cockpit space, a helm seat with flip-up bolster and an optional water sports tow pylon keep your crew comfortable, and active. In fact the only thing more thankful than your family, will be your wallet.

Layout

Interior Gallery

Boat Details

STANDARD FEATURES

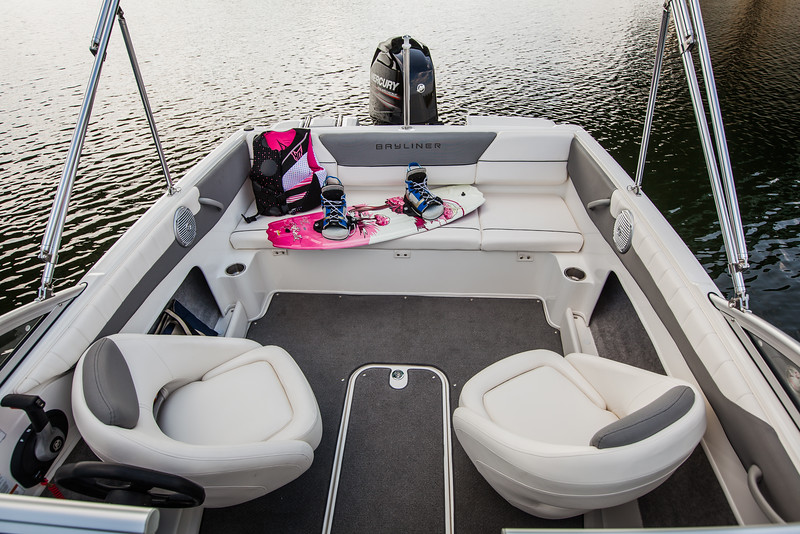

COCKPIT

· Standard Speakers (2)

· Cup Holders (6)

· Grab Handles (6)

· Mooring Cleats (6)

· Fuel Fill w/ Integrated Vent

· Glove Box · Helm Seat w/ 180° Swivel

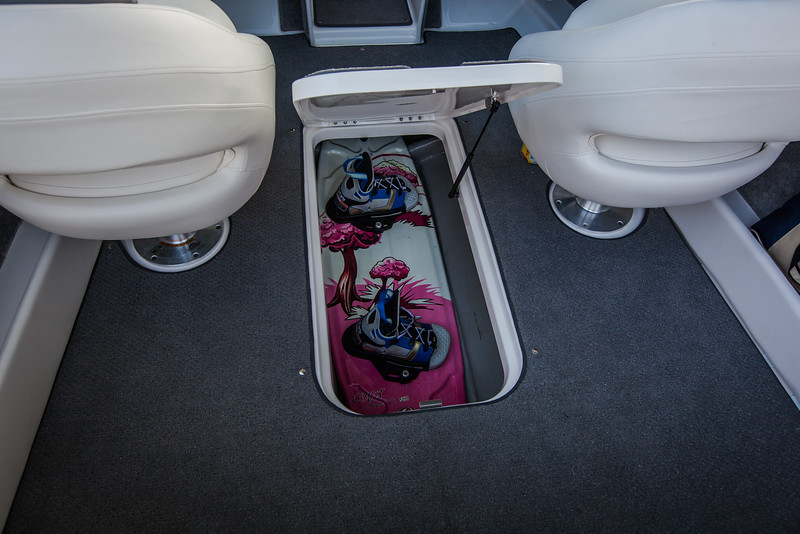

· In-Floor Ski/Wakeboard Storage

· Waterproof 120-Watt AM/FM Stereo/Controller w/ Inputs for iPod & mp3 ELECTRICAL SYSTEM & ENGINE COMPARTMENT

· Battery Switch

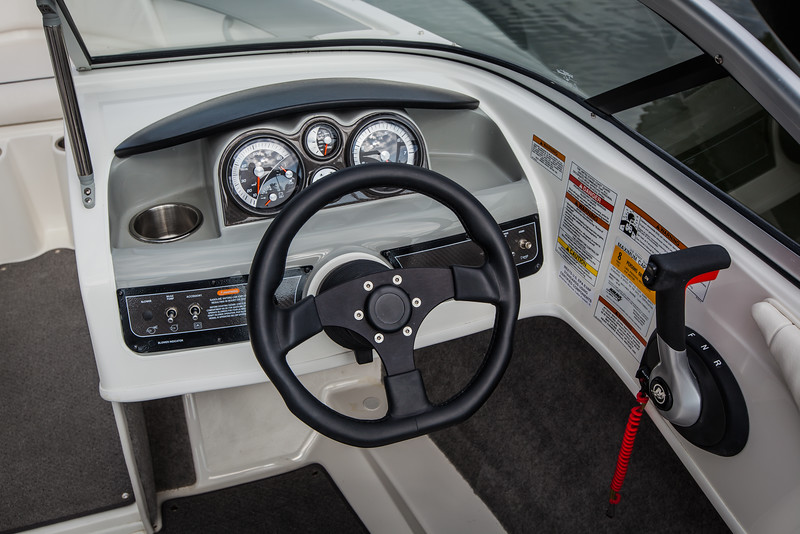

· 500 GPH Bilge Pump (Manual) HELM

· Multi-Function Gauges w/ Fog-Resistant Glass Lenses: Fuel, Speedometer, Tachometer, Voltmeter

· 12V Accessory Outlet · Horn

· Side-Mounted Engine Controls w/ Trim & Tilt Switch in Handle

· Tilt Steering · Custom Sport Steering Wheel HULL AND DECK

· Bow & Transom Eyes (3) · 12V Navigation Lights

· Windshield w/ Opening Center Panel & Side Wings

· Swim Platform w/ Telescoping Ladder

SEATING & UPHOLSTERY

• Dual Helm Buckets

INTERIOR COLOR

· Graphite (Gray & White)

COLOR SELECTIONS

· Solid Hull Colors: White, Blue, Black, or Gray TRAILER

· Single Axle Black Painted Trailer w/o Brakes, w/ Swing Tongue

OPTIONS

COLOR SELECTION

· Two-Tone Hull Colors: White Hull w/ Blue, Black, or Gray Hullside

POWER STEERING OPTIONS

· Hydraulic Steering System (115 HP and Below)

ELECTRICAL SYSTEM & ENGINE COMPARTMENT

· Automatic 500 GPH Bilge Pump HULL AND DECK

· Fiberglass Floor Liner INTERIOR COLOR

· Desert Sand (Tan Based) WATER SPORT OPTIONS

· Ski Tow Pylon

· Black MTK Tower w/ Integrated Bimini Top

· Swivel Wakeboard Rack (1x or 2x)

STAINLESS STEEL PACKAGE

· Cup Holders, Fuel Fill, Thru Hull, Horn Vent, Rub Rail

COCKPIT FLOOR COVERING OPTIONS

· Cockpit Carpet Runners

CANVAS OPTIONS

· Bimini, 6’ Top w/ Boot

· Snap-On Bow Well & Cockpit Cover (Windshield)

ADDITIONAL OPTIONS

· Digital Depth Indicator

SEATING & UPHOLSTERY

· Bow Filler Cushion

FISHING OPTIONS

· Aerated Livewell

· 12V MotorGuide Bow Mounted Wireless Trolling Motor - Freshwater · Lowrance Elite-3x Fishfinder

· Bow Casting Platform & Seat

· Dual Battery w/ 24V Plug

SWIM PLATFORM OPTIONS

· Swim Platform (Twin Step)

TRAILER

· Single Axle Galvanized Trailer w/o Brakes, w/ Swing Tongue

· High Capacity Painted Trailer w/o Brakes, w/ Swing Tongue (Required w/ Fiberglass Liner)

· High Capacity Galvanized Trailer w/o Brakes, w/ Swing Tongue (Required w/ Fiberglass Liner)
