Bayliner Element CC6 (2020-)

Specifications

Length Overall	18’ 2” 6.01 m
Beam	7' 5" 2.22 m
Draft	12" .30 m
Fuel Capacity	30 gal. 118 L

Engine Options

Opt. Power	80 HP 4 Stroke Mercury Outboard 100 HP 4 Stroke Mercury Outboard 115 HP 4 Stroke Mercury Outboard

Builder Commentary

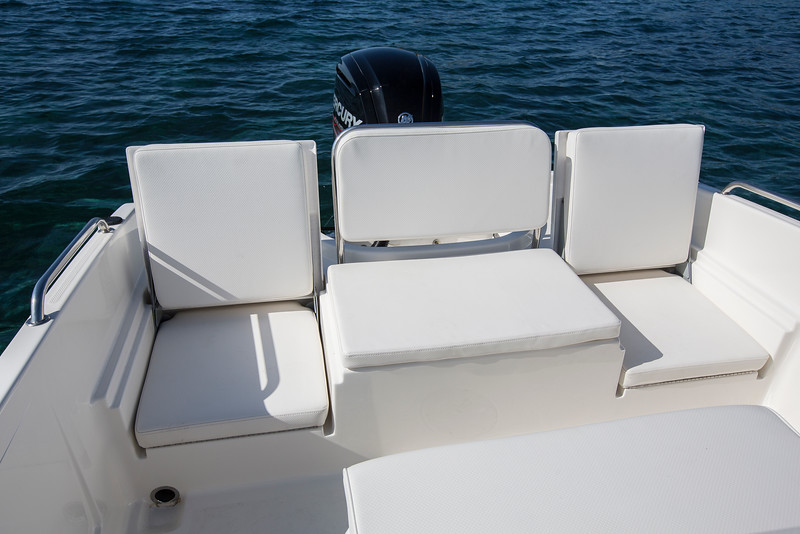

Building on the success of our innovative Element M-Hull,™ we have created the Element CC6; a self-bailing, center console design aimed at coastal cruising and other day boat activities. Its clean, open layout is enhanced by Bayliner’s innovative design which carries the full beam dimension further forward in the boat than tradition designs. The result is a roomier bow section that considerably expands the comfort and capacity of the bow area. Its bow features an anchor locker and two, large bow storage lockers; all covered by a large bow cushion/sunpad. The boat’s aft section features two jump seats flanking a roomy lined storage compartment ideal for snorkeling gear or other provisions. Dual swim platform extensions make boarding from the water easier. Our optional F6 Fishing Package converts the CC6 to a great bay fishing boat making the CC6 as versatile as it gets.

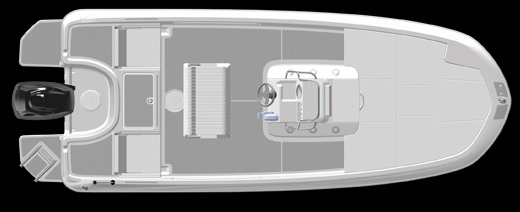

Layout

Interior Gallery

Boat Details

STANDARD FEATURES

COCKPIT

· Self-Bailing Cockpit

· Bow Anchor Locker & Storage Compartments

· Leaning Post

· Aft Non-Skid Casting Platform w/ Center Storage

· Forward Facing Jump Seats w/ Storage Beneath ENGINE

· BLANK (no engine) — Mercury Pre-Rigged ENGINE COMPARTMENT

· Sahara 1100-gph Bilge Pump

· 33 Gallon Built-In Fuel Tank HELM

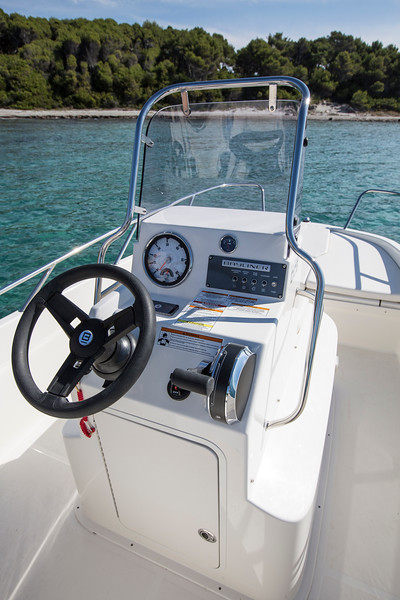

· Center Console w/ Large Storage Compartment

· Navigation Ready Helm Station

· Binacle Mounted Engine Controls w/ Trim & Tilt Switch in Handle

HULL AND DECK

· M-Hull™ Design

· Arctic White Hull & Deck w/ CC6 badging

· Automotive Style Ride & Handling

· Bow & Transom Eyes

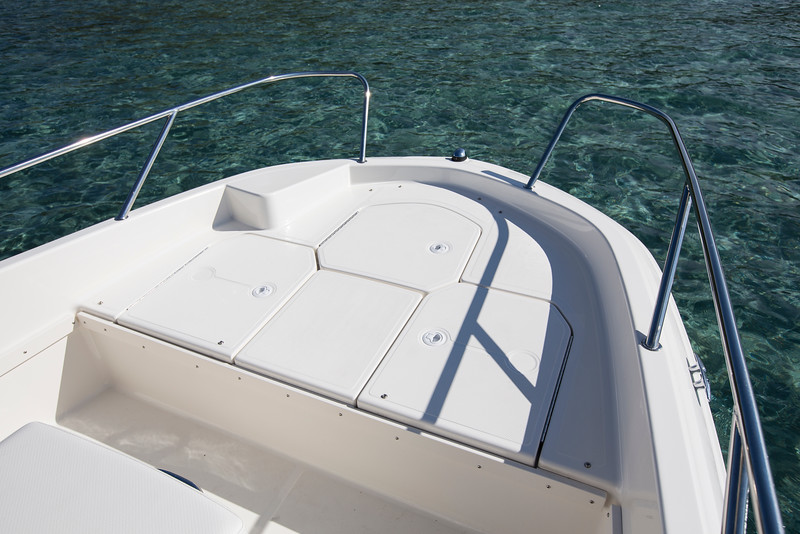

· Large Non-Skid Bow Casting Platform

· Mooring Cleats (6)

· Safety Handholds

· Port & Starboard Swim Boards w/ Ladder

OPTIONS

COLOR SELECTION

· Two-Tone: White w/ White, Ashland Yellow, or Glacier Green Hullside

FISH PACKAGE

· Aft Livewell

· Freeboard Nests w/Rod Holders

· 6 Console Rod Holders

· Bow Fishing Seat

· CC6 Console decal

CONVENIENCE PACKAGE

· Stereo AM/FM - mp3 Player Ready & USB Plug

· Digital Depth Indicator

STAINLESS STEEL UPGRADE PACKAGE

· Stainless Steel Trim Upgrades (Cup Holders, Fuel Fill, Thru Hulls, Vent Grate, Rub Rail, Latches)

HELM

· Double Wide Console

FULL FILLER CUSHION PACK

· Full Filler Cushion Pack w/Deck Rails

CANVAS OPTIONS

· Bimini Top w/ Boot

· Console Cover

WATERSPORT

· Ski Tower with Wake Rack

ENTERTAINING OPTIONS

· Cockpit Table

ADDITIONAL OPTIONS

· Compass

· Stainless Steel Deck Rails

· Hydraulic Steering
