Pursuit S 288 (2020-)

Specifications

Length Overall	30' 0" (9.14 m)
Beam	9' 8" (2.95 m)
Dry Weight	8,220 lbs. (3,729 kg)
Draft Up	2' 0" (0.61 m)
Draft Down	3' 0" (0.91 m)
Deadrise/Transom	24-degrees
Bridge Clearance	7' 9" (2.36 m)
Fuel Capacity	230 U.S. gallons (871 L)
Water Capacity	26 U.S. gallons (98 L)

Engine Options

Std. Power	Twin Yamaha® F300 Engines

Builder Commentary

The Sport family provides stunning exterior profile with industry leading features.

Years of intense planning go into the release of new Pursuit models, and the S 288 is no exception. With its compact design, we’ve honed in on the essentials – but we’ll never lose our attention to detail. We’re ensuring it has everything you need and nothing you don’t.

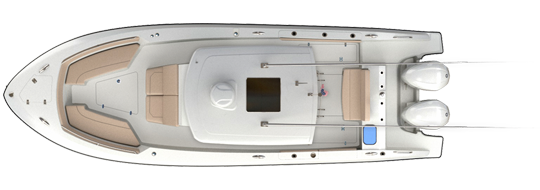

Layout

Interior Gallery

Boat Details

STANDARDS

HULL FEATURES

• Pursuit® Protection Plan:

  5-year Hull/Deck Structural Warranty

  5-year Blister-free Warranty

  2-year Limited Warranty
• Pursuit® Fresh White Gelcoat
• Yamaha® Paint on Engines
• Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
• 5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid
• Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
• Foam Filled Structural Grid
• Bronze Thru Hull Fittings Below Water Line
• Chrome over Bronze Thru Hull Fittings Below the 7 Degree Heel Line
• Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
• Bronze Garboard Drain
• Trim Tabs, Lenco Electric with Auto-Retract
• Bow Eye, 5/8" 316L Stainless Steel
• Stern Eyes (2), 5/8" 316L Stainless Steel
• Integrated Transom Platform Extensions Outboard of Engines
• Boarding Ladder, 3-Step Telescopic, Mounted in Hull Platform
• Anchor System, Integrally Molded Thru-Stem
• Horn, Electric, with Oval Stainless Steel Cover
• Dedicated Transducer Location
• Horn, Electric, with Oval Stainless Steel Cover

DECK FEATURES

• Hull and Deck Joint Mechanically Fastened
• Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert
• Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area
• Flush Mounted Integral Anchor Locker with Fiberglass Lid including: Horizontal Anchor Windlass with Switch at Helm, Remote at Anchor Locker and Raw Water Washdown
• 316L Stainless Steel through Stem Anchor Roller with 8" Mooring Cleat, Chain Binder, 14lb Stainless Steel Plow Style Anchor, Self-Righting Shackle and 200' Rode (1/2" 8 Plait including 20' of ¼" G4 Chain)
• LED Anchor Locker Light
• Cleats, 316 Stainless Steel, 8" Pop Up (2) Stern, (2) Spring and (2) Bow
• Molded Recessed Hatches with Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks
• Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch
• Self-Draining Cockpit with Bronze Ball Valve at Hull Side
• Bow Grab Rails, 316L Stainless Steel (Port and Starboard)
• Transom Grab Rails, 316L Stainless Steel, (Port and Starboard)
• Molded Non-Skid Transom Bridge for Athwartship Access
• Navigation Lights, LED, 2 mile

COCKPIT FEATURES

• Molded FRP Hull Side Boarding Door
• Drink Holders (2), Located in Gunwale
• Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
• Helm Seating with Teak Accents, Split Bolster, Foldable Armrests and Fore/Aft Adjustment
• Molded Helm Seat Console with Drink Holders (2), Dedicated Tackle Storage, Storage Drawers, 12V MDP and Folding Aft Facing Seat
• Pursuit Cockpit JL Audio Entertainment System: 12V Bluetooth® Compatible Stereo System, Premium Speakers (5 Total, 2 in Hardtop, 2 in Bow, and Subwoofer) and Amplifier
• Folding Transom Seat with Adjusting Backrest
• Aft Cockpit Machinery Access Hatch
• Forward Cockpit Machinery Access Hatch
• Fresh Water Wash with Chrome over Brass Pull out Sprayer and Quick Fittings
• Raw Water Outlet in Cockpit with Quick Connect Fittings and 25' Hose
• LED Cockpit Accent Lights (7) with Water Proof Switch in Cockpit
• Forward Facing Seat for two on Front of Console with Armrests
• Molded Forward Bow Seating with Insulated Storage Below, Removable Cushions, Folding Forward Facing Backrests for Port and Starboard Seats
• Bow Tonneau Cover, Sunbrella®
• Helm Companion Seat Cover, Sunbrella®
• Fire Extinguisher (Under Starboard Gunwale)

FISHING FEATURES

• Rod Holders (4), Stainless Steel, in Gunwale
• Lighted Oceana Blue 24 Gallon Recirculating Livewell with Acrylic Lid
• Under Gunwale Rod Storage with Reel Pads (Port and Starboard)
• Fish Boxes (45 gallons), Insulated and Diaphragm Pumps with Overboard Discharge (Port and Starboard)
• Vertical Rod Holders (4), Stainless Steel, in Transom

HARDTOP & WINDSHIELD

• Molded Fiberglass Full Beam Hardtop
• Custom Powder Coated Aft Structural Hardtop Supports
• Custom Windshield System with Tempered Glass and Windshield Wiper
• Custom Powder Coated Grab Rails on Windshield Frame (Port and Starboard)
• Custom Stainless Steel Ratcheting LED Anchor/Stern Light with Burgee Rings and USA Flag
• Four (4) Tri Color LED Lights
• Fore and Aft Facing Spreader Lights
• Integrated Stereo Speakers (2)
• Hardtop Acrylic Access/Ventilation Hatch
• Fiberglass Hardtop with Dedicated Radar, Antenna, Outrigger and Spotlight Locations

HELM

• Molded Fiberglass Aft Tilting Helm with Instrumentation Visor, Electronics Mounting Surface, Fixed Fiberglass Footrest and Safety Lanyard
• 316L Stainless Steel Steering Wheel with Control Knob and Non-Slip Grip on Sport Tilt Plus Helm
• 12V Panel with Illuminated Carling® Rocker Switches
• Single Windshield Wiper with Washer Control
• Compass
• Trim Tab Control Panel and Indicator
• Waterproof Stereo Remote with Full Function Display
• Integrated Glovebox with One 12V Outlet (1) and Dual USB Charger
• 316L Stainless Steel Helm Drink Holders (2)
• Fire Extinguisher (Under Port Gunwale)
• Yamaha® Command Link Plus Display
• Dash/Instrument Cover

OPTIONS

BOAT WITH ENGINES

Twin Yamaha® Digital F300 (Pearlescent White)

Yamaha® Helm Master™ Steering System with Set Point (Not Available with Bow Thruster)

COLOR SELECTIONS

Hull Color

Titanium, Neptune Gray, Pursuit Flag Blue, Gulf Stream Blue Helm Color

Titanium (Standard), Neptune Gray, Pursuit Flag Blue, Gulf Stream Blue Boot Stripe Color

Black/Black (Standard), Navy/Navy, Platinum/Platinum, Red/Red, Scarlet/Scarlet, Arctic White/Quartz Gray

MECHANICAL SYSTEMS

Bow Thruster (Requires Dockside Power Option)

Dockside Power 110v/60HzAll Color Sea Blaze Quattro Spectrum

Underwater Lights (3)LED Mid-Level Accent Lights (4)LED

Spotlight with Remote Control at Helm

COMFORT & CONVENIENCE

Fiberglass (Bow Cockpit) Table with Dedicated Storage

Forward Sun pad with Dedicated Storage

Bow Tow EyeSide Boarding Door Ladder

Transom Mount Ski Tow White with Gray Upholstery

WEATHER

Stowable Cockpit Sunshade

Stowable Forward Sunshade

Sunbrella® Canvas color - Black, Tweed, Cadet Gray, or NavySide Curtains - Sunbrella®Side Curtains - Stamoid® (white)Aft Curtain, Sunbrella®Aft Curtain, Stamoid® - WhiteBow Tonneau Cover, Stamoid® - WhiteEngine Covers, Sunbrella®

SPORT FISHING

Taco Grand Slam 380 Outriggers with 18' Telescoping Poles

Hardtop Mounted Rod Holders (6)

UNDERSIDE HARDTOP COLOR

TitaniumNeptune GrayFlag BlueGulf Stream Blue

ELECTRONICS

Garmin® 8612 Electronics Package

Includes: Garmin® GPSMAP 8612xsv Display, 8612 12" Display, CHIRP B 175M 1kW Thru-Hull Transducer, VHF 315 Marine Radio, VHF Antenna, Yamaha® Gateway, Custom Pursuit Dash PanelGarmin® GMR™ 24 xHD DomeGarmin® Reactor Corepack with Smartpump Auto PilotGarmin® GHP Reactor Auto Pilot (with Helm Master)
